Dorna AC Servo Motor 1.5kw 130mm Flange with Brake

In order to continuously improve the technological content of our products, we pay great attention to technological innovation and talent training to fully guarantee accurate measurement, excellent performance and reliable quality of our cnc spindle servo motor driver, ac servo motor control system, 2900W Ac Servo Motor And Driver. Adhering to our long-established corporate spirit of 'Serious for each Customer' we will do our best to offer customers the best quality products and service at the competitive prices, to meet the variable challenges and keep advantage in the new century. Our business dealings are conducted with the highest standards of ethics and transparency. We respect each individual and the individuality of our employees, which helps to keep the workforce diverse.

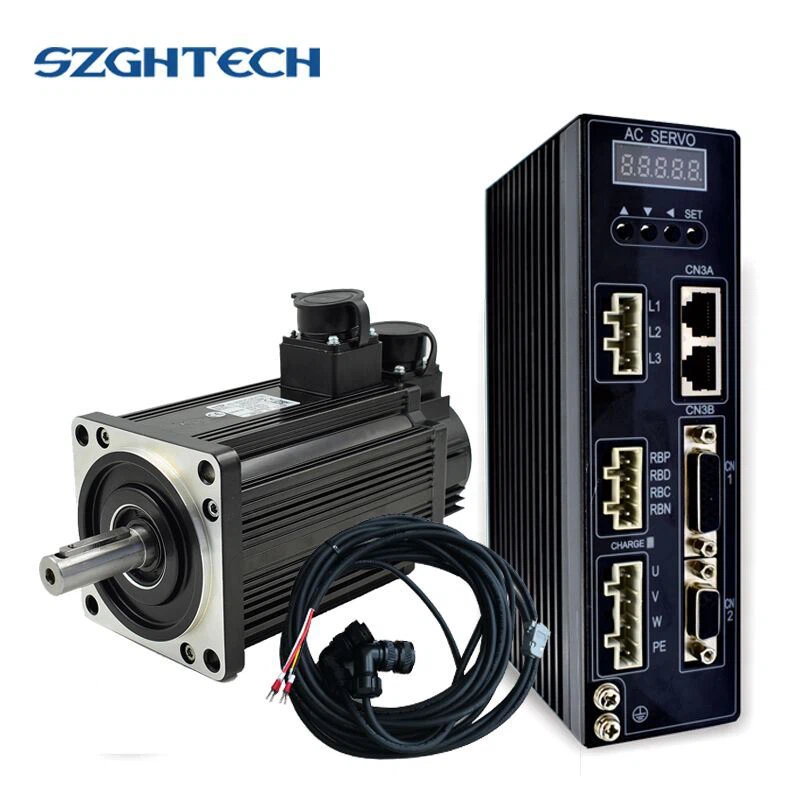

High speed Ac Servo Motor 600W 1.9Nm 3000rpm and Driver for Sewing Machinery

1%1AH[DSI4(KRDN4Y5EQ@MM

(1YWY[AJR{`A1}4IG(XYFZY(001)

Features

GH-11060DC is 600W servo motor , 110 frame, big load, and mataching with big servo driver, is very specially model between 400W and 750W servo motor.

The match servo driver, GH-sd2026 ,that matching for 600W servo motor.

Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.

Motor Model	SZGH-11060DC
Rated Power(W)	600
Rated Voltage(V)	220
Rated Crrent(A)	2.5
Rated Speed(RPM)	3000
Rated Torque(NM)	2
Peak Torque(NM)	6
Voltage Constantv10r/min	56
Torque Coefficient(NM/A)	0.8
Rotor Inertia（Kg.m²）	0.31*10
Line-Line Resistance（Ω）	3.6
Line-Line Inductance(mH)	8.32
Machanical Time-Constant(Ms)	2.3
Encoder Resolution(PPR)	2500
Insulation Class	Class B
Safety Class	IP65
The Operating of Evironmental Condition	Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)	4.5

8(001)

9(001)

6 - 1(001)

20210119100512f45f2f66edff40adb05e79916dfd372c(001)

2021011910051408fa774b887247b988421343478d4694(001)

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer cnc system products. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

If you have another question, pls feel free to contact us as below

The company always adheres to the business philosophy that integrity is capital, quality is life, and innovation is driving force, leading the development of the Dorna AC Servo Motor 1.5kw 130mm Flange with Brake industry. Over the years, with excellent management system and unique regional advantages, we have established long-term, stable and friendly cooperative relations with many manufacturers at home and abroad. Since the start-up, our company pays attention to the introduction and cultivation of professionals and has a number of high-level professional and technical personnel.
