Foam Cutting CNC Router / 4 Axis 3D CNC Milling Machine for EPS, Styrofoam, PU, Polystyrene, Polyurethane Foam

Our company has always adhered to the 'intimate service, more appropriate products, help customers, achievements of employees, common development' business philosophy and constantly develop better 100KG Handling Robot Arm, 1000W Ac Servo Motor And Driver, servo driver. We give full play to the cooperation ability of the team, pursue sustainable operation and create high-quality products. With the continuous research and application of advanced technology, our company has achieved rapid development. With a good reputation, solid technology, thoughtful and meticulous service, and a new learning team, we will definitely provide you with the most professional technical support and services.

0X9A5601(001)

0X9A5568(001)

0X9A5603(001)

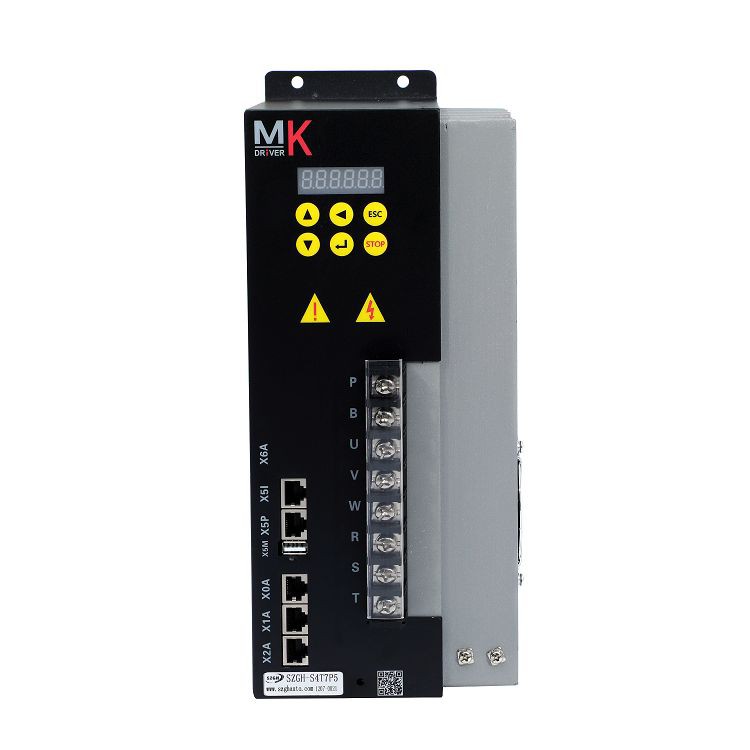

Input Power	Rated Voltage/frequency	Three-phase 380V/480V;50Hz/60Hz
	Allowable Voltage range	+10%~-15%
	Allowable Frequency Fluctuation	± 5%
Control Features	Control Mode	PWM Vector Control
	Speed Adjustment Range	0.01~500Hz
	Speed Stabilization Precision	± 0.1%
	Acceleration/Deceleration time	0.05~3000Hz/s
	Torque Control	200% Rated torque output;Torque precision ±5%
	Position Control Precision	±1 Pulse
	Braking Mode	Powered Braking
	Overload Capacity	Twice Overload
I/Os	Digital Input	10 points , NPN or PNP(Optional)
	Digital Output	6 points , NPN
	Relay Output	2pcs ,DC30V/1A Or AC250V/1A
	Analog Input	2 inputs, A0:±10V; A1: 0~±10V Or 4~20mA (Optional)
	External Pulse Input	1 type ,ABZ phase pulse ,Pulse+Direction Or CW (Optional)
	Motor Encoder Input	1 type,RS422 TTL , Rotatry Connector(Optional)
	Motor Encoder Output	1 pcs,RS42TTL ,Output Frequency Range: 0~1MHz
Protection Function	Over-Voltage Protection,Low-Voltage Protection,Over-Current Protection,Over-Heat Protection, module Protection,Overload Protection,Output Short-Circuit Protection, Encoder's abnormal Protection
WorkingEnvironment	Operating Site	The product shall be mounted verticlly in the electric control cabinet with good ventilation. The product shall be installed in the environment free from direct sunligh ,dust,corrosive gas, sombustible gas,oil mist,steam and drip
	Humidity	5~90%, not allow condensing
	Altitude	0~3000Meters,derated above 1000m, the rated output current shall be decreased by 1% for every rise of 100m
	Vibration	Under 20Hz:1G; 20~50Hz: 0.2G

Motor Features

CW&CCW: Speed Error +/- 1RPM , Acceleration/Deceleration time of 3000RPM : 1second
Independent Quasi Stop: Positioning with High Precision(0.03。)
Rigid Tapping: Max speed of tapping is 3000RPM ,Min of dental work is M3 ;
Function of C-Axis: Indexing Accuracy: +/-1 Pulse ; Turning/Milling: 0.01rpm ;
Cutting in Low Speed: Overload(3 times holding torque),ensure stablity of cutting,applied in casting process;
High-Speed Precision Machining: Constant power output over 4000RPM,stable ratoting speed,ensure finish;
Strong Applicability: Match for CNC System , PLC etc.
Powerful Development : Custome Manufacturing .

16.1(001)

16.2

20210119100508f638db1644574756bc361fba8e4f6cae

20210119100512f45f2f66edff40adb05e79916dfd372c

2021011910051408fa774b887247b988421343478d4694

FAQ

Q: Which shipping way can you provide?

A: We can provide shipping by sea, by air and by express.

Q: What’s your after-sale service?

A: Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.
