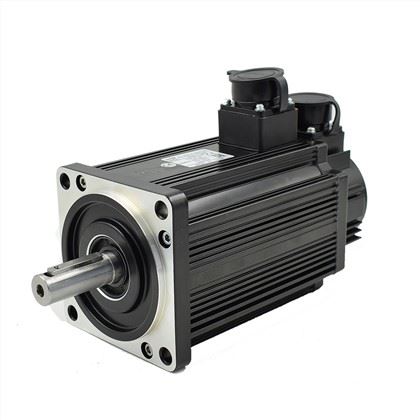

1 .8kw AC Servo Motor And Driver

1 .8kw AC Servo Motor And Driver

GH-11180DC specailly design with bigger and beautiful contour, large load , long-term continuous working in rated working mode.
Send Inquiry


Single-Phase AC Servo Motor 1.8kw 6NM 3000rpm AC Servo Motor And Driver For CNC Controller

Hbd61397a57ea4b18a247b7a84f515431p

Features

GH-11180DC is 1800W servo motor system,6.0NM,3000RPM. specailly design with bigger and beautiful contour, large load , long-term continuous working in rated working mode.



Motor Model SZGH-11180DC
Rated Power(KW)1.8
Rated Voltage(V)220
Rated Crrent(A) 6.0
Rated Speed(RPM) 3000
Rated Torque(NM)6
Peak Torque(NM)18
Voltage Constantv10r/min 60
Torque Coefficient(NM/A)1
Rotor Inertia（Kg.m²）0.76*10
Line-Line Resistance（Ω）0.81
Line-Line Inductance(mH) 2.59
Machanical Time-Constant(Ms)3.2
Encoder Resolution(PPR) 2500


Application

It is widely used in various processing machinery and automation equipment such as metal cutting machine tools, laser processing machine tools, woodworking machine tools and so on.

Servo System

1)With Tamagawa encoder: Incremental(2500PPR/Absolute Servo Motor(17bits/23bits)

2)Position Control:Pulse+Direction,Modbus: RS485/EtherCAT/Canopen/PowerLink


Servo motor advantages:

1.Operate Steadily 2.High Precision

3.Big Power Range(50W-11KW)

4. Strong Overload Resistance 5.High Speed and Excellent Performance


8(001)

9(001)

10

11

_20210817162726

CAD)3HYEEBD$KJAEXDXD_J2

Hbc8c73dbe8b84a958399e641043246d9S

]BVIN0(GRPITID%ZGU37~R5

H6aada374ce7d45d883021e74cc0b9923f

_20210813174452
