GH-18270CC is 2700W SERVO MOTOR, 180mm frame size,1500RPM rotation speed, 17.2NM,it can be 220V or customized with 380V.

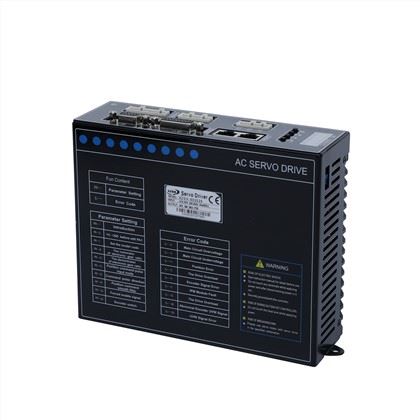

2700W 17.2Nm AC Servo Motor and Driver


GH-18270CC is 2700W SERVO MOTOR, 180mm frame size,1500RPM rotation speed, 17.2NM,it can be 220V or customized with 380V.
Send Inquiry

High precision Servo Drivers 2700W 17.2Nm 1500rpm in AC Servo Motor and Driver kit for Machine Matched CNC Controller







Features

GH-18270CC is 2700W SERVO MOTOR, 180mm frame size,1500RPM rotation speed, 17.2NM,it can be 220V or customized with 380V.


Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.


Motor Model SZGH-18270CC
Rated Power(KW)2.7
Rated Voltage(V)220/380
Rated Crrent(A) 10.5/6.5
Rated Speed(RPM) 1500
Rated Torque(NM)17.2
Peak Torque(NM)43
Voltage Constantv10r/min 112/167
Torque Coefficient(NM/A)1.64/167
Rotor Inertia（Kg.m²）3.4*10
Line-Line Resistance（Ω）0.7/1.47
Line-Line Inductance(mH) 3.5/7.8
Machanical Time-Constant(Ms)5.0/5.3
Encoder Resolution(PPR) 2500
Insulation Class Class F
Safety ClassIP65
The Operating of Evironmental Condition Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)19.5


FAQ

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample with sample price.

Q: Do you have the test and audit service?

A: Yes, we can assist to get the designated test report for product and the designated factory audit report.


Send Inquiry

FAQ

The following are the common questions we have collected about CNC Controller.
1. Q: What services do you provide?
+
A: We offer one-stop service. We can customize the most suitable processing solution based on your ideas and product drawings. We have partnerships with major shipping companies such as DHL, FEDEX, and UPS to ensure timely delivery. Products can be delivered to you within 3-6 business days.
2. Q: What can you do for CNC machine tool retrofit and upgrade?
+
A: We can provide a complete CNC system. Our controller supports ATC and PLC and runs G-code. Support multiple languages, Russian, Spanish, English, Chinese, etc.The kit includes the controller, spindle servo motor and driver, servo motor drivers for each feed axis, and all standard cables, user manuals, and wiring diagrams. Our CNC control system is fully connected before shipment and tested 3-5 times for plug-and-play operation.
3. Q: What is your after-sales service like?
+
A: Our professional after-sales engineers provide 24-hour, one-on-one, free service. You don't have to worry about any after-sales issues.
4. Q: What optional accessories are available for CNC machine tools?
+
A: You can choose different accessories based on your machining needs. CNC Lathe:Servo turret, hydraulic chuck, manual chuck, Parts Catcher, Tailstock，guide bush,Flying knife disc,Tailstock,living tool,bar feeder, chip conveyor, etc. CNC Milling Machine: Fourth and fifth axis CNC rotary tables,Tailstock,BT30/BT40 holder, tool setters, probes, etc.
5.Q: How do you maintain the machine?
+
A: You must receive safety training before use. Regularly clean chips, check the air supply/oil pressure, lubricate the guideways, and inspect tool wear.
