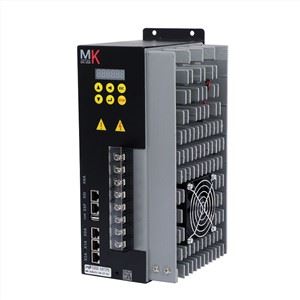

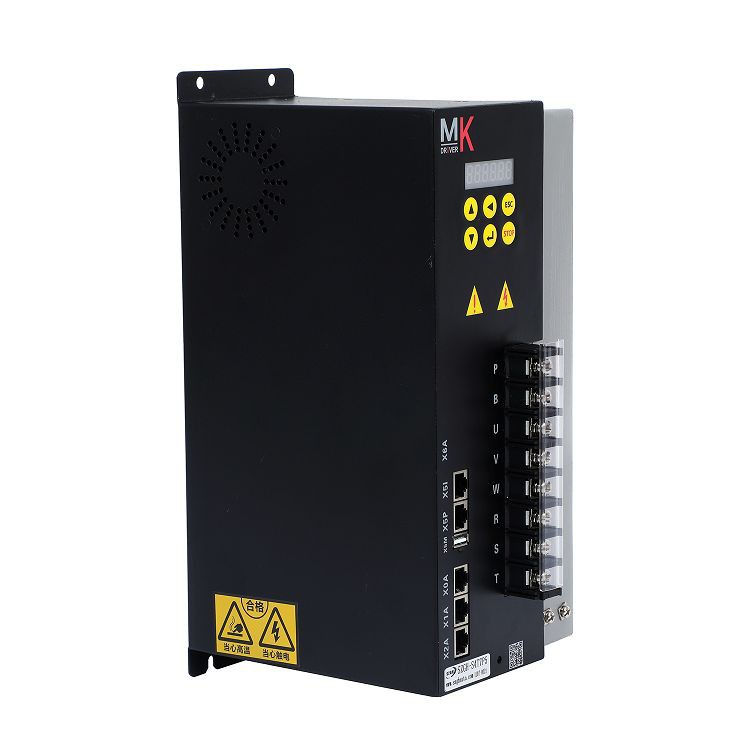

1.5KW Servo Spindle Driver

Allowable Voltage range

+10%~-15%

Allowable Frequency Fluctuation

± 5%

Control Features

Control Mode

PWM Vector Control

Speed Adjustment Range

0.01~500Hz

Speed Stabilization Precision

± 0.1%

Acceleration/Deceleration time

0.05~3000Hz/s

Torque Control

200% Rated torque output;Torque precision ±5%

Position Control Precision

±1 Pulse

Braking Mode

Powered Braking

Overload Capacity

Twice Overload

I/Os

Digital Input

10 points , NPN or PNP(Optional)

Digital Output

6 points , NPN

Relay Output

2pcs ,DC30V/1A Or AC250V/1A

Analog Input

2 inputs, A0:±10V; A1: 0~±10V Or 4~20mA
(Optional)

External Pulse Input

1 type ,ABZ phase pulse ,Pulse+Direction Or
CW (Optional)

Motor Encoder Input

1 type,RS422 TTL , Rotatry Connector(Optional)

Motor Encoder Output

1 pcs,RS42TTL ,Output Frequency Range:
0~1MHz

Protection Function

Over-Voltage Protection,Low-Voltage Protection,Over-Current Protection,Over-Heat
Protection, module Protection,Overload Protection,Output Short-Circuit Protection,
Encoder's abnormal Protection

WorkingEnvironment

Operating Site

The product shall be mounted verticlly in the
electric control cabinet with good ventilation.
The product shall be installed in the environment
free from direct sunligh ,dust,corrosive gas,
sombustible gas,oil mist,steam and drip

Ambient Temperature

-10℃ ~ +45℃

Humidity

5~90%, not allow condensing

Altitude

0~3000Meters,derated above 1000m, the
rated output current shall be decreased by 1%
for every rise of 100m

Vibration

Under 20Hz:1G; 20~50Hz: 0.2G
