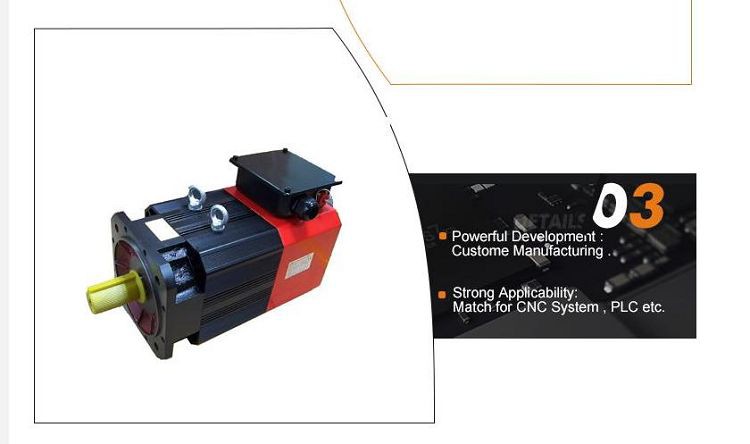

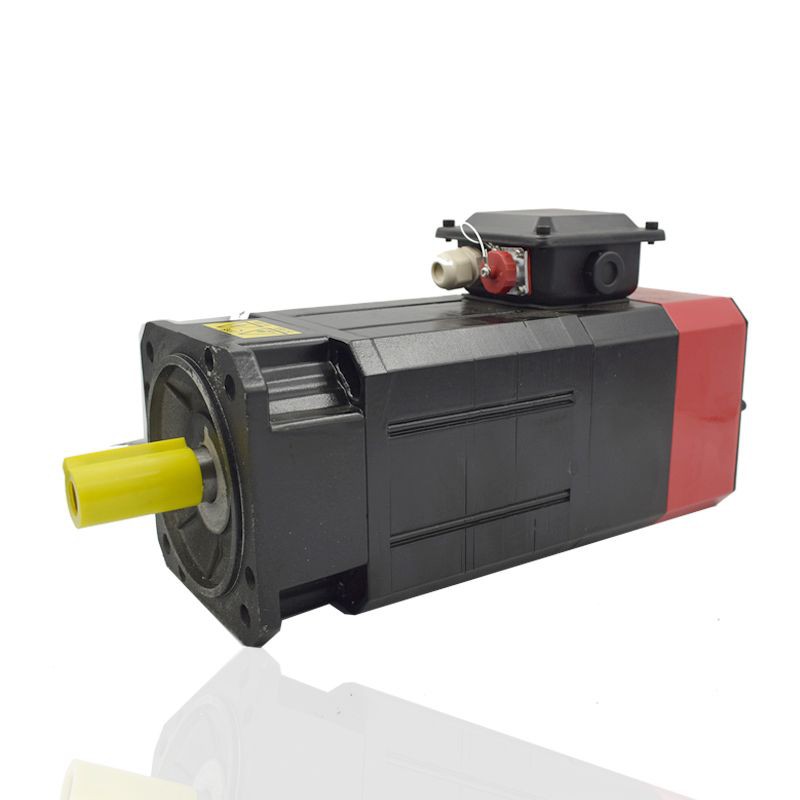

SZGH Practical 3phase 220V 2.2KW Spindle Motor

Product Description

GH practical 3phase 2.2KW  Spindle Motor -The model is SZGH09-4-14-2.2/3.7-4-1500:2.2Kw,14NM,max speed 8000RPM,rated speed1500RPM 380V

This servo spindle motor has the following functions and features：

1. High power: With a power of 7.5kW, it provides sufficient power output for a variety of applications requiring more power.

2. Wide range of applicable voltages: support 220V and 380V two voltages, can adapt to different power configurations and use environments, improve flexibility and compatibility

3. Servo control: Using servo control technology, with high-precision position control and speed adjustment capabilities, it can achieve precise processing and motion control

4. Spindle drive: Designed for machine spindles, it provides high speed and high torque output for work scenarios that require high-speed rotation and high load

5. High efficiency: Advanced motor design and control algorithms are adopted, with high-performance characteristics, which can maximize the conversion of electrical energy into mechanical energy, reducing energy consumption and heat generation

6. Reliability and durability: High-quality manufacturing processes and material selections ensure product reliability and durability, and stable operation under long-term and high-load operating conditions

7. System integration: Support integration with other equipment and control systems, can be used with automated production lines or workstations to achieve the whole system

Features:

Motor Features:

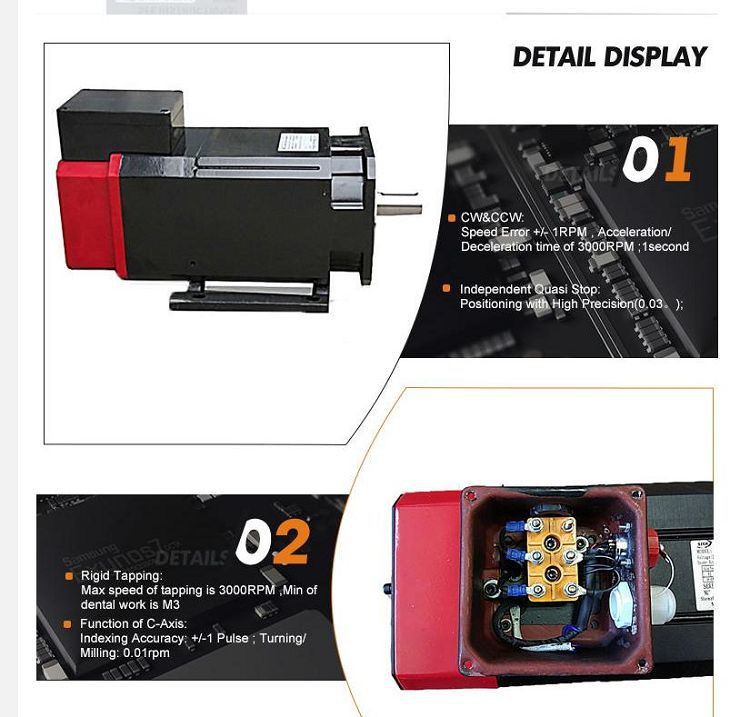

1) CW&CCW: Speed Error +/- 1RPM , Acceleration/Deceleration time of 3000RPM : 1second
2) Independent Quasi Stop: Positioning with High Precision(0.03。)
3) Rigid Tapping: Max speed of tapping is 3000RPM, Min of dental work is M3 ;
4) Function of C-Axis: Indexing Accuracy: +/-1 Pulse ; Turning/Milling: 0.01rpm ;

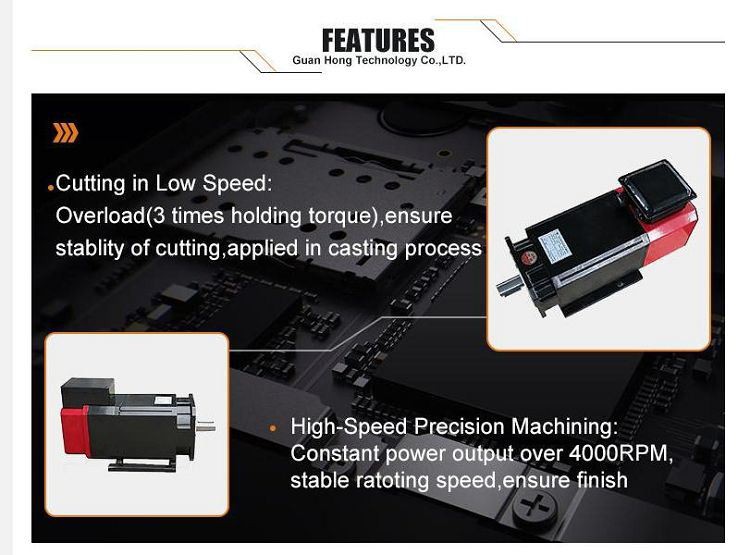

5) Cutting in Low Speed: Overload(3 times holding torque),ensure stability of cutting,applied in casting process;
6) High-Speed Precision Machining: Constant power output over 4000RPM, stable rotating speed, ensure finish;
7) Strong Applicability: Match for CNC System, PLC, etc.
8) Powerful Development: Custome Manufacturing.

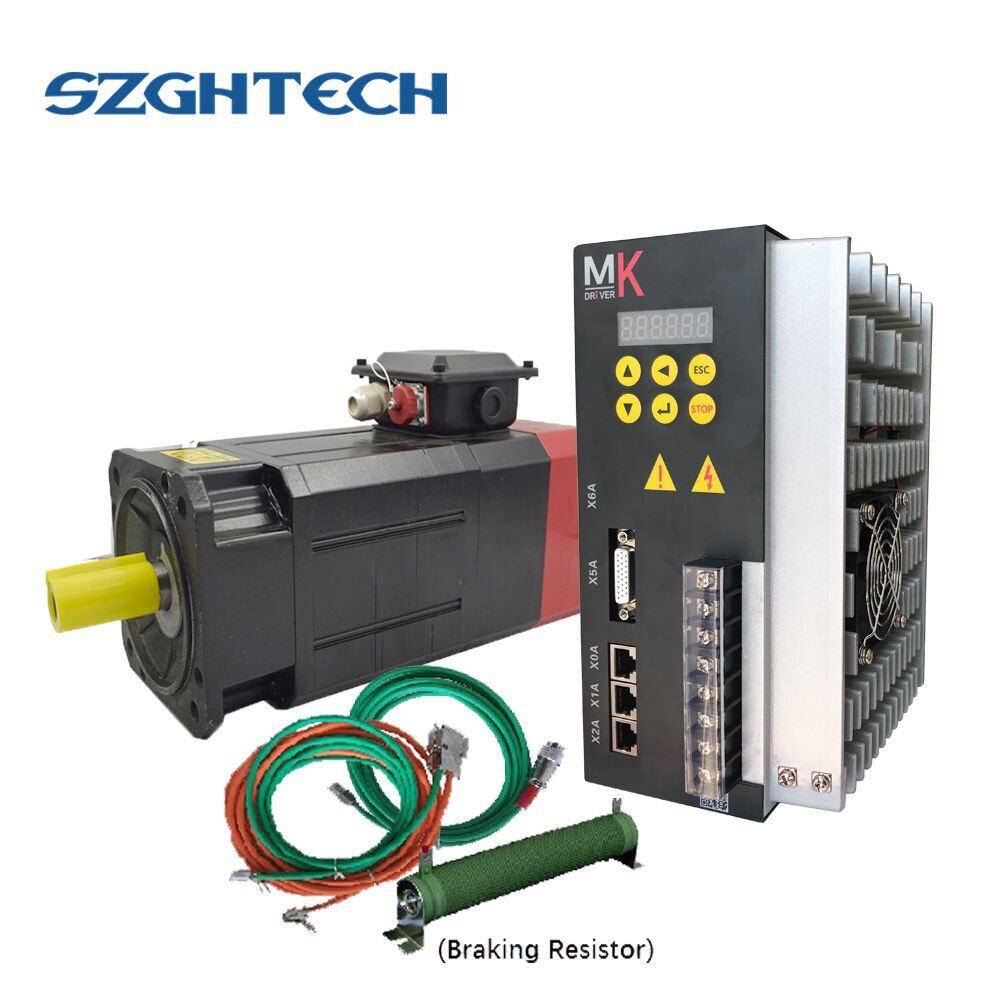

Driver Features

1) High-Performance

2) Safe & Reliable

3) Remote Communication Function(Optional)
4) Powerful Expansion Capability(Optional)

Company Profile

We are a company specializing in CNC system supply, with rich export experience and successfully exporting our products to all over the world. Our product range covers CNC controllers, servo motors and drives, servo spindle motors and drives, machine tools and robot arms.

Here are the features and advantages of our company:

1. Broad product line: We offer comprehensive CNC system solutions, from controllers to motors and drives, to machine tools and robotic arms. This means customers can find all the key components they need from us, enabling one-stop sourcing and simplified supply chain management.

2. Rich export experience: We have accumulated rich export experience in the international market. We have established long-term partnerships with global customers, and our products have been successfully launched in many countries and regions, which are widely recognized and appreciated by customers.

3. High Quality Products: We are committed to providing high quality products. We work with reliable suppliers, using high-quality materials and advanced manufacturing processes to ensure our products meet or exceed industry standards in terms of performance, reliability and durability.

4. Technological innovation: We keep up with the latest development trend of CNC technology, and continue to carry out R&D and innovation. Our team has extensive technical experience and expertise to design and deliver customized solutions that meet customer needs.

5. Customer-specific: We value close cooperation with our customers to understand their specific needs and requirements. We offer individual solutions, tailoring products to meet the specific needs of different industries and applications.

6. Excellent Service: We are committed to providing exceptional customer service. Our team provides comprehensive support before and after the sale, including consulting, installation and commissioning, training and after-sales service. We are always oriented towards customer satisfaction and ensure that our customers receive timely, professional and friendly support.

FAQ

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample with sample price.

Q:SZGHTECH accept OEM/ODM order?

SZGHTECH accept OEM/ODM orders based on bulk quantity

Q:Where we can get products information from?

You can go through our website links as below:

www.szghtech.com

Also you can contact our international marketing team.
