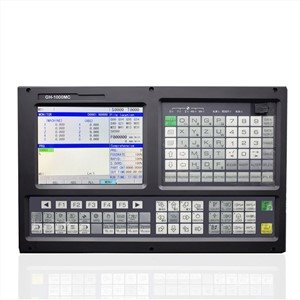

As siemens milling controller Support PLC ATC 3 Axis Milling CNC Machine Control system with USB
Number of control axes | 3axes (X,Y, Z) |
Minimum programming | 0.001mm |
Maximum programming | ± 99999.999mm |
Top speed | 30m / min |
Feed speed | 0.001-15m / min |
Manual continuous | One axis or simultaneous multi-axis |
Interpolation method | Straight line, arc, thread interpolation |
Tool offset | Length compensation, nose radius C compensation |
Spindle functions | Gear, dual analog control, rigid tapping |
Handwheel functions | Panel type, plug-in hand-held |
Screen saver function | Screen saver function |
Communication function | RS232, U disk interface |
Compensation function | Knife compensation, between compensation, screw compensation, radius compensation |
Program editing | Male / English, relative / absolute programming |
Limit function | Software limit, hardware limit |
Pre-reading function | Short line preprocessing 10,000 lines |
Password protection | Multi-level password protection |
Input and output | I / O point 24X24 |
PLC programming | The user is free to design PLC function |
Acceleration and deceleration control | Linear acceleration and deceleration, the number of additions and subtractions |
Encoder lines | Any setting |
User macro program | Yes |
Electronic gear functions | Yes |
Number of control axes | 3axes (X, Y, Z) |
Minimum programming | 0.001mm |
* Control axis: 3-5 axis (X, Y, Z,A,B)
* Interpolationaxis: Any 3 axis linear interpolation , any 2 axis circular interpolation
Spindle axis functions:
* Two channels 0V ~ 10V analog voltage output, support double spindle control
* Spindle encoder: encoder lines can be set (100 p/r ~ 5000p/r)
* Encoder and spindle’s transmission ratio: (1 ~ 255):(1 ~ 255)
Tool functions:
* Tool length compensation
* Tool point radius compensation (C type)
Precision compensation:
* Thread pitch error compenstation: Compensation points, compensation interval, compensate original position can be set.
* Backlash compensation: can set reverse interval to interpolation machine tool by fixed frequency or lifting speed mode.
Related products：
2,Axis servo motor &driver
3.Spindle Servo Motor&driver
4,Rotary table
High quality products&Professional service
