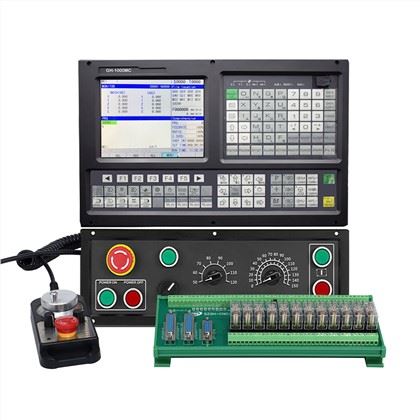

3 axis cnc turning controller panel

1000MC-3

Number of control axes	3 axes (X, Z, Y)
Minimum programming	0.001mm
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Manual continuous	One axis or simultaneous multi-axis
Interpolation method	Straight line, arc, thread interpolation
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Handwheel functions	Panel type, plug-in hand-held
Screen saver function	Screen saver function
Communication function	RS232, U disk interface
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Program editing	Male / English, relative / absolute programming
Limit function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Input and output	I / O point 24X24
PLC programming	The user is free to design PLC function

Application: CNC Lathe & Turning Machinery and specially automatic equipment

The CNC controller refers to the program control system of the computer numerically controlling the machine tool. Able to logically process programs with control codes or other symbolic instructions, decode them by the computer, so that the machine tool executes the prescribed actions, and the blanks are processed into semi-finished parts through tool cutting, which greatly improves mold processing Productivity

image005_01

QQ20210701150818

GH always do good product and service to our clients.

1 - 1

1 -

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer cnc system products. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Q: How many different types of products your company manufactures?

A: Now we have more than 300 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to the customer’s exact situation.

If any inquiry about our 3 axis cnc turning controller panel pls do not hesitate , we must do good support to you ! come on !
