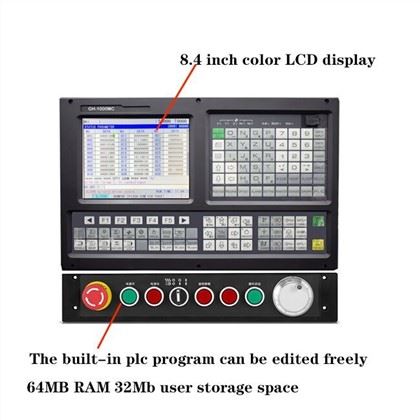

3 Axis Turning Controller

3 axis lathe controller ,model is 100TC-3: 1) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes 2) Scanning Function & Auto Tool Setter/Probe 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

Customizable LOGO 3 Axis Turning Controller Support Powerlink Servo for Feeding Axes lathe hanger hook machine CNC Control Unit

Number of control axes	3 axes (X, Z, Y)
Minimum programming	0.001mm
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Manual continuous	One axis or simultaneous multi-axis
Interpolation method	Straight line, arc, thread interpolation
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Handwheel functions	Panel type, plug-in hand-held
Screen saver function	Screen saver function
Communication function	RS232, U disk interface
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Program editing	Male / English, relative / absolute programming
Limit function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Input and output	I / O point 24X24
PLC programming	The user is free to design PLC function
Acceleration and deceleration control	Linear acceleration and deceleration, the number of additions and subtractions
Encoder lines	Any setting
User macro program	Yes
Electronic gear functions	Yes
Number of control axes	3axes (X, Z ,Y)
Minimum programming	0.001mm

CNC lathe Controller Function:

1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret

2)Threading Cycle: Following Mode/Interpolate Mode

3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

4) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

5) Scanning Function & Auto Tool Setter/Probe

compatible with those of GSK980TDb Turning CNC System

Application: CNC Lathe & Turning Machinery and specially automatic equipment

QQ20210702093413

QQ20210701150818

GH always do high-quality product and professional service to our clients.

1 - 1

Hbc8c73dbe8b84a958399e641043246d9S

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer cnc system products. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Q: How many different types of products your company manufactures?

A: Now we have more than 300 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.

If you have another question, pls feel free to contact us as below

any order pls do not hesitate , we must do good support to you ! come on !
