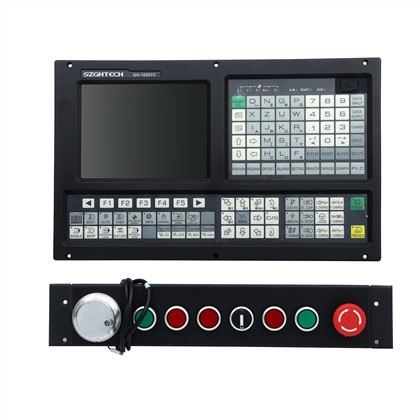

3 Axis Milling Controller

GH1000MC-3 is 3 axis milling CNC controller with PLC,macro , ATC and encoder feedback function. And widely applied in CNC milling machinery; machining center; milling center; wood working machine; compatible with SZGH all of motor and driver.

As Mitsubishi 3 Axis Keyboard Driling Cnc Controller with Umbrella Type Arm Type For Open Side Type milling machine 3 Axis homemade standalone cnc milling controller

Number of control axes	3 axes (X, Z, Y )
Minimum programming	0.001mm
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Manual continuous	One axis or simultaneous multi-axis
Interpolation method	Straight line, arc, thread interpolation
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Handwheel functions	Panel type, plug-in hand-held
Screen saver function	Screen saver function
Communication function	RS232, U disk interface
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Program editing	Male / English, relative / absolute programming
Limit function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Input and output	I / O point 24X24
PLC programming	The user is free to design PLC function
Acceleration and deceleration control	Linear acceleration and deceleration, the number of additions and subtractions
Encoder lines	Any setting
User macro program	Yes
Electronic gear functions	Yes
Number of control axes	2axes (X, Z, Y)
Minimum programming	0.001mm

Function:

Online configuration of servo parameters and online monitoring of servo status are supported. It has on-line CAM function of drilling groove milling, on-line programming wizard, automatic programming of plane milling and so on. Support through GSK-link bus extension I/O, can be adapted to the disk knife library and bamboo hat knife library, to meet the needs of machining centers and special machine tools.

CNC Controller, including economic type, standard type, high-performance type and Modbus type( which can support EtherCAT/Powerlink). It can be 16 axes at max.

image005_01

QQ20210701150818

1 - 1

H6aada374ce7d45d883021e74cc0b9923f

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer cnc system products. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Q: How many different types of products your company manufactures?

A: Now we have more than 300 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.

If you have any other question about 3 Axis Milling Controller , pls feel free to contact us as below!
