4 Axis Cnc Controller System

CNC lathe Controller: 1)Threading Cycle: Following Mode/Interpolate Mode 2) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800) 3) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

1000MC-3

Number of control axes	4 axes
Minimum programming	0.001mm
Display	8.4 inch color screen
interface	USB+RS232 Communction Port
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Pre-reading function	Short line preprocessing 10,000 lines
Function	ATC+PLC and macro function
ATC function	Electric Turret/Binary Turret/Servo Turret/Special Turret
Threading Cycle	Following Mode/Interpolate Mode
Menu	English menu
Application	CNC Lathe & Turning Machinery and especially automatic equipment
Our Services	12 Months warranty；Provide professional CNC solutions
PLC functions	1）Support PLC warning and PLC alarm 2）Support multiply PLC programming (mostly 20), the current PLC programming can be chosen 3）45 kinds of commands (10 kinds of basic commands, 35 kinds of function commands)

1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

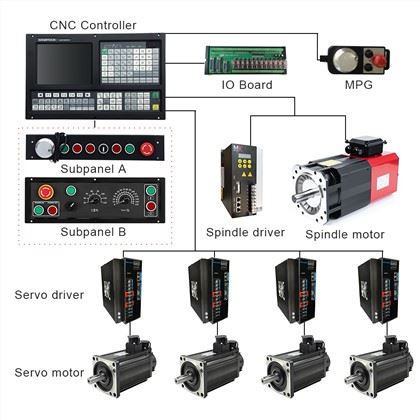

We can provide you with a complete set of customized CNC kits,

which is very convenient and efficient for you.

GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.

7.-()

8.-&&()

9.-&()

FAQ

Q: How long is the quality guarantee?

A: One year guarantee.

Q: How long is the delivery time?

A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-20 days.

Q: Do your products have a factory inspection before shipment?

A: 100% self-inspection before shipment.

Q: Can you provide some free samples?

A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.

Q: What kind of packing do you send?

A: We use high quality cartons, internal environmental protection buffer material.

If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement, pls do not hesitate, we must do good support to you! come on!
