Cnc Controller Kit With Servos

CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800) 4) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

1000MC-3

Number of control axes	3 axes
Minimum programming	0.001mm
Display	8.4 inch color screen
interface	USB+RS232 Communction Port
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Pre-reading function	Short line preprocessing 10,000 lines
Acceleration and deceleration function	• Cutting feeding: Acceleration and deceleration • Rapid traverse: Acceleration or deceleration • Tapping • The starting speed,finishing speed and time of acceleration and deceleration are set by parameter
Function	ATC+PLC and macro function
Encoder lines	Any setting
User macro program	Yes
Menu	English menu
Application	CNC Lathe & Turning Machinery and especially automatic equipment
Our Services	12 Months warranty；Provide professional CNC solutions；

1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

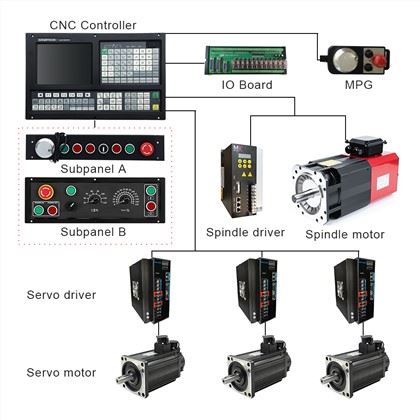

We can provide you with a complete set of customized CNC kits,

which is very convenient and efficient for you.

GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.

7.-()

8.-&&()

9.-&()

FAQ

Q1: Who are we?

We are based in Guangdong, which providing cnc total solutions&Robot arm, sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).

Q2: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q3: What's the MOQ? 1 set.(Only some low cost machines will be more than 1 set)

Q4: Does your cnc support ATC function?

Yes, our CNC lathe system can support most of turret, like Eletric turret,servo turret,counting turret,etc; We can edit special macro program & plc for special turrets also; And our CNC milling system support Linear type , umbrella type, arm type, turret type tool magazines.

If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement, pls do not hesitate, we must do good support to you! come on!
