CNC lathe Controller: 1)With USB interface ,it supports file operation in flash disk,system configuration and software upgrade 2)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch

Cnc Controller With Usb Interface


CNC lathe Controller: 1)With USB interface ,it supports file operation in flash disk,system configuration and software upgrade 2)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch
Send Inquiry



1000MC-3

Number of control axes

4 axes

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Tool offset

Length compensation, nose radius C compensation

Spindle functions

Gear, dual analog control, rigid tapping

Limit function

Software limit, hardware limit

Pre-reading function

Short line preprocessing 10,000 lines

Password protectionMulti-level password protection
Compensation functionKnife compensation, between compensation, screw compensation, radius compensation
FunctionATC+PLC and macro function
Encoder linesAny setting
User macro programYes
MenuEnglish menu
User macro program:Have


 1)Threading Cycle: Following Mode/Interpolate Mode

 2) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

 3) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

 4) Scanning Function & Auto Tool Setter/Probe

 5) Support ATC(ATC function is Electric Turret/Binary Turret/Servo Turret/Special Turret),

 6) Support Macro function

 7) PLC function(PLC program download by USB interface,PLC program can be customized edited and edit freely)


1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

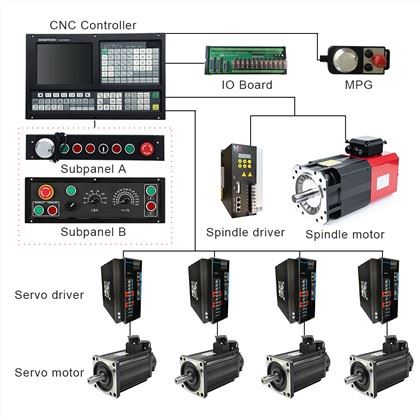

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.


7.-()

8.-&&()

9.-&()


FAQ

Q1: Does it support English vesion?
A: Yes It support ENGLISH-CHINESE MANUAL

Q2: How to select the CNC controller?

You have info us what is the CNC model and type,and let us know motor range ,we will help to select.
Q3: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .

Q4: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.

Q5: How is delivery time?
A: Generally it takes 7-15 days for regular type , for big quantity or OEM/ODM orders, pls negotiate with sales.

Q6: What's your payment terms?
A: We accept T/T, L/C, ALI TRADE ASSURANCE, cash.



If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement,  pls do not hesitate, we must do good support to you! come on!

Send Inquiry

FAQ

The following are the common questions we have collected about CNC Machine.
1. Q: What industries and materials are your machine tools primarily suitable for?
+
A: Our extensive machine tool product line meets the needs of various industries, primarily automotive parts manufacturing, precision molds, and general hardware processing. Regarding materials, our machines can efficiently process a variety of steels, aluminum alloys, copper alloys, cast iron, as well as some engineering plastics and composite materials. The capabilities of individual models vary; please provide your specific processing requirements and we will recommend the most suitable model.
2. Q: What are the core advantages of your machine tools compared to similar products on the market?
+
A: Our core advantages are primarily reflected in three aspects: Peace of mind: For software, we have one-on-one service from technical engineers to help you quickly master our controllers. For hardware, our cast iron bodies are durable and long-lasting, and come with a one-year warranty, providing you with the ultimate assurance. Intelligence and ease of use: A wide range of optional accessories allows for customization, and supports automated loading and unloading interfaces, significantly improving production efficiency and the human-machine collaboration experience. Excellent value for money: Through vertically integrated supply chains and lean manufacturing, we offer competitive pricing and a faster return on investment while maintaining world-class quality.
3. Q: What kind of after-sales service and technical support do you provide after purchasing a machine tool?
+
A: We offer comprehensive after-sales support: Professional Training: Upon delivery, our engineers provide one-on-one operation, programming, and maintenance training. Warranty Policy: The entire machine comes with a 12-month warranty. Quick Response: We have a 24/7 online technical support hotline, promising remote support within 24 hours for any issues.
4. Q: What are the delivery time and logistics arrangements for the machine tools?
+
A: For standard models, we typically have them in stock or have a short delivery time of less than 15 business days. Customized models have a delivery time of approximately 45 days, depending on the configuration requirements. After placing an order, our project manager will follow up every step of the way. We provide professional wooden crating and rust-proofing, and work with reliable logistics partners to ensure the equipment arrives safely and on time at your address.
5. Q: If I require a customized solution, can you provide support?
+
A: Of course! Customization is one of our core capabilities. Our team of dedicated application engineers can customize your workpiece, production line layout, and automation needs. This includes, but is not limited to, specialized fixtures, expanded tool magazine capacity, integrated robotic interfaces, and the creation of complete flexible manufacturing cells. Feel free to contact our technical sales team to discuss your needs.
