Cnc Lathe Controller Automatic Equipment Rtcp Mode

CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

1000MC-3

Number of control axes	2~5 Axis
Minimum programming	0.001mm
Display	8.4 inch color screen
interface	USB+RS232 Communction Port
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Spindle functions	Gear, dual analog control, rigid tapping
Pre-reading function	Short line preprocessing 10,000 lines
Function	ATC+PLC and macro function
Encoder lines	Any setting
User macro program	Yes
Our Services	12 Months warranty；Provide professional CNC solutions；
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Operation management	1) Operation mode: automatic, manual, edit, input, DNC, handwheel, back to reference point 2) Level 6 operation authority management 3) 32 timed outages 4) Program switch, parameter switch

1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

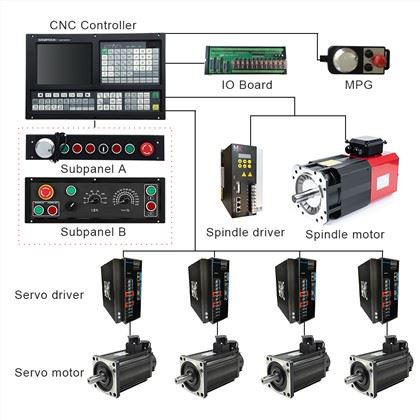

We can provide you with a complete set of customized CNC kits,

which is very convenient and efficient for you.

GH-1000TC

7.-()

8.-&&()

9.-&()

FAQ

1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese

3. Do you provide training for your product?

We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.

If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement, pls do not hesitate, we must do good support to you! come on!
