Name: 3 axis cnc lathe controller
Brand: Guanhong
SKU: 142669694

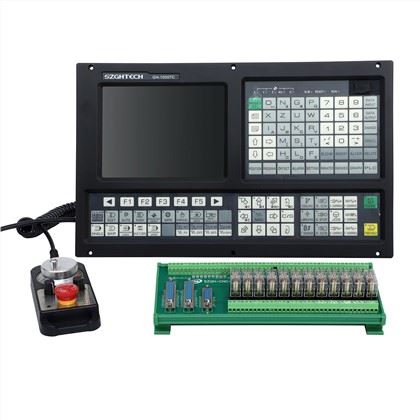

3 axis cnc lathe controller

GH1000TC-3 is 3 axis Turning CNC controller Widely applied in CNC milling machinery; machining center; milling center; wood working machine; compatible with SZGH all of motor and driver.
1) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)
2) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

Customizable LOGO 3 Axis Turning mach 3 cnc Controller Support Powerlink Servo for Feeding Axes lathe hanger hook machine

Number of control axes	3 axes (X, Z, Y)
Minimum programming	0.001mm
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Manual continuous	One axis or simultaneous multi-axis
Interpolation method	Straight line, arc, thread interpolation
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Handwheel functions	Panel type, plug-in hand-held
Screen saver function	Screen saver function
Communication function	RS232, U disk interface
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Program editing	Male / English, relative / absolute programming
Limit function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Input and output	I / O point 24X24

Features of our controller:

1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret

2)Threading Cycle: Following Mode/Interpolate Mode

3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

4) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

5) Scanning Function & Auto Tool Setter/Probe

Application: CNC Lathe & Turning Machinery and specially automatic equipment

Shenzhen Guanhong Technology provides a full range of CNC controls for all common types of lathes. From simple 2-axis CNC lathes to highly complex machining centers with up to 5 axes, the GH control system is always the right choice for customers.

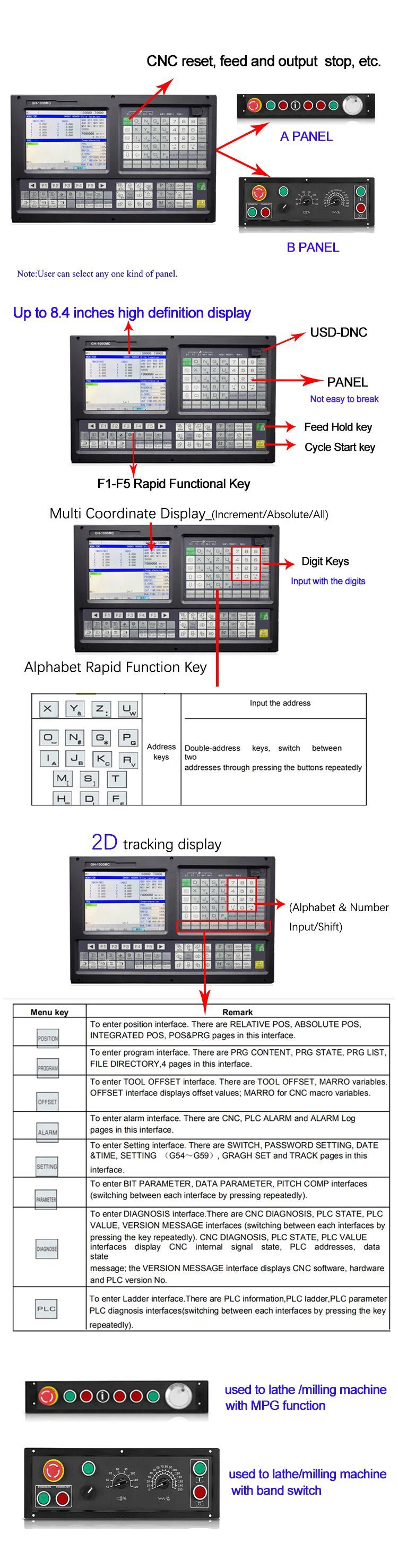

image005_01

QQ20210701150818

1 - 1

1 -

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer cnc system products. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Q: How long is your delivery time?

A: The general delivery time is 4-6 days after receiving your order confirmation. , if we have the goods in stock, it will only take 1-2 days.

Q: Do you provide sample? Is it free?

A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.

Our Service

1.More Professional service in cnc system total products exporting field

2.Better manufacture ability

3.Various payment term to choose:T/T,Western Union,L/C,Paypal

4.High quality/Safe material/Competitive price

5.Small order available

6.Quickly response

7.More safe and fast transport

8.OEM design for all customers

If you have any other questions about our mach 3 cnc , pls feel free to contact us as below.
