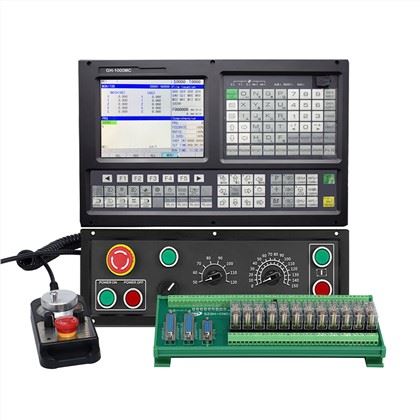

Similar GSK CNC Controller Support Automation Tool Change Functio With DSP+USB 2 Axis CNC Lathe Controller

QQ20210507134703

Number of control axes	2 axes (X, Z)
Minimum programming	0.001mm
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Manual continuous	One axis or simultaneous multi-axis
Interpolation method	Straight line, arc, thread interpolation
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Handwheel functions	Panel type, plug-in hand-held
Screen saver function	Screen saver function
Communication function	RS232, U disk interface
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Program editing	Male / English, relative / absolute programming
Limit function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Input and output	I / O point 24X24
PLC programming	The user is free to design PLC function
Acceleration and deceleration control	Linear acceleration and deceleration, the number of additions and subtractions
Encoder lines	Any setting
User macro program	Yes
Electronic gear functions	Yes
Number of control axes	2axes (X, Y)
Minimum programming	0.001mm

Support turning and milling compound processing, support high-speed and high-precision small line segment processing, support multiple sets of G code instructions, support dual-channel control, support spindle synchronization control, support feed axis synchronization control, support tilt axis control, integrated truss/pick-and-place arm control Function

The system software version can be flexibly configured as a single-channel high-speed and high-precision standard version, a dual-channel turning/milling standard version, and a dual-channel truss special version, which can be adapted to a variety of machine layouts to meet the functional requirements of complex applications.

Application: CNC Lathe & Turning Machinery and specially automatic equipment

image005_01

正在上传...

1 - 1

1 -

FAQ

Q: Which payment form you can accept?

A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.

Q: Which certificate do you have?

A: CE and ER

Q: Do you have the test and audit service?

A: Yes, we can assist to get the designated test report for product and the designated factory audit report.

Q:The difference between turning system and CNC system

A：The turning system is required to be able to reflect the distance of the tool point relative to the lathe axis at any time, in order to express the radius of the workpiece currently processed, or multiply by 2 to express the diameter; The turning system has a variety of fixed cycles for turning threads; The turning system supports the switch between the spindle and the C axis, and supports the programming of the end cartesian coordinate system or the cylindrical coordinate system of the rotary body. And for the milling CNC system requires more complex curve, surface programming ability, including five axis and inclined plane processing.

If you have another question, pls feel free to contact us as below
