CNC lathes are suitable for cutting grains and bars of copper, iron, aluminum and stainless steel within 25cm. It adopts many patented technologies such as high rigidity and anti-deformation to achieve high-speed cutting of 2mm steel parts on one side. The processing accuracy is ±0.01mm, and the flat or inclined bed is optional. It can realize the processing of straight lines, tapers, arcs, threads and other parts, and is especially suitable for the automated mass production of granular materials in the post-process. The tool holder and side and end face power heads can be added to form a simple turning and milling compound machine.

How To Choose CNC Lathe Machie


CNC lathes are suitable for cutting grains and bars of copper, iron, aluminum and stainless steel within 25cm. It adopts many patented technologies such as high rigidity and anti-deformation to achieve high-speed cutting of 2mm steel parts on one side. The processing accuracy is ±0.01mm, and the flat or inclined bed is optional. It can realize the processing of straight lines, tapers, arcs, threads and other parts, and is especially suitable for the automated mass production of granular materials in the post-process. The tool holder and side and end face power heads can be added to form a simple turning and milling compound machine.
Send Inquiry

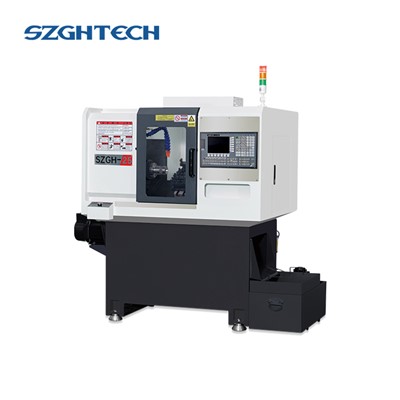

SZGH-25 CNC lathes machine are suitable for cutting copper, iron, aluminum and stainless steel bars within 25mm in diameter. The X-axis travel is 500mm and the Z-axis travel is 180mm. Using a number of patented technologies such as high rigidity and anti-deformation, it can easily achieve high-speed cutting of 2mm steel parts on one side. The machine tool weighs about 1.5 tons, has a machining accuracy of ±0.01mm, and supports flat bed and inclined bed structures. It can process straight lines, tapers, arcs, threads and other parts, and is especially suitable for bar processing below 25mm and mass production of post-process automated pellets. It can be equipped with a tool holder and various side and end power heads to form a simple turning and milling compound machine.

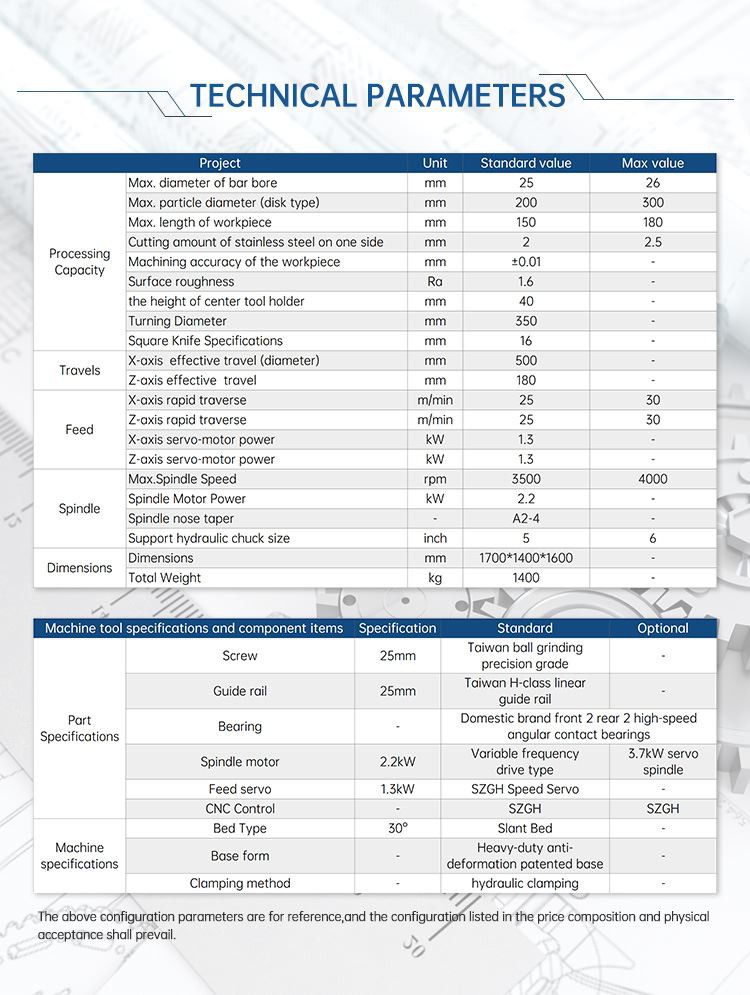

2SZGH-25

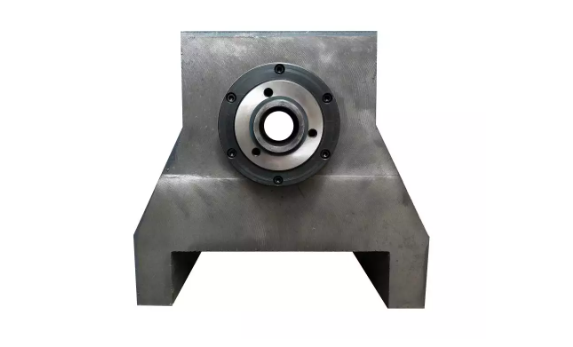

Spindle: Using angular contact high-speed bearings, the rated speed is 3500 rpm, which is suitable for large cutting volume processing. The clamping method can be changed from hydraulic to pneumatic clamping according to the customer's different use occasions. If there are high-speed and high-gloss requirements, a 6000-rpm high-speed electric spindle can be selected.

1c2be0816a25d52989237da863eb0aa

Rotating cylinder: The standard hydraulic rotating cylinder makes the clamping force larger, more stable and has a long service life. It can be replaced with pneumatic clamping according to actual conditions.



Screw: Use high-quality grinding-grade ball screw, which can be selected from Taiwan Shangyin or German Rexroth according to actual needs.



Guide rail: It adopts Taiwan Shangyin guide rail, and configurations of other brands can be selected according to actual needs.

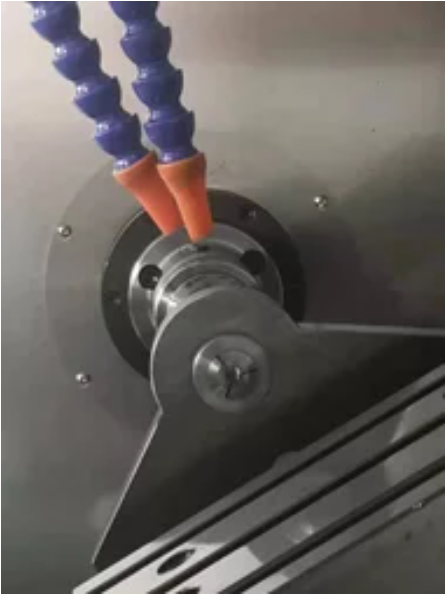

It can be used with the tool holder to process long-axis workpieces.



4e9d6d65bd0034d8b4eb44970d3c6a4

CNC lathes machine It can be equipped with oil bath feeding, heavy hammer feeding and fully automatic loading rack device to achieve fully automated processing.

Send Inquiry

FAQ

The following are the common questions we have collected about CNC Machine.
1. Q: What industries and materials are your machine tools primarily suitable for?
+
A: Our extensive machine tool product line meets the needs of various industries, primarily automotive parts manufacturing, precision molds, and general hardware processing. Regarding materials, our machines can efficiently process a variety of steels, aluminum alloys, copper alloys, cast iron, as well as some engineering plastics and composite materials. The capabilities of individual models vary; please provide your specific processing requirements and we will recommend the most suitable model.
2. Q: What are the core advantages of your machine tools compared to similar products on the market?
+
A: Our core advantages are primarily reflected in three aspects: Peace of mind: For software, we have one-on-one service from technical engineers to help you quickly master our controllers. For hardware, our cast iron bodies are durable and long-lasting, and come with a one-year warranty, providing you with the ultimate assurance. Intelligence and ease of use: A wide range of optional accessories allows for customization, and supports automated loading and unloading interfaces, significantly improving production efficiency and the human-machine collaboration experience. Excellent value for money: Through vertically integrated supply chains and lean manufacturing, we offer competitive pricing and a faster return on investment while maintaining world-class quality.
3. Q: What kind of after-sales service and technical support do you provide after purchasing a machine tool?
+
A: We offer comprehensive after-sales support: Professional Training: Upon delivery, our engineers provide one-on-one operation, programming, and maintenance training. Warranty Policy: The entire machine comes with a 12-month warranty. Quick Response: We have a 24/7 online technical support hotline, promising remote support within 24 hours for any issues.
4. Q: What are the delivery time and logistics arrangements for the machine tools?
+
A: For standard models, we typically have them in stock or have a short delivery time of less than 15 business days. Customized models have a delivery time of approximately 45 days, depending on the configuration requirements. After placing an order, our project manager will follow up every step of the way. We provide professional wooden crating and rust-proofing, and work with reliable logistics partners to ensure the equipment arrives safely and on time at your address.
5. Q: If I require a customized solution, can you provide support?
+
A: Of course! Customization is one of our core capabilities. Our team of dedicated application engineers can customize your workpiece, production line layout, and automation needs. This includes, but is not limited to, specialized fixtures, expanded tool magazine capacity, integrated robotic interfaces, and the creation of complete flexible manufacturing cells. Feel free to contact our technical sales team to discuss your needs.
