46J lathe is a common metal processing equipment, mainly used for rotating workpiece processing. With efficient and accurate processing capabilities, it is widely used in machinery manufacturing, industrial manufacturing and other industrial fields to provide efficient and fast help.

SZGH-46J CNC Lathe Machine For High Quality Lathe Turning Tool For CNC Engraving Machine


46J lathe is a common metal processing equipment, mainly used for rotating workpiece processing. With efficient and accurate processing capabilities, it is widely used in machinery manufacturing, industrial manufacturing and other industrial fields to provide efficient and fast help.
Send Inquiry

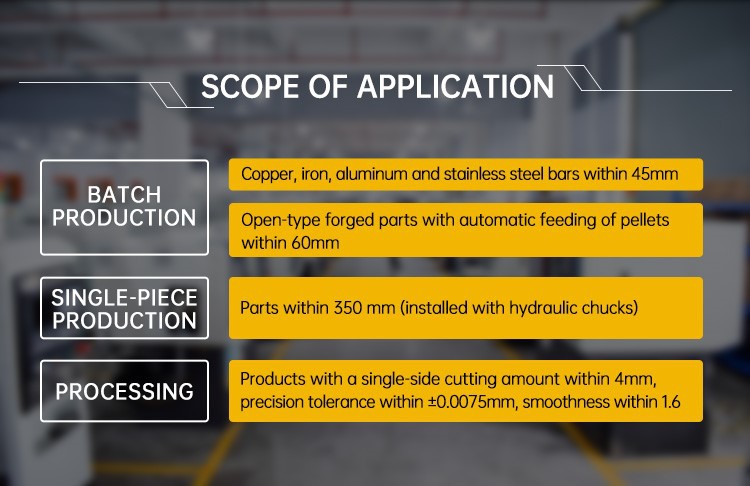

SZGH-46J is suitable for batch production of copper, iron, aluminum and stainless steel bars within 45mm, and batch production of open-type forged parts with automatic feeding of pellets within 60mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 350mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6. It is widely used in the processing of large parts with high precision and rigidity. Through careful design and matching, the performance of each accessory can be fully utilized to achieve the best cost-effective ratio.

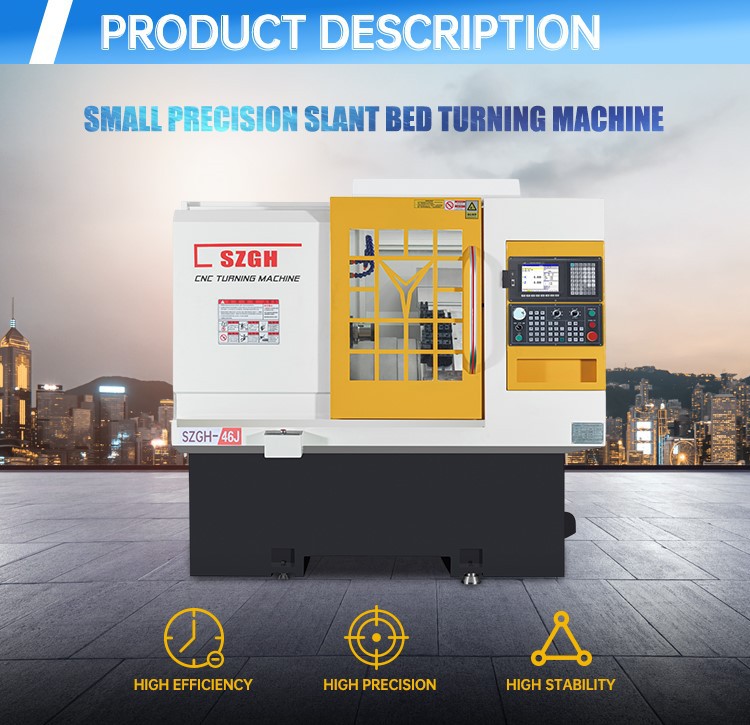

1SZGH-46Jproduct-15-15​

Project Unit Standard value Max value
Processing capacity Max. diameter of bar bore mm 45 -
Max. particle diameter (disk type) mm 400 420

Max. length of workpiece		 mm 300 320
Cutting amount of stainless steel on one side mm 3 4.5
Machining accuracy of the workpiece mm ±0.0075 -
Surface roughness Ra 1.6 1.6
the height of center tool holder mm 50 -
Turning Diameter mm 420 -
Square Knife Specifications mm 20*20 -
Travels X-axis effective travel mm 900 -
Z-axis effective travel mm 300 -
Feed X-axis rapid traverse m/min 25 30
Z-axis rapid traverse m/min 25 30
X-axis servo-motor power kW 1.5 -
Z-axis servo-motor power kW 1.5 -
Spindle Max.Spindle Speed rpm 3500 4000
Spindle Motor Power kW 5.5Kw servo 7.5kw servo
Spindle nose taper - A2-5 -
Support hydraulic chuck size inch 8 10
Dimensions Dimensions mm 2100*1500*1900 -
Total Weight kg 2350 -



Machine tool specifications and component items Specification Standard Optional
Part Specifications Screw 32mm Taiwan ball grinding precision grade -
 Guide rail 30mm Taiwan H-class linear guide rail -
Bearing - Yashu self-made high rigidity barrel spindle -
Spindle motor 5.5kW Server host 3.7kW servo spindle
Feed servo 1.5kW Yashu Dongmechuan High Speed Servo -
CNC Control Ac8F-G Yashu self-developed high-speed CNC system -
Machine specifications Bed Type 45°  Slant Bed -
Base form - Heavy-duty anti-deformation patented base    -
Clamping method - hydraulic clamping



The above configuration parameters are for reference,and the configuration listed in the price composition ard physical acceptance shall prevail

7e8261af34df50bb261b771863517ca

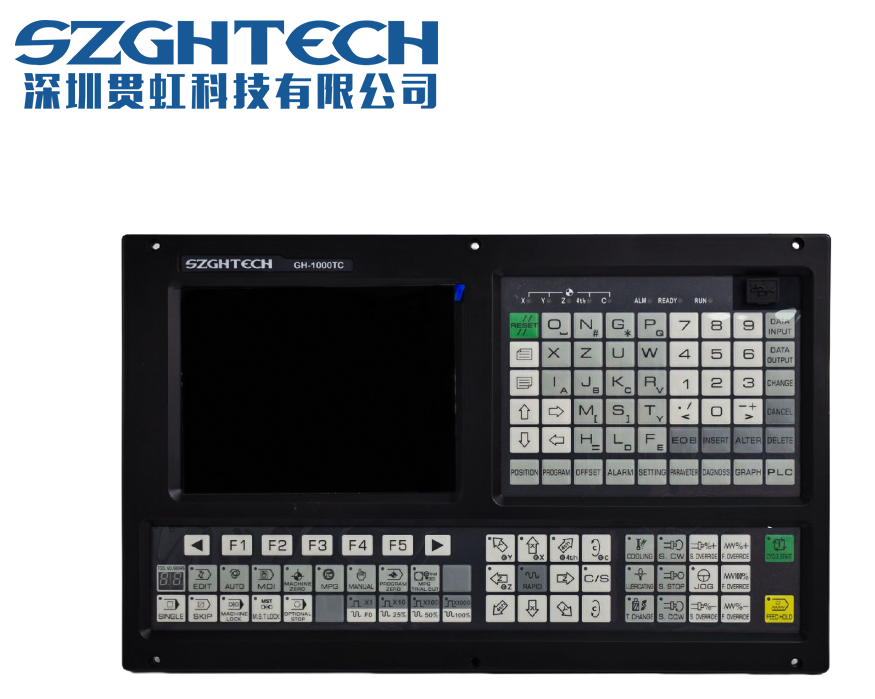

CNC CONTROLLER SYSTEM

1)2-5 Axis Fully English Type CNC lathe controller

2) 800x600 8.4 inch real color LCD displayer

3) Electric Turret & Binary code turret,Max: 99 pcs tools

4) Support ATC , Macro function and PLC function

5) Max speed is 60m/min, feeding speed is 24m/min

6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing

7) High anti-jamming switch power( 100V-240VAC 50Hz/60Hz -> 24VDC)

8)64MB Memory,56Mb user store room

9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade

10)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V

11)32 bits ARM microprocessor+FPGA Technology

12)Basic I/O: 36X36 , can be edited freely

13)cutter offset

14)Installing dimension, electric interfaces, instruction system and operating windows being compatible with those of GSK 980TDb Turning CNC System

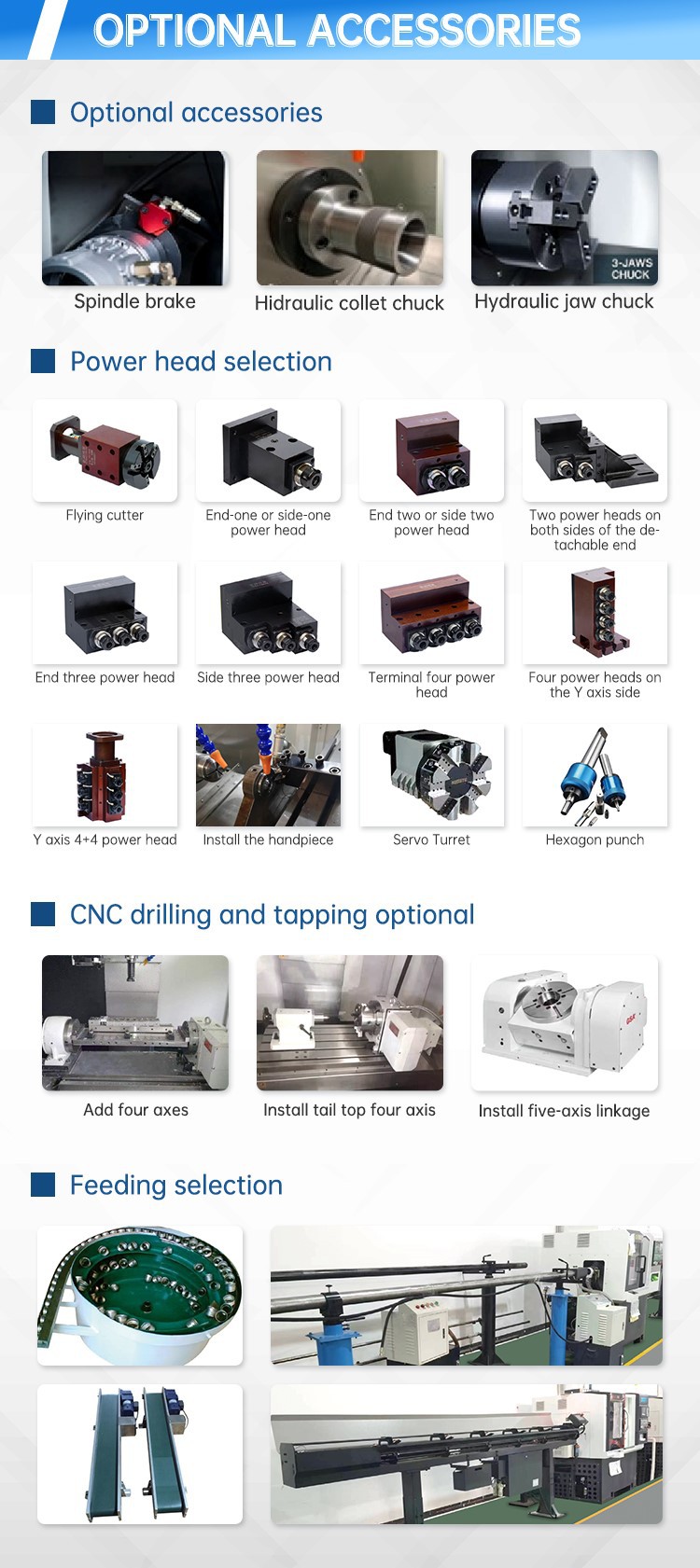

5*Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity.
* Anti-deformation patented heavy-duty base, heavy enough to support fast. Heavy enough to support bar and large parts, anti-vibration, improve precision and smoothness.
*The key components adopt high-quality wear-resistant configurations such as Taiwan, and the sleeve and spindle are all dynamically balanced.
*Bed adopt flat bed, slide board adopt 30°slant design, high rigidity, good machining flexibility.
*Super compact design, big inside space, modern appearance.
*Base adopt multi layer strengthening rib, ensure bed's strength and stability.
*Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque, high speed wide adjustment range.
*Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, high transmission rigidity,can realize μ class precise turning.
*Adopt SZGH electric control package to make electromechanical cooperation play the best efficiency.

4SZGH-46J

SZGHTECH is a manufacturer of CNC systems and industrial robot arms with more than ten years of industrial experience. We have been committed to providing customers with the best industrial automation solutions. Our company is clearly structured and includes R&D, production, sales and technical support departments to ensure that we can provide the best possible service.
Our products and services include CNC systems, industrial robot arms, supporting software and training services. Our CNC systems and robotic arms are suitable for a wide range of industries and fields. Our software and training services help customers get up to speed quickly and understand the best way to use their products.

Our strength and uniqueness lies in the excellent quality of our products and reasonable prices. We continuously invest in R&D to keep up with the latest developments in the industry. Our technical support team is always on hand to ensure that our customers' equipment remains in top condition and downtime is reduced.

Our vision is to be an industry leader and provide customers with the best industrial automation solutions. Our mission is to help our customers increase efficiency and reduce costs while improving production quality. Our team consists of a group of experienced and passionate professionals who will do their best to provide the best service to their clients.

If you are interested in our products and services, please feel free to contact our sales team or technical support team, we look forward to helping you.

7-

81

9-1

10FAQ

1. Who are we?

We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independenttechnical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).

2. How can we guarantee the quality?
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.

3. Where is our factory located? How can I visit there?
Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome to visit our factory.

4.What is the delivery time?
The full series of standard models are in stock. For a customized one, it depends.

5.What services can we provide?
1.Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean, Italian, and so on.



6.What is the warranty period?
After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.



7.How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.



8.Does your cnc support booting logo exchange?
Yes, no problem.
