Materials Handling, Parts transmission, Stacking, Deburring, Cutting The five major fields where handling robots are widely used are: automobile industry, electronics industry, rubber and plastic industry, metal products industry, and food industry, mainly engaged in sorting, handling and palletizing.

Programmable Robot Arm


Materials Handling, Parts transmission, Stacking, Deburring, Cutting The five major fields where handling robots are widely used are: automobile industry, electronics industry, rubber and plastic industry, metal products industry, and food industry, mainly engaged in sorting, handling and palletizing.
Send Inquiry

SZGH-B1850-3C-4

Product lntroduction

Payload

30kg

StructureArticulated

Axes

4

Reach1850mm
Weight230kg

Application

Materials handling, parts transfer, palletizing, deburring &cutting

Special Service

1. We can customize the standard color as you need!
2. We can customize your company logo!

Main Applications

Materials Handling, Parts transmission, Stacking, Deburring, Cutting

The five major fields where handling robots are widely used are: automobile industry, electronics industry, rubber and plastic industry, metal products industry, and food industry, mainly engaged in sorting, handling and palletizing.


Loading and unloading on the assembly line


SZGH-B1850-3C-4 robot has a load of 30kg, which can be used for loading and unloading of a single press, or for loading and unloading of multiple presses to realize the assembly line stamping operation.The picture on the right shows our company providing an assembly line stacking solution for a customer. The size of the customer's card is 1.1m × 1.1m, the required stacking height is 1.6m, and one robot can stack two pallets at the same time, greatly improving the efficiency of flow production and saving labor.

e3e50110e49348410c903825e4cce88

Dimension drawing

Robot Motion Range

c870349301a0961317469e5f9f528b9

Robot Flange Connection

640b30bb3425b272e7c2d33e5376d10

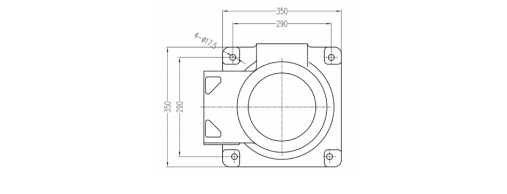

Robot Base Installation

1b482bc27976c7bc7830484b5b40877


Safety hazards and precautions

Collision risk: Since the 1850mm handling robot usually has a large size and a strong load capacity, it may collide with people or objects during driving. In order to avoid such accidents, it is necessary to isolate the range of motion of the robot, and at the same time install safety sensors and alarm devices around it.

Power system safety: The battery or cable power supply system of the robot needs to be checked and maintained frequently to ensure its normal operation and avoid dangerous events such as fire or electric shock.

Control system security: The control system of the robot needs to set strict permissions and passwords to prevent unauthorized personnel from manipulating the robot. In addition, the robot's software and security patches need to be updated frequently to ensure its safety and reliability.

Operator training: Operators who use robots need to receive professional training and guidance to understand the operating principles and safe operating procedures of robots to ensure their correct operation and avoid misoperation.

Maintenance: The maintenance of the robot needs to be carried out in accordance with the requirements of the manufacturer, including cleaning, lubrication, inspection and replacement of wearing parts, etc., to ensure the long-term stable operation of the robot.


If you have another question or you have any need, pls feel free to contact us as below. We will reply you enthusiastically.


Send Inquiry

FAQ

The following are the common questions we have collected about Robot Arm.
Q1. What materials can robotic laser welding handle?
+
A1:Robotic laser welding works excellently on carbon steel, stainless steel, and titanium. It can also weld aluminum and copper, but these highly reflective materials require more powerful lasers and precise parameter control to overcome their reflective nature.
Q2. How precise do the parts need to be?
+
A2:Extremely precise. Laser welding focuses energy on a tiny spot, so gaps between parts must be minimal. High-precision fixtures are mandatory to hold parts perfectly, as even a small gap can lead to burn-through or a weak weld.
Q3. Why choose robotic laser welding over MIG or TIG?
+
A3:Choose it for speed, precision, and minimal heat. It's significantly faster than TIG and MIG, creates very narrow welds, and puts so little heat into the part that there is almost no distortion. It is ideal for high-volume, high-quality applications where aesthetics and part integrity are critical.
Q4. What materials can robotic laser welding handle?
+
A4:Robotic laser welding works excellently on carbon steel, stainless steel, and titanium. It can also weld aluminum and copper, but these highly reflective materials require more powerful lasers and precise parameter control to overcome their reflective nature.
Q5. How precise do the parts need to be?
+
A5:Extremely precise. Laser welding focuses energy on a tiny spot, so gaps between parts must be minimal. High-precision fixtures are mandatory to hold parts perfectly, as even a small gap can lead to burn-through or a weak weld.
Q6. Why choose robotic laser welding over MIG or TIG?
+
A6:Choose it for speed, precision, and minimal heat. It's significantly faster than TIG and MIG, creates very narrow welds, and puts so little heat into the part that there is almost no distortion. It is ideal for high-volume, high-quality applications where aesthetics and part integrity are critical.
Q7: How can robotic TIG welding solve my challenges with consistent, high-integrity welds on critical components?
+
A7: Human fatigue and subtle variations are the biggest enemies of perfect welds. Our robotic Tig welding systems eliminate this. The robot precisely repeats the exact same arc length, travel speed, and filler metal placement every single time. This means: Zero Defects: Drastically reduces porosity, undercut, and inconsistencies. Perfect Penetration: Ensures optimal weld penetration for maximum strength, which is crucial for aerospace, medical, or automotive applications. Flawless Aesthetics: Delivers a clean, shiny, and uniform bead that requires little to no post-weld finishing, enhancing the value of your product.
Q8: My current welding process is too slow and expensive. How does robotic TIG welding provide a fast Return on Investment (ROI)?
+
A8: While manual TIG is slow and skill-dependent, automation transforms your cost structure. The ROI comes from multiple streams: Dramatically Higher Throughput: The robot works 24/7 without breaks, welding significantly faster than even the most skilled human. Massive Material Savings: Precise control means you use exactly the right amount of expensive filler metal and shielding gas, eliminating waste. Reduced Rework & Scrap: Superior consistency means you spend less time and money fixing bad welds or scrapping expensive parts. Most of our clients see a full ROI in under 12 months.
Q9: My production involves complex parts and short runs. Isn't robotic welding only for high-volume, simple tasks?
+
A9: That's a common myth! Modern robotic TIG cells are built for flexibility. With features like: Easy Programming: User-friendly touchscreen interfaces and lead-through teaching allow you to program complex paths in minutes, not hours. Advanced Seam Tracking: The system can automatically find and follow the weld joint, compensating for part misalignment or thermal distortion. Quick-Change Tooling: Switch fixtures rapidly to weld different components in the same cell.
