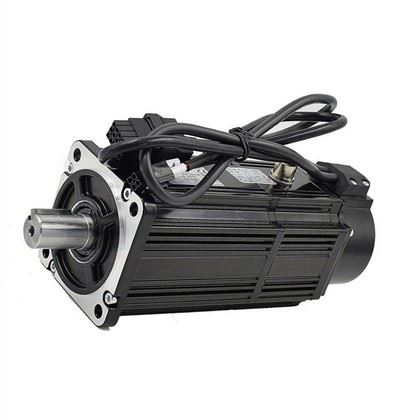

GH AC Servo Motor 750W for CNC Equipment

GH-08075DC is eonomic type , 750W servo motor with 80 flange, 2.4Nm, 3000RPM, with international good quality encoder which is GH AC Servo Motor 750W Ac Servo Motor and Driver for Laser Processing Equipment&Robots

GH AC Servo Motor Manufacturers 750W Ac Servo Motor and Driver for CNC Equipment

1.4(001)

Features

GH-08075DC is eonomic type , 750W servo motor with 80 flange, 2.4Nm, 3000RPM, with international good quality encoder

Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.

Motor Model	SZGH-08075DC
Rated Power(W)	750
Rated Voltage(V)	220
Rated Crrent(A)	3.0
Rated Speed(RPM)	3000
Rated Torque(NM)	2.39
Peak Torque(NM)	7.1
Voltage Constantv10r/min	9
Torque Coefficient(NM/A)	0.8
Rotor Inertia（Kg.m²）	1.82*10
Line-Line Resistance（Ω）	2.88
Line-Line Inductance(mH)	6.4
Machanical Time-Constant(Ms)	2.22
Encoder Resolution(PPR)	2500
Insulation Class	Class B
Safety Class	IP65
The Operating of Evironmental Condition	Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)	2.9

1.6(001)

9(001)

6 - 1(001)

20210119100512f45f2f66edff40adb05e79916dfd372c(001)

2021011910051408fa774b887247b988421343478d4694(001)

FAQ

Q: Do you provide sample ? Is it free?

A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.
