▶ Features:

High-Performance

Control function comprehensive: stable speed control,accurate position control,excellent torque control.

Safe & Reliable

Products comply with international standard,improved with CE certification. Setup mulitiple protection circuit,the comprehensive protection of safety equipment.

Remote Communication Function(Optional)

Product can be configured with remote communication function,only need to connect with SIM card module,that can be controlled by phone's internet remotely.

Input Power	Rated Voltage/frequency	Three-phase 380V/480V;50Hz/60Hz
	Allowable Voltage range	+10%~-15%
	Allowable Frequency Fluctuation	± 5%
Control Features	Control Mode	PWM Vector Control
	Speed Adjustment Range	0.01~500Hz
	Speed Stabilization Precision	± 0.1%
	Acceleration/Deceleration time	0.05~3000Hz/s
	Torque Control	200% Rated torque output;Torque precision ±5%
	Position Control Precision	±1 Pulse
	Braking Mode	Powered Braking
	Overload Capacity	Twice Overload
I/Os	Digital Input	10 points , NPN or PNP(Optional)
	Digital Output	6 points , NPN
	Relay Output	2pcs ,DC30V/1A Or AC250V/1A
	Analog Input	2 inputs, A0:±10V; A1: 0~±10V Or 4~20mA (Optional)
	External Pulse Input	1 type ,ABZ phase pulse ,Pulse+Direction Or CW (Optional)
	Motor Encoder Input	1 type,RS422 TTL , Rotatry Connector(Optional)
	Motor Encoder Output	1 pcs,RS42TTL ,Output Frequency Range: 0~1MHz
Protection Function	Over-Voltage Protection,Low-Voltage Protection,Over-Current Protection,Over-Heat Protection, module Protection,Overload Protection,Output Short-Circuit Protection, Encoder's abnormal Protection

16.7

16.2

20210119100508f638db1644574756bc361fba8e4f6cae

20210119100512f45f2f66edff40adb05e79916dfd372c

]BVIN0(GRPITID%ZGU37~R5

FAQ

Q: Do you support customized manufacturing?

A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.10-20 days if customized manufacturing.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample with sample price.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.

If you have any other question, pls feel free to contact us as below!

Hot Tags: 37kw servo spindle driver, China, manufacturers, suppliers, factory, price, cheap, quotation, datasheet, specs, specification, 22KW Servo Spindle Driver, 45KW Servo Spindle Driver, 7 5KW Servo Spindle Driver, 55KW Servo Spindle Driver, 15KW Servo Spindle Driver, 3 7KW servo spindle driver motor KIT

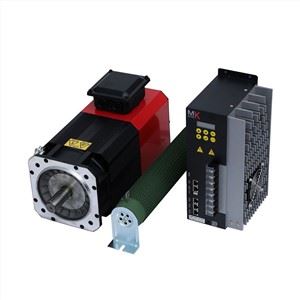

37KW Servo Spindle Driver
