▶ Features:

High-Performance

Control function comprehensive: stable speed control,accurate position control,excellent torque control.

Safe & Reliable

Products comply with international standard,improved with CE certification. Setup mulitiple protection circuit,the comprehensive protection of safety equipment.

Remote Communication Function(Optional)

Product can be configured with remote communication function,only need to connect with SIM card module,that can be controlled by phone's internet remotely.

Powerful Expansion Capability(Optional)

Spindle driver can be configured with many kinds of expansion modules,such as Digital terminal expansion modules, Analog terminal expansion modules, Encoder feedback divider output, RS485 ModBus RTU,CANopen, GSM/GPRS modules,digital display module, double position loop module interfaces.

And also it can also be customized manufactured according to the user's specific applications, conveniently connected to CNC controller, HMI, PLC and other control devices.

Input Power	Rated Voltage/frequency	Three-phase 380V/480V;50Hz/60Hz
	Allowable Voltage range	+10%~-15%
	Allowable Frequency Fluctuation	± 5%
Control Features	Control Mode	PWM Vector Control
	Speed Adjustment Range	0.01~500Hz
	Speed Stabilization Precision	± 0.1%
	Acceleration/Deceleration time	0.05~3000Hz/s
	Torque Control	200% Rated torque output;Torque precision ±5%
	Position Control Precision	±1 Pulse
	Braking Mode	Powered Braking
	Overload Capacity	Twice Overload
I/Os	Digital Input	10 points , NPN or PNP(Optional)
	Digital Output	6 points , NPN
	Relay Output	2pcs ,DC30V/1A Or AC250V/1A
	Analog Input	2 inputs, A0:±10V; A1: 0~±10V Or 4~20mA (Optional)
	External Pulse Input	1 type ,ABZ phase pulse ,Pulse+Direction Or CW (Optional)
	Motor Encoder Input	1 type,RS422 TTL , Rotatry Connector(Optional)
	Motor Encoder Output	1 pcs,RS42TTL ,Output Frequency Range: 0~1MHz
Protection Function	Over-Voltage Protection,Low-Voltage Protection,Over-Current Protection,Over-Heat Protection, module Protection,Overload Protection,Output Short-Circuit Protection, Encoder's abnormal Protection
WorkingEnvironment	Operating Site	The product shall be mounted verticlly in the electric control cabinet with good ventilation. The product shall be installed in the environment free from direct sunligh ,dust,corrosive gas, sombustible gas,oil mist,steam and drip
	Ambient Temperature	-10℃ ~ +45℃
	Humidity	5~90%, not allow condensing
	Altitude	0~3000Meters,derated above 1000m, the rated output current shall be decreased by 1% for every rise of 100m
	Vibration	Under 20Hz:1G; 20~50Hz: 0.2G

16.8

16.2

20210119100508f638db1644574756bc361fba8e4f6cae

20210119100512f45f2f66edff40adb05e79916dfd372c

2021011910051408fa774b887247b988421343478d4694

FAQ

Q: Do you support customized manufacturing?

A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.10-20 days if customized manufacturing.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample with sample price.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below

Hot Tags: 55kw servo spindle driver, China, manufacturers, suppliers, factory, price, cheap, quotation, datasheet, specs, specification, ac spindle servo motor driver, 22KW Servo Spindle Driver, closed loop spindle motor and driver, 1 5KW Servo Spindle Driver, cnc spindle driver, 3 7KW servo spindle driver motor KIT

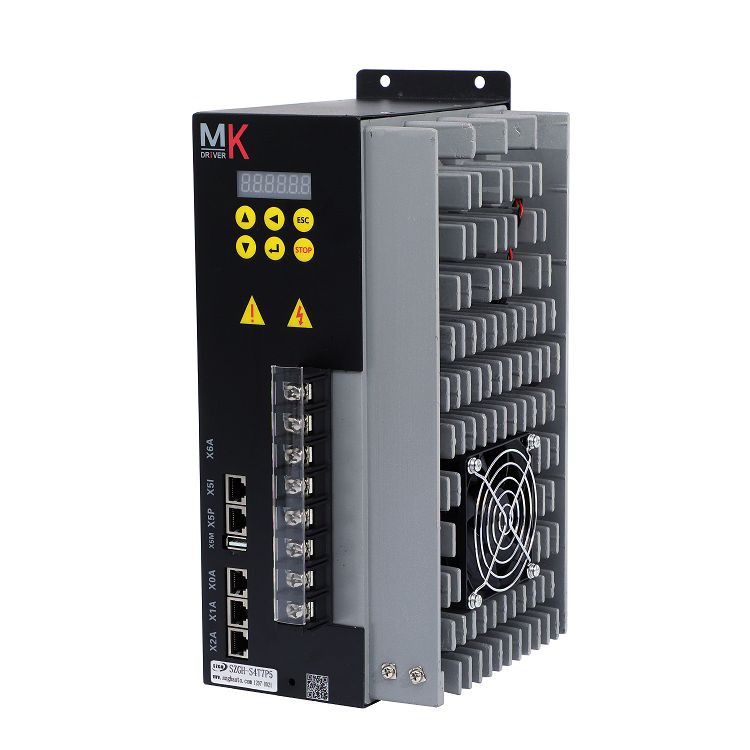

55KW Servo Spindle Driver
