Home / Products / CNC Controller / CNC Lathe Controller / Details
CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

Cnc Lathe Controller 2axis Delixi Similarly Gsk 2 Axis Controller


CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)
Send Inquiry



1000MC-3

Number of control axes

2 Axis

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Spindle functions

Gear, dual analog control, rigid tapping

Pre-reading function

Short line preprocessing 10,000 lines

FunctionATC+PLC and macro function
Encoder linesAny setting
User macro programYes
Our Services12 Months warranty；Provide professional CNC solutions；
Compensation functionKnife compensation, between compensation, screw compensation, radius compensation
Security function

Emergency stop, hardware travel limit, various stored travel checks, axis interlock, data backup and recovery

Thread function

1) Curved ordinary thread (following the spindle) 1 flexible tapping

2) Single/multiple metric inch straight thread, tapered thread and face thread, equal pitch thread and variable pitch thread

3) The length, angle and speed characteristics of thread run-out can be set by program and parameters

4) Thread pitch: 0.001mm~ 500mm (metric) 0.06 thread/inch~25400 thread/inch (imperial)


1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

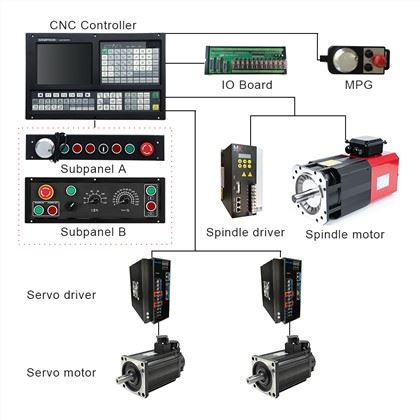

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC


7.-()

8.-&&()

9.-&()


FAQ

Q1. Can you engineer come to our place to help with machine installation & commission?

A: Yes, our engineers are available to travel to your place. Round flight tickets &

accommodation will be at your cost.


Q2. If I can't know how to operate. Can your engineer help me programme well on machine?

A: Sure. You can provide your detailed sample drawing.engineer can programme well on

machine. Or in some machines, we will put into U-disc of operation video to help you.


Q3. Where is the factory located? How can I visit there?

A Our factory is located in Shenzhen City, Guangdong Province, China. With very convenient

transportation access, you can come by airplane or by high speed railway. And

warmly welcome you to visit us.


If you have another question, pls feel free to contact us as below.

Send Inquiry

FAQ

The following are the common questions we have collected about CNC Machine.
1. Q: What industries and materials are your machine tools primarily suitable for?
+
A: Our extensive machine tool product line meets the needs of various industries, primarily automotive parts manufacturing, precision molds, and general hardware processing. Regarding materials, our machines can efficiently process a variety of steels, aluminum alloys, copper alloys, cast iron, as well as some engineering plastics and composite materials. The capabilities of individual models vary; please provide your specific processing requirements and we will recommend the most suitable model.
2. Q: What are the core advantages of your machine tools compared to similar products on the market?
+
A: Our core advantages are primarily reflected in three aspects: Peace of mind: For software, we have one-on-one service from technical engineers to help you quickly master our controllers. For hardware, our cast iron bodies are durable and long-lasting, and come with a one-year warranty, providing you with the ultimate assurance. Intelligence and ease of use: A wide range of optional accessories allows for customization, and supports automated loading and unloading interfaces, significantly improving production efficiency and the human-machine collaboration experience. Excellent value for money: Through vertically integrated supply chains and lean manufacturing, we offer competitive pricing and a faster return on investment while maintaining world-class quality.
3. Q: What kind of after-sales service and technical support do you provide after purchasing a machine tool?
+
A: We offer comprehensive after-sales support: Professional Training: Upon delivery, our engineers provide one-on-one operation, programming, and maintenance training. Warranty Policy: The entire machine comes with a 12-month warranty. Quick Response: We have a 24/7 online technical support hotline, promising remote support within 24 hours for any issues.
4. Q: What are the delivery time and logistics arrangements for the machine tools?
+
A: For standard models, we typically have them in stock or have a short delivery time of less than 15 business days. Customized models have a delivery time of approximately 45 days, depending on the configuration requirements. After placing an order, our project manager will follow up every step of the way. We provide professional wooden crating and rust-proofing, and work with reliable logistics partners to ensure the equipment arrives safely and on time at your address.
5. Q: If I require a customized solution, can you provide support?
+
A: Of course! Customization is one of our core capabilities. Our team of dedicated application engineers can customize your workpiece, production line layout, and automation needs. This includes, but is not limited to, specialized fixtures, expanded tool magazine capacity, integrated robotic interfaces, and the creation of complete flexible manufacturing cells. Feel free to contact our technical sales team to discuss your needs.
