2 Axis CNC Lathe Controller

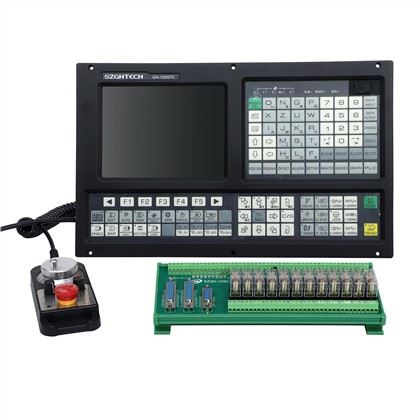

GH1000TC-2 is 2 axis Lathe CNC Controller ,with 8.4 inches display(800x600) ,2 analog spindle ,2ms interpolation in high speed, support ATC , PLC and macro function. which obviously improve the efficiency,precision and surface quality of parts processing. New USB interface,it shupports the file operation and program running in flash.

High Performance 2 Axis Lathe Controller for Gasket Cutting mini metal lathe machine Cnc Control kit

Number of control axes	2 axes (X, Z)
Minimum programming	0.001mm
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Manual continuous	One axis or simultaneous multi-axis
Interpolation method	Straight line, arc, thread interpolation
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Handwheel functions	Panel type, plug-in hand-held
Screen saver function	Screen saver function
Communication function	RS232, U disk interface
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Program editing	Male / English, relative / absolute programming
Limit function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Input and output	I / O point 24X24
PLC programming	The user is free to design PLC function
Acceleration and deceleration control	Linear acceleration and deceleration, the number of additions and subtractions
Encoder lines	Any setting
User macro program	Yes
Electronic gear functions	Yes
Number of control axes	2axes (X, Z)
Minimum programming	0.001mm

CNC Controller, including economic type, standard type, high-performance type and Modbus type( which can support EtherCAT/Powerlink). It can be 16 axes at max.

image005_01

image005_02

image005_03

1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret

2)Threading Cycle: Following Mode/Interpolate Mode

3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

4) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

5) Scanning Function & Auto Tool Setter/Probe QQ20210701150818
