Lathe Controller System Cnc Lathe

CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

1000MC-3

Number of control axes	3 Axis
Minimum programming	0.001mm
Display	8.4 inch color screen
interface	USB+RS232 Communction Port
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Spindle functions	Gear, dual analog control, rigid tapping
Pre-reading function	Short line preprocessing 10,000 lines
Function	ATC+PLC and macro function
Encoder lines	Any setting
User macro program	Yes
Our Services	12 Months warranty；Provide professional CNC solutions；
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Security function	Emergency stop, hardware travel limit, various stored travel checks, axis interlock, data backup and recovery
Compensation function	1) Pitch error compensation: 360 compensation points for each of X, Z, and Y axes, each point compensation amount ± 0.007 x compensation magnification 2) Tool compensation execution mode: moving tool/coordinate offset (can be set by parameters) 3) Tool compensation: 64 sets of tool length compensation 4) Tool nose radius compensation 5) Backlash compensation: (X, Z, Y axis) 0 mm~65535mm

1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

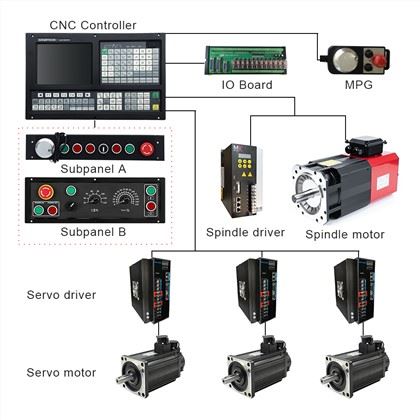

We can provide you with a complete set of customized CNC kits,

which is very convenient and efficient for you.

GH-1000TC

7.-()

8.-&&()

9.-&()

FAQ

1. Can I trust you?

A: Sure, we're Alibaba verified supplier & Alibaba Trade Assurance Suppier.

2. How can we guarantee quality?

A: Always finishing a pre full testing by our professional engineers; Always final 100% Inspection before shipment.

3. What are your main products?A: CNC Controller/Servo Motor & Servo Driver/Spindle Servo Motor & Spindle Servo Drive/Robot Arms.

If you have another question, pls feel free to contact us as below.
