Same As Fagor Three Axis Cnc Control

CNC lathe Controller: 1) ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2) Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

1000MC-3

Number of control axes	3 axes
Minimum programming	0.001mm
Display	8.4 inch color screen
interface	USB+RS232 Communction Port
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Function	ATC+PLC and macro function
Encoder lines	Any setting
User macro program	Yes
Menu	English menu
Payment Type	T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash,Escrow
After-sales service	Professional CNC engineers will provide you with 24-hour online one-to-one consulting services
Application	CNC Lathe & Turning Machinery and especially automatic equipment
Threading Cycle	Following Mode/Interpolate Mode

1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

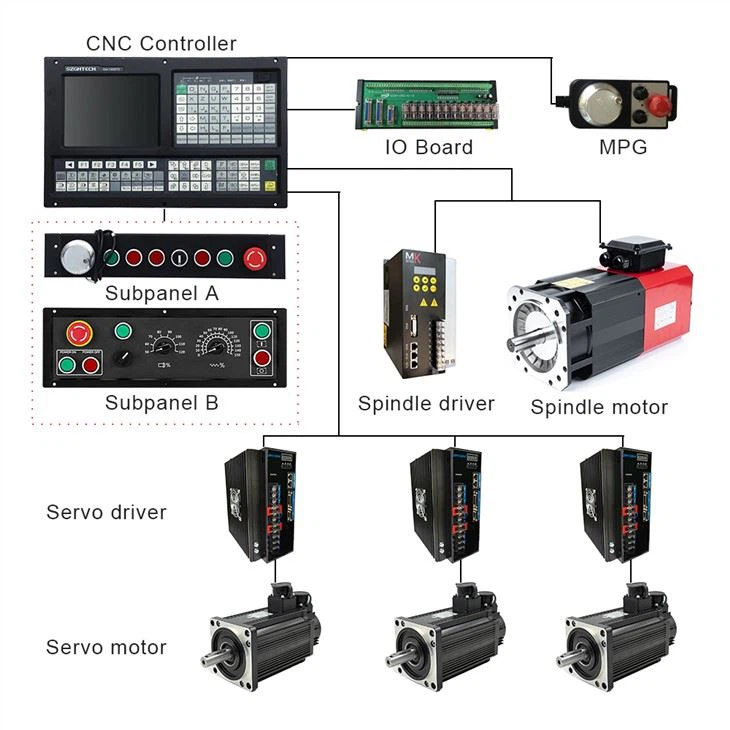

We can provide you with a complete set of customized CNC kits,

which is very convenient and efficient for you.

GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.

7.-()

8.-&&()

9.-&()

FAQ

Q1: How about the price? A: We promise the price we offer is lowest if same application, only to enlarge the market share.And given you cost price for consumable parts.

Q2: How to solve the quality problems after sales? A: Take photos or video of the problems and send to us After we check and confirm the problems, within 24 hours ,we will reply satisfied solution for you.

Q3: What's the MOQ? A: 1 set.(Only some low cost machines will be more than 1 set)

Q4: Could I visit your factory ? A:Of course,Yes! Warmly welcome all customer from all over the world to visit our factory.

If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement, pls do not hesitate, we must do good support to you! come on!
