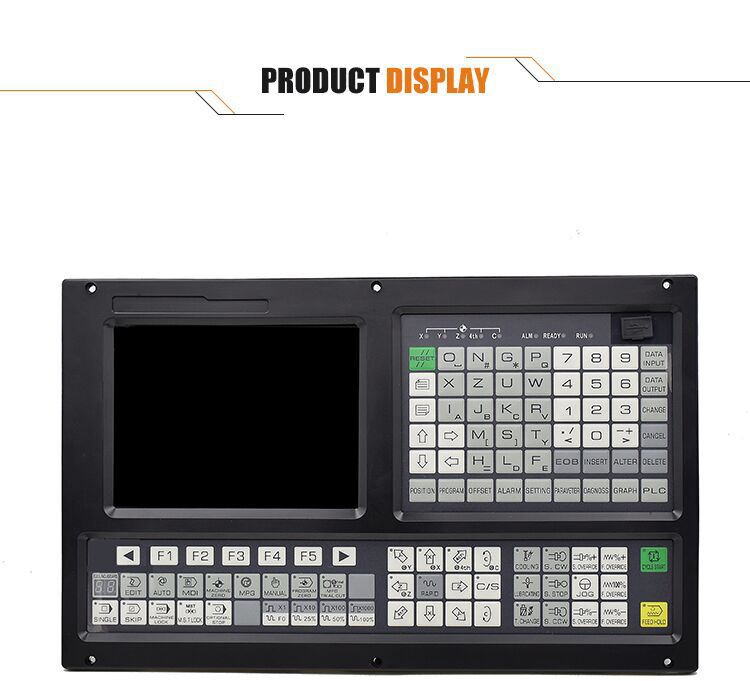

3 Axis Cnc Lathe Control System Kit

Product Introduction

3 Axis Cnc Lathe Control System Kit-3 Axis CNC Lathe Controller, 3 sets servo motors and drivers, spindle motors and drivers, and so on can be provided with you.

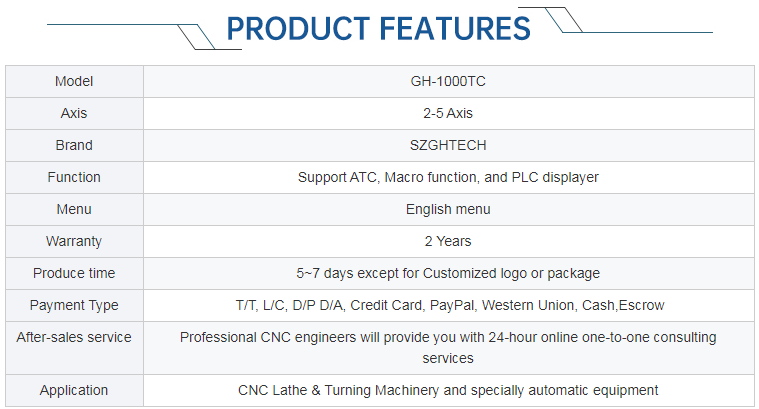

The model is GH-1000TC-3:

1) 3 Axis Fully English Type CNC lathe controller

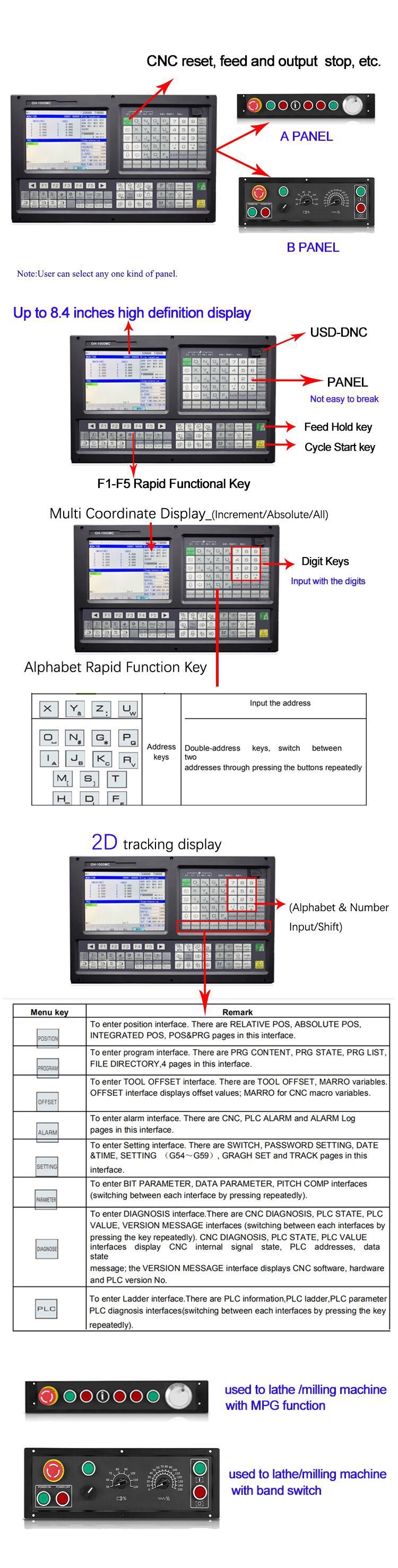

2) 800x600 8.4 inches real color LCD displayer

3) Electric Turret & Binary code turret, Max: 99 pcs tools

4) Support ATC, Macro function, and PLC function

5) Max speed is 60m/min, feeding speed is 24m/min

6) Adapted servo spindle can realize spindle continuous position, rigid tapping, rigid screw processing

7) High anti-jamming switch power(100V-240VAC 50Hz/60Hz -> 24VDC)

8) 64MB Memory, 56Mb user store room

9) With a USB interface, it supports file operation in flash disk, system configuration, and software upgrade

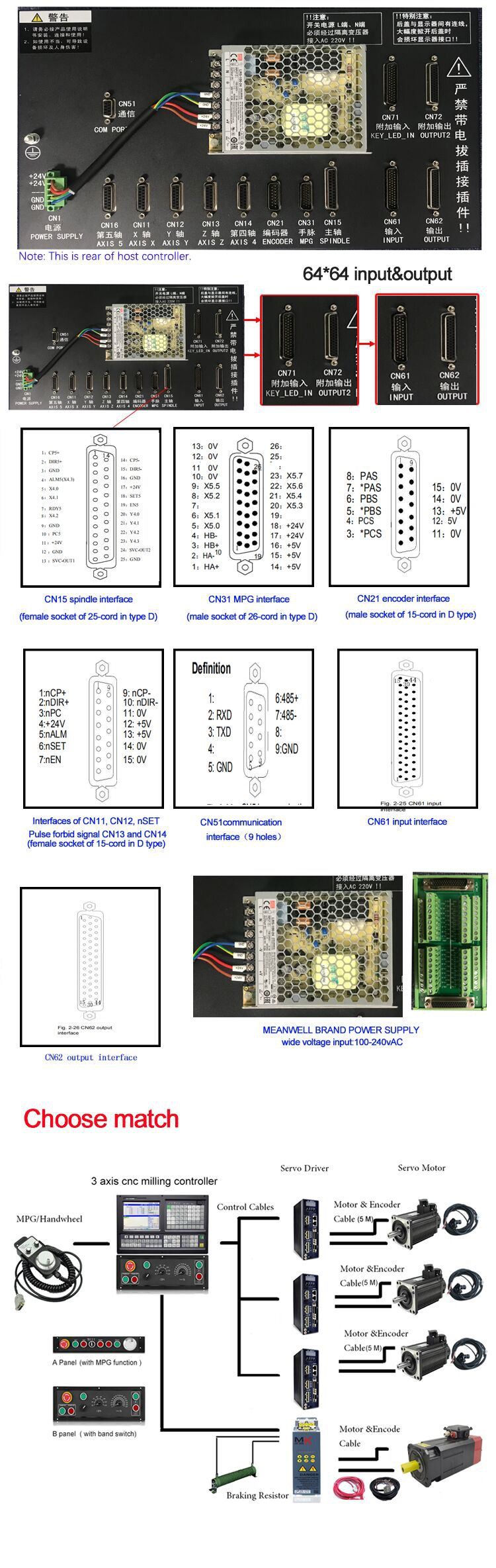

10) Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V

11) 32 bits ARM microprocessor+FPGA Technology.

12) Basic I/O: 36X36 , can be edited freely

13) Cutter offset: C

14) Installing dimensions, electric interfaces, instruction system, and operating windows being

compatible with those of GSK980TDb Turning CNC System

Function

1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret

2)Threading Cycle: Following Mode/Interpolate Mode

3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

4) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

5) Scanning Function & Auto Tool Setter/Probe

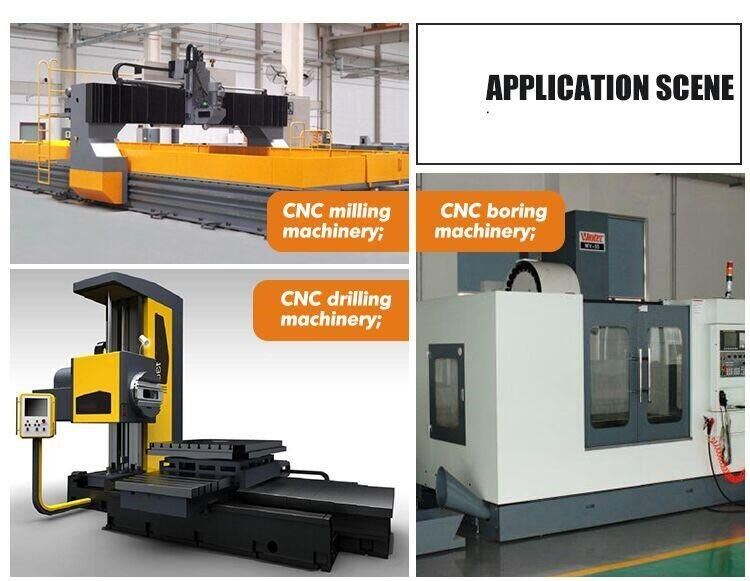

Application:

CNC Lathe & Turning Machinery and especially automatic equipment

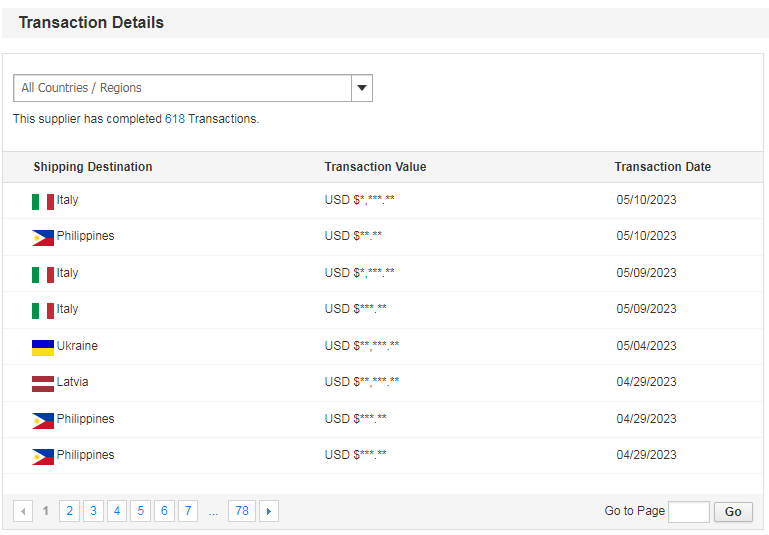

Transaction Details

Recently, our company has maintained good sales of CNC systems and industrial robots, especially in the Korean and Mexican markets.

What We Can Do

We can provide you with a complete set of CNC system products, such as a CNC controller, servo motor and servo drive, spindle motor, and spindle drive, etc.

How To Customize

So how to customize a complete set of CNC system requirements, we need to know the following information:

1. Is your machine a lathe or a milling machine? How many axes?

2. What are the power, voltage, and torque of the servo motor and servo driver?

3. What are the power, voltage, and torque of the spindle motor?

If you are not sure, it doesn’t matter, you can collect some clearer pictures and send them to us, our professional engineers will provide you with the most suitable CNC system model for your machine.

Photos to collect:

1. The structural picture of the machine, if there is a nameplate, it is best to take a picture,

2. Clear motor and spindle motor nameplates.

Our service

1. Responsible overseas sales team: timely and enthusiastic response to customers, answering questions online 24 hours a day, dedicated and responsible;

2. Certified actual products - We have a zero-tolerance policy for asset recovery vendors.

3. Quality guarantee - Free warranty for one year and lifetime maintenance. Guanhong promises to refund any quality problems during the maintenance period.

4. Professional technical engineer team- possible fastest response and support to client’s application demand.

CNC Controller, including economic type, standard type, high-performance type, and Modbus type( which can support EtherCAT/Powerlink). It can be 16 axes at max.

GH always does high-quality products and professional service to our clients.

Application Scenario

1. General lathe machining: GH-1000TC-3 lathe controller is suitable for all kinds of general lathe processing applications, including turning, boring, tapping, inner and outer circle and other processing tasks. It is able to meet different sizes and requirements from small lathes to large industrial lathes.

2. High-precision lathe machining: The controller has the ability of high-precision machining and is suitable for the machining of workpieces with high requirements for dimensional accuracy, surface quality and shape accuracy. Whether in precision instrument manufacturing, mold manufacturing or aerospace, the GH-1000TC-3 can provide reliable control and high-precision machining performance.

3. Complex machining: The GH-1000TC-3 lathe controller supports complex machining needs such as multi-process, multi-axis coordination and tool changeover. It has powerful programming and control functions to enable the machining of complex parts, improving production efficiency and machining quality.

Advantage:

1. Advanced control technology: GH-1000TC-3 adopts advanced control technology and algorithms, which can achieve high-speed, high-precision position and speed control. Its fast reaction time and stable performance ensure precise workpiece machining and reliable operation.

2. User-friendly interface: The controller features an intuitive, easy-to-operate user interface that is easy to operate and easy to use. It supports a variety of programming methods and operating modes, providing flexibility and convenience to meet different operating habits and needs.

3. Versatility and Scalability: The GH-1000TC-3 lathe controller has a variety of features and expansion options that can be configured and customized according to customer needs. It supports multi-axis control, tool magazine management, automatic measurement and other functions, which can realize the implementation of more complex machining processes.

4. Reliability and stability: Our lathe controllers undergo strict quality control and testing to ensure their stability and reliability. It adopts high-quality components and reliable design, with anti-interference ability and good performance stability to adapt to industry.

Company Profile

1. Years of industry experience: We have many years of CNC system manufacturing experience, and have accumulated rich professional knowledge and technical strength in this field. We have an in-depth understanding of industry needs and trends and are able to provide targeted solutions.

2. Comprehensive product lines: We offer a wide range of product lines, including 3 Axis Cnc Lathe Control System Kit, CNC controllers, servo motors and drives, spindle motors and drives, and much more. Our products meet the needs of different applications, from small machining centers to large industrial production lines, from simple tasks to complex machining processes.

3. High quality and reliability: We always adhere to high-quality manufacturing standards and strict quality control. We use high-quality materials and advanced manufacturing processes to ensure the reliability, stability, and durability of our products. Our products undergo rigorous testing and inspection to ensure they meet or exceed industry standards.

4. Technological innovation: We pay attention to technological innovation and continuously invest in R&D and improvement. Our R&D team consists of experienced engineers who are committed to driving the development of CNC technology, providing advanced features and performance to meet the changing needs of our customers.

5. Customer customization capabilities: We understand that each customer's needs are unique. We offer customer-specific solutions, designed and adapted to their specific needs. Our engineering team works closely with our customers to ensure that our products fully meet their expectations and requirements.

6. Excellent Customer Service: We are committed to providing excellent customer service. Our team provides comprehensive technical support, from consulting to installation, training, and after-sales service, ensuring that customers receive timely and professional support throughout the process.

FAQ

Q: Are you a manufacturer or a trading company?

A: We are a reputable manufacturer of CNC systems. In addition, we conduct direct business with our customers.

Q: How about OEM and ODM?

A: Both OEM and ODM are acceptable, yes. The basic number will be advised following discussion, and the material, color, and style are all customizable.

Q: Do you allow us to use our logo?

A: In response to your request, we can print your private logo.

Q: How many distinct kinds of items does your business produce?

A: Currently, we provide over 300 goods. Give us the actual products or your idea, and we will create them for you thanks to our strong OEM edge.

Q: When will the price be available?

A: Normally, we respond to your query with a price within 8 hours.

Q: What is the MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to the customer’s exact situation.

Q: How long is your delivery time?

A: The general delivery time is 4-6 days after receiving your order confirmation. , if we have the goods in stock, it will only take 1-2 days.

Q: Do you provide a sample? Is it free?

A: If the sample is low value, we will provide the free sample with freight collection. But for some high-value samples, we need to collect the sample charge.

If you have another question, pls feel free to contact us as below. we must do good support to you ! come on !
