Cnc Lathe Controller Kit With Servos

CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

1000MC-3

Number of control axes	3 Axis
Minimum programming	0.001mm
Display	8.4 inch color screen
interface	USB+RS232 Communction Port
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Spindle functions	Gear, dual analog control, rigid tapping
Pre-reading function	Short line preprocessing 10,000 lines
Function	ATC+PLC and macro function
Encoder lines	Any setting
User macro program	Yes
Our Services	12 Months warranty；Provide professional CNC solutions；
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Security function	Emergency stop, hardware travel limit, various stored travel checks, axis interlock, data backup and recovery
Operation function	1) Mode selection: edit, auto, MDI, zero return, manual, single step, MPG 2) Running control: single segment, segment skip, dry run, auxiliary lock, program restart, MPG interruption, single-step interruption, manual intervention

1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

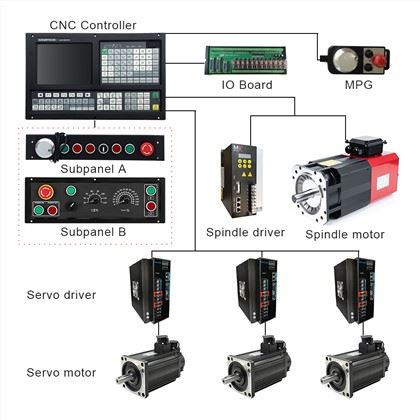

We can provide you with a complete set of customized CNC kits,

which is very convenient and efficient for you.

GH-1000TC

7.-()

8.-&&()

9.-&()

FAQ

1. When can you receive our order?

All goods will be produced well within 5 to 7 workdays, except the customized products.

2. What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP,DDU,DAF； Accepted Payment Currency:USD,EUR,CAD,HKD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian and so on.

3. How can we guarantee quality?

Always finishing a pre full testing by our professional engineers; Always final 100% Inspection before shipment;

4. What are your strengths?

We have a more professional after-sales service and a more professional technical team, and can directly provide online technical support.

If you have another question, pls feel free to contact us as below.
