When a Government Contract Leaves No Room for Error: Automating Engine Housing Welding in Russia

At a Glance

The Challenge: Guaranteed Output, Not Just Better Output

When this customer first contacted us, they were not asking how to grow their production. They were asking how to protect it.

This is an engine and oil cylinder manufacturer operating under a government supply contract — providing engines to northern Russia regions. That distinction matters. A commercial customer who falls short on delivery loses a sale. A manufacturer under government contract who misses delivery targets faces consequences of a very different order. The schedule is not negotiable. The volume is not flexible.

At the time, ten manual welders were handling the welding of large engine housings — heavy industrial castings used in petroleum and energy equipment. These are not small, simple parts. Engine housings are large, structurally complex, and demand long, consistent weld seams. Manual welding at that scale is slow and physically exhausting. A welder's consistency degrades over the course of a shift. Weld quality varies from operator to operator, from morning to afternoon, from day to day.

Ten skilled welders working full shifts were producing output — but output that was variable, difficult to forecast precisely, and increasingly under pressure as government contract volumes grew. The question they brought to SZGH was direct: can a robotic welding system guarantee the throughput we need to fulfill this contract, reliably, every production cycle?

That is the kind of question I take seriously. It is not about incremental improvement. It is about building a system that does not fail them.

Why Engine Housings Require a Linear Track — Not Just a Robot

I want to be specific about the technical challenge here, because it is the core reason this solution looks different from a standard welding robot installation.

Most welding robot case studies — including others in our portfolio — involve relatively compact workpieces. A furniture frame, a bracket, a hydraulic fitting. For those applications, a robot arm mounted at a fixed position, working with a positioner that rotates the part, is exactly the right configuration. The robot stays put; the positioner brings the weld seam to the robot.

Engine housings are a different problem entirely. These are large, long industrial castings. A fixed robot arm, no matter how capable, has a finite reach envelope. For a workpiece of this size, a single fixed mounting position cannot cover the full weld path from end to end. You would either need multiple robots positioned along the part — a costly and complex arrangement — or you accept that certain sections of the weld must still be done by hand.

Neither of those was acceptable for this customer's requirements.

This solution employs a linear track (or "floor track")—a ground-mounted rail system along which the robot moves during the welding process. Instead of remaining fixed at a single point, the robot travels along the track to cover the entire length of the engine housing; this extends the robot's effective working range, enabling it to process the entire workpiece through a single automated program. Simultaneously, a positioner rotates and tilts the housing, ensuring the robot always approaches each weld seam at the optimal angle.

The result is a three-element coordinated system: linear track, welding robot, and positioner — all governed by the SZGH controller as a unified cell. The robot does not stop and restart; it moves continuously along the track while welding, pausing only when the positioner needs to reposition the part for the next pass.

This configuration handles what a fixed robot simply cannot.

The Solution: A Coordinated Three-Axis Welding Cell

SZGH supplied and commissioned a complete welding cell for this customer: an industrial welding robot, a positioner sized for heavy engine housing castings, and a linear ground track matched to the length of the parts being welded.

The SZGH controller coordinates all three elements simultaneously. When the weld program runs, the robot travels along the linear track, the positioner adjusts the housing orientation as needed, and the welding parameters remain consistent throughout — travel speed, arc voltage, wire feed — regardless of where along the housing the robot is working. This is not a case of switching between manual modes for different sections. It is a single, continuous automated cycle.

For large, structurally complex weld paths on industrial castings of this type, consistency is not just a quality issue — it is a structural requirement. Welds on engine housings operating in industrial service conditions must meet exacting standards. Repeatability from the SZGH system ensures that every housing comes off the line meeting those standards, shift after shift, without the variability that accumulates with manual processes over time.

The system is designed to run the weld program reliably across every production shift, at the throughput rate required to meet the customer's government contract output schedule — and to keep meeting it, not just in the first week of operation.

The Customer Visit: Understanding the Scale Before Recommending a Solution

We visited this customer's facility in Russia before specifying anything.

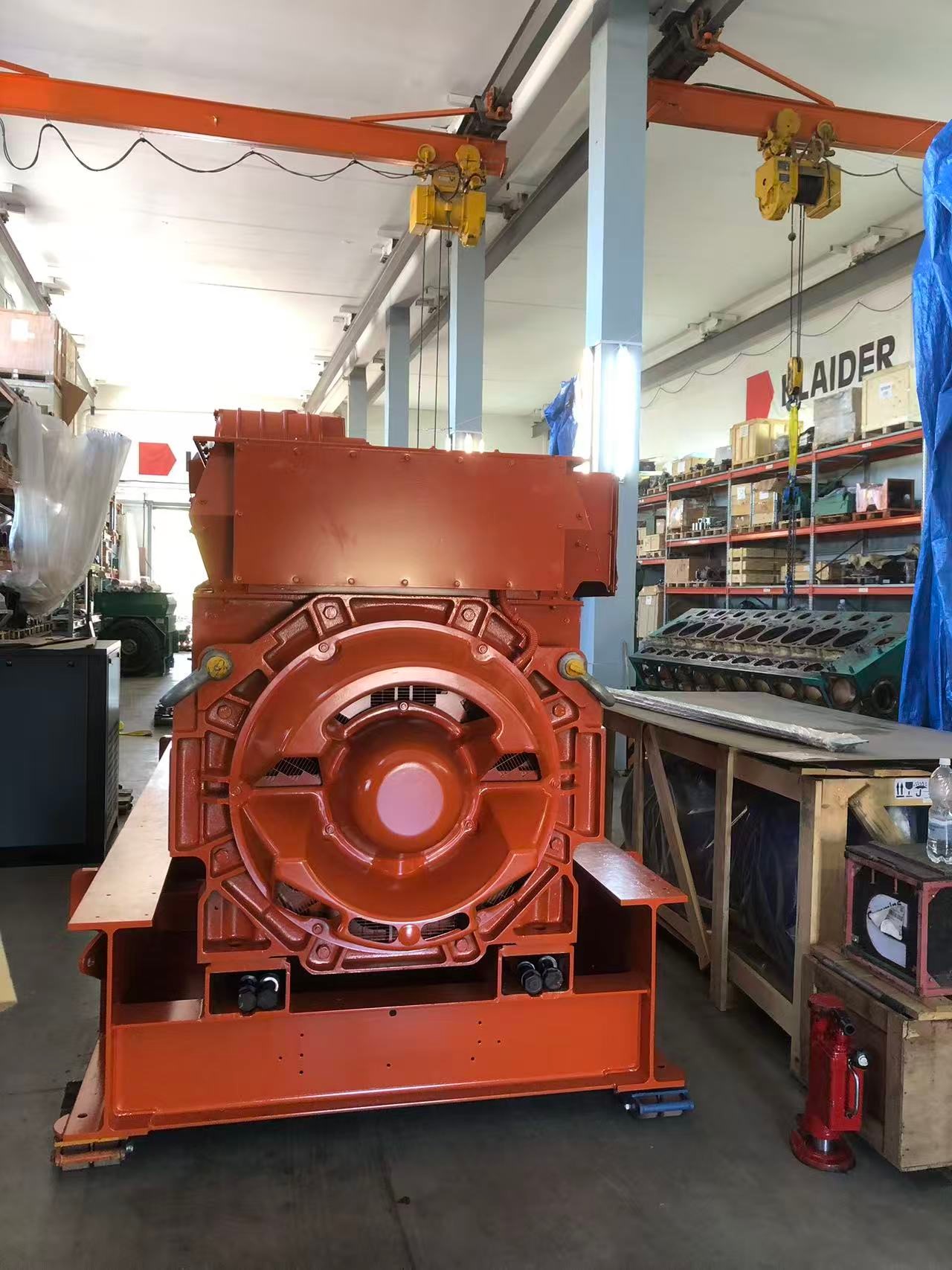

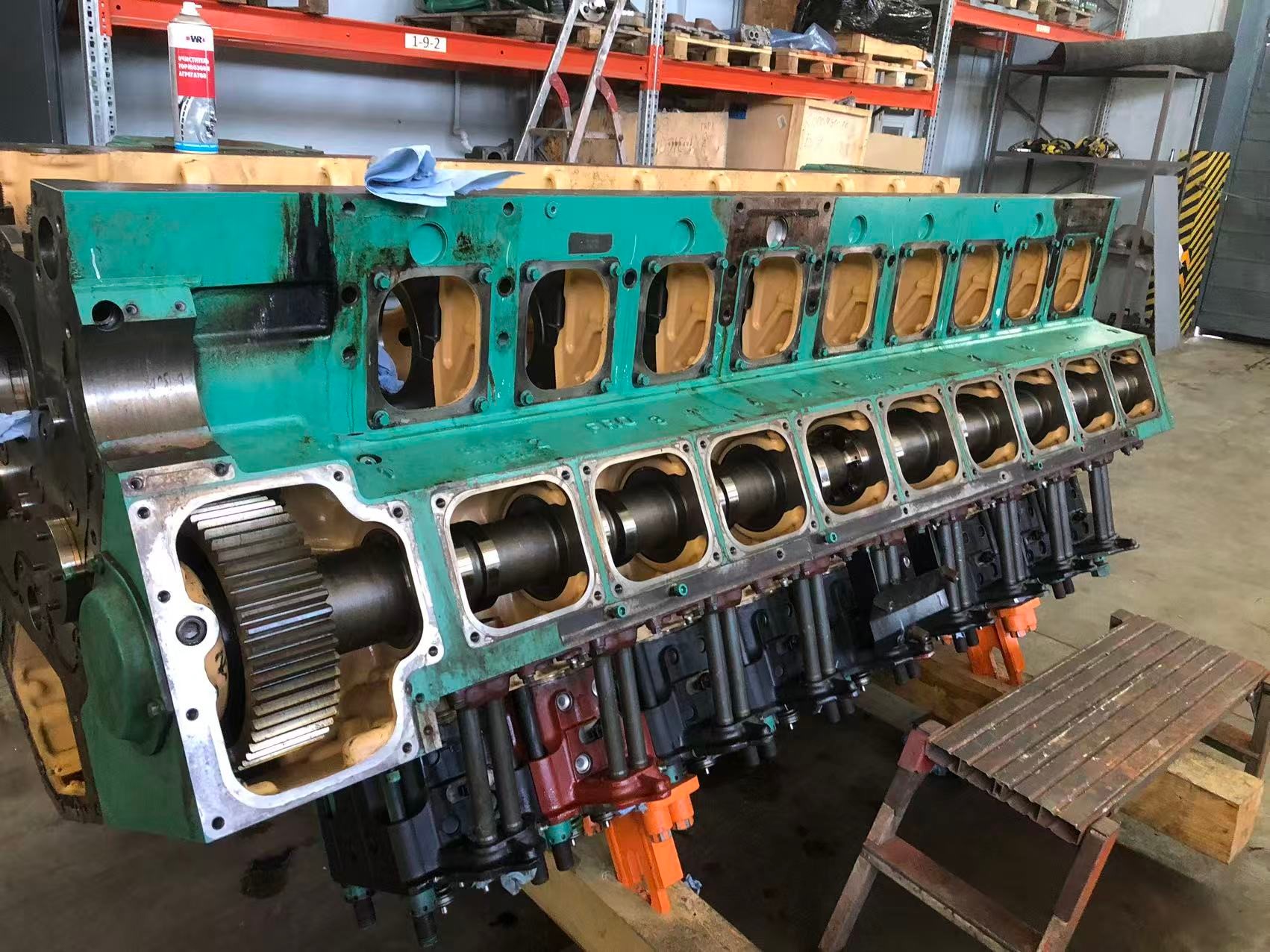

That visit mattered. Seeing the engine housings in person — the large red industrial pump housings, the green multi-cylinder engine blocks with their rows of cylinders — gave us a direct understanding of the scale of what they produce. These are substantial industrial castings. Photos do not fully communicate the weight and length of parts like these until you are standing next to them.

We met with the customer's team in their facility, walked the production floor, and examined the specific parts and weld paths in detail. We took measurements. We discussed the contract volumes and delivery schedule in full. Only after that assessment did we finalize the recommendation to include the linear track.

This is not a catalog sale. Selecting the wrong configuration — specifying a fixed robot when a linear track is required — would have delivered a system that failed to solve the actual problem. The customer's trust in SZGH was built through that on-site consultation, and the specification we delivered was built on direct knowledge of their operation. That is how we work with heavy industrial customers, and it is why we make site visits a standard part of our process for applications at this scale.

Why This Case Matters for Heavy Industry

Most welding automation case studies focus on light manufacturing — small parts, short weld seams, high-volume repetitive cycles. Those are valid applications, and SZGH serves them well. But this case demonstrates something different.

SZGH's welding robot systems scale to heavy industrial applications — large castings, long complex weld seams, and government-contract reliability requirements. Manufacturers in energy equipment, oil and gas, heavy machinery, and industrial infrastructure face the same structural bottleneck: manual welding on large parts is slow, inconsistent, and difficult to scale. The linear track configuration extends robotic welding to part sizes that would otherwise require dedicated large-frame systems at significantly higher cost.

If your production involves large workpieces and hard output commitments, this configuration is worth a direct conversation.

Results Summary

Is Your Production Line Ready for Automation?

SZGH works with manufacturers across heavy industry, energy, and precision manufacturing — from compact assemblies to large industrial castings. We assess your actual production line, parts, and output requirements before recommending any configuration. If you are under contract pressure or scaling up production, let's talk about what the right system looks like for your specific situation.
