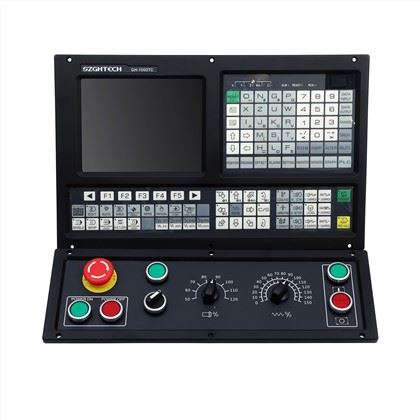

4-Axis CNC Milling Controller GH-1000MC-4 | RTCP Support | ATC + PLC + Macro Ready

The Smart Choice for 4-Axis CNC Milling & Specialty Machining
Need a 4-axis CNC milling controller that supports RTCP, rigid tapping, and automatic tool change — without the complexity and cost of premium brands? The GH-1000MC-4 delivers industrial-grade 4-axis simultaneous control with a powerful ARM+FPGA dual-processor core, making it the ideal controller for milling machines, magnet drill machines, and welding consumable production lines.

Built for machine builders, CNC retrofitters, and OEM equipment manufacturers, this controller combines μm-level precision with plug-and-play simplicity.


Availability:



Inquire

Product Description

Product Description

Core Capabilities at a Glance

Capability	What It Means for You
RTCP Mode	True tool-center-point control for accurate 4-axis machining on complex surfaces
Rigid Tapping	Following Mode & Interpolate Mode — perfect thread quality every time
Servo Spindle (C-axis)	Continuous positioning + dual analog 0~10V output for precise spindle control
ATC Support	Automatic tool change with up to 99 tools — minimize downtime
PLC + Macro	Fully programmable logic for custom automation sequences

Detailed Technical Specifications

️ Display & User Interface

Parameter	Specification
Display	8.4" True Color LCD, 800×600 Resolution
Language	Full English Interface
Memory	64MB Total / 56MB User Storage
USB Port	File transfer, system config & firmware upgrade

⚙️ Motion Control

Parameter	Specification
Controlled Axes	4-Axis Simultaneous
Rapid Traverse	Up to 60 m/min
Cutting Feed Rate	Up to 24 m/min
Control Resolution	0.1 μm (0.0001 mm)
Processor	32-bit ARM MCU + FPGA (Large-Scale Programmable Gate Array)
Position Control	Pulse+Direction / AB Phase / Dual Analog 0~10V
RTCP	Supported — Rotary Tool Center Point compensation

Tooling & Spindle Control

Parameter	Specification
Tool Magazine	Electric Turret & Binary Code Turret, up to 99 tools
ATC	Automatic Tool Change supported
Spindle Modes	Continuous positioning, rigid tapping, rigid screw processing
Rigid Tapping	Following Mode + Interpolate Mode
Cutter Compensation	C-type offset

I/O & Electrical

Parameter	Specification
Digital I/O	36 Inputs × 36 Outputs (freely configurable)
Power Input	100V–240VAC, 50/60Hz (universal)
Power Output	24VDC (high anti-interference switching supply)
Programming	Macro function + PLC function

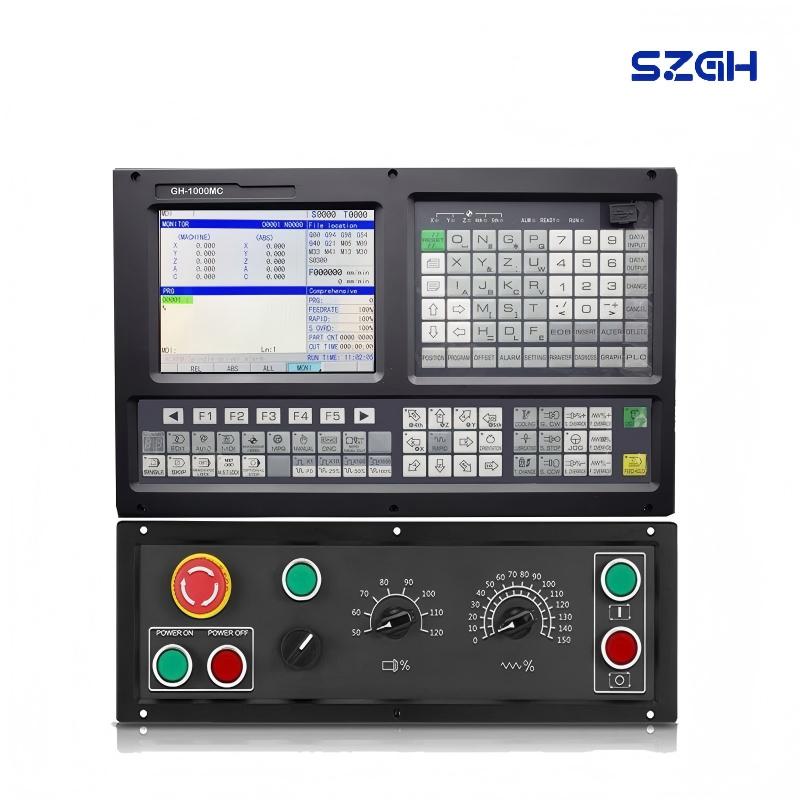

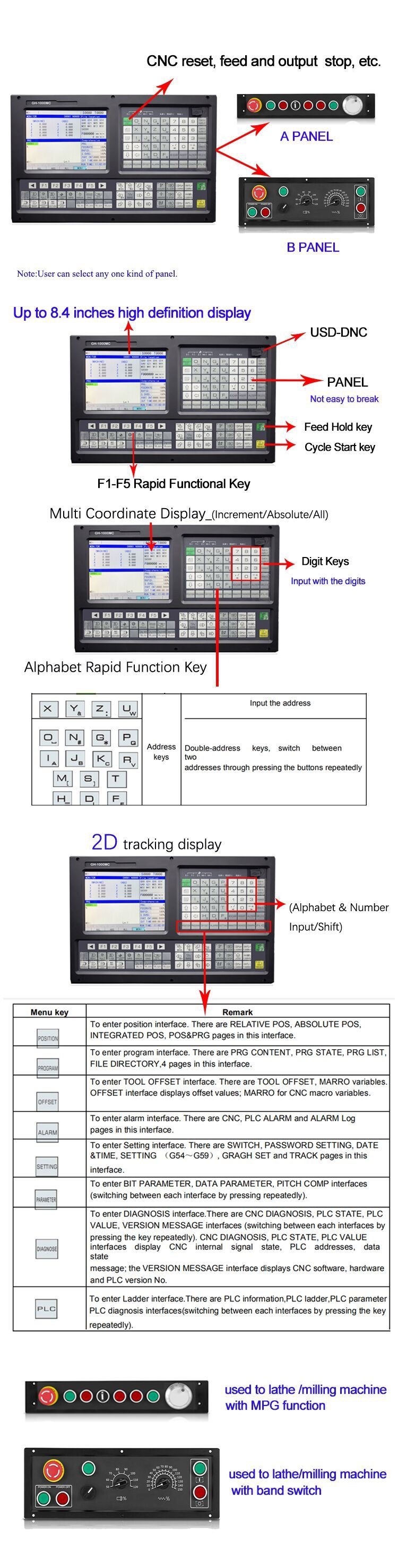

4-Axis CNC Milling Controller GH-1000MC-4 (1).jpg

Why RTCP Matters for 4-Axis Milling

RTCP (Rotary Tool Center Point) is a critical feature that allows the CNC controller to compensate for the tool's actual center position during rotary axis movements — rather than just controlling the machine's mechanical pivot point. This means:

✅ More accurate surface finishes on angled and curved workpieces
✅ Simplified programming — program the part geometry, not the machine kinematics
✅ Reduced scrap rates on complex 4-axis parts

Most controllers in this price range do NOT offer RTCP. The GH-1000MC-4 gives you this advanced capability as standard.

Rigid Tapping: Two Modes for Maximum Flexibility

The GH-1000MC-4 supports rigid tapping in both Following Mode and Interpolate Mode, ensuring perfect spindle-to-axis synchronization at the exact thread pitch. This eliminates the need for tension/compression tap holders and delivers:

Consistent thread quality at high speeds
Reduced cycle times vs. floating tap holders
Compatibility with all standard thread pitches

Ideal Applications

The GH-1000MC-4 controller is proven in:

CNC Milling Machines — 3-axis and 4-axis configurations
Magnet Drill Machines — automated drilling operations
Welding Consumable Production — scanning & automated processing
⚙️ Machine Tool Retrofits — upgrade older machines to modern CNC control
Special-Purpose Automation — custom equipment with PLC logic
Production Lines — ATC-equipped high-throughput machining

Controller Kit Includes

✅ GH-1000MC-4 Controller Unit (8.4" LCD panel)
✅ High anti-interference 24VDC switching power supply
✅ USB interface for file management & upgrades
✅ Complete English documentation
✅ Technical support from SZGH engineering team

OEM & Customization Options

Service	Details
Custom Branding	Your company logo & display interface
I/O Configuration	Tailored input/output mapping
PLC Programming	Custom automation logic for your application
Bulk Pricing	Volume discounts for machine builders

Frequently Asked Questions

What is the difference between this 4-axis controller and the 5-axis version?

The GH-1000MC-4 controls up to 4 simultaneous axes with RTCP support, ideal for 4-axis milling and indexing applications. If you need full 5-axis simultaneous machining, consider our GH-1000MC-5 5-Axis Controller.

Does this controller support RTCP for 4-axis machining?

Yes. The GH-1000MC-4 includes RTCP (Rotary Tool Center Point) mode as a standard feature, enabling accurate tool-center control during rotary axis movements.

What servo motors are compatible?

The controller supports Pulse+Direction, AB Phase, and 0~10V analog output — compatible with Delta, Yaskawa, Mitsubishi, Panasonic, and most other servo brands.

Can I use this for a CNC retrofit project?

Absolutely. The 36×36 configurable I/O, universal power supply (100-240VAC), and multiple position control modes make this controller ideal for retrofitting older manual or CNC machines.
