Product Description

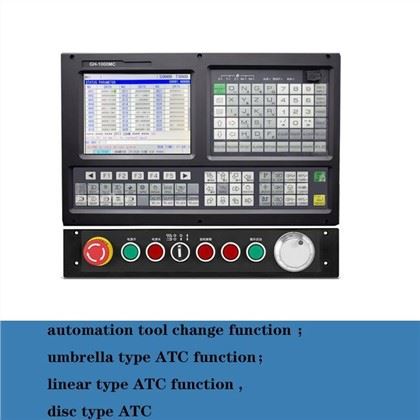

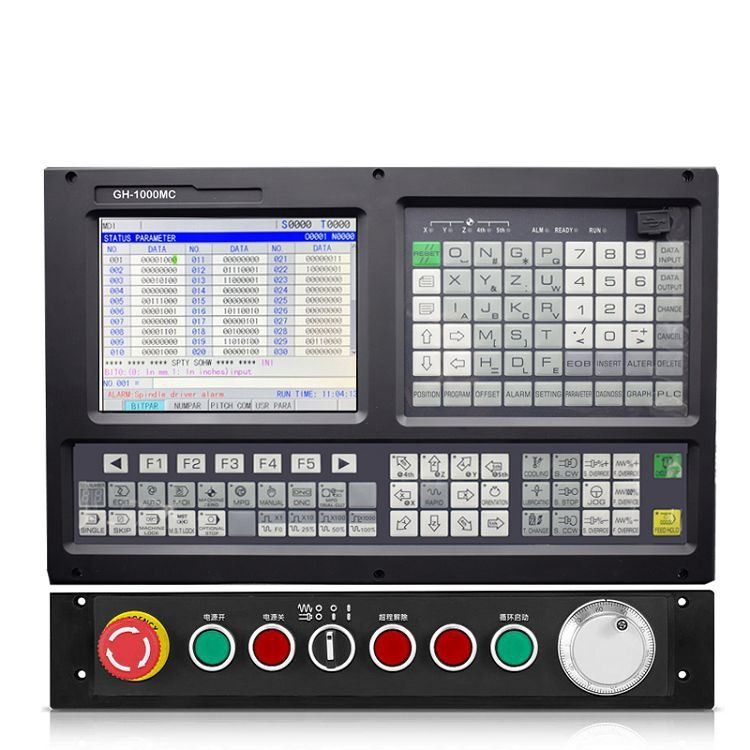

Looking for a reliable, high-performance 5-axis CNC milling controller that delivers precision machining without the premium price tag? The GH-1000MC-5 is engineered for CNC builders, machine retrofitters, and manufacturers who demand industrial-grade control at an accessible cost.
Whether you're building a homemade 5-axis CNC mill, upgrading an existing machine, or integrating into automated production lines, this controller delivers 0.1μm positioning accuracy with speeds up to 60m/min — performance that rivals controllers costing 3x more.
Feature | Specification |
Display | 8.4" True Color LCD (800×600 resolution) |
Language | Fully English Interface |
Storage | 64MB Total / 56MB User Storage |
Connectivity | USB Interface (Flash Drive Support) |
Feature | Specification |
Axes | 3 to 5 Axis Control |
Rapid Speed | Up to 60m/min |
Feed Speed | Up to 24m/min |
Control Precision | 0.1μm (0.0001mm) |
Processor | 32-bit ARM + FPGA Architecture |
Position Control | Pulse+Direction / AB Phase / Dual Analog 0~10V |
Tool Capacity: Up to 99 tools (Electric Turret & Binary Code Turret)
ATC Support: Automatic Tool Change ready
Servo Spindle: Continuous positioning, rigid tapping, rigid screw processing
Cutter Compensation: Full C-type offset support
Basic I/O: 36 inputs × 36 outputs (freely configurable)
Power Supply: High anti-interference switching power (100V–240VAC, 50/60Hz → 24VDC)
Programming: Macro function & PLC function support
The GH-1000MC-5 is purpose-built for:
✅ CNC Milling Machines (3-axis to 5-axis configurations)
✅ CNC Lathes & Turning Centers
✅ Homemade/DIY CNC Builds requiring industrial reliability
✅ Machine Retrofits & Upgrades
✅ Special-Purpose Automated Equipment
✅ Small-to-Medium Batch Production Lines
The 32-bit ARM + FPGA dual-processor architecture ensures real-time motion control with zero lag — critical for complex 5-axis simultaneous machining paths.
With 36×36 freely editable I/O points, USB file management, and support for both pulse and analog servo interfaces, integration into any machine configuration is straightforward.
We offer custom display interfaces, logo branding, and tailored I/O configurations for volume buyers and machine builders.
In-stock items: 3–5 business days
Made-to-order: 5–10 business days
Custom/OEM orders: 10–20 business days
Yes. Sample units are available at sample pricing for evaluation before bulk orders.
Absolutely. We support OEM customization including branded display interfaces, custom logos, modified I/O configurations, and specialized PLC programming.
Orders ≤ $2,000 USD: 100% advance payment
Orders ≥ $1,000 USD: 70% T/T in advance, balance before shipment

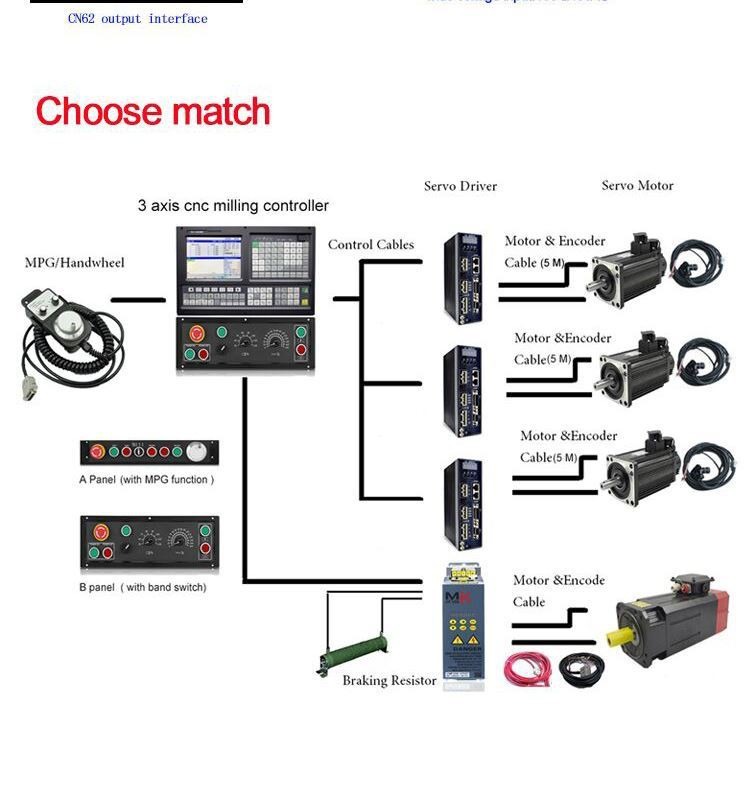

The GH-1000MC-5 supports Pulse+Direction, AB Phase, and 0–10V analog output — making it compatible with virtually all major servo motor brands including Delta, Yaskawa, Mitsubishi, and others.
Every GH-1000MC-5 controller ships with:
Complete English documentation
️ Technical integration support
Firmware upgrade capability via USB
Direct engineer contact for troubleshooting
Ready to upgrade your CNC machine's brain? [Contact us today for pricing and technical consultation.]
