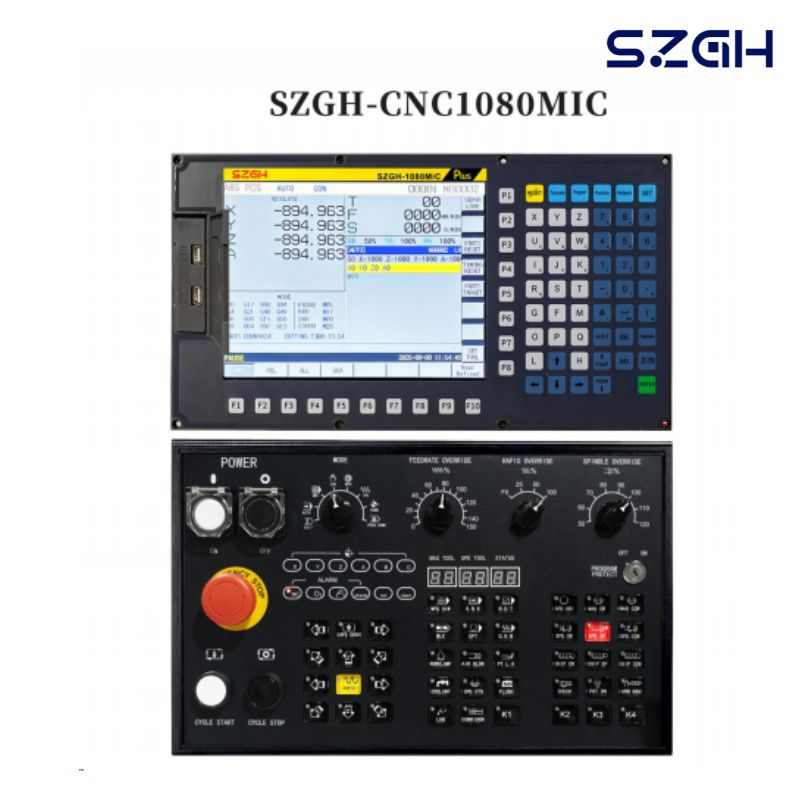

SZGH-CNC1080MIC,EtherCAT CNC Milling Controller ,0.25ms Interpolation, ARM+FPGA, Spline Interpolation

The SZGH-CNC1080MIC is SZGH's highest-specification CNC milling machine controller — the EtherCAT bus platform that sits above the SZGH-CNC1080MC and SZGH-CNC880MC in the milling controller lineup. Three hardware and platform differences separate the 1080MIC from the standard 880/1080 series: EtherCAT real-time servo bus, dual-core ARM+FPGA hardware platform at 1.2GHz main frequency, and 0.25ms interpolation cycle — four times faster than the 1ms cycle on the 880MC/1080MC. These are not incremental specification upgrades; they represent a platform change from a standard pulse-output controller to a bus-servo real-time communication system.

In practical terms, the 1080MIC operates on the same hardware and communication architecture as high-end controllers from Fanuc and Siemens: real-time EtherCAT bus commands replace step-and-direction pulse signals, the ARM+FPGA co-processor handles interpolation, PLC execution, and servo communication in parallel at 1.2GHz, and the 0.25ms interpolation cycle provides path following accuracy at high feedrates that a 1ms system cannot match. Combined with spline curve interpolation, spiral interpolation, multi-level operator access control, software travel limit checking, and data backup/recovery, the 1080MIC provides the control feature set required for precision machining centers, high-speed milling applications, and OEM machine builds intended for demanding end-user markets.

SZGH CNC Milling Controller Series — Full Lineup Comparison

Choose the 1080MIC when: the machine uses EtherCAT-compatible servo drives, the application requires 0.25ms interpolation for high-speed contouring accuracy, spline interpolation for smooth 3D surface paths, or multi-level access control and data backup for production floor security.

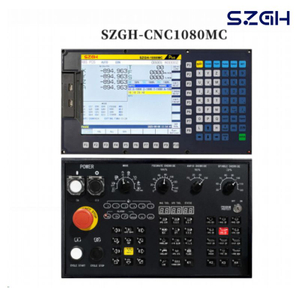

Choose the 1080MC when: the servo system is pulse-output (analog), 1ms interpolation is sufficient for the application, and the 10-inch screen and secondary panel hardware are needed without the EtherCAT bus.

Choose the 880MC when: the machine is a standard-size milling machine with pulse-output servos, 1ms interpolation is sufficient, and the standard screen and single-panel layout are adequate.

Technical Specifications

Core Control Parameters

Interpolation Capabilities

Milling Cycles

Safety & Data Management

Access Control

Programming

File & System Management

Key Features & Advantages

EtherCAT Real-Time Bus — Bus Servo Communication

The most significant technical distinction of the 1080MIC is its EtherCAT servo bus. The 880MC and 1080MC communicate with servo drives via analog voltage (0~10V) and pulse-direction signals — the standard method for conventional CNC controllers. The 1080MIC uses EtherCAT, a real-time industrial Ethernet protocol that replaces point-to-point wiring between the controller and each drive with a single high-speed bus connecting all drives in a ring or line topology.

What EtherCAT changes in practice:

• Wiring simplification — instead of individual encoder feedback cables, direction/pulse signal cables, and analog spindle cables running from the controller to each servo drive, a single EtherCAT cable connects all drives sequentially. On a 5-axis machining center, this can reduce control cabinet wiring complexity substantially

• Synchronized drive updates — EtherCAT cycle time is synchronized with the controller's 0.25ms interpolation cycle; all servo drives receive their position commands at precisely the same moment in each cycle, eliminating the small timing differences that exist in multi-axis pulse-output systems and improving multi-axis coordinated path accuracy

• Real-time drive feedback — servo drive status, alarm codes, torque data, and position feedback are returned to the controller over the bus in real time, enabling closed-loop axis monitoring and faster fault detection and reporting compared to analog systems

• EtherCAT servo drive compatibility — the 1080MIC is compatible with EtherCAT-capable servo drives from SZGH and other manufacturers supporting the EtherCAT CoE (CANopen over EtherCAT) profile standard

0.25ms Interpolation — Four Times Faster Than Standard

The 1080MIC executes interpolation calculations every 0.25 milliseconds — four times the update rate of the 880MC and 1080MC's 1ms cycle. At a 0.25ms cycle, the controller sends position update commands to the servo drives 4,000 times per second.

Why interpolation speed matters for milling:

At a cutting feedrate of 10 m/min on a 3-axis contouring operation, a 1ms interpolation cycle calculates and issues position updates every 0.167mm of tool travel. A 0.25ms cycle issues updates every 0.042mm — four times finer position updates along the same tool path. The result is:

• Tighter arc following accuracy — the chord error between the programmed circular arc and the actual servo-commanded path is proportionally reduced with shorter interpolation cycles, directly improving roundness on bored holes and profile accuracy on contoured pockets

• Smoother velocity transitions at corners — at direction reversals in a machining program, the shorter cycle time allows the velocity profile to be shaped in finer steps, reducing corner dwell marks on milled surfaces

• Higher feedrate capability while maintaining accuracy — at the same path accuracy specification, a 0.25ms system can operate at higher feedrates than a 1ms system, supporting higher material removal rates on aluminum and other non-ferrous materials

For precision mold cavity milling, aerospace structural pocket milling, and high-speed aluminum machining where surface finish and contour accuracy are process requirements, the 0.25ms interpolation cycle is the relevant specification.

Dual-Core ARM+FPGA Platform — 1.2GHz Main Frequency

The 1080MIC runs on a dual-core ARM processor with FPGA co-processing at 1.2GHz main frequency. The ARM core handles HMI, program interpretation, macro execution, and PLC logic; the FPGA handles real-time interpolation calculations and EtherCAT bus communication in dedicated hardware logic. This co-processor architecture ensures that:

• Real-time servo communication and interpolation execute in the FPGA at deterministic timing, independent of the ARM core's operating system load

• The 0.25ms interpolation cycle is maintained consistently even when the ARM core is executing complex macro programs, managing large program files, or updating the display

• PLC scan cycle and interpolation cycle are decoupled — PLC logic changes do not affect servo communication timing

The 1.2GHz ARM core also supports faster program processing: parsing and executing large 3D CAM programs with thousands of short G-code lines is handled at processing speeds that avoid program buffer starvation at high feedrates — a limitation of lower-frequency controller platforms on complex 3D mold programs.

Spline Curve Interpolation — Smooth 3D Contouring

The 1080MIC adds spline curve and spiral interpolation to the standard linear and circular (G02/G03) types available on the 880MC/1080MC series.

Spline interpolation calculates smooth continuous curves through a series of control points rather than approximating curves with a sequence of short G01 linear segments. When a CAM system outputs a 3D mold surface path as thousands of short G01 lines, the controller must execute direction changes at every line endpoint — at high feedrates, this produces micro-dwell marks and velocity ripple on the surface. Spline interpolation allows the controller to fit a smooth mathematical curve through the same control points and follow it as a single continuous motion, producing:

• Smoother surface finish on complex 3D mold surfaces without increasing CAM output density

• Higher achievable feedrate on 3D contouring passes without chord error violations

• Reduced machine vibration on long continuous curved tool paths

Spiral interpolation coordinates simultaneous rotation and linear Z-axis motion for helix milling operations — used in thread milling, helical plunge milling for pocket entry, and cam profile machining. Standard linear + circular interpolation cannot produce a true helix in one command; spiral interpolation generates the path natively.

Multi-Level Operator Access Control

The 1080MIC provides multi-level permission management: different access levels (Operator, Programmer, Maintenance, Administrator) unlock different controller functions. A typical configuration:

• Operator level — cycle start/stop, feedrate override, tool offset entry, program selection; cannot modify parameters or PLC

• Programmer level — program editing, tool offset management, coordinate system setup; cannot modify machine parameters

• Maintenance level — parameter access, PLC viewing; cannot modify system configuration

• Administrator level — full access including system parameter modification and PLC editing

For production machining centers where machine settings must be protected from operator modification, or OEM machine builders who need to lock system parameters from end-user access, multi-level access control is a standard requirement — and it is not available on the 880MC or 1080MC series.

Software Travel Limit Check + Data Backup/Recovery

Software travel limit checking adds a second layer of over-travel protection beyond the hardware limit switches: the controller continuously checks that commanded axis positions do not exceed the configured software travel boundaries in all axes. If a program command would move an axis beyond the software limit, the controller stops execution before the move — preventing tool and workpiece collision due to programming errors, incorrect work offset setup, or operator MDI mistakes.

Data backup and recovery via USB allows the complete controller state — part programs, tool offsets, work coordinate systems, machine parameters, and PLC program — to be backed up to a USB flash drive and restored to the same or a replacement controller. For production environments where machine downtime costs are significant, a saved USB backup allows a replacement controller to be restored to full production configuration without manually re-entering parameters.

56×32 I/O with Full Safety Architecture

The 1080MIC provides 56 inputs and 32 outputs with a complete hardware safety circuit: emergency stop, hardware travel limit inputs per axis, and software travel boundary checking in the controller. The 56-input count (one more than the 55 on the 880MC/1080MC) provides additional input channels for safety interlock signals — particularly relevant on machining centers with complex safety circuits involving door interlocks, light curtains, and robot cell safety signals.

Applications

The SZGH-CNC1080MIC targets precision machining centers, high-speed milling machines, and OEM machine builds where EtherCAT servo drives, sub-millisecond interpolation, or production-floor access control are required.

Frequently Asked Questions

Q: What does EtherCAT bus mean for the 1080MIC, and how does it differ from the 880MC?

The 880MC and 1080MC use analog voltage (0~10V) and pulse-direction signals to communicate with servo drives — standard for conventional CNC controllers. Each axis requires its own signal cable from controller to drive. The 1080MIC uses EtherCAT, a real-time industrial Ethernet bus where all servo drives connect to a single high-speed network. EtherCAT provides synchronized drive updates (all drives receive commands at the same moment each 0.25ms cycle), real-time drive feedback, simplified cabinet wiring, and compatibility with EtherCAT servo drives from multiple manufacturers. If your servo drives support EtherCAT, the 1080MIC is the correct controller; if your drives are pulse-output (step/direction or analog), the 880MC or 1080MC is the appropriate choice.

Q: What is the practical effect of 0.25ms vs 1ms interpolation on a milling machine?

At 10 m/min feedrate: a 1ms interpolation cycle issues position updates every 0.167mm of tool travel; a 0.25ms cycle issues updates every 0.042mm — four times finer. The visible effects are: tighter arc following accuracy on contoured pockets (smaller chord error at the same feedrate), smoother velocity transitions at corners (fewer dwell marks), and the ability to maintain path accuracy at higher feedrates. For standard production milling at moderate feedrates and tolerances, 1ms is sufficient. For precision mold milling, high-speed aluminum contouring above 8 m/min, or 5-axis surface machining where surface finish Ra values are specified, 0.25ms provides the interpolation bandwidth the application requires.

Q: What does spline interpolation do that G01 linear interpolation cannot?

G01 approximates curves by concatenating thousands of short straight-line segments. At each segment endpoint, the controller must execute a direction change — at high feedrates, this creates micro-dwell marks and velocity ripple on the machined surface. Spline interpolation calculates a smooth mathematical curve through the same points and follows it as a continuous motion, eliminating endpoint direction changes. The result is smoother surface finish on 3D contoured surfaces without increasing the density of G-code output from the CAM system.

Q: What is multi-level access control and why does it matter?

Multi-level access assigns different permission levels to different user roles: an Operator can start cycles and adjust overrides but cannot modify machine parameters; a Programmer can edit programs and tool offsets but cannot change PLC logic; a Maintenance engineer can view parameters; an Administrator has full access. This protects machine settings from accidental operator modification in production, allows OEM builders to lock system parameters from end-user access, and provides audit-trail clarity about who changed what on the machine.

Q: How does data backup and recovery work on the 1080MIC?

A USB flash drive backup saves the complete controller state: all part programs, tool offset tables, work coordinate systems, machine parameters, and PLC program. The backup is stored as a structured file set on the USB drive. To restore — either after a controller fault or when cloning settings to an identical machine — insert the USB drive and initiate the restore sequence from the controller menu. The full machine configuration is restored without manual parameter re-entry.

Q: Is the 1080MIC compatible with third-party EtherCAT servo drives?

The 1080MIC supports EtherCAT servo drives implementing the CoE (CANopen over EtherCAT) profile standard. Compatibility with specific third-party drive models should be confirmed with SZGH engineering before system design — provide the drive manufacturer and model number for confirmation. SZGH's own EtherCAT servo drives are pre-tested and confirmed compatible.

Q: Can the 1080MIC be supplied with SZGH EtherCAT servo drives as a complete kit?

Yes. SZGH manufactures EtherCAT-compatible servo motors and drives. A complete 1080MIC-based machining center control kit — 1080MIC controller, SZGH EtherCAT servo drives and motors for all feed axes, SZGH spindle servo motor and driver — can be supplied as a matched system with confirmed compatibility and a single technical contact for the complete control system.
