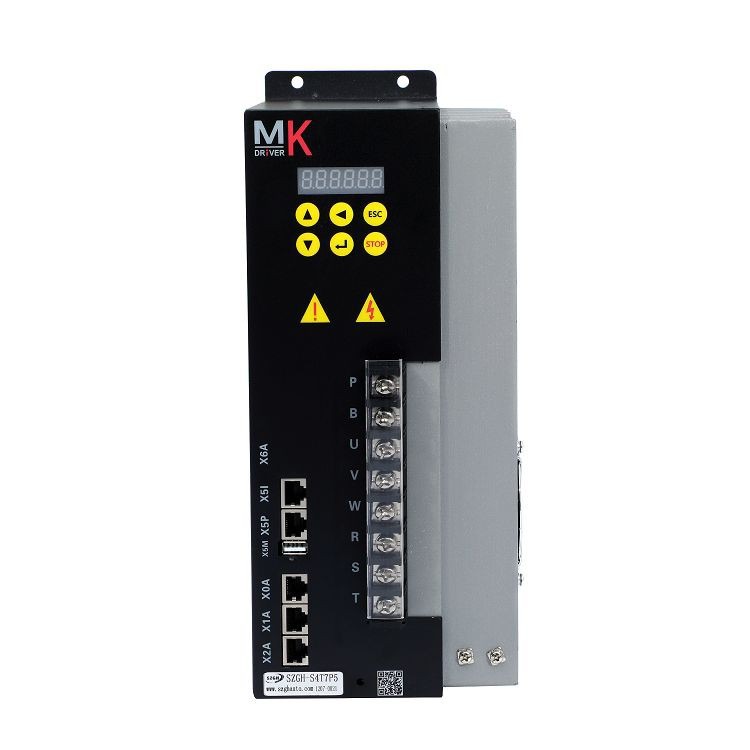

1.5kW-7.5kW Spindle Servo Driver for Small CNC Machines

Product Overview

This page focuses on the 1.5kW-7.5kW Spindle Servo Driver for Small CNC Machines range in the SZGH S4T series. These models are selected for applications where the spindle power, braking design and wiring specification must match the machine load accurately.

Key Features

• Wide power coverage for CNC spindle motor applications

• Stable speed control for turning, milling, drilling and grinding

• Strong torque response for cutting load changes

• Recommended brake resistor data for safe deceleration design

• Clear model selection based on motor power and rated current

• Suitable for OEM machine builders, CNC retrofit teams and maintenance replacement

Technical Specification Table

Typical Applications

• Small CNC lathe

• Compact CNC milling machine

• Drilling and tapping equipment

• Light-duty spindle retrofit

• Educational and laboratory CNC machines

How to Choose the Correct Model

1. Match the driver power with the spindle motor rated power.

2. Check that the driver rated output current is suitable for the motor rated current.

3. Confirm the braking requirement based on spindle inertia and deceleration time.

4. Select cable diameter according to the recommended specification and installation distance.

5. Confirm controller command, encoder feedback and machine working condition before order.

Related Page

View the complete S4T Series Spindle Servo Driver 1.5kW-132kW model list.

FAQ

What information is needed for model selection?

Please provide spindle motor power, rated voltage, rated current, rated speed, encoder feedback type, machine type and braking requirement.

Can SZGH help with wiring and parameter setting?

Yes. SZGH can provide wiring guidance, parameter setting suggestions and commissioning support for CNC spindle applications.

Is a brake resistor required?

A brake resistor is recommended for fast deceleration, frequent start-stop cycles or high-inertia spindle systems. Please select the resistor according to the model table and actual load.

Can this spindle servo driver be used for CNC retrofit projects?

Yes. The S4T series is suitable for new CNC machines and retrofit projects where stable spindle speed and stronger torque response are required.

Request a Quote

Send us your spindle motor nameplate, machine type and braking requirement. SZGH engineers will recommend the suitable S4T spindle servo driver model.
