You've invested in precision machining, automated assembly, and quality inspection. But at the very end of your production line, workers are still manually lifting, rotating, and stacking cases — hour after hour, shift after shift.
End-of-line palletizing is one of the most physically demanding, injury-prone, and productivity-limiting operations in manufacturing and logistics. It is also one of the most straightforward to automate — and one of the fastest to deliver measurable ROI.
The global warehouse robotics market was valued at USD 6.51 billion in 2025, projected to reach USD 7.35 billion in 2026, and forecast to expand to USD 25.41 billion by 2034 as manufacturers and logistics operators accelerate end-of-line automation investment. $CITE_1_fortune The palletizing robot segment specifically is entering a period of structural transformation — moving from a pure labor-replacement tool to a strategic enabler of supply chain agility, SKU flexibility, and smart factory integration.
This guide gives you everything you need to evaluate, select, and justify a palletizing robot investment in 2026.
Most operations managers underestimate the true cost of manual palletizing because the costs are distributed across multiple budget lines — labor, safety, quality, and logistics — rather than appearing as a single line item.
A typical manual palletizing line running 2 workers per shift across 3 shifts carries the following annual cost structure:
Cost Category | Annual Estimate |
Direct labor (6 workers × $55,000 fully-loaded) | $330,000 |
Overtime premiums (peak seasons) | $28,000–$45,000 |
Workers' compensation & injury costs | $18,000–$35,000 |
Turnover & retraining | $12,000–$22,000 |
Product damage from inconsistent stacking | $15,000–$40,000 |
Total Annual Cost Estimate | $403,000–$472,000 |
Over a 5-year horizon, a single manual palletizing line can cost $1.65M–$2M+ in total operational expense.
Manual palletizing ranks among manufacturing's most injury-prone activities. Repetitive lifting of cases weighing 10–25 kg causes cumulative musculoskeletal damage that rarely appears on a single incident report — but accumulates relentlessly in workers' compensation premiums, productivity loss, and regulatory exposure.
One beverage producer that automated its palletizing operation eliminated palletizing injuries completely and saw workers' compensation premiums decrease 18% the following year.
Human palletizing speed varies throughout a shift due to fatigue, break schedules, and individual performance differences. This variability creates downstream bottlenecks — conveyors back up, production lines slow, and shipping deadlines slip. A robotic palletizer maintains identical throughput 24 hours a day, 7 days a week, eliminating shift-change gaps and break-related slowdowns entirely.
Most ROI calculations for palletizing robots focus exclusively on direct labor replacement. This dramatically underestimates the true financial impact. A comprehensive analysis should include all of the following:
Total labor cost impact — wages, overtime, benefits, turnover, retraining
Throughput improvements — facilities typically report 15–30% throughput gains after automation
Reduced product damage — one food manufacturer reduced damage rates by 90%, saving €15,000/month in product costs alone
Workplace injury reduction — eliminates the highest-risk repetitive lifting tasks
Space utilization efficiency — modern robotic cells reduce floor space requirements by 30–40%
Quality and consistency — programmed pallet patterns with millimeter precision, every time
Energy and resource efficiency — one food producer reduced end-of-line energy consumption by 32% after automation
Maintenance predictability — annual maintenance costs typically 3–5% of initial investment
Implementation and integration costs — most installations complete within 1–4 weeks
Scalability and future-readiness — robotic cells scale with demand; manual lines require proportional headcount increases
Metric | Manual Palletizing | Robotic Palletizing |
Upfront cost | Low | Moderate–High |
Annual operating cost | Very high | Low & predictable |
Throughput consistency | Variable (fatigue-dependent) | Consistent 24/7 |
Injury risk | High | Minimal |
Product damage rate | 1–5% | <0.1% |
Scalability | Linear (add headcount) | Non-linear (speed up / add lines) |
5-year total cost | $1.65M–$2M+ | $400K–$700K |
Payback period | N/A | 12–30 months |
Best for: High-volume, high-speed palletizing of uniform cases, bags, or cartons
Articulated arm palletizers are the most widely deployed palletizing solution in food & beverage, consumer goods, and industrial manufacturing. They offer:
Cycle speeds of 800–2,000 cycles/hour depending on payload and reach
Payload capacity from 50 kg to 800 kg+ for heavy industrial applications
Reach envelopes suited for multi-line or multi-pallet configurations
Compatibility with a wide range of end-of-arm tooling (EOAT): vacuum grippers, clamp grippers, bag grippers, layer pads
SZGHTECH's industrial palletizing robots — including the SZGH-2010B (20kg payload) and heavy-duty variants — deliver the throughput and reliability demanded by high-volume production environments.
Best for: SME manufacturers, high-mix/low-volume operations, space-constrained facilities, entry-level automation
Collaborative palletizing cobots have transformed the accessibility of palletizing automation for small and mid-size manufacturers. Key advantages:
No safety cage required in many configurations (force-torque sensing stops motion on contact)
Intuitive programming — operators can teach new pallet patterns in minutes
Compact footprint — installs in existing floor layouts without facility modification
Single-phase power in some models — no electrical infrastructure upgrades required
Starting price well below $50,000 — the most accessible entry point for palletizing automation

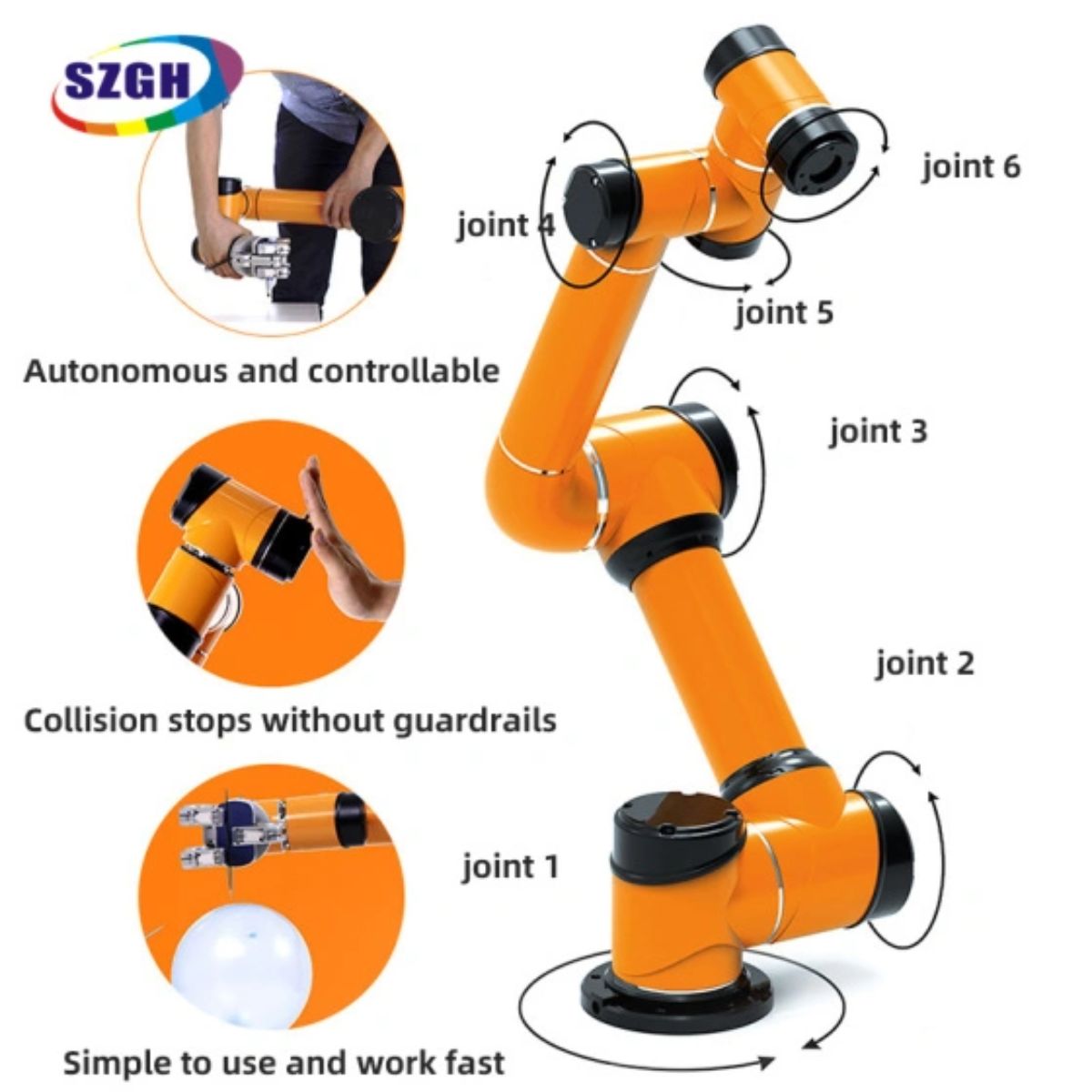

SZGHTECH's collaborative robot lineup — including the SZGH-1406A (14kg, 906mm reach) — provides an ideal starting point for manufacturers automating their first palletizing cell.
Best for: Very high-speed, high-load environments; dedicated single-product lines
Gantry systems use a Cartesian (X-Y-Z) motion architecture rather than a rotating arm. They excel in applications requiring extremely high throughput on a fixed product type — common in beverage, bottled water, and bulk commodity packaging.
Best for: Large warehouse facilities, multi-zone operations, flexible deployment
An emerging category combining palletizing arms with autonomous mobile robot (AMR) bases. These systems can navigate between palletizing stations autonomously, providing flexible coverage across large warehouse footprints without fixed infrastructure.
The food & beverage sector is the largest and most mature application for palletizing robots. Drivers include:
Relentless demands for hygiene and contamination control (IP69K washdown-rated robots)
High-speed throughput requirements on bottled water, canned goods, and packaged foods
Rapid SKU proliferation and private-label expansion requiring frequent pallet pattern changes
Just-in-time delivery mandates from major retailers
Representative adopters include Nestlé, PepsiCo, Anheuser-Busch InBev, Tyson Foods, and Danone.
In pharmaceutical manufacturing, palletizing automation is driven by precision, contamination control, and regulatory compliance rather than raw speed. Key requirements include:
Cleanroom-compatible robot designs
Integration with vision systems for label verification and serialization
Full traceability and digital twin pallet records for DSCSA/FMD compliance
Flexible reprogramming for small-batch and clinical trial materials
E-commerce fulfillment has created entirely new palletizing demands: high-mix, low-volume, rapid changeover. Traditional palletizers designed for uniform cases struggle with the SKU diversity of modern fulfillment centers. AI-powered vision systems and flexible EOAT are enabling a new generation of mixed-case palletizing robots capable of handling hundreds of different product types on a single system.
Consumer goods manufacturers and contract packagers face intense pressure to handle more SKUs with smaller batch sizes and faster turnaround times. Robotic palletizing cells with quick-change tooling and offline programming software allow these operations to switch between products in minutes rather than hours.
Heavy industrial applications — steel, automotive components, construction materials — require high-payload palletizing robots capable of handling loads of 200–800 kg. SZGHTECH's heavy-duty palletizing robots are engineered for these demanding environments, with robust construction and extended reach for large pallet footprints.
Cost Item | Your Value |
Number of palletizing workers (all shifts) | ___ |
Fully-loaded cost per worker (wages + benefits + overhead) | $___ |
Annual overtime spend on palletizing | $___ |
Annual workers' compensation costs (palletizing-related) | $___ |
Annual product damage cost (palletizing-related) | $___ |
Annual turnover & retraining cost | $___ |
Total Annual Palletizing Cost | $___ |
Saving Category | Typical Range |
Labor displacement | 2–6 workers per line |
Overtime elimination | 80–100% of palletizing overtime |
Injury/compensation reduction | 70–100% |
Product damage reduction | 80–95% |
Throughput gain value | 15–30% additional capacity |
Payback Period (months)=Total System InvestmentAnnual Net Savings×12Payback Period (months)=Annual Net SavingsTotal System Investment×12
Item | Value |
SZGHTECH palletizing robot system (complete cell) | $85,000 |
Installation, integration & commissioning | $12,000 |
EOAT (vacuum gripper + layer pad handler) | $8,000 |
Total Investment | $105,000 |
4 workers displaced (fully-loaded @ $58,000) | $232,000 |
Overtime elimination | $31,000 |
Injury/compensation reduction | $24,000 |
Product damage reduction (90%) | $27,000 |
Throughput gain (new contracts) | $38,000 |
Total Annual Gains | $352,000 |
Payback Period | ~3.6 months |
Year 1 ROI | 235% |
Typical palletizing robot payback periods range from 12–30 months for standard deployments. High-labor-cost, multi-shift operations with significant injury history can achieve payback in under 6 months.
Calculate your required cycles per hour: (cases per shift) ÷ (shift hours × 3,600). Ensure the robot's rated speed includes acceleration, deceleration, and EOAT exchange time — not just theoretical maximum speed.
Account for the weight of both the product and the EOAT (gripper). A 20 kg payload robot carrying a 5 kg gripper has only 15 kg of usable product capacity. Reach must cover the full pallet footprint plus safe clearance.
High-mix operations demand quick-change EOAT and intuitive reprogramming. Collaborative cobots with hand-guided teaching are ideal. High-volume, single-product lines can maximize throughput with fixed-tooling industrial robots.
Food & beverage and pharmaceutical applications require IP65–IP69K washdown ratings. Cold storage applications require low-temperature lubrication and condensation-resistant electronics. Hazardous environments may require ATEX-certified systems.
Evaluate compatibility with your existing conveyor system, WMS/ERP software, and upstream packaging equipment. Modern palletizing robots offer standard industrial communication protocols (EtherNet/IP, PROFINET, Modbus TCP) for seamless integration.
Compare systems on 5-year TCO — not just purchase price. Include maintenance contracts, spare parts, energy consumption, and software licensing. Annual maintenance for well-designed robotic palletizers runs 3–5% of initial investment.
The palletizing robot market is undergoing a fundamental transition. It is no longer simply a tool for replacing manual labor — it is becoming a strategic node in connected smart factory ecosystems, integrating with WMS, ERP, and AGV/AMR systems to enable real-time supply chain visibility and agility.
The warehouse robotics market is growing at a CAGR of 15%, projected to exceed USD 26.61 billion by 2033. $CITE_2_coherent Manufacturers who delay end-of-line automation are not just paying higher labor costs today — they are building structural disadvantages in throughput capacity, quality consistency, and supply chain responsiveness that will compound for years.
The labor shortage driving this transition is not temporary. Recruiting for repetitive, physically demanding palletizing roles is one of the top operational challenges for warehouses and factories globally — and it is getting harder every year.
Palletizing robots deliver some of the fastest, most predictable ROI in all of manufacturing automation. The combination of high labor displacement, injury elimination, product damage reduction, and throughput gains creates a financial case that is difficult to argue against — and a competitive advantage that compounds over time.
SZGHTECH's palletizing robot lineup — from entry-level collaborative cobots to high-payload industrial systems — gives manufacturers of every size a clear, supported path to end-of-line automation.
Stop losing money at the end of your production line. Start your palletizing automation journey today.
Tell us about your current palletizing operation, and our engineering team will calculate your projected payback period — at no cost, no obligation.
