SZGH-BCi12 | 12 kg Collaborative Robot — 1,250 mm Reach + ±0.03 mm Precision

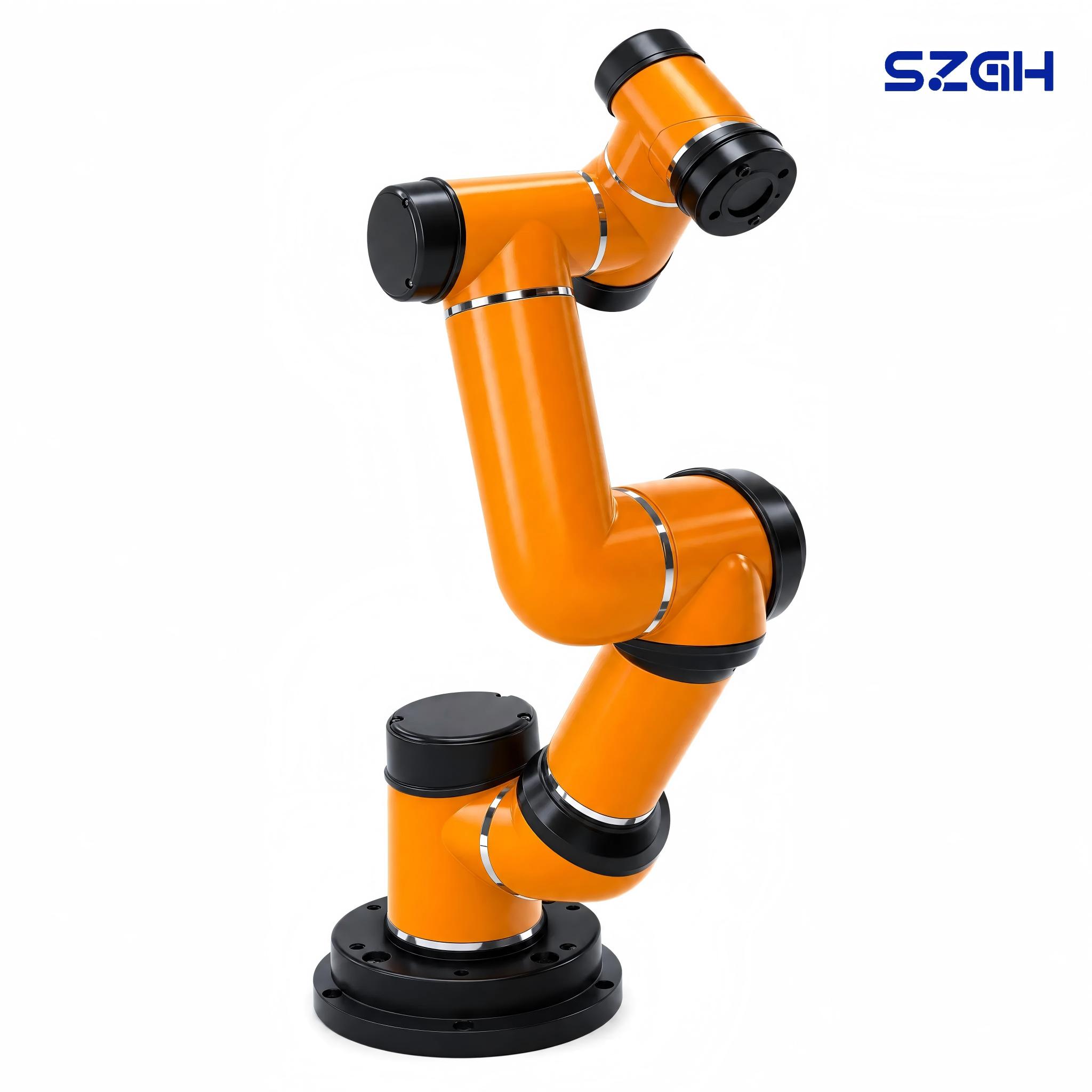

SZGH-BCi12: Large-Reach, High-Precision 12 kg Collaborative Robot for Demanding Process Applications

The SZGH-BCi12 is purpose-built for applications where process quality demands micron-level path accuracy across a large working envelope — spraying and coating on complex automotive body panels, high-precision assembly across wide fixtures, dimensional inspection of large-format parts, and welding on oversized sub-frames. With a 12 kg payload, ±0.03 mm repeatability, and a 1,250 mm working radius, the BCi12 addresses a specific gap in the collaborative robot market: most high-precision cobots (±0.02–0.03 mm) max out at 800–1,000 mm reach, while most large-reach cobots sacrifice precision. The BCi12 resolves this conflict, making it the preferred platform for automotive Tier 1 suppliers, coating application engineers, and system integrators building high-mix quality-critical lines where both precision and reach are non-negotiable. The full SZGH open integration stack — SDK (C/C++/Lua/Python), Modbus, Profinet (optional), ROS2, and 32-channel I/O — ensures the BCi12 connects seamlessly to complex factory architectures from day one.

Full Specifications

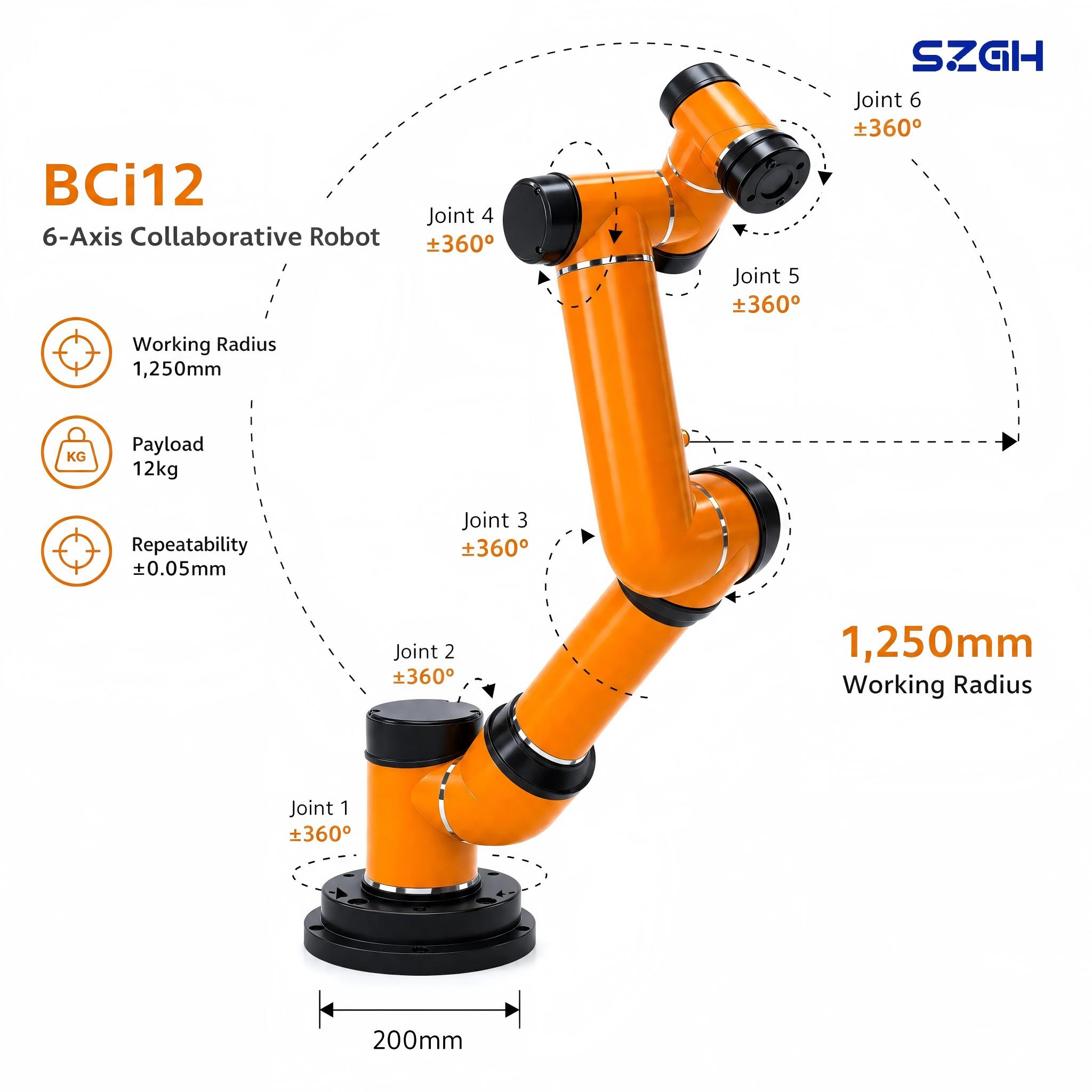

Robot Arm — SZGH-BCi12

Control Box

Control Box I/O Specifications

Communication & Software

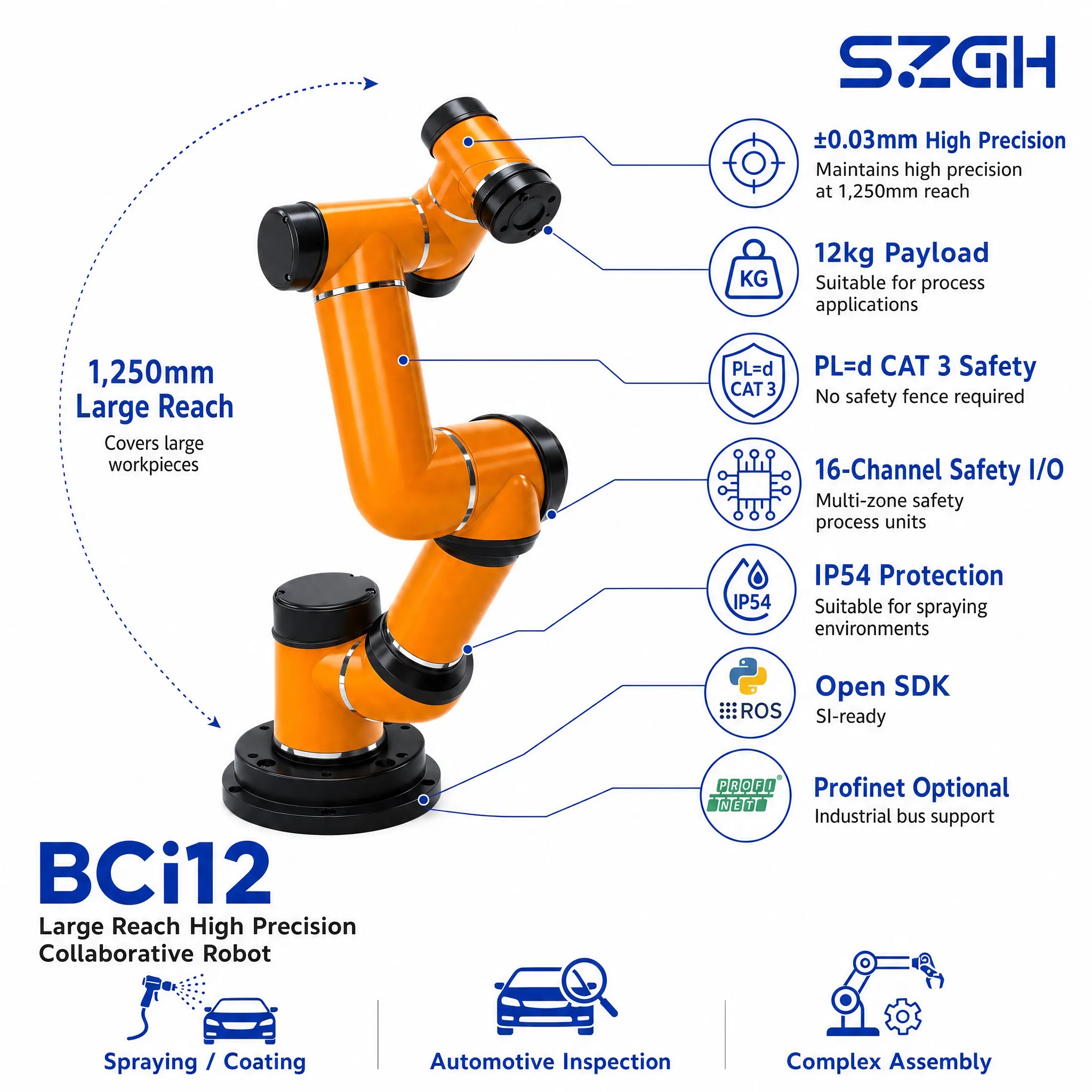

5 Core Advantages of the BCi12

No Safety Fence — 12 kg Collaborative Operation in Process-Intensive Environments

Achieving PL=d, CAT 3 collaborative safety at a 12 kg payload is technically demanding and commercially rare. Most robots handling 12 kg require safety fencing, which is particularly problematic for coating and inspection applications where operators need access to adjust parts, clean fixtures, or perform inline quality checks. The BCi12's 10-level collision detection, combined with configurable speed and force monitoring, enables genuine mixed-workspace operation: coating technicians can approach the robot during non-spray cycles, and quality inspectors can place gauges or remove sample parts without a full cell stop. This collaborative capability is not incidental — it is engineered in from the joint level upward, and it is certified to the same PL=d, CAT 3 standard as the rest of the BC i Series.

Large Reach + High Precision: ±0.03 mm at 1,250 mm — Unique in the Market

This is the BCi12's singular differentiator in the 12 kg collaborative robot segment. Achieving ±0.03 mm repeatability at 1,250 mm reach requires precision at every mechanical level: harmonic drive reducers with minimal backlash, high-resolution encoders at each joint, thermal compensation in the motion controller, and structural stiffness sufficient to limit elastic deformation at full extension under load. SZGH achieves this through fourth-generation joint module design, validated across 100,000+ cycle endurance testing. For automotive inspection, the BCi12 can reposition a vision sensor or measurement probe across a 1,250 mm working arc and return to any reference position with ±0.03 mm accuracy — enabling dimensional traceability that meets automotive IATF 16949 quality process requirements. For large-panel spraying, the same precision produces consistent coat thickness across wide body panels, reducing material waste and rework rates.

Open System — SI-Ready for Complex Process Lines

The BCi12's process-application customers typically operate complex factory architectures: spray booths with PLC-controlled paint delivery systems, automotive inspection lines with vision and measurement system coordination, and multi-robot welding cells requiring synchronized motion. The SZGH open architecture addresses this complexity directly. Modbus-TCP and optional Profinet fieldbus provide standard handshake protocols for paint delivery PLCs, vision controllers, and measurement system triggers. The Python SDK with async support allows integration engineers to build event-driven coordination logic between the BCi12 and upstream/downstream equipment without proprietary middleware. ROS2 packages enable native integration with 3D vision systems (structured light, stereo cameras) for guidance-corrected path execution in spraying and inspection.

16-Channel Safe I/O — Critical for Multi-Zone Safety in Process Cells

Process applications — particularly spray coating — involve multiple concurrent safety domains: spray booth fire suppression interlocks, solvent concentration monitoring alarms, ventilation interlock circuits, operator access gates, and robot enable/disable signals from the paint delivery system controller. The BCi12's 16-channel safety-rated I/O (16 DI + 16 DO, safety-rated) provides enough capacity to wire all of these safety functions into a single certified safety architecture without an external safety relay expansion module. This reduces cell BOM, simplifies safety validation documentation, and eliminates potential failure modes introduced by inter-module wiring. The 4 analog input channels additionally support direct reading of pressure sensors (for sealant bead monitoring) or viscosity sensors (for paint quality control) without an external analog I/O module.

6–12 Month ROI — Precision Quality at Domestic-Component Cost

In automotive and process industries, precision robots from European or Japanese manufacturers carry a significant price premium. The BCi12's domestic-sourced core components deliver ±0.03 mm performance at a system price typically 25–40% below competing European platforms at equivalent precision and payload specifications. For Tier 1 automotive suppliers and contract coating shops in emerging markets — Southeast Asia, South America, South Africa — this cost structure makes high-precision cobot integration economically viable for mid-volume production lines that previously could not justify the investment. With cycle rates typical of automotive inspection and assembly (600–1,200 parts/shift), payback periods of 6–12 months are achievable. A 12 kg collaborative robot ±0.03 mm specification that previously required a €100,000+ investment is now accessible at a meaningfully lower cost point.

Application Scenarios

Recommended priority industries for BCi12: Spraying & Coating, Automotive Parts Inspection, Complex Assembly.

Series Comparison & Selection Guide

BC i Series — Mid-to-Large Arm Group

BCi12 vs. BCi16 — Decision Guide

Selection Decision Tree

Need large reach (≥1,200 mm) AND high precision (±0.03 mm)?
→ BCi12 ✓ (unique combination in mid-large arm group)

Need ±0.03 mm but reach ≤1,000 mm is acceptable + need higher payload (16 kg)?
→ BCi16

Need maximum reach (1,650 mm), ±0.1 mm OK?
→ BCi20

Need large reach (1,350 mm), ±0.1 mm OK, lower payload priority?
→ BCi10

Customer Perspective — Fannie Chen, CEO, SZGH

"One of the most common conversations I have with automotive Tier 1 suppliers is about the precision-versus-reach trade-off in collaborative robots. A customer in Durban, South Africa — a contract spray coating shop serving local automotive OEMs — came to us with exactly this problem. They were applying primer to door panels measuring up to 1,100 mm in their longest dimension. Every cobot they evaluated was either precise enough (±0.03 mm path accuracy for consistent coat) or large enough (1,200+ mm reach to cover the full panel), but not both. We installed four BCi12 units in their spray booth. After three months of production, their rework rate for coat thickness non-conformance dropped from 8.2% to 1.4%, and solvent consumption fell 12% due to more accurate spray path execution. The Profinet interface connected to their Dürr paint delivery controller without a single custom protocol adapter. That is exactly the problem the BCi12 was designed to solve — and why precision and reach are not negotiable for this robot."

By Fannie Chen, CEO, Shenzhen Guanhong Automation Co., Ltd. (SZGH) | May 2026

Control System

The BCi12 runs the SZGH GRC (Guanhong Robot Controller) platform with enhanced precision motion firmware. The GRC implements fourth-order trajectory smoothing and real-time thermal compensation algorithms that maintain ±0.03 mm path accuracy across the robot's full reach envelope throughout multi-hour production runs — critical for spray coating applications where thermal drift from joint motors can degrade path consistency over time. The teach pendant (7-inch touchscreen, IP54-rated) includes a dedicated process path programming mode with spline-curve path editing, enabling coating and welding path generation without CAD-to-robot offline programming in most cases. For complex surface geometries, SZGH's offline programming software (compatible with RoboDK and Delfoi for coating path import) allows path generation from CAD models and simulation-validated cycle time prediction before deployment.

The controller supports SZGH's optional analog output module for direct control of spray gun trigger signals and paint flow regulators via the 4-channel AO interface, enabling full closed-loop coating process control from a single controller. Force-torque feedback integration (optional) supports compliant contact operations for sealant bead application requiring consistent contact force across uneven surfaces.

SDK & Developer Integration

Supported Languages

• C / C++ (native library, <1 ms latency on Ethernet)

• Lua (embedded scripting, used for on-controller coating sequence logic)

• Python 3.x (async support for event-driven process coordination)

Communication Protocols

• Ethernet (TCP/IP): Primary high-speed control channel

• Modbus-RTU / Modbus-TCP: Standard PLC register mapping — 250+ pre-mapped registers

• Profinet (optional): Siemens TIA Portal-compatible; 1 ms cyclic data exchange — critical for synchronized spray gun triggering

• RS485: Paint gun controllers, legacy HMI panels, flow sensors

ROS Integration

• ROS1 (Noetic) and ROS2 (Humble / Iron) packages

• MoveIt2 URDF with collision geometry for BCi12 kinematics

• ROS2-Industrial trajectory action interface

• Tested integrations: 3D structured light (Photoneo, Mech-Mind), SICK LiDAR, Cognex vision

Third-Party Integration (Pre-Validated)

• PLCs: Siemens S7-1200/1500, Omron NX/NJ

• Coating Systems: Dürr EcoGun / EcoBell control interface (via Profinet/Modbus)

• Measurement: Hexagon, Zeiss CMM trigger interface; Keyence LJ-X8000 laser profiler

• Force/Torque: ATI Gamma, Bota SensONE (sealant bead force control)

Quick-Start Python Example

import szgh_sdk as robot
arm = robot.connect("192.168.1.101")
arm.move_arc(start=[800,0,300], via=[1000,200,200], end=[1100,0,300], speed=200)
arm.set_ao(channel=0, value=4.5)   # Set spray gun flow signal

Full API documentation and process application integration guides are available at szghtech.com. For coating application SDK packages (spray path spline API, analog paint flow control examples), contact export02@szghtech.com.

Safety Certifications — Plain Language

CE (European Conformity): BCi12 meets EU Machinery Directive 2006/42/EC and harmonized collaborative robot safety standards. Required for EU deployment; broadly accepted globally as a baseline safety benchmark in automotive supply chains.

UL (Underwriters Laboratories): Independent North American electrical safety certification. Required for US/Canada deployment; recognized by multinational automotive OEMs in supplier qualification requirements.

KCs (Korea Certification): Certifies conformity with Korean electrical and safety standards for direct deployment in Korean manufacturing operations and those of Korean OEM-affiliated suppliers globally.

PL=d, CAT 3 (ISO 13849): The core collaborative safety rating. PL=d means dangerous failure probability is between 10⁻⁷ and 10⁻⁶ per hour — the second-highest performance level for safety functions. CAT 3 means the architecture tolerates a single component failure without losing the safety function. For spray coating environments, where operator access during coating cycles must be strictly controlled but operators need frequent access for part loading, fixture adjustment, and color change operations, this certification level is the minimum recommended by automotive safety auditors. The BCi12 meets this requirement natively, simplifying safety validation for automotive customer audits.

Warranty: 12 months from delivery, covering manufacturing defects in robot arm and control system. Regional service partners in 40+ countries.

Frequently Asked Questions

Q1: Is a 12 kg cobot without a safety fence safe in a spray coating environment?

Yes, subject to ISO/TS 15066 risk assessment for the specific application. The BCi12 is certified PL=d, CAT 3 (ISO 13849) with 10-level collision detection. In spray coating environments, the 16-channel safety I/O architecture allows integration of booth fire suppression interlocks, solvent monitoring alarms, ventilation status signals, and operator presence detection into a single certified safety architecture. SZGH provides application-specific safety configuration guides for coating environments, including recommended safety zone geometries and speed reduction profiles for human-cobot collaborative zones adjacent to spray booths.

Q2: Can the BCi12 integrate with our existing paint delivery controller (Dürr, Nordson, etc.)?

Yes. The BCi12's Profinet interface (optional) provides the most direct integration path with Dürr EcoGun/EcoBell systems and Nordson controllers that use Profinet I/O. For Modbus-based paint controllers, the standard Modbus-TCP interface with analog outputs (4-channel AO) handles spray gun triggering, flow rate control, and applicator pressure signals. The Python SDK's async event system allows synchronized sequencing between robot path progress and paint delivery control events. SZGH provides a pre-tested Dürr integration profile on request.

Q3: How does ±0.03 mm precision affect coating quality versus a standard cobot?

In spray coating, path repeatability directly controls coating film thickness uniformity. A cobot with ±0.1 mm repeatability at full extension introduces path deviation of up to 0.2 mm between passes — acceptable for rough coatings but insufficient for automotive primer/topcoat, furniture lacquer, or electronic conformal coating where film thickness tolerance is ±5–15 μm. The BCi12's ±0.03 mm repeatability reduces cycle-to-cycle path deviation by over 3×, translating to more consistent film thickness, lower material consumption (8–15% reduction in typical automotive spray tests), and fewer rework cycles from non-conforming coat thickness.

Q4: Is there a speed-versus-precision trade-off with the BCi12?

All 6 axes maintain ±0.03 mm repeatability across the full speed range up to the rated 3.0 m/s maximum linear TCP speed. There is no "precision mode" with reduced speed — the BCi12 is designed to hold this accuracy at production speeds. For the highest-precision path segments (positioning a measurement probe or applying a precision sealant bead), reducing speed further to 50–200 mm/s improves dynamic accuracy beyond the static repeatability specification. The 267°/s J3 speed enables fast repositioning between process paths without compromising cycle time.

Q5: How does the BCi12 compare to the BCi16 for automotive assembly applications?

The key difference is reach versus payload. The BCi12 (1,250 mm reach, 12 kg, ±0.03 mm) is superior for applications requiring wide coverage — large panel inspection, multi-point spraying across wide body panels, or assembly tasks spanning large fixture footprints. The BCi16 (967.5 mm reach, 16 kg, ±0.03 mm) is the better choice when maximum payload (for heavier end-effectors or heavy parts) is the priority and reach under 1,000 mm is acceptable. Both achieve the same ±0.03 mm precision. See the BCi16 product page for a detailed side-by-side comparison.

Q6: What are the base and mounting requirements for the BCi12?

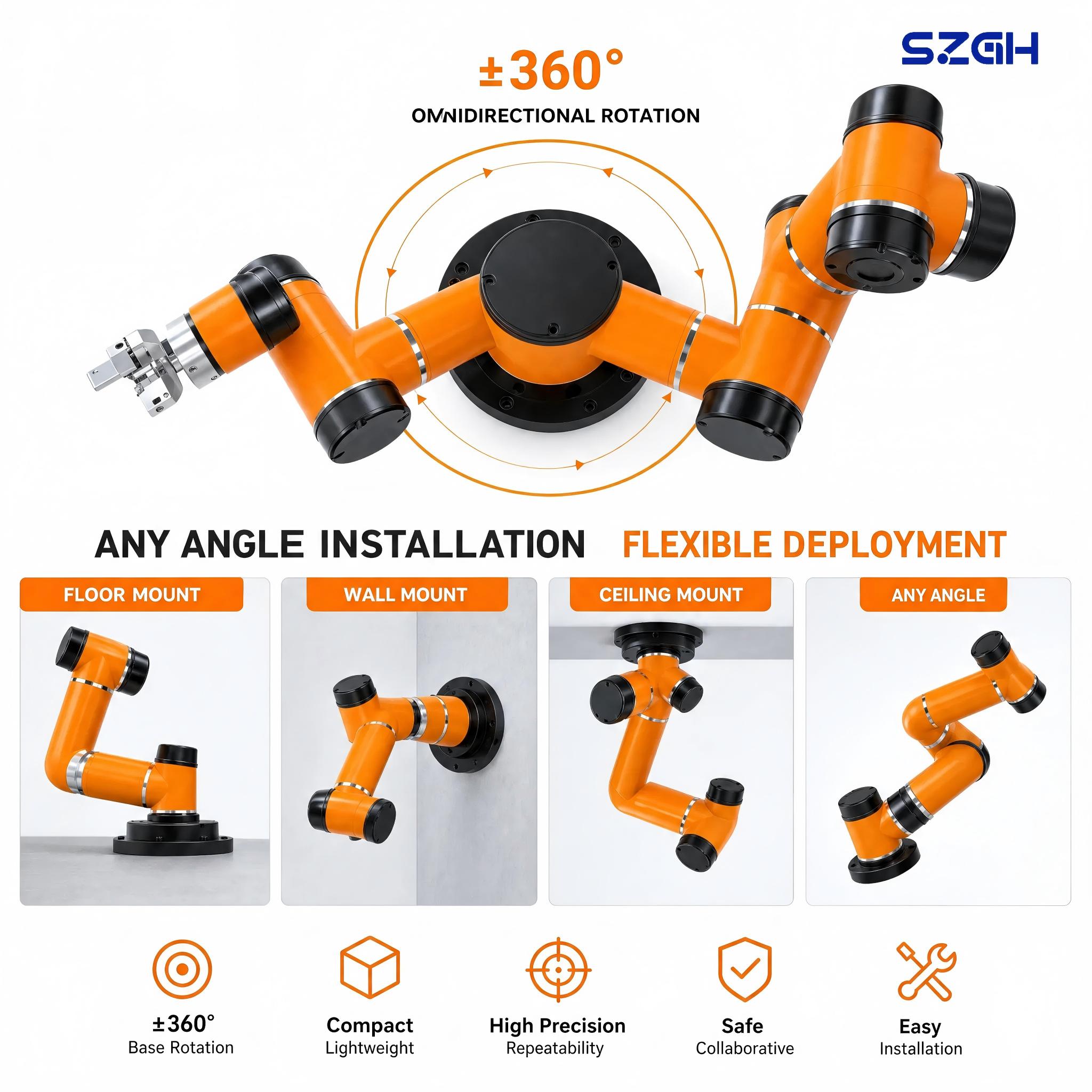

The BCi12 (40 kg body weight) mounts via ISO 9283 flange with M8 bolts (6×, 50 mm bolt circle). Any-angle mounting — floor, wall, ceiling, inclined — is supported without payload derating, enabling overhead mounting in spray booths where floor space is constrained. SZGH's base design guide specifies minimum rigidity requirements for concrete pads, steel tube frames, and robot positioning columns. In spray environments, all external surfaces are IP54-rated; joint seals are rated for solvent-resistant environments.

Q7: What after-sales support is available for coating and automotive applications?

SZGH provides application-specific commissioning support for coating and automotive integration projects, including spray path programming assistance, force-torque sensor integration, and IATF 16949 measurement process documentation templates. Regional service partners maintain stock of common spare parts with typical delivery of 3–5 business days. For automotive supply chain customers requiring documented maintenance procedures, SZGH provides a complete maintenance manual in English, Chinese, and Spanish.

Q8: What is the ROI expectation for a BCi12 coating or inspection application?

For automotive spray coating (typically 600–1,000 panels per shift), a BCi12 replacing manual spray operations typically achieves payback in 8–12 months, driven by labor cost displacement, material savings (8–15% solvent reduction from precision path control), and reduced rework cost (2–7% reduction in non-conforming coat). For dimensional inspection applications, where a BCi12 replaces dedicated CMM operator time on large-part workflows, payback is typically 6–10 months. SZGH provides a customizable ROI model for coating and inspection applications — contact export02@szghtech.com.
