When a Siemens CNC Failure Stopped Production: How an Egyptian Job Shop Got Back Running with SZGH

At a Glance

The Problem: A Siemens Failure at the Worst Time

I hear from customers at exactly the wrong moment — when their machine is down and customer orders are stacking up.

That was the situation for this metal parts job shop in Egypt. They run contract machining work: customers bring drawings, the shop delivers finished parts. Their entire operation depends on machines being available. When their CNC controller failed, the machine went silent. Not just one job paused — every order in the queue was suddenly in jeopardy.

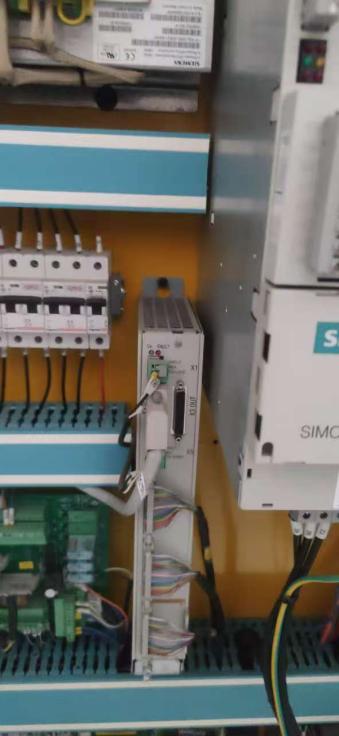

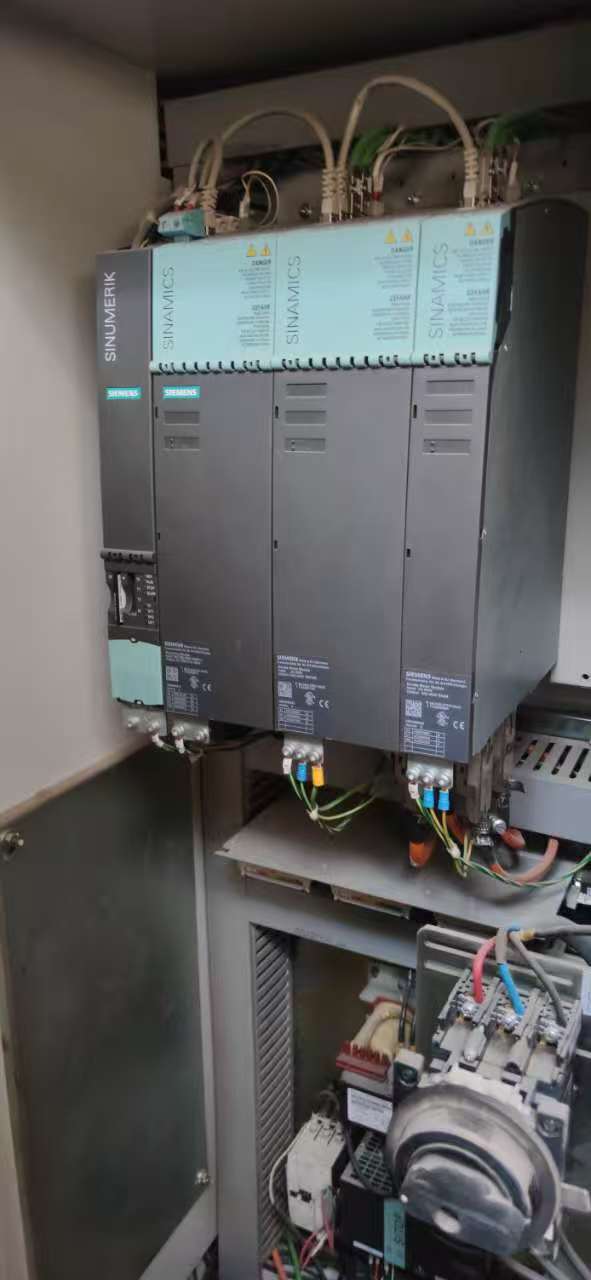

The controller in question was a legacy Siemens unit from the 810D/840D era. Siemens has since discontinued this product line. Spare parts, where they exist at all, come with long lead times and high costs. In Egypt, finding a Siemens-certified service engineer with genuine access to that system's components is difficult. The customer contacted Siemens channels and got no actionable path forward. The machine sat idle.

What made this situation harder was the compatibility uncertainty. A damaged controller doesn't always fail cleanly — it can raise questions about whether the drive system, I/O wiring, or other machine components were affected. Without proper documentation and a partner who understands the machine wiring, even a correct replacement part may not restore operation. The customer needed more than a part. They needed a complete retrofit solution from a supplier who understood both the hardware and the programming logic that makes the machine run.

That's when they contacted SZGH.

Why CNC Retrofits Fail Without Documentation

Let me be direct about something the broader market doesn't explain well: swapping a CNC controller box is not a retrofit. A working retrofit is the result of four things coming together correctly.

First, electrical wiring. Every axis motor, every relay, every I/O point in the machine has to be correctly wired and documented. A mismatch between the original machine's wiring scheme and the new controller's I/O map creates alarms at best and damaged hardware at worst. Full wiring diagrams are not optional — they are the foundation of the entire job.

Second, parameter configuration files. A CNC controller only behaves correctly when it knows the machine. Spindle speed ranges, axis travel limits, servo gain settings, encoder resolution — these are not guesses. They come from precise measurement and configuration. Pre-built parameter files matched to the machine type dramatically reduce startup time and eliminate tuning errors.

Third, the PLC program. The ladder logic that controls your tool changer, coolant pump, spindle orientation, door interlocks, and safety circuits is not supplied by the controller hardware. It has to be written — or rewritten — for your machine's specific I/O layout. Most generic controller sellers don't provide this. Without it, the machine may move axes but cannot complete a real cycle.

Fourth, remote commissioning support. Even with all of the above, first power-up is rarely clean. There will be alarms to clear, motion sequences to verify, parameter adjustments to make. Having an engineer available to guide that process — in real time, over video — is the difference between a one-day startup and a weeks-long troubleshooting ordeal.

SZGH provides all four. That is not an accident. Because SZGH self-develops its CNC controllers and manufactures its own CNC machine tools, our engineers understand how machines are wired and programmed at a fundamental level — not just how to configure a controller in isolation.

The SZGH Solution

After reviewing the customer's machine configuration, our team designed a complete retrofit package built around an SZGH CNC controller matched to the lathe's axis and spindle configuration.

We delivered a full electrical wiring diagram set — covering all axes, spindle circuits, I/O connections, relays, and auxiliary systems. These diagrams were prepared to reflect the actual machine layout, not a generic template. The customer's team could follow them step by step during installation.

We provided pre-configured parameter files set to the machine's specifications: servo axis parameters, spindle scaling, travel limits, and feed override ranges. This eliminated the need for the customer to derive these values independently during a high-pressure restart situation.

We wrote a PLC program tailored to this machine's I/O map — covering coolant control, axis limits, and the machine's operational logic. This is the layer that makes the controller behave like the machine it's installed in, not a generic motion controller.

A meaningful part of this project was the customer's visit to our Shenzhen factory. They traveled from Egypt to meet our engineering team, see our manufacturing facility and showroom firsthand, and work through the technical details in person. That level of commitment on their side reflects the seriousness of the problem they needed to solve — and the trust they placed in SZGH as a retrofit partner.

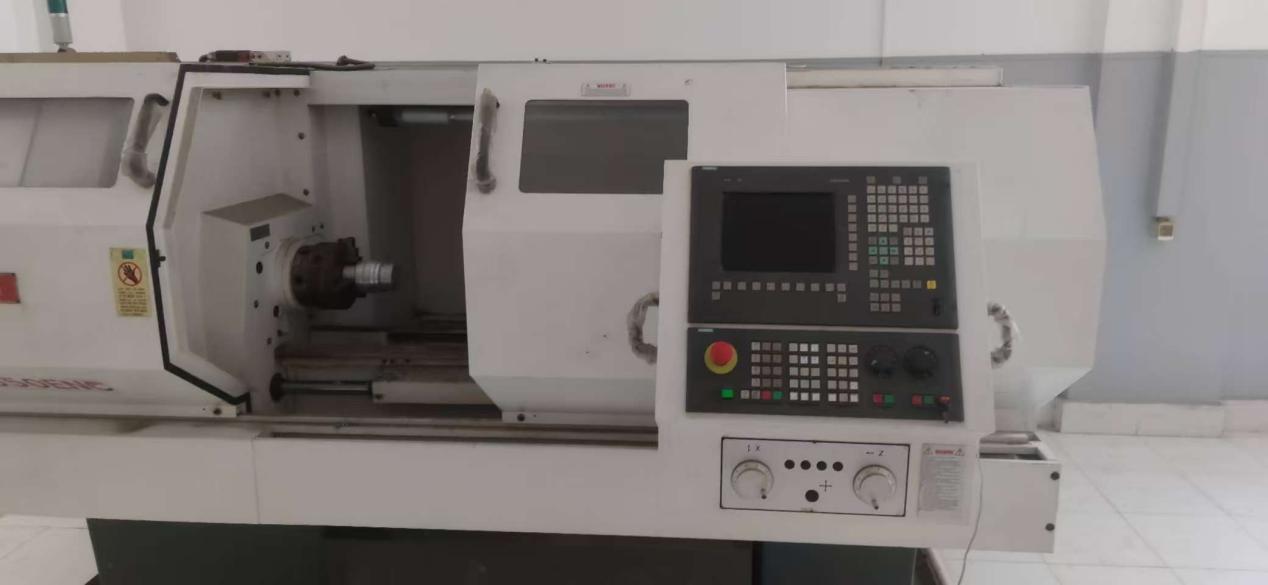

Remote commissioning followed installation. Our engineer guided the customer's team through startup via video call — clearing alarms, verifying axis motion, confirming spindle operation, and signing off on full cycle operation. The machine returned to production. Efficiency improved. Machine downtime dropped to near zero, backed by SZGH's ongoing after-sales support.

What This Means for Job Shops with Aging Siemens Machines

If you operate a contract machining shop and your CNC systems are aging legacy Siemens controllers — the 810D, 840D, or 828D generation — the question is not whether those systems will eventually fail. It is when, and whether you will have a plan in place when they do.

For a job shop, an unplanned controller failure is not a maintenance problem. It is a revenue problem. Customer orders do not wait while you spend weeks sourcing discontinued parts or chasing expensive service contracts.

SZGH serves customers in 126 countries, Egypt and the broader MENA region included. Our remote commissioning capability means that geography is not a barrier to getting your machine running again. The right time to identify a retrofit partner is before the failure happens — not after the machine has already stopped.

What SZGH Provides in a CNC Retrofit Package

Is Your CNC Controller at Risk?

If you are running Siemens 810D, 840D, 828D, or other end-of-life legacy controllers and are concerned about downtime risk — or if your controller has already failed — contact SZGH. We can assess your machine configuration remotely and prepare a complete CNC controller retrofit proposal.

By Fannie Chen, CEO, Shenzhen Guanhong Automation Co., Ltd. (SZGH) | June 2026
