SZGH-CNC1000TDc-2 — 2-Axis Economic CNC Lathe Controller

Key Specifications

Core Specifications

Back Panel Connectors

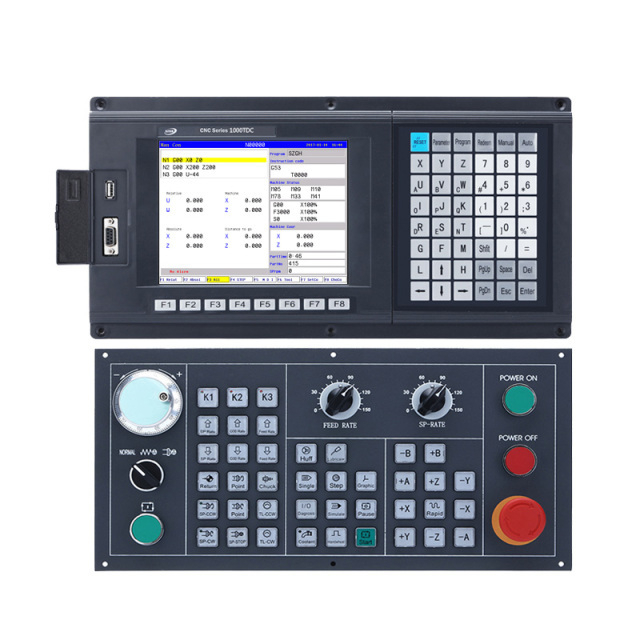

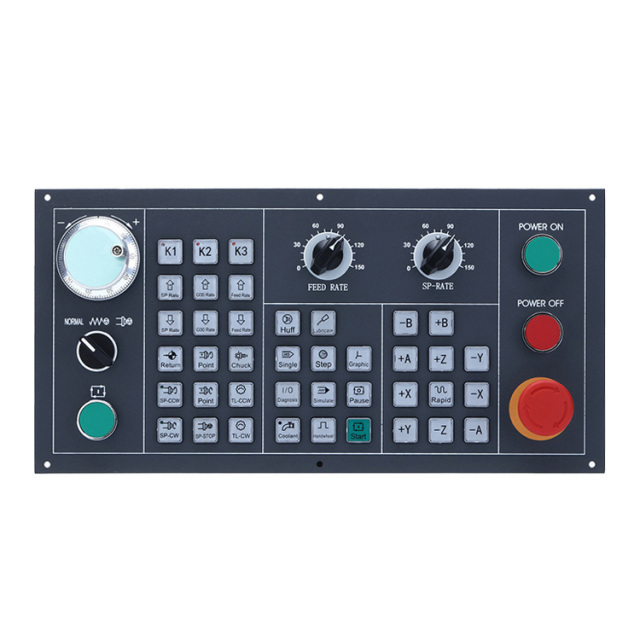

Operating Panel Options

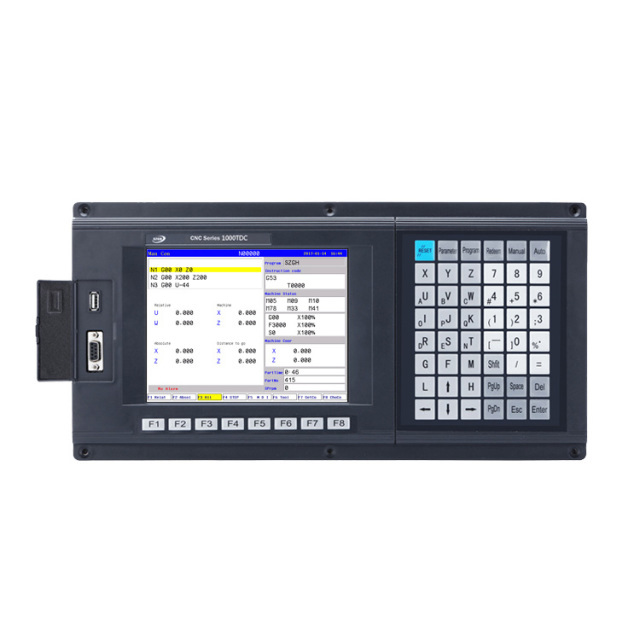

The SZGH-CNC1000TDc-2 ships as a complete set — Host Controller + Operate Panel + Accessories — with one of four panel configurations selected at order time to match your machine and operator requirements.

Key Features

• 8.4-inch 800×600 high-definition display — A large, clear LCD gives operators a comfortable view of coordinates, active program, and status at typical shop floor distances, reducing read errors and operator fatigue.

• Open PLC editable online and offline — The ladder logic is fully accessible. Your engineers can modify, extend, or completely rewrite the control program using standard tools — no proprietary software license or manufacturer permission required. This is a critical advantage for OEM builders and integrators who need machine-specific logic.

• Open macro program support — Custom machining cycles, probing routines, and parametric programs can be written and deployed using the built-in macro environment, making repeat-job programming faster and more flexible.

• USB + RS232 DNC file transfer — Load part programs directly from a USB flash drive or transfer files from a connected PC via RS232. Both channels support DNC (Direct Numerical Control) streaming for programs too large to store in controller memory.

• 2ms interpolation cycle — The ARM + FPGA dual-processor architecture delivers a 2-millisecond interpolation cycle, producing smooth, accurate axis motion for finish turning and threading operations.

• 2 analog spindle outputs — Two independent analog spindle output channels allow the controller to drive dual-spindle lathe configurations or provide a dedicated override output for spindle speed control.

Rapid Function Keys

The SZGH-CNC1000TDc-2 provides two sets of rapid-access keys that reduce operator input time during setup and production. Alphabet rapid keys trigger immediate machine or parameter actions. F1–F8 function keys on the main screen provide one-touch access to coordinate modes, MDI (Manual Data Input), and setup functions.

Alphabet Rapid Function Keys

Manual feed speed presets (F key):

0 = 30 / 1 = 60 / 2 = 120 / 3 = 250 / 4 = 500 / 5 = 1000 / 6 = 1500 / 7 = 2000 / 8 = 2500 / 9 = 3000 mm/min

F1–F8 Function Keys (Main Screen)

Applications

The SZGH-CNC1000TDc-2 is suitable for both new CNC lathe builds and retrofit projects that convert manual or worn-out machines to full CNC operation.

One-Stop CNC Kit

SZGH supplies the complete package for both retrofit upgrades and new CNC lathe builds — controller, servo system, spindle kit, linear guides, ball screws, turret, and fully assembled electrical cabinet. Sourcing all components from a single supplier eliminates compatibility risk and simplifies procurement, commissioning, and after-sales support. Contact SZGH for a full bill-of-materials quotation against your specific machine specification.

Why Choose the SZGH-CNC1000TDc-2

• Factory-direct from the manufacturer — SZGH is the manufacturer, not a distributor. Pricing reflects production cost, not distribution margin. Direct access to engineering support, parameter files, and wiring documentation is included as standard.

• Open PLC — your engineers own the logic — The PLC ladder program is fully editable without manufacturer involvement. Machine-specific interlocks, safety logic, and cycle customizations can be implemented and maintained in-house, which is essential for OEM builders and machine integrators who ship customized equipment to end customers.

• CE certified + 10+ years production history — The SZGH-CNC1000TDc-2 carries CE certification and is backed by over a decade of production and field deployment across 126 countries. ISO 9001 quality management ensures consistent manufacturing standards.

• Full ecosystem — one supplier for the complete kit — From ball screws and linear guides to servo drives, turrets, and electrical cabinets, SZGH supplies every major component of a CNC lathe build or retrofit. Single-supplier sourcing reduces lead time, simplifies installation, and consolidates after-sales accountability.

Request a Quote or Technical Consultation

The SZGH-CNC1000TDc-2 is available factory-direct with CE documentation, parameter files, and wiring diagrams provided on request. Contact the SZGH export team for current pricing, panel option selection guidance, compatible servo recommendations, and application assessment for your specific machine or retrofit project.
