Slant Bed vs Flat Bed CNC Lathe: Which One Is Right for Your Factory?

You're sourcing a CNC lathe and the sales sheets all say "high precision, high rigidity" — yet a slant bed and a flat bed machine are priced completely differently for what looks like the same spec on paper. The bed geometry is not a cosmetic difference; it fundamentally changes how the machine handles cutting force, heat, chips, and automation. Understanding the structural logic behind each design is the fastest way to stop second-guessing and commit to the right platform for your parts.

What Is a Slant Bed CNC Lathe?

A slant bed CNC lathe has its guideways angled — typically at 30°, 45°, or 60° — so the cross-slide moves diagonally rather than horizontally. That incline does three things simultaneously: it puts the cutting force vector more directly in line with the machine base (improving rigidity), it lets gravity clear chips away from the work zone without conveyors fighting the geometry, and it tightens the footprint enough to make robot integration straightforward.

SZGH's slant bed range illustrates the precision ceiling this geometry enables. The SZGH-36J/36Z handles 35 mm bar stock at ±0.01 mm; the SZGH-46J/46Z steps up to 45 mm bar stock at ±0.0075 mm; and the SZGH-TK50 accepts 50 mm bar with a 500 mm swing for larger-diameter turned parts. These are purpose-built for lights-out, high-volume precision turning where consistent cycle times matter more than easy manual access.

What Is a Flat Bed CNC Lathe?

A flat bed CNC lathe keeps its guideways horizontal and parallel to the spindle centerline — the same geometry that manual engine lathes have used for over a century. That parallel layout gives operators a wide, open work envelope: easy access to chuck and tailstock, straightforward setup for long shafts, and a spindle bore large enough to pass serious stock diameters. Flat beds are also structurally simpler to scale up, which is why virtually every heavy-duty turning center above 600 mm swing uses this configuration.

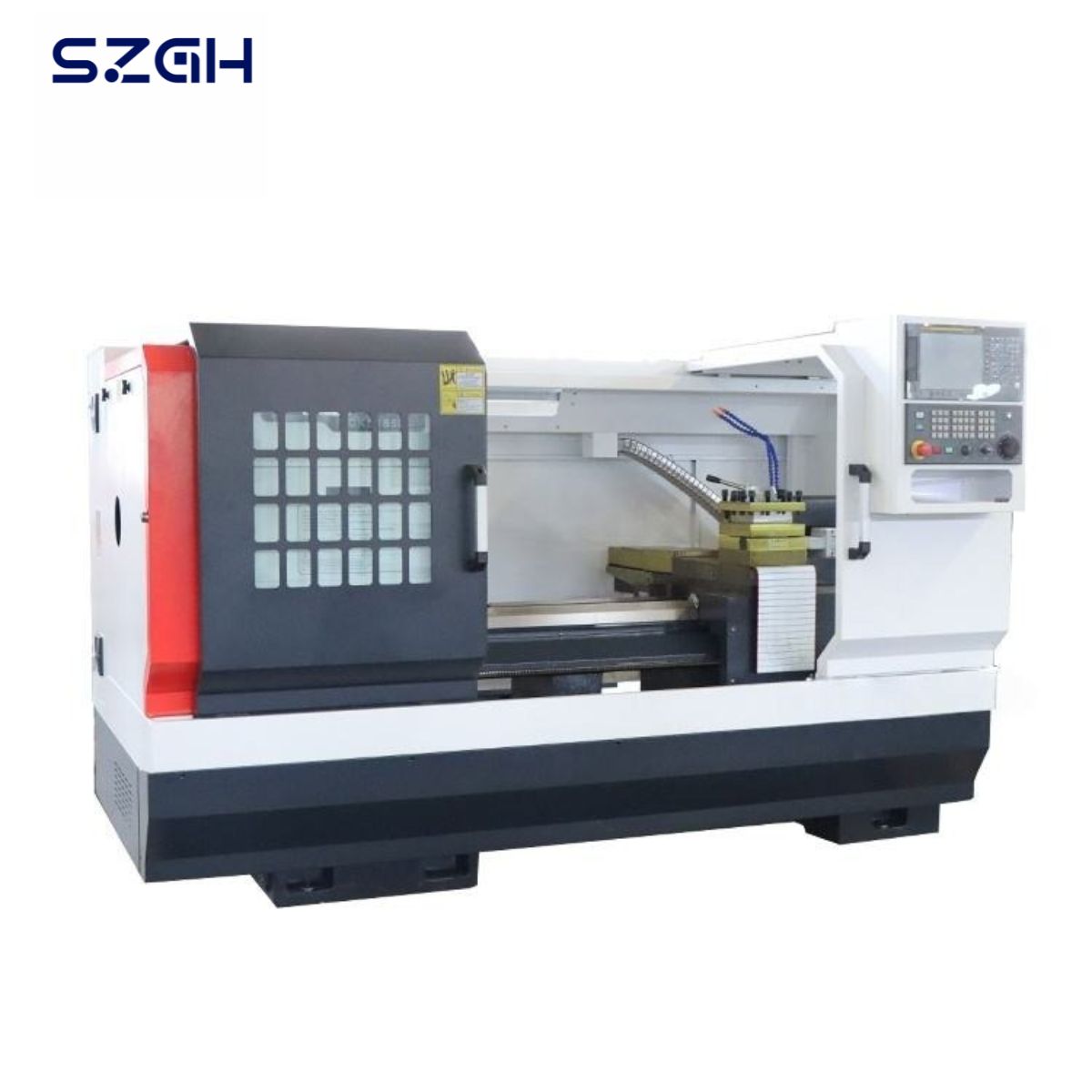

SZGH's flat bed range covers this territory directly. The SZGH-6150 offers a 500 mm swing, 1,600 mm between centers, and accepts Fanuc, Siemens, or SZGH controllers — a practical choice for shops that need controller compatibility with an existing line. The SZGH-6180 steps up to 800 mm swing, a 130 mm spindle bore, and a 20-inch hydraulic chuck — designed for flanges, rings, and large-diameter workpieces that a slant bed physically cannot accommodate.

Slant Bed vs Flat Bed: 5 Key Differences

Cutting force transmission: On a slant bed, the reaction force from the cutting tool travels into the base along the incline angle rather than trying to lift the cross-slide off horizontal guides. That geometry reduces chatter at higher spindle speeds and lets you run more aggressive feeds without losing surface finish. On a flat bed, the cutting force path is acceptable for moderate material removal rates, but you will feel the difference at high-speed interrupted cuts or hard materials.

Chip evacuation: This is the practical day-to-day argument for slant beds in production environments. Chips generated at the cutting zone fall away from the guideways by gravity, land on a conveyor or chip tray, and stay out of the work zone. On a flat bed, horizontal surfaces collect chips; without good coolant flow management and operator attention, those chips get dragged back into the cut or abraded into the guideways over time.

Precision stability: Slant bed machines achieve their precision advantage partly through better thermal behavior — the symmetric inclined structure heats more evenly under sustained cuts. The SZGH-46J/46Z hitting ±0.0075 mm in a production environment is a direct result of this geometry combined with matched ballscrew and linear guide selection. Flat beds achieve excellent tolerances for their class, but sustained high-rpm sessions introduce more thermal gradient across the wider horizontal casting.

Applicable part sizes: Slant beds win on precision and automation integration, but their compact envelope caps out around 500 mm swing in most configurations. If you are turning 600 mm flanges, propeller shafts, or large hydraulic cylinders, you need the open geometry of a flat bed. The SZGH-6180's 800 mm swing and 130 mm bore are simply not replicable in a slant bed package at any reasonable price point.

Price range: At the entry level, flat beds cost less to manufacture and therefore less to buy. However, when comparing equivalent precision grades — say, a slant bed with ±0.01 mm capability versus a flat bed set up to hold the same tolerance — the gap narrows considerably. For high-volume precision turning, the slant bed pays back the price delta in reduced scrap and lower cycle times.

Which One Should You Choose?

The answer depends on your parts, your volume, and your current bottleneck — not on which spec sheet looks more impressive.

• If your parts are under 50 mm diameter, tolerance is ±0.01 mm or tighter, and you run batches of 50+ pieces → choose a slant bed. You will recover the cost in scrap reduction and cycle consistency within months.

• If your parts are over 400 mm diameter, or you regularly turn shafts over 1,000 mm long → choose a flat bed. Geometry wins; no slant bed configuration gives you that work envelope.

• If you're replacing an aging conventional lathe and want controller compatibility with your existing Fanuc or Siemens setup → the SZGH-6150 flat bed with your preferred controller makes the transition nearly invisible to your operators.

• If you need to integrate a bar feeder or robot loader for lights-out operation → slant bed is the standard choice. The compact footprint and gravity chip clearing are designed for exactly this workflow.

• If budget is the primary constraint and parts are medium-diameter, non-critical tolerance → a flat bed gives you more machine per dollar at entry level; add the slant bed configuration later when precision demands increase.

SZGH CNC Lathe Range: From 25mm Precision Parts to Ø800mm Heavy Turning

SZGH manufactures both configurations in Shenzhen, ships direct from factory, and carries CE certification across the range. Lead time runs 30–45 days to most destinations. The control systems — including servo drives, motors, and the CNC controller — are developed in-house, which means SZGH handles firmware support and spare parts without a third-party dependency. For shops that have been burned by aftermarket controller support, that single-source accountability matters.

The slant bed lineup covers bar work up to 50 mm:

• SZGH-36J / 36Z — 35 mm bar, ±0.01 mm, compact footprint for bar-feed integration

• SZGH-46J / 46Z — 45 mm bar, ±0.0075 mm, the precision benchmark in the range

• SZGH-TK50 — 50 mm bar, Ø500 mm swing, bridging precision and medium-diameter work

The flat bed lineup handles medium to large work:

• SZGH-6150 — Ø500 mm swing, 1,600 mm between centers, Fanuc/Siemens/SZGH controller options; the straightforward upgrade path for shops migrating off manual lathes

• SZGH-6180 — Ø800 mm swing, 130 mm spindle bore, 20-inch hydraulic chuck; for flanges, rings, and heavy stock that smaller machines cannot touch

If your requirements sit between these two families — say, medium-diameter parts at tight tolerances — the TK50 and 6150 overlap enough that a drawing review will sort it out in one conversation.

Send your part drawing or material spec to SZGH's engineering team and get a concrete model recommendation within 24 hours. No obligation, no sales pressure — just a direct answer on whether your application needs a slant bed, a flat bed, or something in between. Visit szghtech.com or submit an inquiry with your part dimensions and annual volume.
