SZGH-46Z CNC Slant-Bed Lathe | Ø45 mm Bar | ±0.0075 mm | Z-Panel Layout

What Is the SZGH-46Z?

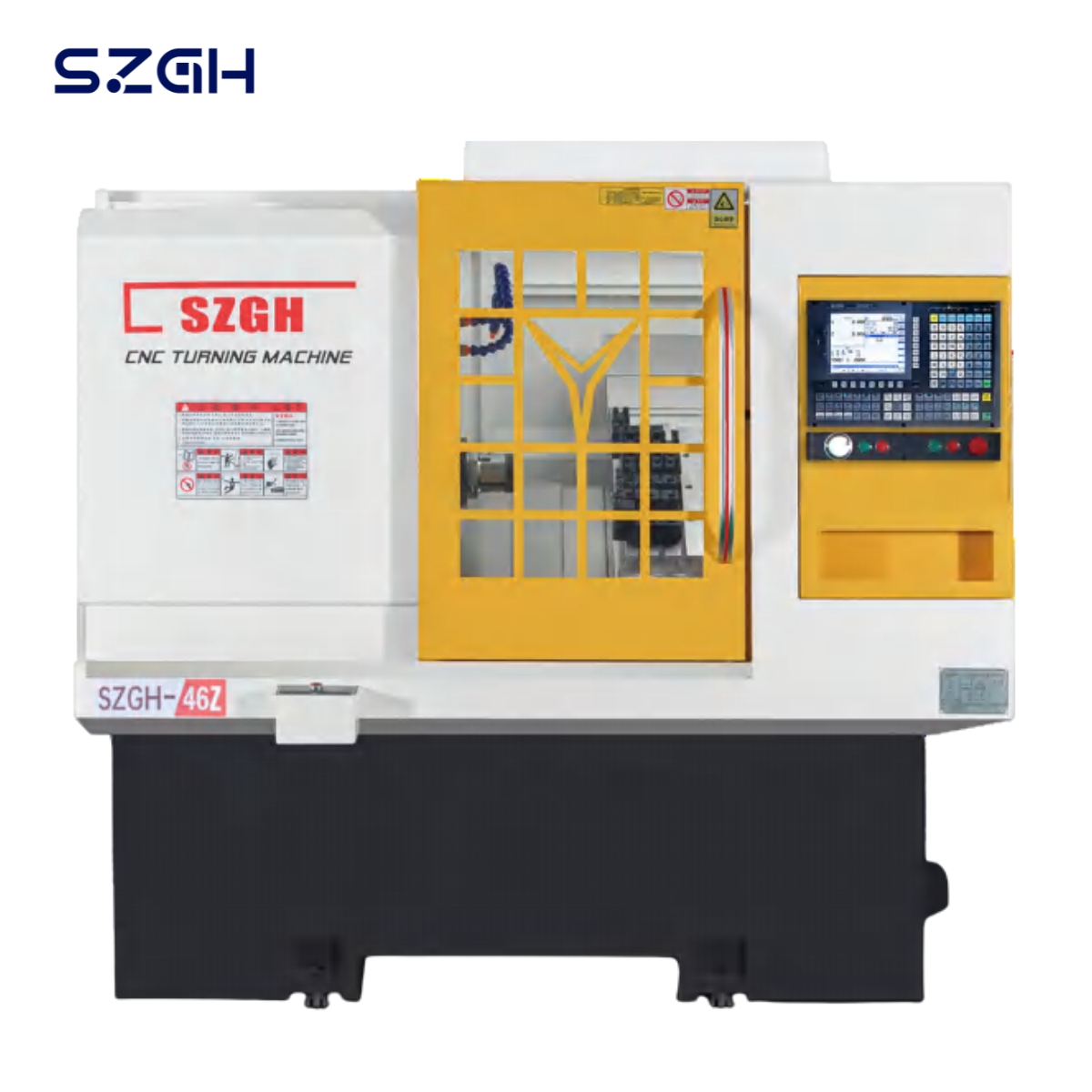

The SZGH-46Z is a 30° slant-bed CNC lathe built on the same 3,000 kg heavy-duty anti-deformation base as the SZGH-46J, handling Ø45 mm bar stock and Ø60 mm chuck work to ±0.0075 mm tolerance. It shares the 46J's barrel spindle, 32 mm ball-screw drivetrain, and H-class linear guide system — differentiated solely by its Z-type operator panel arrangement, which positions controls at a right-side or angled layout preferred by certain shop floor configurations and multi-machine cell designs.

Technical Specifications

Machining Capacity

Axis Travel & Feed

Spindle

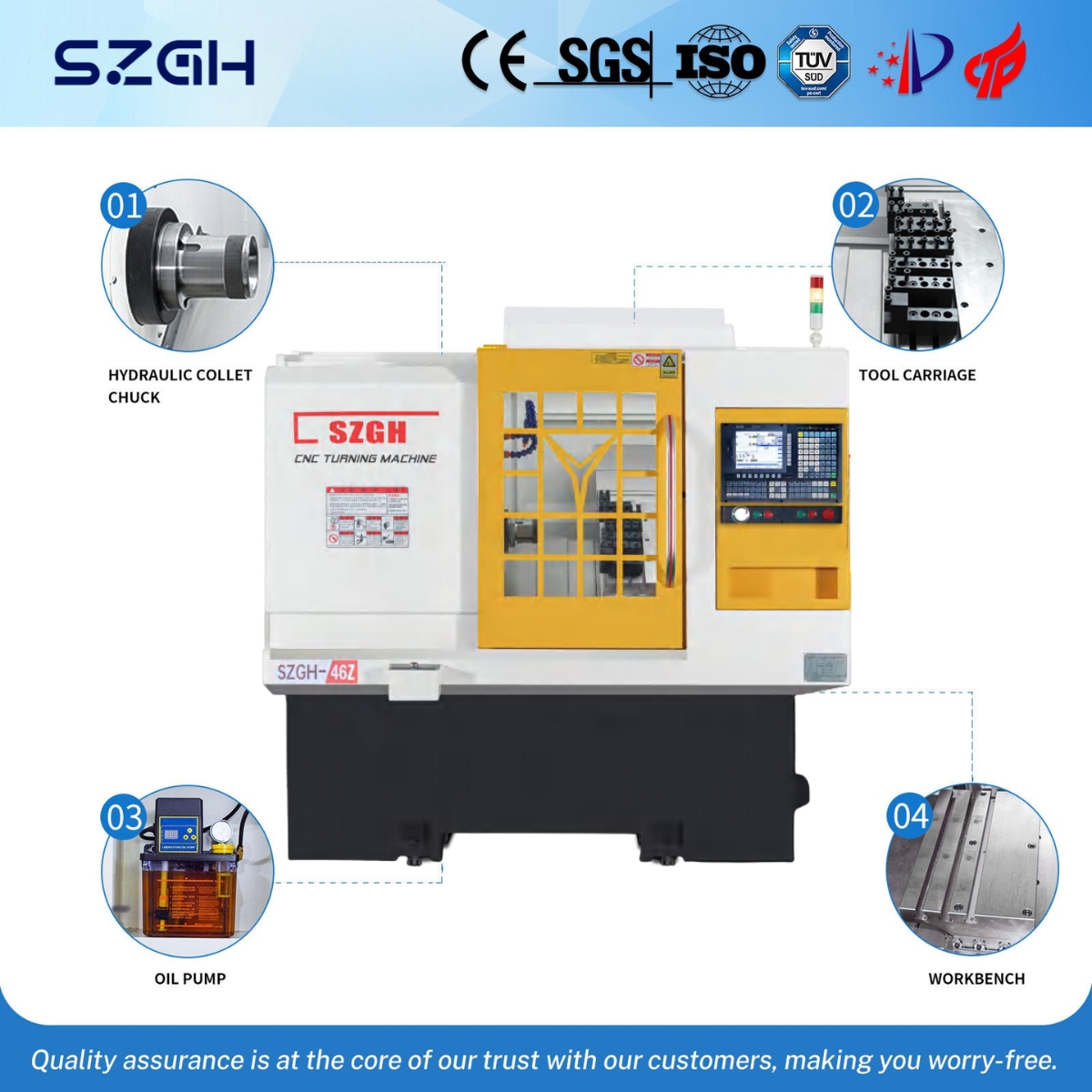

Components & Construction

Machine Dimensions

Key Features & Advantages

Z-Type Panel Layout — Right-Side Control for Cell Integration

The "Z" designation refers to the operator panel position: instead of the front-center (J-type) arrangement, the panel is mounted to the right side or at an angled Z-configuration. This suits shops running linear multi-machine cells, robotic loading systems, or tight-bay installations where the operator stands to the side of the machine — eliminating body-reach fatigue and reducing door-open time by keeping controls closer to the chip zone access point.

Same Precision Platform as the SZGH-46J — No Spec Compromise

Buyers sometimes assume a panel variant implies a cheaper configuration. The 46Z shares every structural element with the 46J: the 3,000 kg anti-deformation cast base, the 30 mm H-class linear guide rails, and the 32 mm ball-grinding-grade screws. The ±0.0075 mm tolerance — equivalent to approximately 1/10 the width of a human hair — is maintained identically. You choose panel layout based on workflow, not precision trade-off.

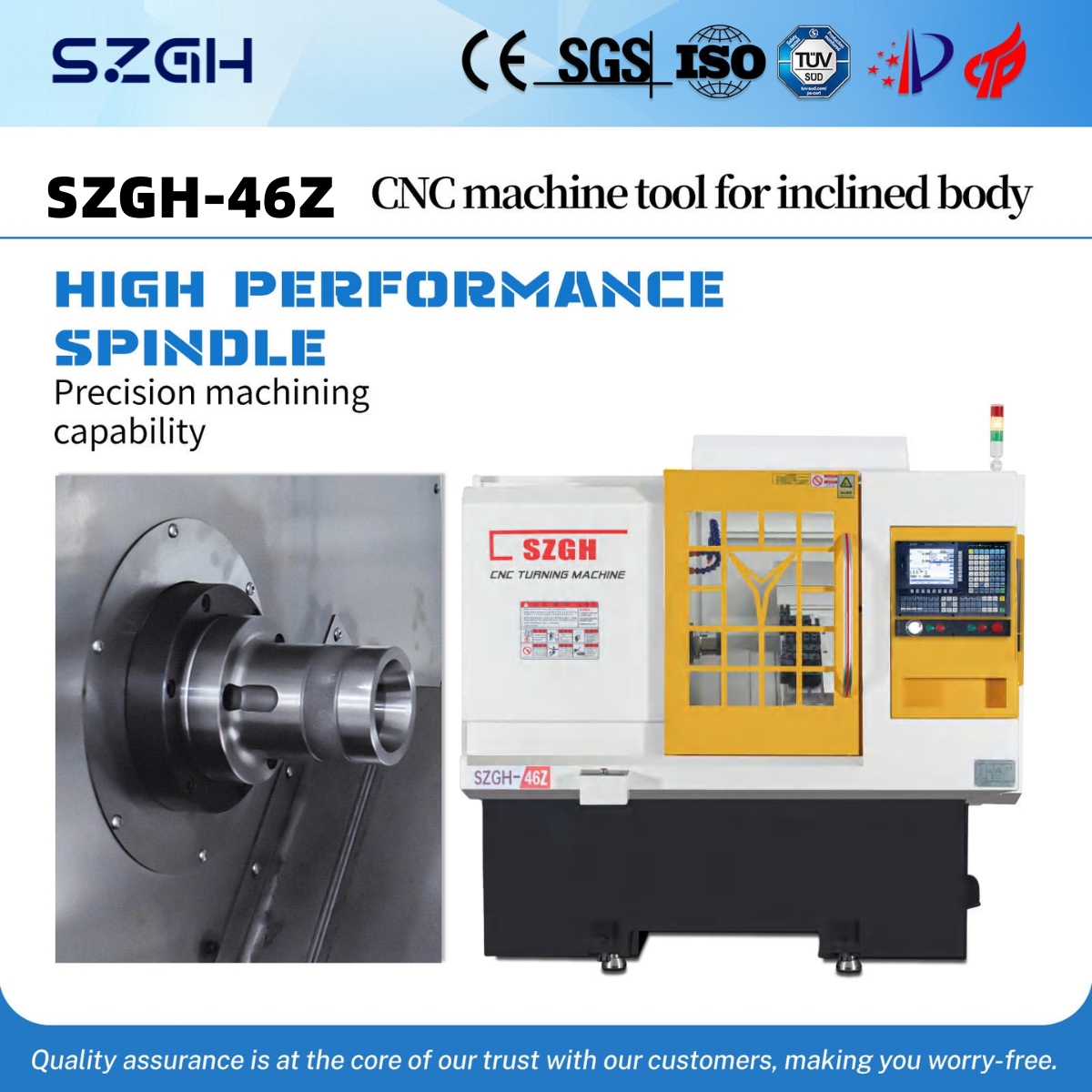

Proprietary Barrel Spindle — High Rigidity Without Import Dependency

SZGH's in-house barrel spindle design eliminates the radial play common in standard taper-bearing spindles under heavy interrupted cuts. The spindle assembly is fully dynamically balanced at the factory, meaning Ra 1.0 surface finish is achievable on stainless steel without post-process grinding. For export buyers, this removes dependency on third-party spindle suppliers and simplifies spare-parts sourcing through SZGH directly.

3,000 kg Anti-Deformation Patented Base — Vibration Absorbed, Not Transferred

The heavy-duty base is not simply "heavier than competitors" — it uses a patented internal rib geometry that redirects cutting vibration into the base mass rather than back into the spindle. At 20 m/min rapid traverse, conventional lighter bases (1,600–2,000 kg class) develop resonance frequencies that degrade surface finish over long batch runs. The 3,000 kg 46Z base maintains finish consistency from part one to part ten thousand.

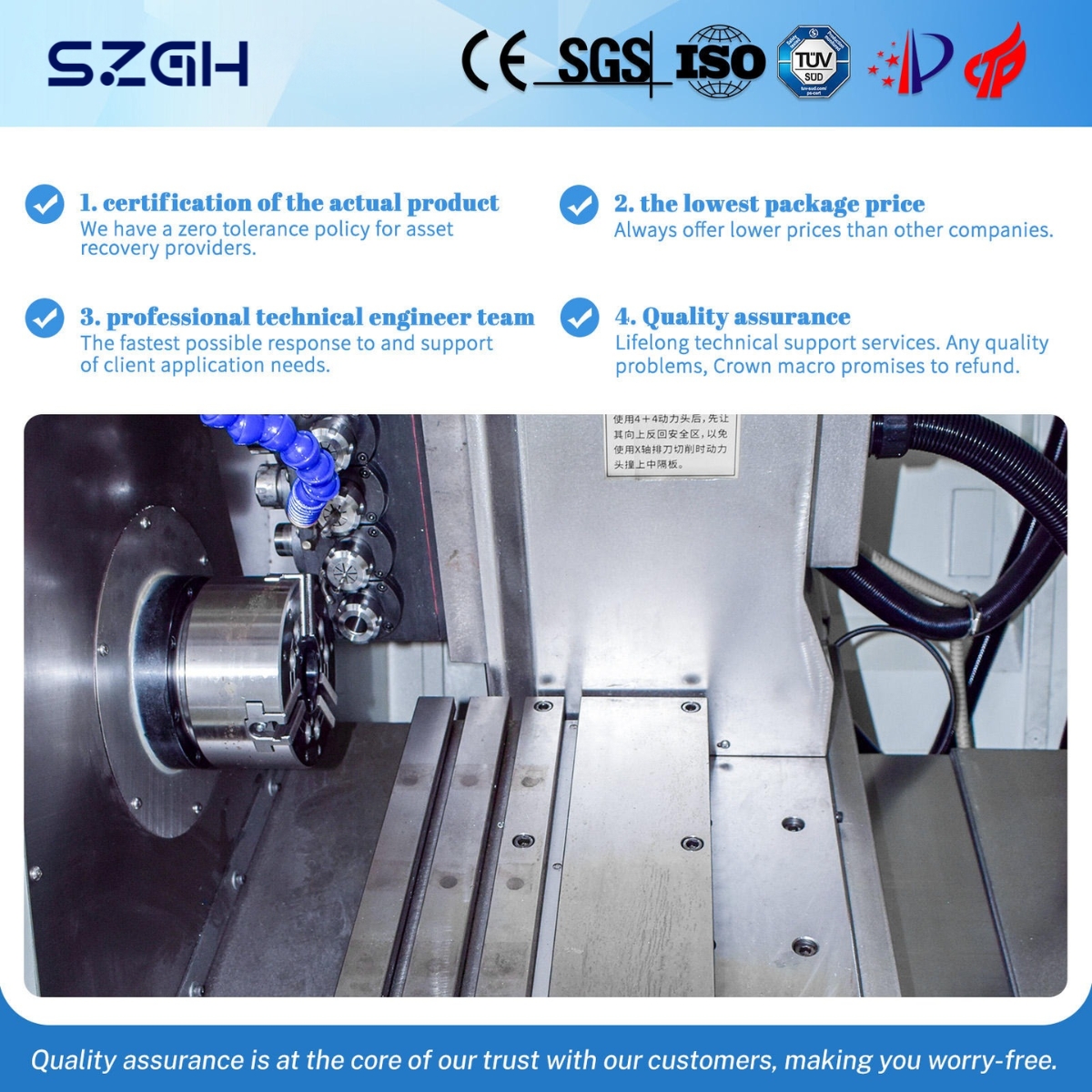

32 mm Precision Ball Screws + 30 mm H-Class Rails — Upsized for the 46 Series

The drivetrain is sized one class above the 36-series machines (25 mm screws, 25 mm rails). The 32 mm screws provide 64% more cross-sectional area, directly translating to higher axial rigidity and reduced thermal elongation during sustained production. The 30 mm H-class rails increase contact area and load distribution — critical when cutting Ø45 mm stainless bar at 3 mm depth of cut.

SZGH Ac8F-G Controller — Integrated Electromechanical Optimization

Rather than pairing a generic third-party controller with the machine servo system, SZGH co-develops the Ac8F-G controller firmware with the SZGH Dongmechuan servo drive parameters. The result is servo loop tuning specific to the 46-series inertia load — tighter velocity following error, faster deceleration at turret index, and axis synchronization without manual PID adjustment on arrival.

Hydraulic Clamping Standard — Repeatable Chuck Force Every Cycle

The 46Z ships with hydraulic chuck clamping as standard (8-inch; 10-inch optional), providing consistent clamping force on every bar feed cycle. Manual chucks introduce operator-to-operator clamping variation that can shift part datum by 0.01–0.03 mm between operators. Hydraulic clamping eliminates this variable, which is particularly relevant for precision components where datum repeatability is as important as cutting accuracy.

Applications & Industries

The SZGH-46Z is specified for high-volume, high-precision bar turning where the shop layout demands right-side or angled panel access.

Industries

SZGH-46Z vs. SZGH-46J vs. SZGH-36Z

Choose the SZGH-46Z if: your shop uses robotic loading arms, linear multi-machine cells, or your operators prefer right-side panel access — and you are machining bar stock above Ø36 mm.

Choose the SZGH-46J if: the same precision and rigidity are required but your floor layout gives operators front-center access.

Choose the SZGH-36Z if: bar diameters stay within Ø36 mm and your budget or floor space does not require the full 46-series drivetrain.

Certifications & Quality Assurance

• CE Certified — complies with EU Machinery Directive 2006/42/EC; full documentation for customs clearance

• ISO 9001:2015 — quality management system certified across design, manufacturing, and after-sales

• National High-Tech Enterprise — recognized by China's Ministry of Science and Technology since 2018

• 100+ patents — covering base geometry, barrel spindle design, servo-drive integration, and thermal management

• Dynamic balancing — all spindle assemblies balanced at factory; certification document supplied with machine

• Pre-shipment inspection — 72-hour run-in cycle; dimensional report and spindle accuracy certificate included

Frequently Asked Questions

Q1: What does the "Z" in SZGH-46Z actually mean — is it a different machine from the 46J?

The "Z" refers exclusively to the operator panel layout. The SZGH-46Z uses a Z-type panel arrangement — typically positioned to the right side or at an angled orientation relative to the spindle centerline — while the SZGH-46J uses a J-type front-center panel. Every mechanical specification is identical: same 3,000 kg base, same 32 mm screws, same 30 mm H-class rails, same ±0.0075 mm tolerance, same spindle. The choice between 46Z and 46J is purely a matter of shop floor configuration and operator ergonomics.

Q2: Which production environments benefit most from the Z-type panel layout?

The Z-type layout is preferred in three common scenarios: (1) linear multi-machine cells where the operator walks a row of lathes and needs side-access panel control without stepping in front of each machine; (2) robotic or gantry loader integration, where the loading arm occupies the front of the machine and the operator interface must be positioned to the side; (3) tight-bay installations where wall proximity limits front-panel access. If none of these apply, the SZGH-46J with its front-center panel may be more ergonomically natural for single-machine standalone operation.

Q3: The SZGH-46Z has ±0.0075 mm accuracy — what does this mean in practical terms?

±0.0075 mm is approximately one-tenth the width of a human hair. In practice, it means shaft diameters held to h6 tolerance (±0.008 mm for Ø30–50 mm shafts) are achievable in production without grinding. For buyers producing hydraulic valve spools, precision pins, or medical instrument components where interchangeability is critical, this tolerance eliminates the need for a secondary cylindrical grinding operation on many features.

Q4: Can the SZGH-46Z run unattended overnight with a bar feeder?

Yes. The machine's hydraulic chuck clamping provides consistent, repeatable clamping force on each bar feed cycle — a prerequisite for reliable unattended bar turning. The SZGH Ac8F-G controller supports bar feeder interface signals (feed request, end-of-bar detection, alarm output). Bar feeder compatibility and interface signal specifications should be confirmed with SZGH sales before ordering, as bar feeder brands vary in communication protocol.

Q5: How does the 3,000 kg base improve batch production consistency versus lighter machines?

Lighter slant-bed lathes in the 1,600–2,000 kg range develop measurable thermal and vibration accumulation over long batch runs — surface finish and diameter drift are common complaints on part 500 vs. part 50. The 46Z's 3,000 kg mass provides two advantages: (1) thermal inertia — the large cast base absorbs heat generated by spindle bearings and servo motors more slowly, reducing thermal expansion drift; (2) vibration damping — higher mass damps resonance frequencies that would otherwise degrade finish on interrupted cuts and hard materials like stainless steel.

Q6: What control system options are available, and can I specify Fanuc or Siemens?

The standard control is the SZGH Ac8F-G system, which is optimized for the 46-series servo parameters. Optional Fanuc 0i-TF, Siemens 828D, Syntec, and Mitsubishi M80 configurations are available — specify at time of order, as controller selection affects wiring harness, operator panel firmware, and lead time. For buyers in markets where local service engineers are certified on Fanuc or Siemens, specifying those systems reduces long-term support cost.

Q7: What is the maximum chuck size, and can I run large disk-type workpieces?

Standard hydraulic chuck is 8 inch (Ø203 mm); 10 inch (Ø254 mm) is optional. For disk-type (non-bar) workpieces, the machine supports parts up to Ø350 mm diameter and 320 mm length when chuck-loaded. Single-piece production of parts up to Ø350 mm is possible with the hydraulic chuck — confirm workpiece weight and overhang with SZGH application engineering for heavy disk parts.

Q8: What is included in the standard delivery package, and what are common add-ons?

Standard delivery includes: machine with SZGH controller, 8-inch hydraulic chuck, tool holder set, coolant system, chip conveyor interface, CE documentation, spindle dynamic balance certificate, and 72-hour run-in test report. Common customer add-ons include: bar feeder interface kit, 10-inch chuck upgrade, 7.5 kW spindle motor upgrade, automatic part catcher, oil-mist collector, and extended tool holder sets. Lead time is 20–35 working days from deposit confirmation.

Q9: How does the SZGH-46Z compare to Chinese competitors like Dasen or Smtcl at similar price points?

The primary structural differentiators are base weight (3,000 kg vs. typical 1,800–2,200 kg in the same price class) and the proprietary barrel spindle (vs. outsourced spindle units in most comparably priced machines). The SZGH barrel spindle is manufactured and dynamically balanced in-house, allowing tighter runout control (≤0.003 mm) than spindles sourced from commodity bearing assemblers. The 46Z also ships with hydraulic clamping standard — many competitors in this price range offer it as a paid option.

Export Markets & Customer References

SZGH-46Z machines are currently operating in production facilities across:

Typical buyer profile: precision sub-contract machining shops and Tier-2 automotive suppliers running 2–3 shift operations; shops transitioning from manual lathes to CNC with a preference for side-panel control; facilities integrating robotic loading with existing machine rows.

Request a Quote

Email: export02@szghtech.com

WhatsApp: +8618925223781

Website: szghtech.com

When enquiring, please provide: (1) target bar diameter range, (2) workpiece material, (3) required tolerance, (4) desired control system, (5) bar feeder or robot integration requirement, and (6) annual production volume estimate. This allows SZGH to confirm the 46Z configuration and provide an accurate CIF quotation.

Lead time: 20–35 working days from deposit

Warranty: 12 months on all mechanical and electrical components (consumables excluded)

After-sales support: Remote diagnostics via WhatsApp 24/5; local agents in USA, Turkey, Romania, Russia, Egypt, Thailand, and Mexico
