SZGH-540 Small CNC Milling Machine | 500×400 mm Table | BT30 | One Operator, Multiple Machines

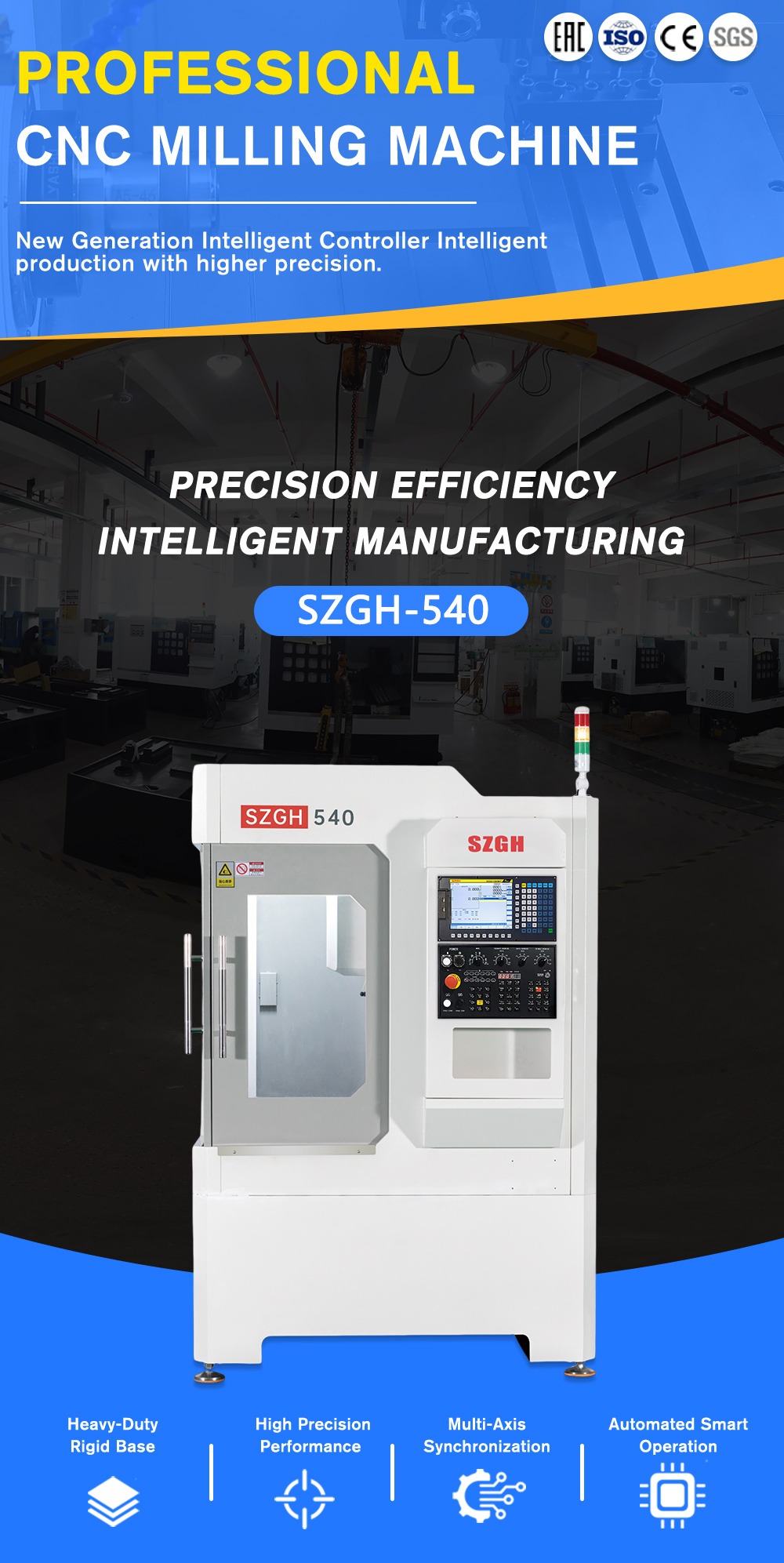

What Is the SZGH-540?

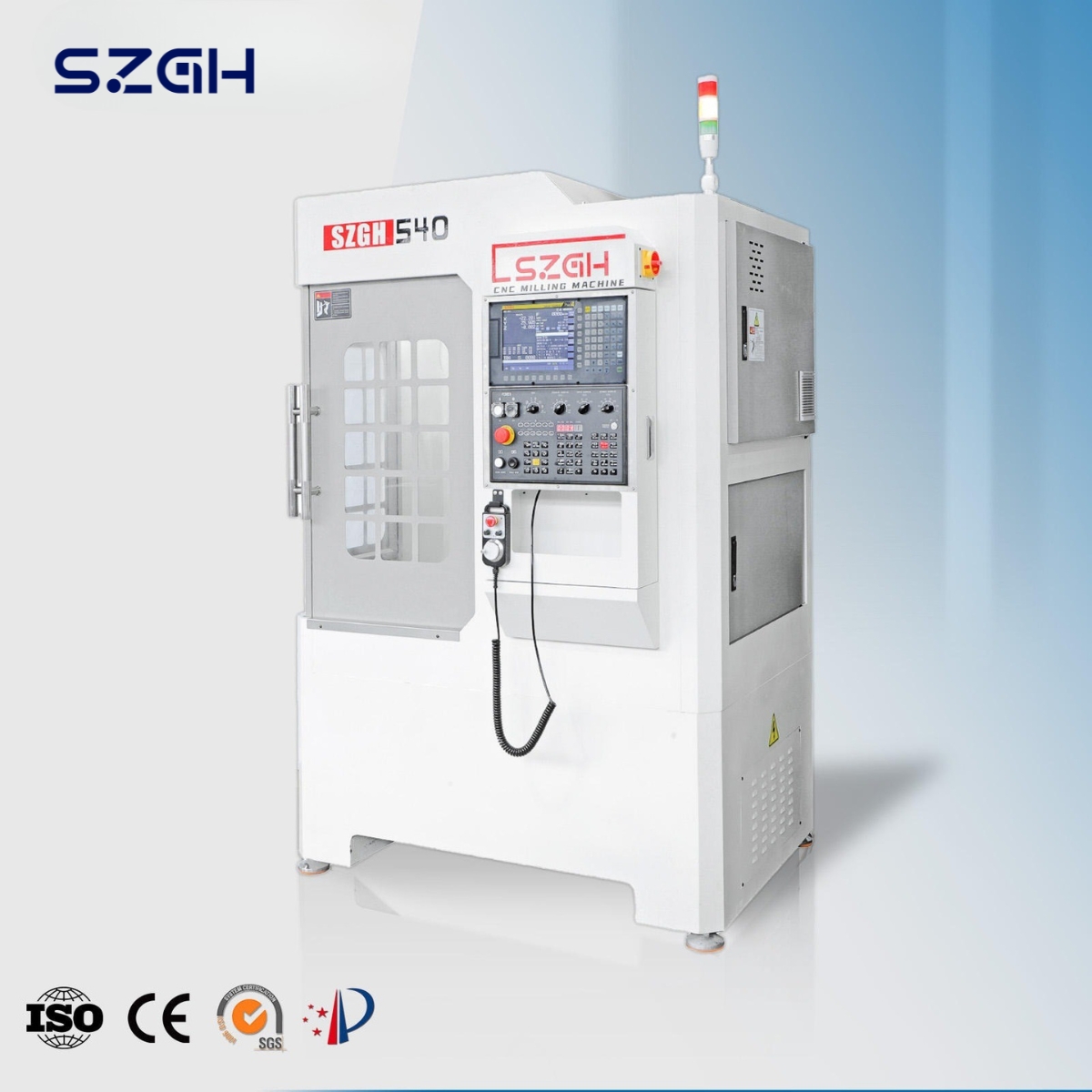

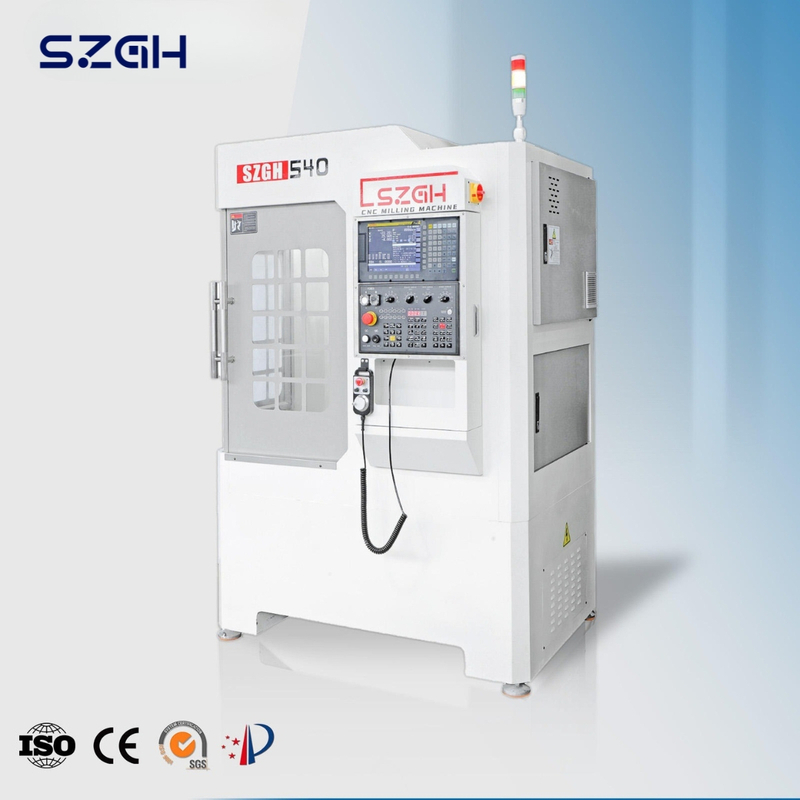

The SZGH-540 is a small-footprint vertical CNC milling machine with a 500×400 mm work envelope, BT30 spindle taper, and 3 kW mechanical spindle (24,000 rpm electric spindle optional). It handles drilling, tapping, milling, and engraving on copper, iron, aluminum, and stainless steel workpieces. The machine's compact 1,350×1,050 mm floor area and SZGH controller — compatible with standard machining center G-code — make it ideal for shops where one operator manages a cell of multiple small machines to maximize output per labor hour.

Technical Specifications

Machining Capacity

Workbench

Axis Travel & Feed

Spindle

Tool Magazine

Components & Construction

Machine Dimensions

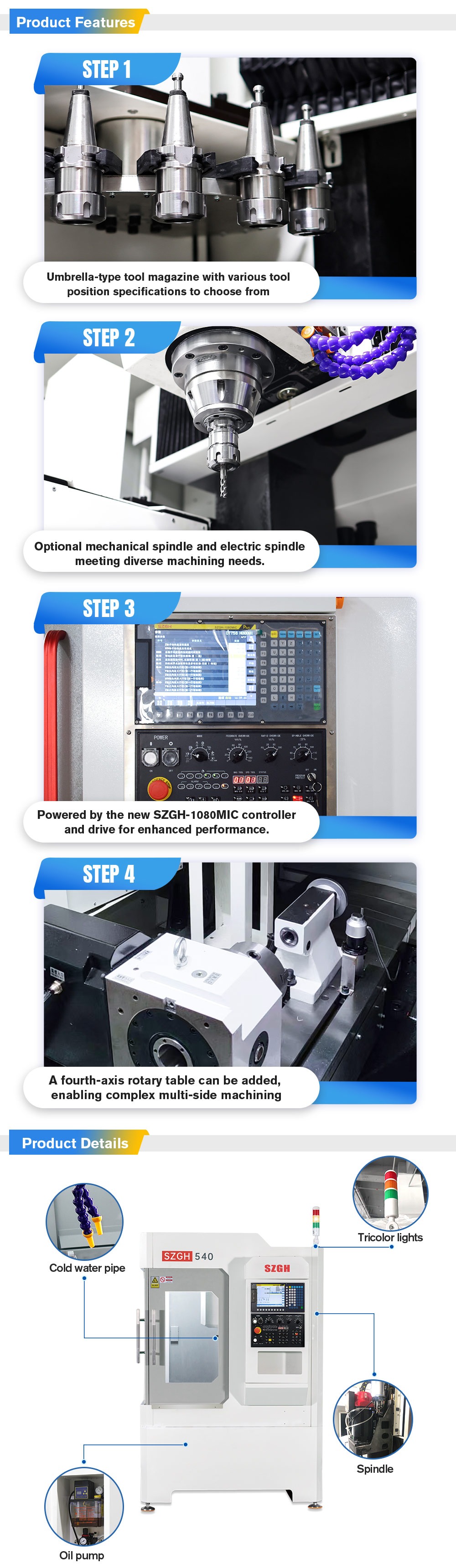

Key Features & Advantages

Compact Footprint — One Operator, Multiple Machines Running Simultaneously

At 1,350×1,050 mm, the SZGH-540 occupies less than 1.5 m² of floor space. In a shop where a standard VMC850 demands 6–8 m² including operator access zones, three SZGH-540 units fit in the same footprint. More importantly, the machine's cycle time, short door-open distance, and intuitive SZGH controller allow a single operator to load, unload, and monitor two to three machines simultaneously. For shops where labor cost is the dominant variable in per-part cost, this multi-machine staffing model directly reduces cost without adding headcount.

1,900 kg Anti-Deformation Base in a Small Machine Class — Rigidity Where Competitors Cut Corners

Small CNC milling machines in the sub-2,000 kg class frequently use light welded-steel or thin cast-iron frames to reduce shipping cost. SZGH engineers the 540 with a 1,200 kg heavy-duty anti-deformation patented base (the remaining mass distributed across column, table, and enclosure), giving it vibration damping characteristics closer to a mid-size VMC than a light-duty engraving machine. In practical terms: stainless steel drilling at Ø10 mm and aluminum milling at Ø60 mm face cutter produce consistent Ra 1.6 finish over long batches, where lighter machines show chatter marks after the first tool hour.

24,000 rpm Electric Spindle Option — Full Engraving and Aluminum HFM Capability

The standard 6,000 rpm mechanical BT30 spindle covers steel drilling, tapping, and conventional milling. The optional 24,000 rpm electric spindle transforms the 540 into a high-frequency milling (HFM) machine capable of mirror-finish aluminum engraving, small-diameter carbide end-mill work (Ø0.5–3 mm), and fine detail on copper electrodes. Shops that split production between structural aluminum parts and fine-detail work can configure one machine with the mechanical spindle and a second with the electric spindle — both operated by the same operator in a two-machine cell.

BT30 Spindle Taper — Universal Tooling Compatibility

BT30 is the standard taper for small machining centers globally, with the widest available range of collet chucks, end-mill holders, drill chucks, tapping chucks, and boring heads from Kennametal, Sandvik, Kyocera, YG-1, and dozens of regional suppliers. Unlike proprietary taper systems used by some compact machine brands, the SZGH-540's BT30 tooling is sourced locally in any industrial market — reducing tooling lead time, enabling competitive pricing, and allowing tool libraries to be shared with other BT30 machines in the same shop.

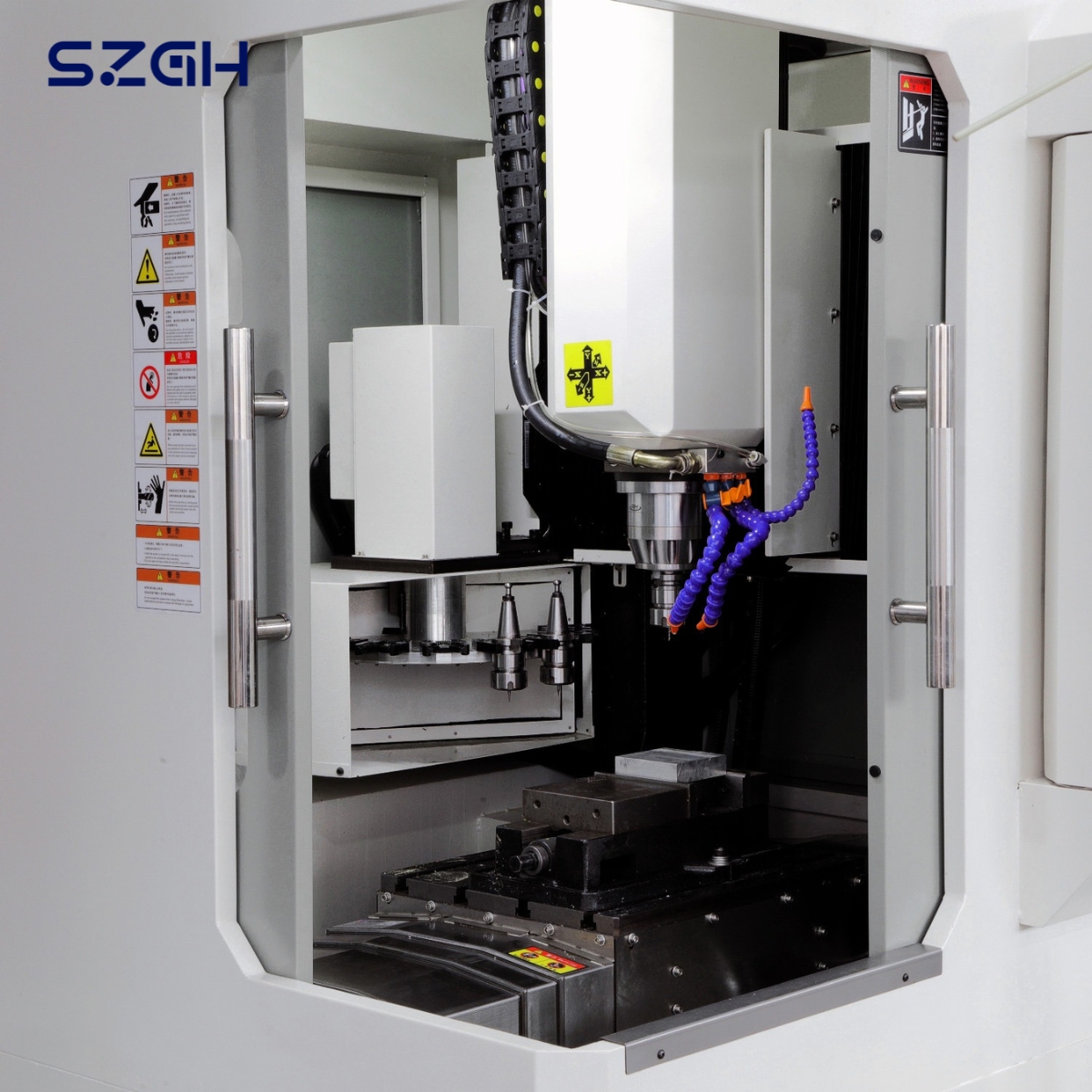

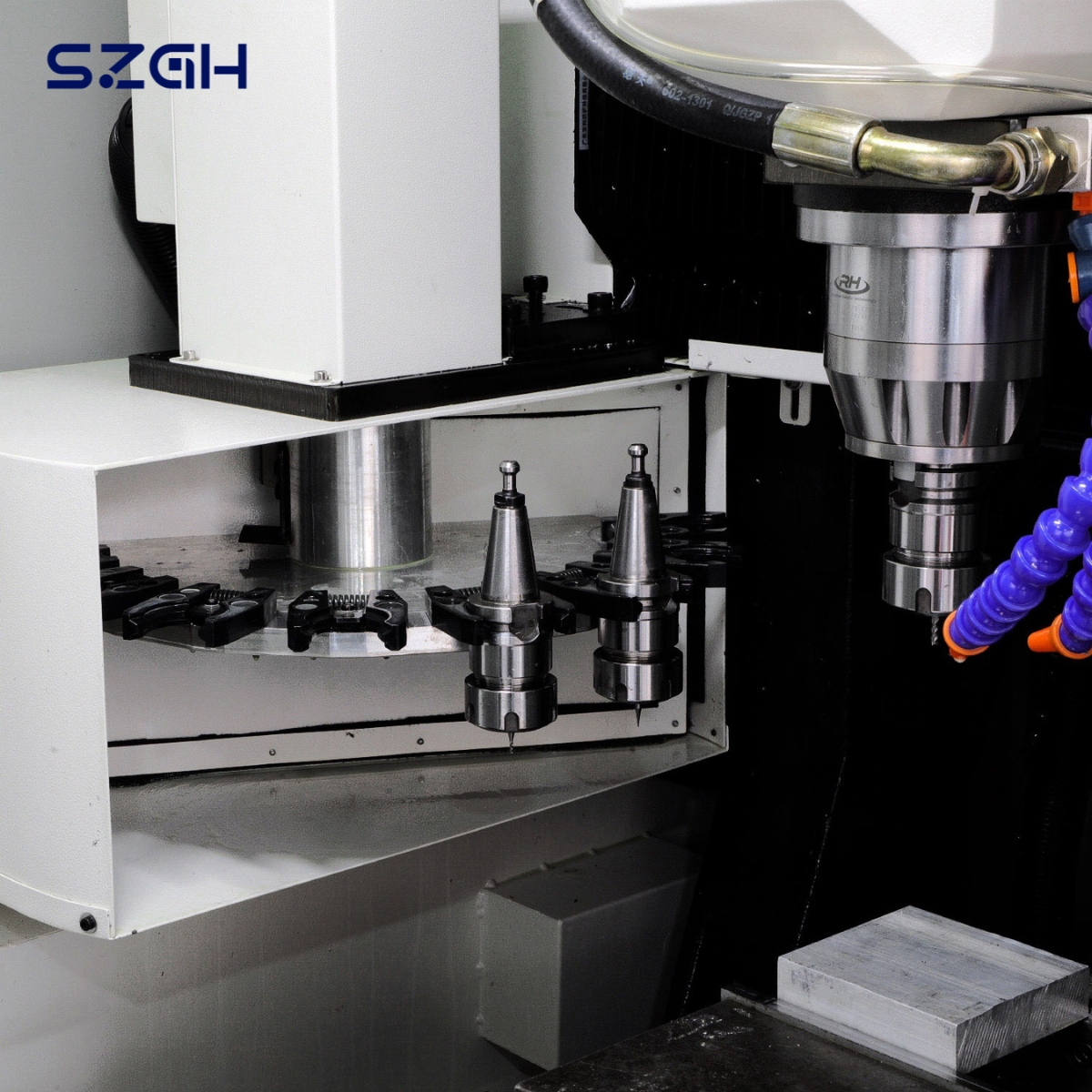

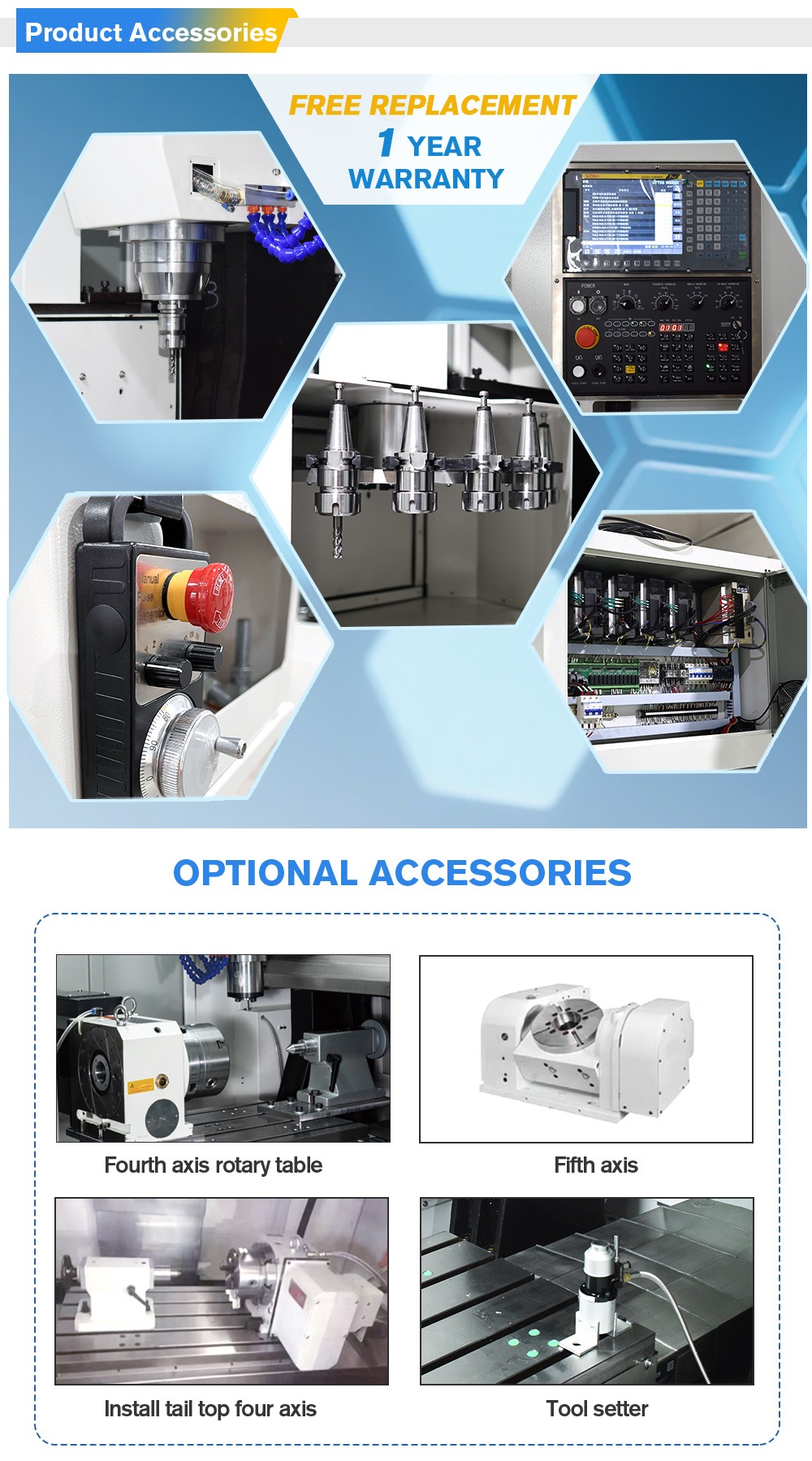

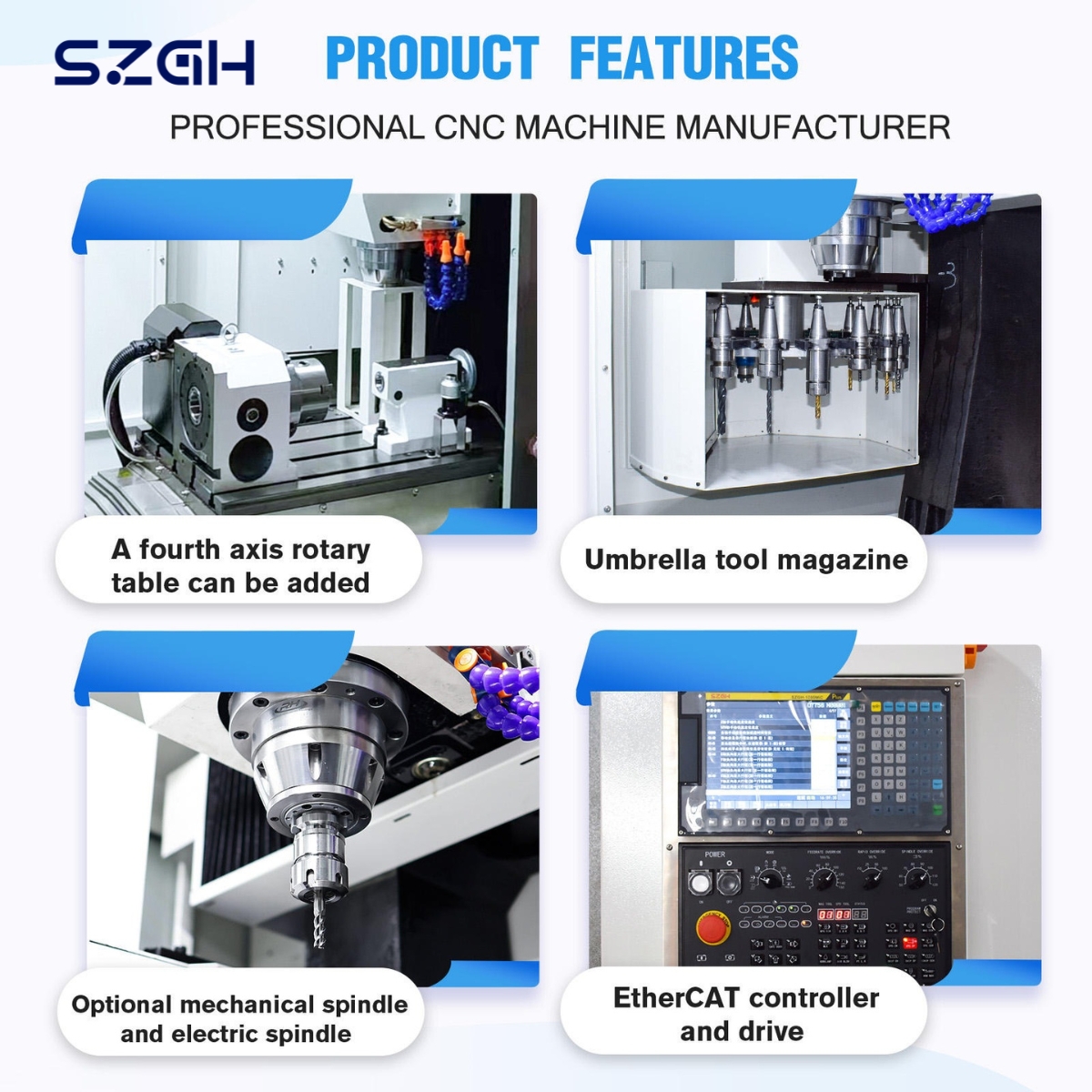

8-Station Tool Magazine Option — Automated Tool Changes for Unattended Runs

The base configuration is tooling-manual (operator changes tools). The optional 8-station BT30 tool magazine adds automatic tool change (ATC), enabling programmed multi-operation sequences — drill, tap, mill, engrave — without operator intervention per cycle. For shops producing small aluminum housings, brackets, or connector plates that require 3–6 operations per part, the ATC option converts the 540 from a single-operation machine into a flexible mini-machining center, significantly improving cycle efficiency.

Taiwan Precision Ball Screws (25 mm P Grade) + C3 Linear Rails — Accuracy Sustained Over Time

Taiwan-sourced P-grade ball screws and C3-grade linear guide rails are the same specification standard used in Japanese and Taiwanese mid-range VMCs costing 3–5× more. The 25 mm screw diameter provides adequate axial stiffness for the 540's work envelope; C3 grade means positional accuracy is certified to within 0.012 mm/300 mm travel. These components maintain the 0.01 mm repeatability specification over the machine's service life — unlike machines using domestic-grade screws and rails that degrade within the first 12–18 months of production use.

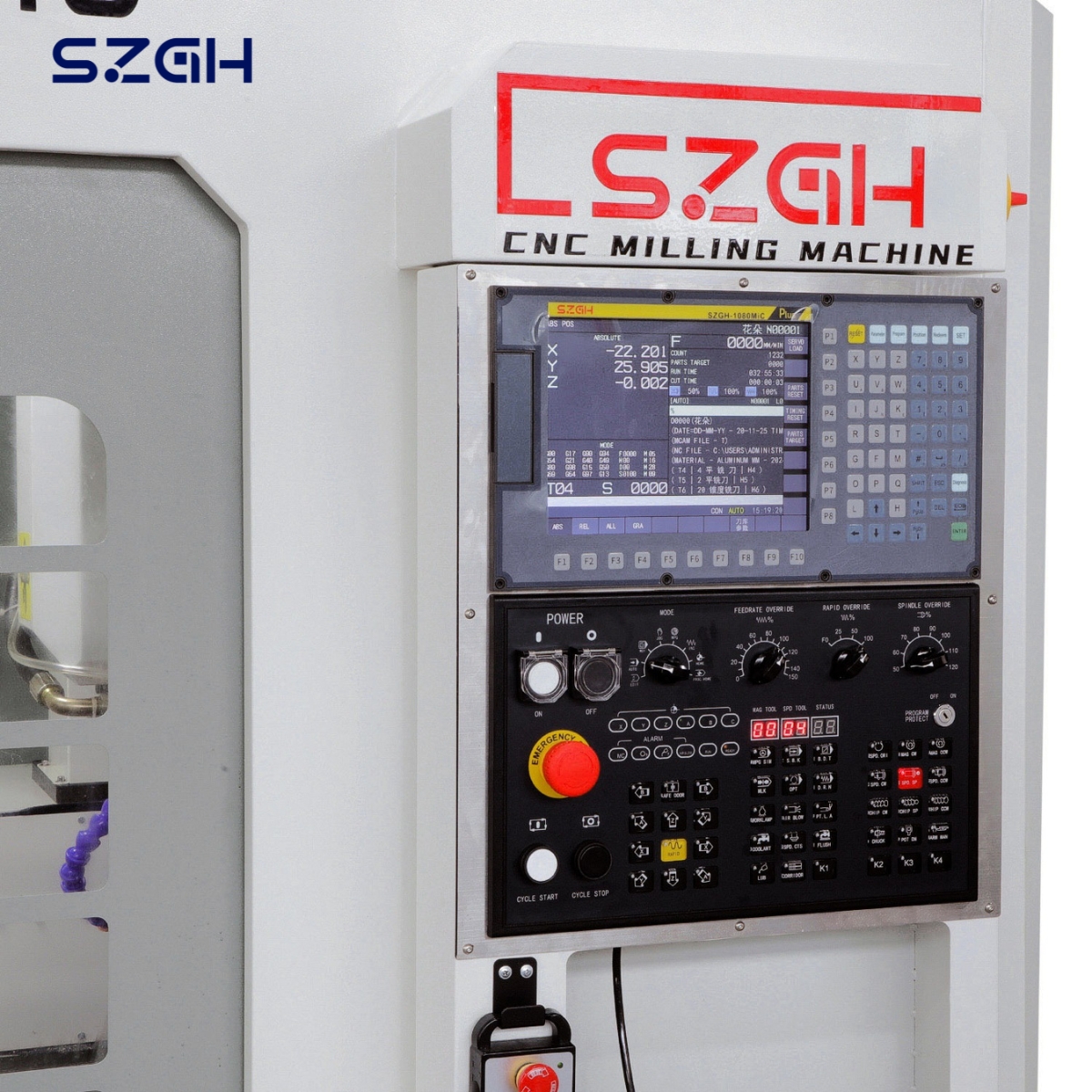

SZGH Controller — G-Code Compatible, Zero Re-Programming Required

The SZGH CNC system accepts standard ISO G-code programs — the same code format output by Mastercam, Fusion 360, SolidCAM, and other common CAM packages. Operators and programmers trained on Fanuc 0i or Siemens 828D syntax find the SZGH system immediately familiar. There is no proprietary macro language to learn, no post-processor rewriting required, and no retraining cost when transitioning programs from other machines. For job shops running mixed machine fleets, this compatibility matters.

Applications & Industries

The SZGH-540 targets high-mix, small-batch production in compact workpiece categories across light industrial manufacturing.

Industries & Typical Parts

SZGH-540 vs. SZGH-650 vs. Standard Benchtop CNC Mill

Choose the SZGH-540 if: workpieces fit within 500×400 mm, materials include stainless steel, and labor efficiency via multi-machine operation is the priority.

Choose the SZGH-650 if: workpieces exceed 500×400 mm or require deeper steel drilling/tapping (BT40, Ø30+ drilling, M18+ tapping).

Avoid benchtop CNC mills if: production requirements include stainless steel, batch repeatability over 0.01 mm, or any form of automated tool changing.

Certifications & Quality Assurance

• CE Certified — complies with EU Machinery Directive 2006/42/EC; full documentation for EU customs clearance

• ISO 9001:2015 — quality management system certified across design, manufacturing, and after-sales

• National High-Tech Enterprise — recognized by China's Ministry of Science and Technology since 2018

• 100+ patents — covering base geometry, servo integration, spindle design, and thermal management

• Dynamic balancing — all spindle assemblies factory-balanced; certification document supplied with machine

• Pre-shipment inspection — run-in cycle and dimensional accuracy report included with delivery

Frequently Asked Questions

Q1: Is the SZGH-540 a CNC milling machine or a machining center — what is the difference?

A machining center (MC) is formally defined as a CNC milling machine with an automatic tool changer (ATC). In its base configuration without the tool magazine, the SZGH-540 is a CNC milling machine — the operator changes tools manually. With the optional 8-station tool magazine installed, it becomes a small machining center capable of programmed multi-tool sequences. Most buyers start with the manual version for simplicity and add the ATC option when production volume justifies automated tool changing.

Q2: Can the SZGH-540 tap stainless steel, and what are the practical limits?

Yes. The standard specification covers rigid tapping to M8 in stainless steel, with the optional configuration extending to M10. In practice, successful stainless steel tapping on the 540 requires: (1) appropriate cutting fluid / tap lubricant, (2) a quality spiral-flute tap (HSS-Co or carbide), (3) correct spindle speed (typically 80–120 rpm for M6–M8 in SS304), and (4) a rigid tapping chuck. The machine's 1,900 kg base provides sufficient rigidity for these parameters — light-frame machines of similar work envelope commonly break taps in stainless due to spindle deflection under axial tap load.

Q3: What is the footprint of the SZGH-540, and how many fit in a standard shop bay?

The machine footprint is 1,350×1,050 mm. Including operator access (600 mm front and side clearance), each machine requires approximately 2.4×1.7 m of floor area — roughly 4 m². A standard 6×6 m shop bay can accommodate three SZGH-540 units with comfortable operator circulation. A 10×6 m bay can accommodate five machines, operated by two people — a common multi-machine cell configuration for sub-contract shops targeting electronics and connector hardware.

Q4: What is the difference between the 6,000 rpm mechanical spindle and the 24,000 rpm electric spindle option?

The 6,000 rpm mechanical spindle uses gear/belt transmission from a servo motor to the BT30 taper — it provides higher torque at low RPM, making it better for steel drilling, tapping, and face milling with larger cutters (Ø25–60 mm). The 24,000 rpm electric spindle integrates the motor directly into the spindle cartridge, achieving very high speeds ideal for small-diameter carbide tools (Ø0.5–6 mm), aluminum high-speed milling, and fine engraving. The electric spindle option reduces low-speed torque — it should not be used for large-diameter steel drilling or heavy face milling. Select based on your primary material and process mix.

Q5: Does the SZGH-540 need a foundation pit or special floor preparation?

No foundation pit is required. The machine ships with leveling feet that accommodate minor floor unevenness (±5 mm). Standard concrete industrial flooring of 150 mm thickness at C20 grade or above is sufficient to support the 1,900 kg machine weight. The machine should be leveled to within 0.04 mm/m using a precision level across the table surface before first use — a process that takes approximately 30 minutes and is covered in the installation guide provided with delivery.

Q6: Can the SZGH-540 run programs created in Mastercam or Fusion 360?

Yes. The SZGH controller accepts standard ISO G-code output by all major CAM packages including Mastercam, Fusion 360, SolidCAM, GibbsCAM, and hyperMILL. When setting up your CAM post-processor, select a generic Fanuc 0i-M or HAAS post — these produce G-code that runs on the SZGH system without modification. SZGH provides a post-processor configuration file upon request for customers using Mastercam or Fusion 360. Operators familiar with Fanuc or Siemens MDI programming will find the SZGH panel interface immediately intuitive.

Q7: Is the 8-station tool magazine standard or optional, and what does it change operationally?

The 8-station BT30 tool magazine is optional (specify at order). Without it, tool changes are manual — the operator opens the door, swaps the tool holder, closes the door, and re-zeros if necessary. With the ATC installed, the controller calls tools automatically by T-number; tool change time is typically 3–5 seconds. For parts requiring 3+ operations (drill, tap, mill), ATC reduces cycle time by 30–50% and allows unattended batch runs of 30–100 parts once the program is proven. For shops doing single-operation batch work (only drilling, or only engraving), the manual configuration is often sufficient and saves the ATC cost.

Q8: What warranty and after-sales support does SZGH provide for the 540?

Warranty covers 12 months on all mechanical and electrical components from delivery date, excluding consumables (cutting tools, collets, coolant, lubricants). After-sales support is delivered remotely via WhatsApp video call (24/5) — most mechanical and controller issues are diagnosed and resolved in one session. SZGH maintains local service agents in USA, Turkey, Romania, Russia, Egypt, Thailand, and Mexico for on-site support in those markets. Spare parts (ball nut assemblies, linear rail blocks, servo drive units, spindle cartridges) ship from Shenzhen within 3–5 business days to most destinations.

Q9: How does one operator manage multiple SZGH-540 machines efficiently?

The multi-machine workflow is: (1) load a blank on Machine A, start the program; (2) walk to Machine B, unload the finished part, load a new blank, start program; (3) return to Machine A when the cycle ends, repeat. This works when cycle time per part is 3–10 minutes — long enough for the operator to complete loading/unloading on the adjacent machine before the current cycle finishes. Most electronics fixture, aluminum housing, and connector plate parts in the 500×400 mm envelope fall in this cycle time range. The SZGH-540's compact layout — short door travel, ergonomic table height, and front-panel control placement — minimizes the time each machine demands per visit.

Export Markets & Customer References

SZGH-540 machines are operating in production facilities across:

Typical buyer profile: Sub-contract machining shops producing electronics fixtures, aluminum structural parts, and small precision components; single-operator workshops upgrading from manual milling; job shops adding capacity for small-batch CNC work without committing to full-size VMC floor space and investment.

Request a Quote

Email: export02@szghtech.com

WhatsApp: +8618925223781

Website: szghtech.com

When enquiring, please provide: (1) workpiece materials and dimensions, (2) primary operations (drilling, tapping, milling, engraving), (3) whether ATC tool magazine is needed, (4) spindle preference (mechanical 6,000 rpm vs. electric 24,000 rpm), and (5) annual production volume estimate. This allows SZGH to recommend the correct 540 configuration and provide an accurate CIF quotation.

Lead time: 20–35 working days from deposit

Warranty: 12 months on all mechanical and electrical components (consumables excluded)

After-sales support: Remote diagnostics via WhatsApp 24/5; local agents in USA, Turkey, Romania, Russia, Egypt, Thailand, and Mexico
