VMC850 Vertical Machining Center | 800×500×500 mm Travel | BT40 | ±0.003 mm Repeat | 35 mm HIWIN Rails | 24-Tool ATC

What Is the VMC850?

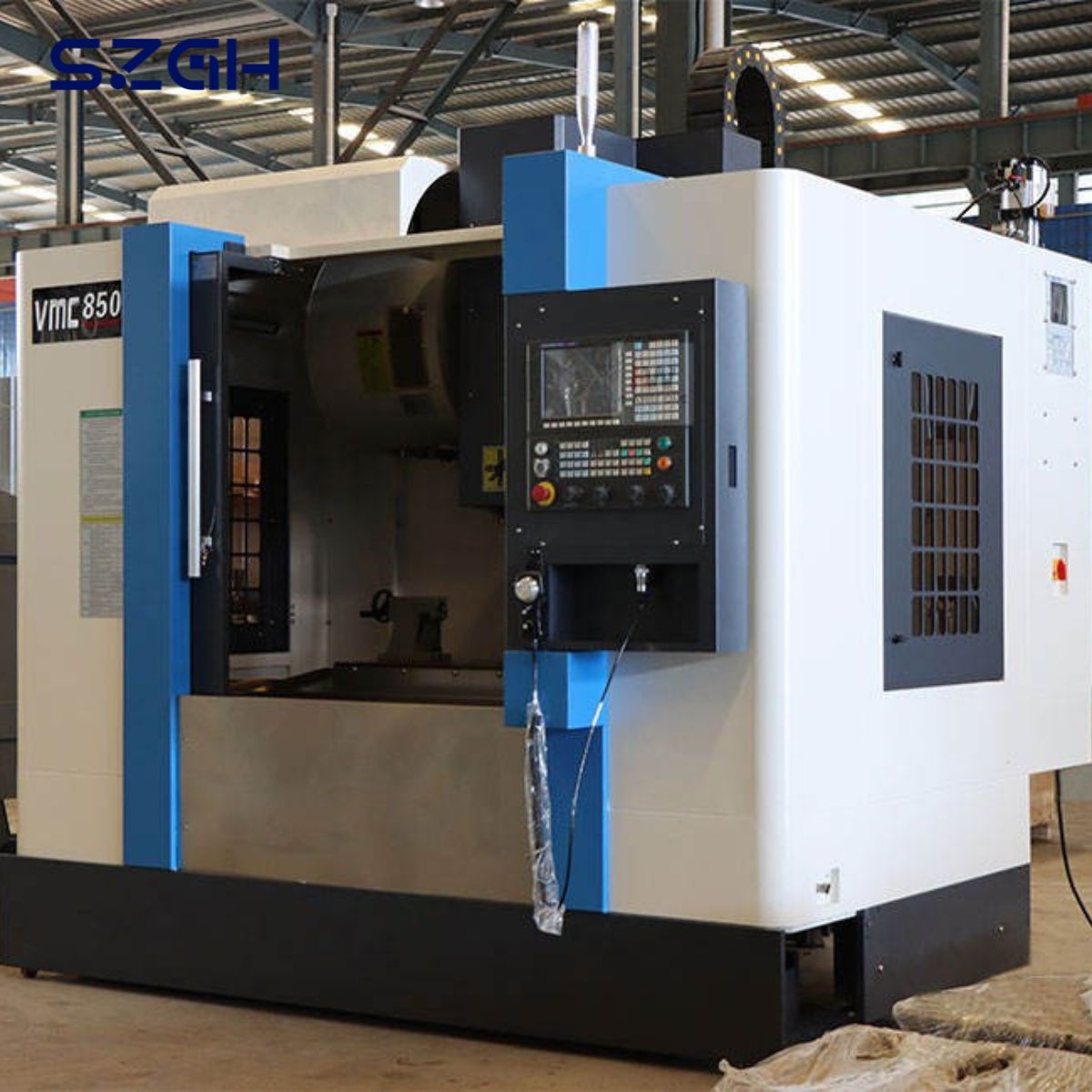

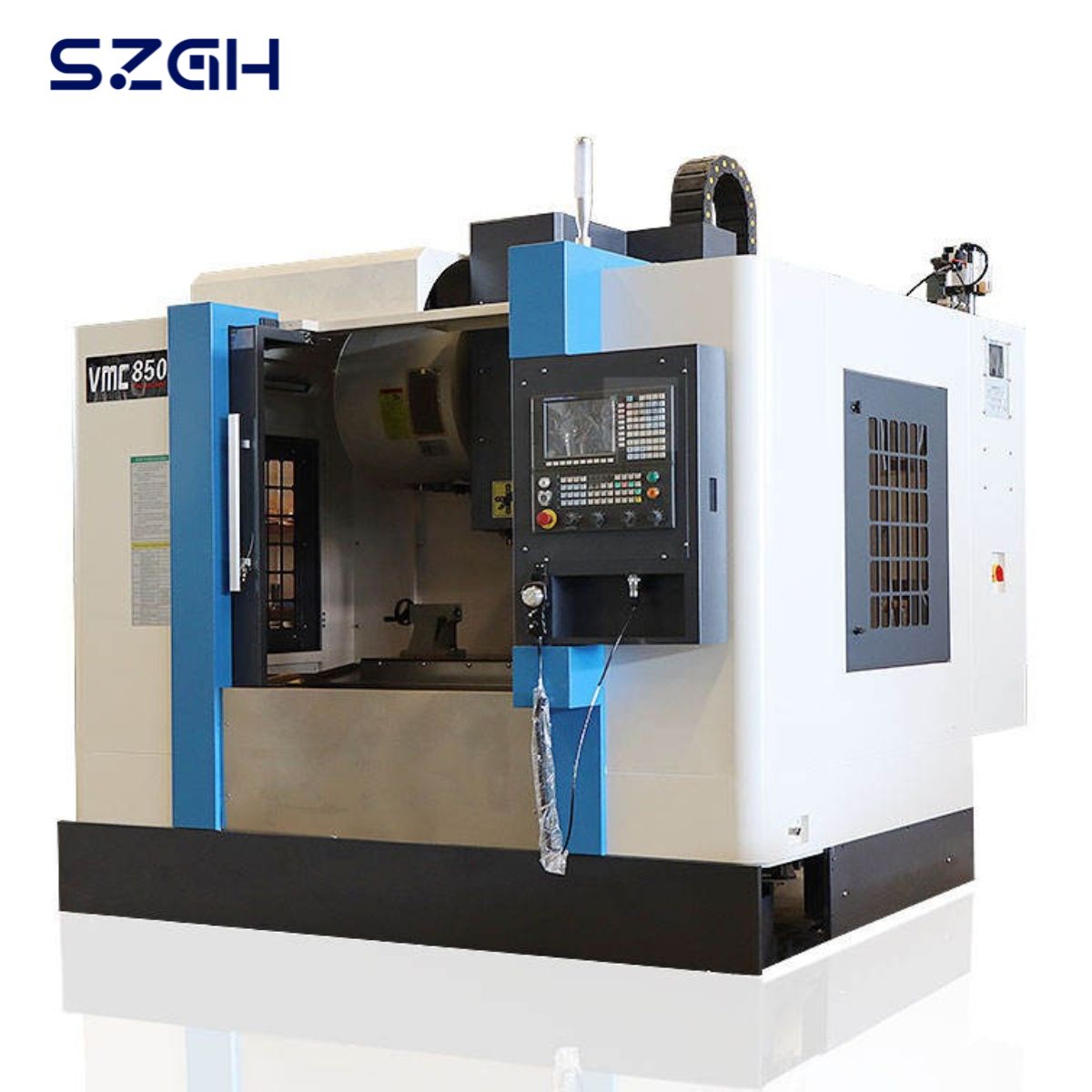

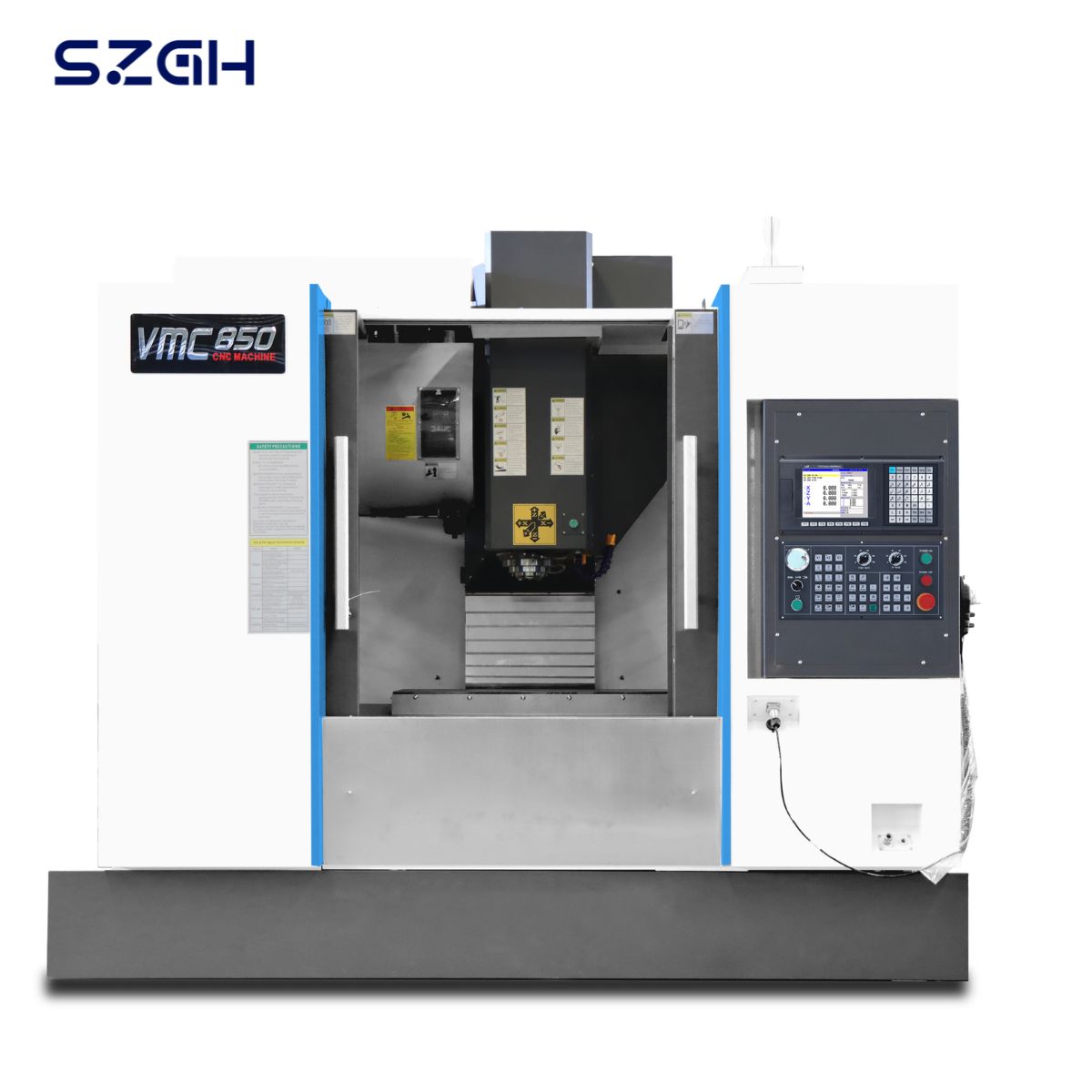

The VMC850 is a full-specification vertical machining center with 800 mm X-travel, 500 mm Y-travel, and 500 mm Z-travel on a 1,000×500 mm table rated to 500 kg. It shares the VMC650's double-tempered alloy cast iron body and original Taiwan HIWIN heavy-duty roller linear guide rail platform, but upgrades all three guide rail specifications to 35 mm (versus the VMC650's standard rails) — providing higher load capacity and stiffness for the larger table and heavier workpiece class. The result is ±0.005 mm positioning accuracy and ±0.003 mm repeatability — the tightest in the SZGH product line. The 8,000 rpm BT40 belt-drive spindle (7.5 kW) and 24-station ATC (1.8-second average tool change) are standard, along with the SZGH CNC controller. The VMC850 accepts the same optional upgrades as the VMC650: 4th/5th axis rotary tables, Renishaw/Metrol tool setting and workpiece probing, chain-type chip conveyor, and spindle oil cooler.

Technical Specifications

Table & Work Envelope

Spindle

Axis Performance

Tool Changer

Components & Construction

Standard Accessories

Options & Upgrades

Key Features & Advantages

±0.003 mm Repeatability — The Tightest in the SZGH Product Line

The VMC850's ±0.003 mm repeatability is the highest precision specification across the entire SZGH machining center range. To contextualise: 0.003 mm = 3 microns = approximately 1/25 the diameter of a human hair. At this level of repeatability, the machine is capable of:

• IT6-grade bore tolerancing on aluminum and mild steel without post-process grinding — a Ø50 mm bore held to IT6 requires ±0.008 mm, well within the 850's ±0.003 mm repeat.

• H7/p6 interference fits drilled and bored directly on the VMC without reaming — tolerances of +0.025/0 mm on a Ø25 mm bore are reliably achievable.

• Multi-part fixture repeatability — in a tombstone setup with 4 identical parts, each part's datum is relocated to within ±0.003 mm of the programmed position, eliminating the part-to-part variation that causes selective assembly in tight-tolerance production.

This level of performance is the standard for Japanese and European mid-range VMCs (Makino V33i, Fanuc RoboDrill, Matsuura MA-600H). The VMC850 delivers it at a fraction of the acquisition cost.

35 mm HIWIN Roller Rails on All Three Axes — Upsized for the 850's Load and Accuracy Class

The VMC850 specifies 35 mm HIWIN heavy-duty roller rails on all three axes — explicitly larger than the VMC650's standard rail specification. The 35 mm rail provides greater contact surface area, higher preload capacity, and increased stiffness per unit length compared to smaller rail sizes. In practical terms, this matters most in two scenarios:

1. Heavy interrupted cuts on steel or cast iron: the larger rail cross-section distributes cutting shock loads across more contact area, reducing peak Hertzian stress on the roller contact and preventing the micro-deformation that degrades positioning accuracy under repeated heavy cuts.

2. Long Y-axis travel at full table load: with a 500 kg workpiece on the 1,000 mm table, the carriage moment load at maximum Y extension is significantly higher than on the VMC650. The 35 mm rails handle this moment load without measurable rail block lift-off, preserving Z-axis perpendicularity to the table surface across the full Y-travel range.

24-Station ATC — Eight More Tools Than the VMC650, No Compromises Mid-Program

The VMC850 ships with 24 tool stations as standard — 8 more than the VMC650's 16. The practical significance: complex aerospace brackets, automotive transmission covers, and hydraulic manifold blocks regularly require 18–22 distinct tool calls (multiple drill diameters, tap sizes, boring tools, profile mills, chamfer tools, thread mills). On a 16-station machine, these programs require manual tool changes mid-run — introducing setup error and stopping the cycle. On the VMC850, the full 24-tool program runs uninterrupted from start to finish, enabling true lights-out production of complex parts.

For tombstone multi-part setups where each part type requires its own dedicated tool set, 24 stations allow two distinct part families to share the magazine simultaneously — switching between families by calling different tool number blocks without any physical magazine reloading.

4,500 kg Double-Tempered Body — 32% More Mass Than the VMC650 for Higher Cutting Stability

The VMC850's 4,500 kg weight versus the VMC650's 3,400 kg provides 32% more structural mass to absorb cutting-induced vibration. This is not incidental — it is why the 850 achieves ±0.003 mm repeatability where the 650 achieves ±0.005 mm. Greater body mass raises the system's natural frequency and increases vibration attenuation — particularly at the column-spindle interface, where cutting forces from heavy face milling and deep pocket operations introduce the largest structural excitation. At 4,500 kg, the VMC850 enters the mass class of Mazak VCN-535C and Haas VF-3 machines, delivering comparable structural stability at a significantly lower price point.

1,000×500 mm Table, 500 kg Load — Full Tombstone and Large-Plate Production

The VMC850's 1,000×500 mm table with five 18 mm T-slots supports the full range of production workholding: 500 mm and 630 mm tombstones, dual 6-inch vise banks, large aluminum plate work up to approximately 950×480 mm, and 4-part fixture rows for small-to-medium components. The 500 kg table load rating accommodates steel fixture plates, heavy cast iron workpieces, and multiple-part setups that the VMC650's 400 kg limit excludes. For shops producing cast iron pump bodies (typically 50–150 kg each), the 850's load rating allows single-fixture setups of 2–3 parts simultaneously.

Spindle Oil Cooler Option — Thermal Stability for Sustained Precision Runs

For shops running the VMC850 on 2–3 shift production cycles at sustained spindle speeds (4,000–8,000 rpm), the optional spindle oil cooler becomes a precision-sustaining component rather than a luxury. Spindle bearing heat at sustained high RPM causes thermal elongation of the spindle cartridge — typically 0.005–0.015 mm over a 4-hour sustained run on an uncooled spindle. On a machine rated to ±0.003 mm repeatability, thermal spindle growth of 0.01 mm represents a 3× overshoot of the positional spec. The oil cooler maintains spindle bearing temperature within ±1°C of coolant temperature, holding thermal elongation below 0.002 mm — preserving the machine's stated accuracy through full-shift production.

Renishaw Probing Options — Closing the Loop on Precision

At ±0.003 mm repeatability, manual edge-finding (accuracy typically ±0.005–0.010 mm per measurement) becomes the limiting factor in achieving the machine's full potential. The optional Renishaw/Metrol workpiece probing system replaces edge-finding with on-machine probing to ±0.001–0.002 mm accuracy — allowing the machine's full precision to reach the workpiece. For high-value parts (aerospace, medical, precision tooling) where scrap cost per part is significant, the probing investment is recovered within the first year of operation through reduced scrap and rework.

Applications & Industries

The VMC850 targets production environments where ±0.003 mm repeatability, 24-tool capacity, and 800 mm X-travel are collectively required.

Industries & Typical Parts

VMC850 vs. VMC650 vs. Haas VF-2 / Mazak VCN-430A

Choose the VMC850 if: ±0.003 mm repeatability is required, 24-station ATC is needed for complex multi-operation programs, the table size needs to be 1,000×500 mm, or workpiece loads exceed 400 kg.

Choose the VMC650 if: ±0.005 mm repeatability is sufficient, 16 tool stations cover the program complexity, and the 900×400 mm table fits the largest workpiece — at a lower acquisition cost.

Consider Haas VF-2 / Mazak VCN class if: spindle power above 7.5 kW is required for sustained heavy steel cutting, maximum table load above 500 kg is needed, or existing service contracts with those brands govern the purchase.

Certifications & Quality Assurance

• CE Certified — complies with EU Machinery Directive 2006/42/EC; full documentation for EU customs clearance

• ISO 9001:2015 — quality management system certified across design, manufacturing, and after-sales

• National High-Tech Enterprise — recognized by China's Ministry of Science and Technology since 2018

• 100+ patents — covering body geometry, 35 mm HIWIN rail integration, ATC mechanism, and thermal management

• HIWIN component authenticity — original Taiwan HIWIN 35 mm heavy-duty roller linear guide rails; component certificates available on request

• Pre-shipment inspection — 72-hour run-in cycle, full XYZ ballbar or laser accuracy verification to ±0.003 mm spec, 24-station ATC cycle timing check, and test report included

Frequently Asked Questions

Q1: What specifically upgrades the VMC850's repeatability to ±0.003 mm versus the VMC650's ±0.005 mm?

Three compounding factors: (1) 35 mm HIWIN roller rails (explicitly larger than the VMC650's standard specification) — the larger rail size provides greater preload capacity and stiffness under load, reducing elastic deformation per cutting cycle; (2) 4,500 kg body mass versus 3,400 kg — the 32% mass increase raises structural damping, absorbing more cutting-induced vibration before it reaches the positioning loop; (3) wider T-slot specification (18 mm vs 16 mm) indicating a heavier table casting with greater thermal inertia. These factors combine to tighten the machine's positional return accuracy from ±0.005 mm to ±0.003 mm under production conditions.

Q2: Is ±0.003 mm repeatability achievable in production, or only under ideal laboratory conditions?

The stated ±0.003 mm is a production specification verified during the 72-hour pre-shipment run-in cycle under cutting loads — not a single-point no-load measurement. SZGH provides the accuracy verification test report with each VMC850 delivery. In production, sustaining ±0.003 mm requires: (1) the optional spindle oil cooler for sustained RPM runs; (2) proper machine warm-up (15–20 minutes spindle warm-up at progressive speeds before precision cutting); (3) stable shop temperature (ideally 20±2°C, though the 4,500 kg thermal mass provides reasonable protection up to ±5°C ambient variation); and (4) Renishaw probing for in-process datum verification on highest-precision features.

Q3: Why does the VMC850 have 24 tool stations instead of 16 — is this always necessary?

Not always, but it is the correct standard for a machine in this precision and price class. Production programs requiring IT6-grade tolerances on complex parts typically involve more distinct operations — multiple pilot drills, finish drills, reamers, boring bars, thread mills, and profile mills — than basic drilling-and-tapping programs. At 24 stations, the VMC850 handles these programs without mid-cycle manual intervention. For shops whose current programs use fewer than 16 tools, the extra stations provide growth capacity as part complexity increases — avoiding a machine upgrade when production requirements evolve.

Q4: Can the VMC850 hold IT6 tolerances on bores without post-process grinding?

Yes, for aluminum and mild steel bores in the Ø10–80 mm range. IT6 for a Ø50 mm bore is ±0.008 mm total (H6: +0.016/0 mm). The VMC850's ±0.003 mm repeatability means that boring tool position returns to within ±0.003 mm between cuts — well within the IT6 tolerance band. For hardened steels and stainless requiring IT5 or better (±0.005 mm total), finish grinding remains necessary. For aluminum structural parts, hydraulic aluminum manifolds, and mild steel housings, IT6 direct boring on the VMC850 eliminates the grinding operation entirely.

Q5: How does the VMC850 compare to a Haas VF-2 or equivalent in the same price range?

The VMC850's primary advantages over Haas VF-2 class are: (1) lower acquisition cost for comparable travel and tool capacity; (2) 1.8-second ATC chip-to-chip vs. Haas VF-2's 3.0–4.2-second ATC — meaningful throughput advantage on high-tool-count programs. The Haas VF-2 has advantages in: spindle motor power (14.9 kW vs 7.5 kW) for sustained heavy steel roughing, maximum table load (680 kg vs 500 kg), and global Haas Factory Outlet service network in most markets. For shops primarily machining aluminum and mild steel with tool-count-heavy programs, the VMC850 represents better value per cycle. For shops with sustained heavy steel roughing as primary work, the Haas spindle power advantage becomes significant.

Q6: What is the recommended warm-up procedure before precision cutting on the VMC850?

For work requiring ±0.003–0.005 mm precision: run the spindle at 1,000 rpm for 5 minutes, 3,000 rpm for 5 minutes, and 6,000 rpm for 5 minutes before starting precision cuts — total 15 minutes. This allows spindle bearing temperature to stabilize and reduces thermal spindle elongation to below 0.002 mm. For the first production part of the day, probe the workpiece datum after warm-up rather than relying on the previous day's coordinate offset. With the optional spindle oil cooler, warm-up time can be reduced to 5–8 minutes as bearing temperature is actively controlled.

Q7: Can I add the 4th or 5th axis to the VMC850 after purchase?

Yes. The 4th/5th axis options are available as factory specifications at order or as retrofits. Factory specification is preferred as it includes axis parameter pre-configuration and factory verification. Retrofit requires confirming the existing SZGH controller version supports the additional axis and installing the rotary servo drive — SZGH provides retrofit kits and installation guides. Renishaw probing systems can also be retrofitted to existing VMC850 units; SZGH provides the macro interface documentation for the SZGH controller.

Q8: What floor specification does the VMC850 require?

Minimum: 250 mm reinforced concrete slab at C30 grade to support the 4,500 kg machine weight and sustained dynamic cutting loads. Isolate from heavy-equipment vibration sources (presses, compressors, forklift traffic paths) where possible — at ±0.003 mm precision, floor-transmitted vibration from nearby equipment can measurably affect positioning during fine finishing passes. Level the machine to within 0.02 mm/m across the table surface using a precision level before first operation. Allow 3,200×3,000 mm floor area for full operator access and chip conveyor clearance.

Q9: What is the lead time, warranty, and after-sales support for the VMC850?

Lead time is 20–35 working days from deposit confirmation. Warranty covers 12 months on all mechanical and electrical components (consumables excluded). After-sales support is delivered via WhatsApp remote video diagnostics 24/5, with HIWIN rail service coordination available through the HIWIN regional network in most export markets. Local SZGH agents operate in USA, Turkey, Romania, Russia, Egypt, Thailand, and Mexico for on-site support.

Export Markets & Customer References

VMC850 machines are operating in production facilities across:

Typical buyer profile: Precision sub-contract machining shops producing aerospace, automotive, and medical components to IT6–IT7 tolerances; mold shops machining large cavity plates and mold bases requiring ±0.003 mm bore repeatability; hydraulic equipment manufacturers producing large manifold blocks with 18+ operations per part; shops upgrading from VMC650 when program complexity or tolerance requirements exceed the 650's specification.

Request a Quote

Email: export02@szghtech.com

WhatsApp: +8618925223781

Website: szghtech.com

When enquiring, please provide: (1) workpiece materials and typical dimensions; (2) critical tolerance requirements (repeatability, bore tolerances); (3) number of tools required per program; (4) desired options (4th/5th axis, Renishaw probing, tool setting, chip conveyor, oil cooler); (5) annual production volume; and (6) destination country. This allows SZGH to confirm the VMC850 configuration and provide an accurate CIF quotation.

Lead time: 20–35 working days from deposit

Warranty: 12 months on all mechanical and electrical components (consumables excluded)

After-sales support: Remote diagnostics via WhatsApp 24/5; local agents in USA, Turkey, Romania, Russia, Egypt, Thailand, and Mexico
