SZGH-1090 Gantry Machining Center | 900×1,000 mm Table | BT40 / 24,000 rpm Electric Spindle | 0.01 mm Repeatability

What Is the SZGH-1090?

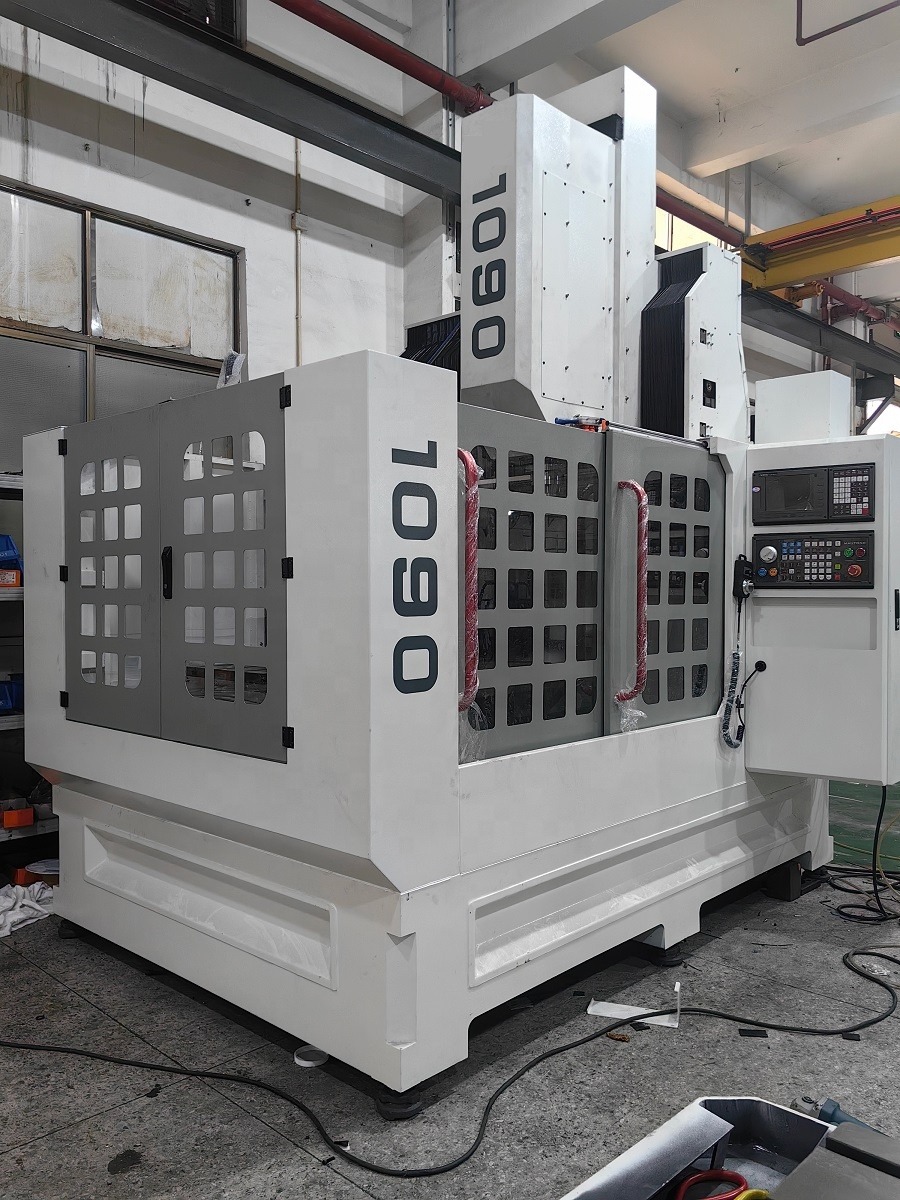

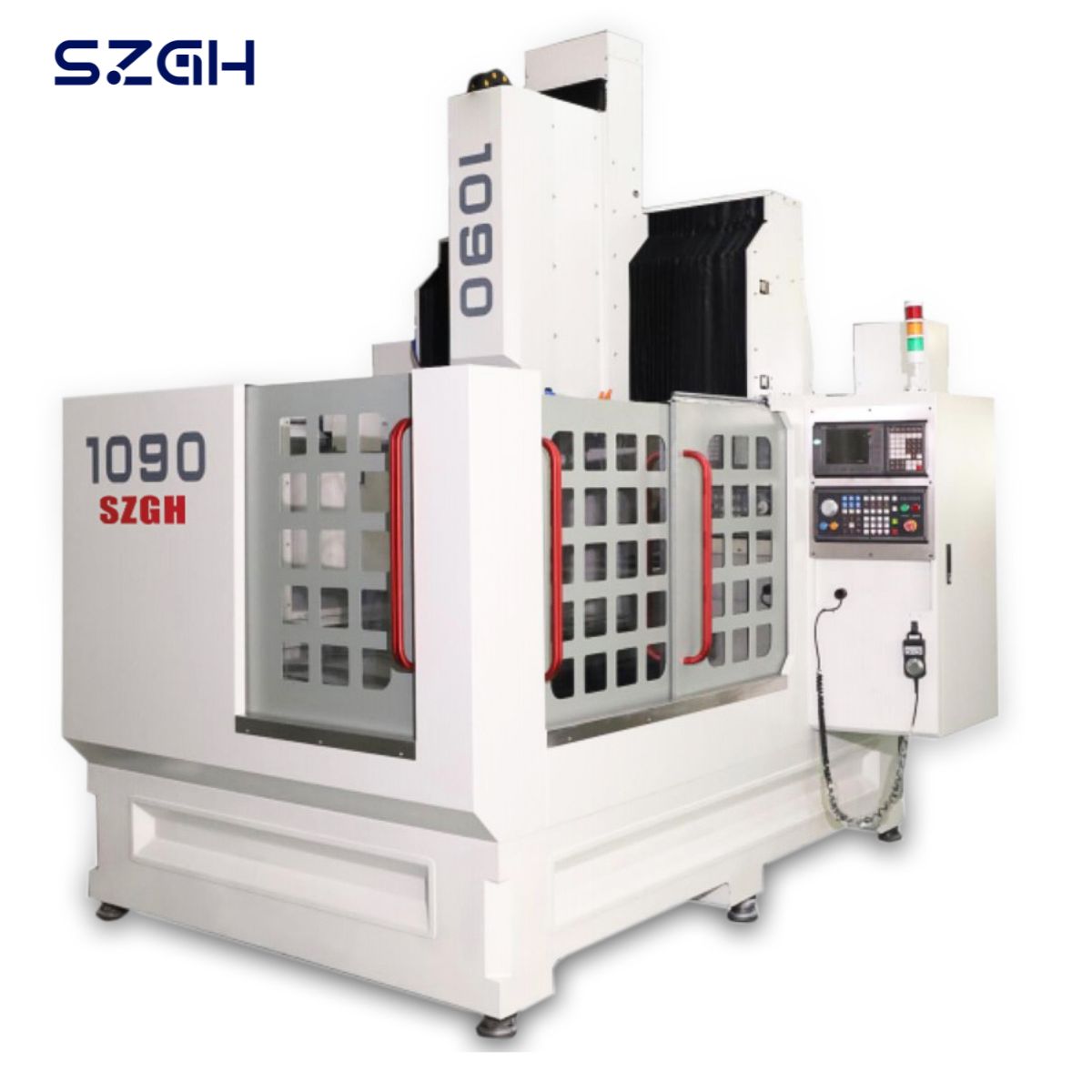

The SZGH-1090 is a CNC gantry machining center manufactured by Shenzhen Guanhong Technology Co., Ltd. (SZGHTECH). It features an inverted-column moving-gantry architecture in which the spindle bridge travels over a stationary 900×1,000 mm worktable, enabling machining of oversized plates, heavy mold bases, and large structural parts. Available in two variants — SZGH-1090 (BT40, 8,000 rpm, 11/15 kW) and SZGH-1090D (BT30 electric spindle, 24,000 rpm, 11 kW) — both share identical axis travels (X 900 mm, Y 1,000 mm, Z 500 mm), 0.01 mm repeatability, Taiwan C3-grade ball screws, Taiwan P-grade guide rails, and an SZGH CNC control system.

Technical Specifications

Motion & Axis

Spindle & Tooling

Machine Body & Utilities

Key Components (OEM Partners)

Controller Options

Key Features & Advantages

Moving-Gantry Architecture — Machine the Part, Not the Table

In a conventional VMC, the worktable moves in X and Y while the spindle moves in Z — which limits the practical part weight to a few hundred kilograms before table inertia degrades accuracy. The SZGH-1090 inverts this: the gantry bridge carries the spindle in X and Y while the worktable stays completely stationary. The result is that a 800 kg workpiece experiences zero dynamic forces from table movement. Large mold bases, thick steel plates, and heavy structural frames can be fixtured once and machined completely without repositioning.

Anti-Deformation Patented Heavy-Duty Base

SZGHTECH developed and patented a reinforced base geometry specifically for gantry-class machines. The casting is engineered to resist torsional and bending deformation under the combined dynamic loads of a 7,500 kg moving gantry. This matters in practice: a base that flexes under cutting load is a base that produces out-of-tolerance parts. The SZGH-1090 base is sized heavy enough to absorb vibration at the full 10,000 mm/min feed rate without measurable deflection.

Two Spindle Variants — One Platform for Every Material

• SZGH-1090 (BT40, 8,000 rpm, 11/15 kW): The standard mechanical spindle targets steel, cast iron, and titanium — materials that need high torque at moderate speed. BT40 tooling is the most widely available taper size globally, so end users can source inserts and holders locally without special orders. Maximum drilling to Ø60 mm in steel; milling with Ø80 mm face mills.

• SZGH-1090D (BT30, 24,000 rpm, 11 kW electric): The Jiangsu Ronghua high-speed electric spindle targets aluminum alloys and composites. At 24,000 rpm, surface finish improves dramatically and chip-load per tooth drops, allowing lighter cuts at much higher material removal rates. The 14-station magazine vs. the standard 13-station gives one additional tool pocket — useful for aluminum programs that need more finishing passes.

Taiwan C3 Ball Screws + P-Grade Guide Rails — Precision Through Wear Life

Gantry machines operate at large overhangs and high dynamic loads. Choosing Taiwan Precision C3-grade ball screws (Ø40 mm, 10 mm pitch) ensures that backlash stays below specification even after 50,000+ hours of operation. The companion P-grade 45-series ball-type guide rails provide lower friction than roller rails at large spans — critical when X and Y strokes exceed 900 mm and the cumulative friction error over the full stroke would otherwise accumulate into a positioning offset.

SZGH CNC Controller — Integrated Electromechanical Optimization

The SZGH 1000MDCb-4 controller is designed by SZGHTECH alongside the mechanical system, not sourced independently. The servo parameters for each axis — X/Y 3.8 kW, Z 3.0 kW with brake — are pre-tuned to the specific inertia and load characteristics of the SZGH-1090 frame. The result is faster commissioning and fewer vibration issues during ramp-up than a third-party controller installed on an unfamiliar machine. The USB interface supports direct G-code transfer without proprietary file formats.

Full Protection System for Workshop Longevity

Gantry machines generate large chip volumes from face-milling heavy plates. The SZGH-1090 includes a half-cover body enclosure and a full protective cover over all guide rails, shielding the Taiwan P-grade rails from chip ingress — the primary cause of premature rail wear on budget gantry machines. The automatic intermittent lubrication system ensures rail and screw lubrication on a timed cycle without operator intervention.

Applications & Industries

SZGH-1090 vs. VMC850 vs. Competitor Gantry Class

Note: The SZGH VMC850 achieves ±0.003 mm repeatability on smaller parts; the SZGH-1090 is designed for workpieces that physically cannot fit on a VMC — it prioritizes work envelope and load capacity over sub-micron precision.

Certifications & Quality Assurance

• CE Certified — conforms to EU Machinery Directive 2006/42/EC for safe export to Europe

• ISO 9001:2015 — full quality management system certified across all manufacturing processes

• National High-Tech Enterprise — certified by the Chinese Ministry of Science and Technology since 2018

• 100+ Patents — including the anti-deformation heavy-duty base patent featured on this machine

• 20,000 m² Factory — Shenzhen, established 2013; 13 years of gantry and VMC production experience

• Dynamic Balance Certification — all spindle assemblies dynamically balanced before installation

Frequently Asked Questions

Q1: What is the difference between the SZGH-1090 and SZGH-1090D?

The SZGH-1090 uses a direct-coupled mechanical spindle (Ø150, BT40, max 8,000 rpm, 11/15 kW) best suited for ferrous materials at high torque. The SZGH-1090D uses a Jiangsu Ronghua electric spindle (BT30, max 24,000 rpm, 11 kW) optimized for aluminum and composites at high surface speed. The 1090D also carries one extra tool pocket (14 vs. 13 stations). Both share identical axis travels, table size, machine weight, and body structure.

Q2: Can the SZGH-1090 machine a 800 kg steel mold base without repositioning?

Yes. The fixed-table gantry architecture means the 800 kg part is clamped once and remains stationary throughout the entire machining cycle. Only the spindle bridge moves. This eliminates the repositioning errors and re-fixturing time that would occur if you tried to machine the same part on a horizontal machining center with a pallet system.

Q3: Why does a gantry machine have lower repeatability (0.01 mm) than the VMC850 (0.003 mm)?

Gantry machines carry the spindle on a long cross-beam that spans a wide work envelope. The thermal expansion and structural compliance of that beam over 900 mm spans introduces small but measurable positioning variation that does not exist on a short, rigid VMC column. For the large plates and mold bases the SZGH-1090 targets, 0.01 mm repeatability is entirely adequate — mold base bolt patterns and pocket profiles are specified to IT8–IT9 tolerance, where 0.01 mm is well within spec.

Q4: What is the largest milling cutter I can use on the SZGH-1090?

The standard mechanical spindle (SZGH-1090) accepts up to Ø80 mm milling cutters via BT40 tooling — suitable for face milling large flat surfaces in a single pass. The electric spindle variant (SZGH-1090D) is limited to Ø40 mm due to the BT30 taper and higher-speed operating range.

Q5: Can I upgrade to Fanuc, Siemens, or Mitsubishi controller instead of SZGH?

Yes. The SZGH control package is the standard configuration because it is pre-tuned to this machine's specific axis inertia and provides the fastest installation. Huazhong, Baoyuan, and programming-free controller options are listed as alternatives. For Fanuc or Siemens, discuss with the sales team at export02@szghtech.com — custom controller configurations are available on request with adjusted lead times.

Q6: How does the SZGH-1090 compare to a bridge mill (planer mill) for the same work envelope?

A bridge mill has two fixed vertical columns with a cross-rail between them; the table moves in X. The SZGH-1090 is a moving-gantry type where the bridge moves in Y while the table is completely fixed — better for very heavy parts where table motion would be impractical. Bridge mills typically offer larger Z-travel and are used for very tall workpieces. The SZGH-1090 with 500 mm Z-travel suits plate work, mold bases, and frame components with moderate height.

Q7: What happens if one Taiwan guide rail needs replacement after years of use?

Taiwan P-grade 45-series ball guide rails are a standard catalog item available from multiple suppliers in China, Taiwan, and Southeast Asia. Replacement is a field operation: drain lubrication, remove the rail cover, unbolt the worn rail, install the new rail, re-lubricate, and re-home the axis. SZGHTECH's technical team can provide the original rail part number and step-by-step replacement guidance via WhatsApp.

Q8: Is the SZGH-1090 suitable for 5-axis machining?

The standard SZGH-1090 and 1090D are 3-axis machines (X, Y, Z). A fourth or fifth rotary axis can be mounted on the table to enable 4-axis or 5-axis positioning — the 800 kg table load capacity accommodates most rotary table units. Contact the factory for rotary axis compatibility and mounting specifications.

Q9: What is the lead time and payment structure for the SZGH-1090?

Standard lead time is 20–35 working days from receipt of deposit. Payment is typically 30% deposit to confirm production, 70% balance before shipment (confirmed by sea freight bill of lading). Export packaging, CE documentation, and an English-language parts/operation manual are included. Contact export02@szghtech.com for a proforma invoice.

Export Markets & Customer References

SZGHTECH has shipped CNC gantry and vertical machining centers to customers in:

Americas: USA, Mexico

Europe: Romania, Turkey, Moldova

Middle East & Africa: Egypt, Morocco

CIS: Russia

Asia: Thailand, Vietnam, India

The SZGH-1090 is particularly popular with:

• Mold shops in Eastern Europe (Romania, Turkey) needing large-format tooling capability without the lead time and price premium of German or Japanese brands

• Automotive Tier-2 suppliers in Southeast Asia (Thailand, Vietnam) producing fixture plates and press tool bases

• Energy sector fabricators in Egypt and Russia machining pump and valve housings in cast iron

All export shipments include CE certificates, ISO 9001 certificates, an English-language operation and maintenance manual, packing lists, and commercial invoice. SZGHTECH has local service representatives in USA, Turkey, Romania, Russia, Egypt, Thailand, and Mexico.

Request a Quote

Ready to discuss the SZGH-1090 for your production requirements? Our export team responds within 24 hours.

When contacting us, please include:

• Your target material(s) and typical workpiece dimensions / weight

• Required spindle speed range (8,000 rpm BT40 vs. 24,000 rpm BT30 electric spindle)

• Preferred CNC controller (SZGH default / Huazhong / Baoyuan / programming-free)

• Annual production volume and target delivery port

Lead time: 20–35 working days from deposit confirmation

Warranty: 12 months on all mechanical and electrical components (consumables excluded)

Support: Remote support via WhatsApp 24/5; local agents in USA, Turkey, Romania, Russia, Egypt, Thailand, Mexico
