VMC650 Vertical Machining Center | 650×400×500 mm Travel | BT40 | ±0.005 mm Repeat | HIWIN Roller Rails | 16-Tool ATC

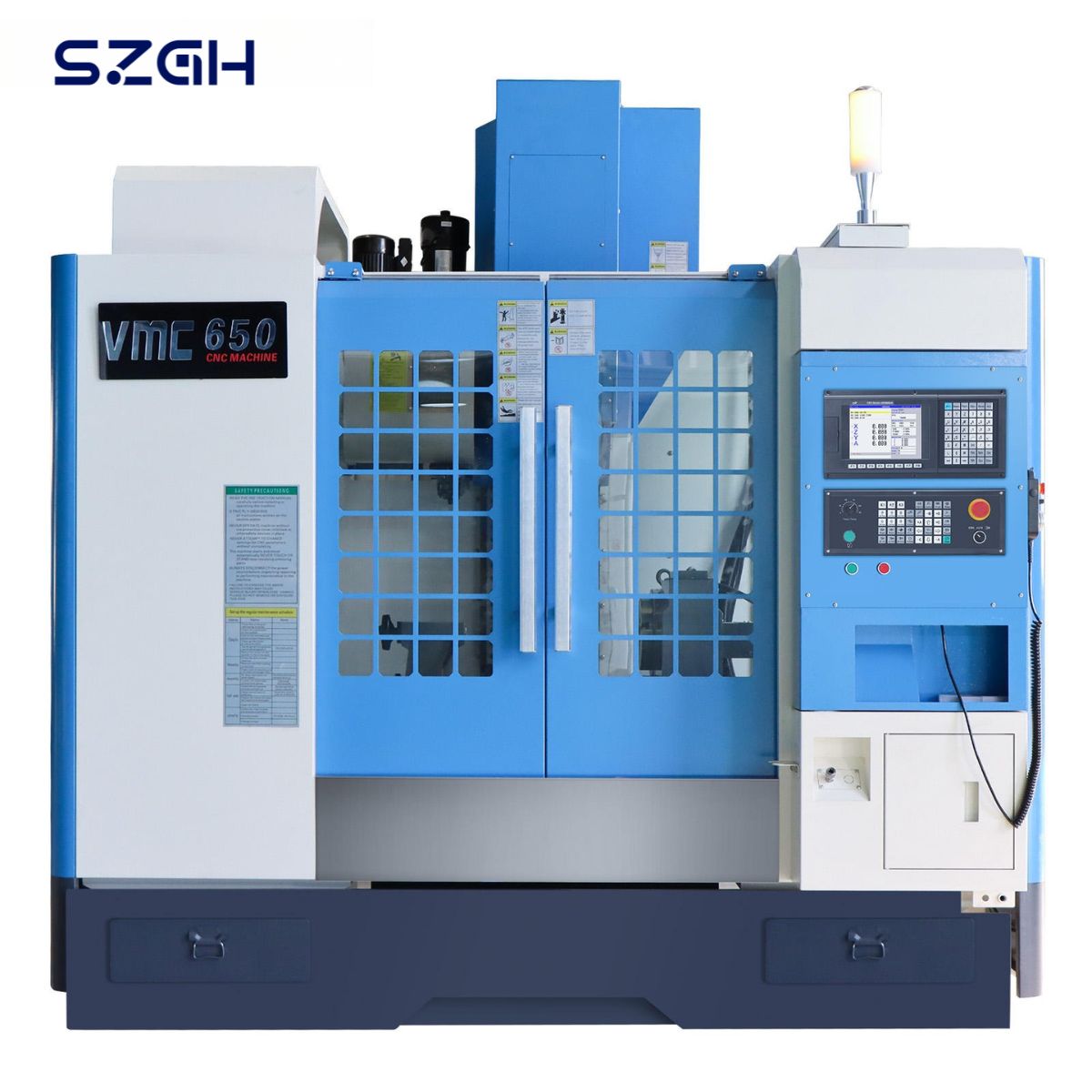

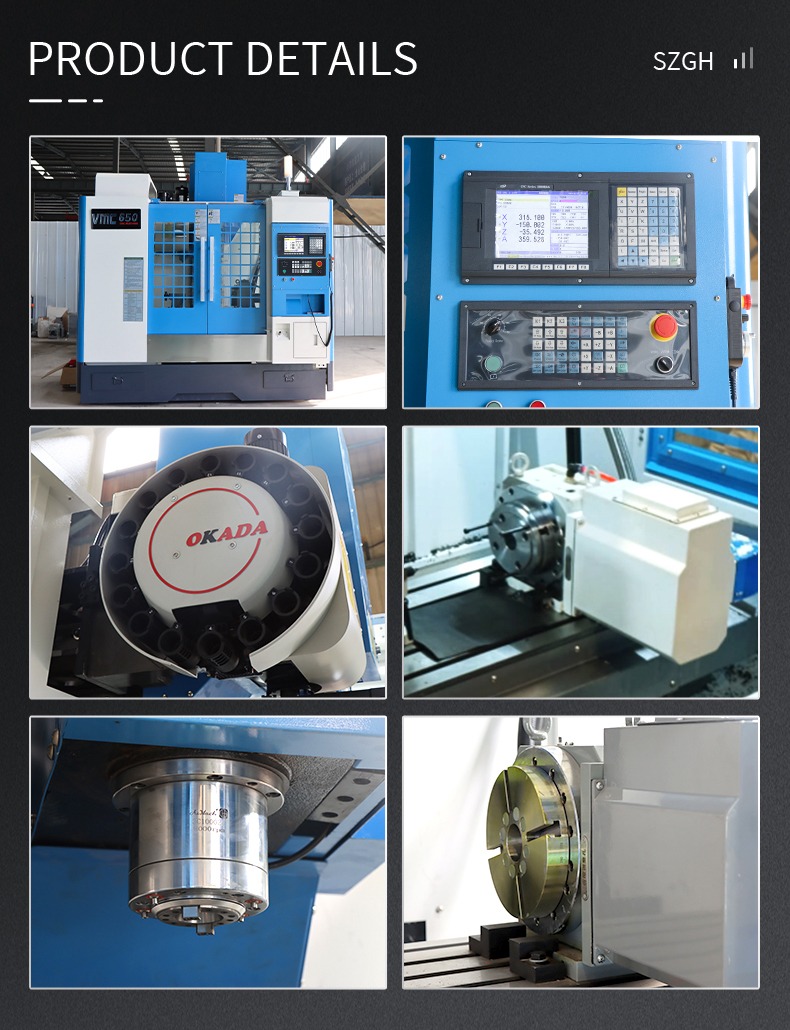

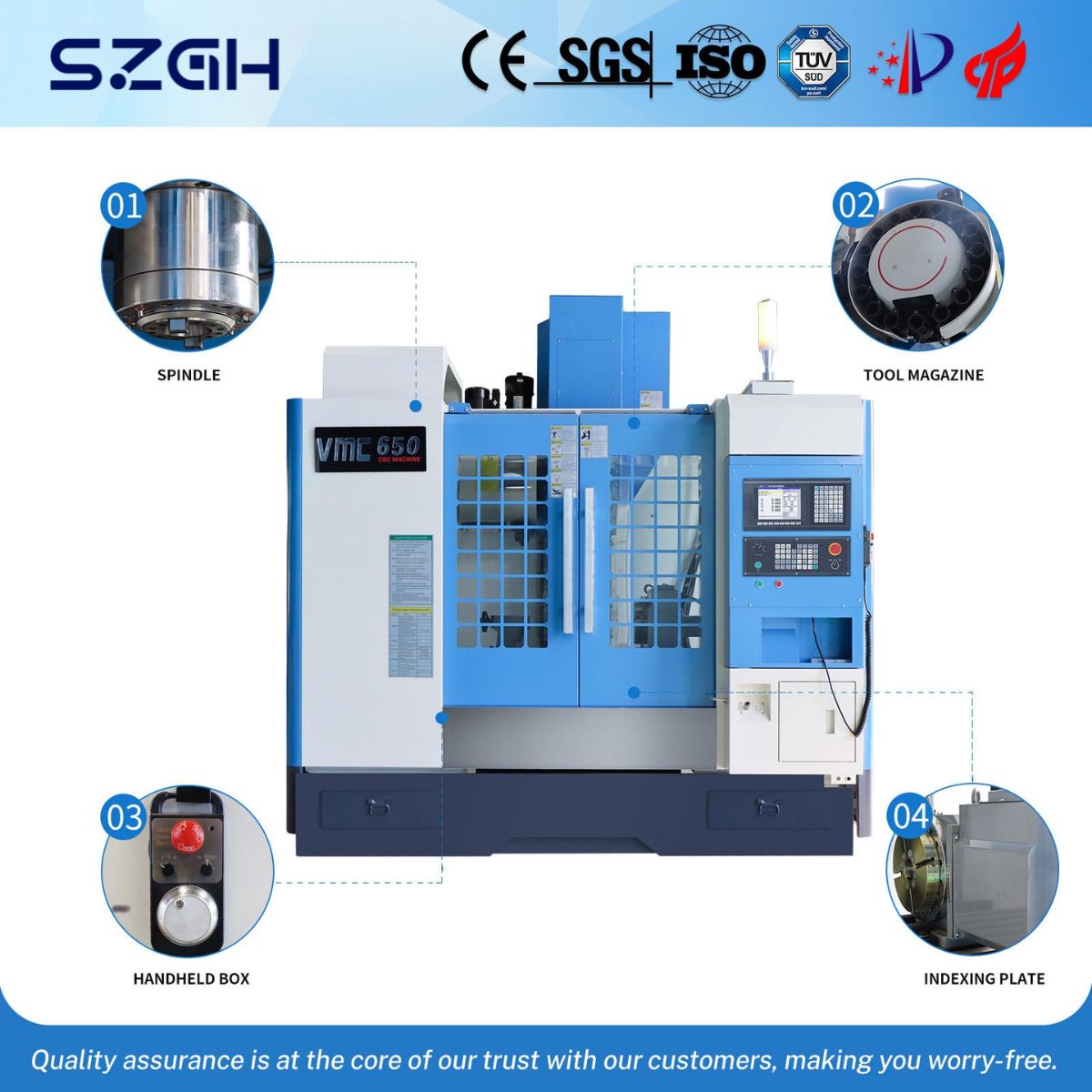

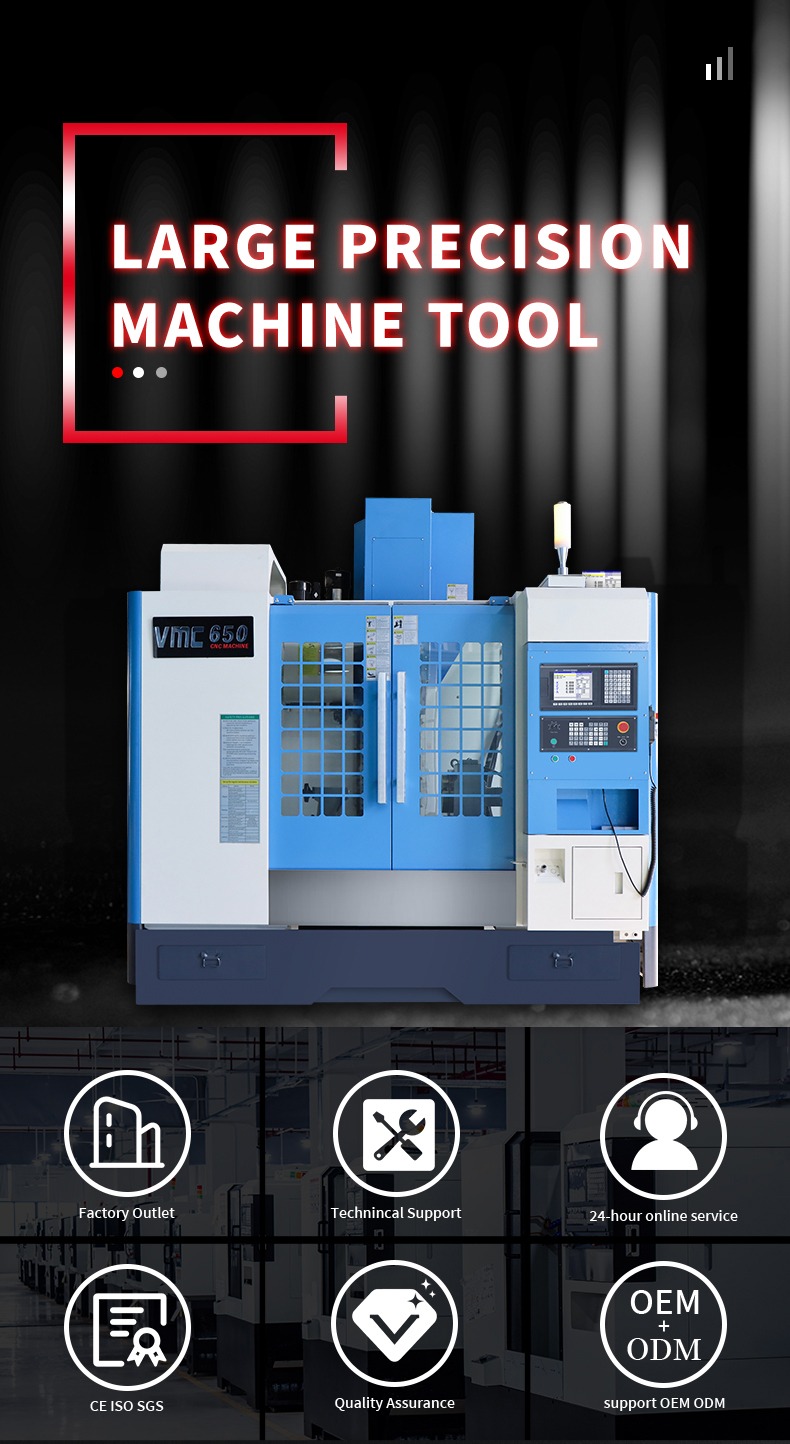

What Is the VMC650?

The VMC650 is a vertical machining center with 650 mm X-travel, 400 mm Y-travel, and 500 mm Z-travel on a 900×400 mm table rated to 400 kg. The machine body is precision-cast alloy iron subjected to secondary (two-stage) tempering to stabilize the casting against thermal and stress-induced deformation over its production life. All three linear axes use original Taiwan HIWIN heavy-duty roller-type linear guide rails — not ball-type — providing the load capacity and stiffness required for continuous production milling of steel, stainless, and aluminum. The BT40 belt-driven spindle runs to 8,000 rpm at 7.5 kW, with ±0.008 mm positioning accuracy and ±0.005 mm repeatability. Standard equipment includes a 16-station ATC with 1.8-second average tool change time and the SZGH CNC controller. Optional upgrades include 4th and 5th axis rotary tables, Renishaw/Metrol tool setting systems, workpiece probing, chain-type chip conveyor, and oil cooler.

Technical Specifications

Table & Work Envelope

Spindle

Axis Performance

Tool Changer

Components & Construction

Standard Accessories

Options & Upgrades

Key Features & Advantages

Taiwan HIWIN Heavy-Duty Roller Linear Guide Rails — The Structural Difference That Defines VMC Performance

The VMC650 specifies HIWIN roller-type linear guide rails (not ball-type) on all three axes. This is the most important structural specification on any VMC, and the distinction matters:

• Ball-type linear rails (used on most compact CNC mills in the SZGH-540/650 class) use recirculating balls between the rail and block. They offer low friction and fast traverse but have relatively low radial load capacity and deform measurably under heavy interrupted cutting loads — producing thermal expansion and vibration-induced positioning error.

• HIWIN roller-type rails (used on the VMC650) use cylindrical rollers instead of balls, providing approximately 3× higher radial load capacity and significantly higher rigidity under cutting loads. This rigidity is what allows the VMC650 to achieve ±0.005 mm repeatability in sustained production — not just on the first part of the day, but on part 500 of the same batch, under the same cutting loads that cause ball-rail machines to drift.

For buyers comparing VMC specifications, HIWIN roller rail (model: HGW, QHH, or equivalent) is the industry-standard component for mid-range and high-end VMCs globally. Specifying a machine with this component on all three axes is the correct baseline for serious production work.

Double-Tempered Alloy Cast Iron Body — Dimensional Stability Over Machine Life

The VMC650 body casting undergoes secondary tempering — two-stage heat treatment (typically 500–600°C, hold, slow cool, repeat) — before precision machining of the guide rail mounting surfaces. This process relieves residual casting stresses that would otherwise cause gradual deformation of the casting over the first 1–3 years of operation as internal stress is released by vibration, thermal cycling, and cutting loads. A body that deforms — even by 0.01 mm — after installation changes the geometric relationship between the guide rails and the spindle axis, introducing permanent positioning error that cannot be corrected by re-calibration. Double tempering prevents this from happening.

±0.008 mm Positioning / ±0.005 mm Repeatability — Production-Grade Accuracy

The VMC650's ±0.008 mm positioning accuracy and ±0.005 mm repeatability represent full VMC-class performance — not the 0.01 mm repeatability of the SZGH-540/650 compact mills. In practical terms:

• ±0.005 mm repeatability means hole patterns drilled across 400+ parts maintain their mutual positions to within 0.01 mm total (±0.005 mm either direction) — critical for assembly-fit parts such as engine covers, gearbox housings, and pneumatic valve bodies where mating bolt patterns must align without adjustment.

• ±0.008 mm positioning accuracy over the full 650 mm X travel means the machine can position to any location on the table to within ±0.008 mm of the programmed coordinate — eliminating the coordinate-drift errors that accumulate on machines with lower-grade ball screws.

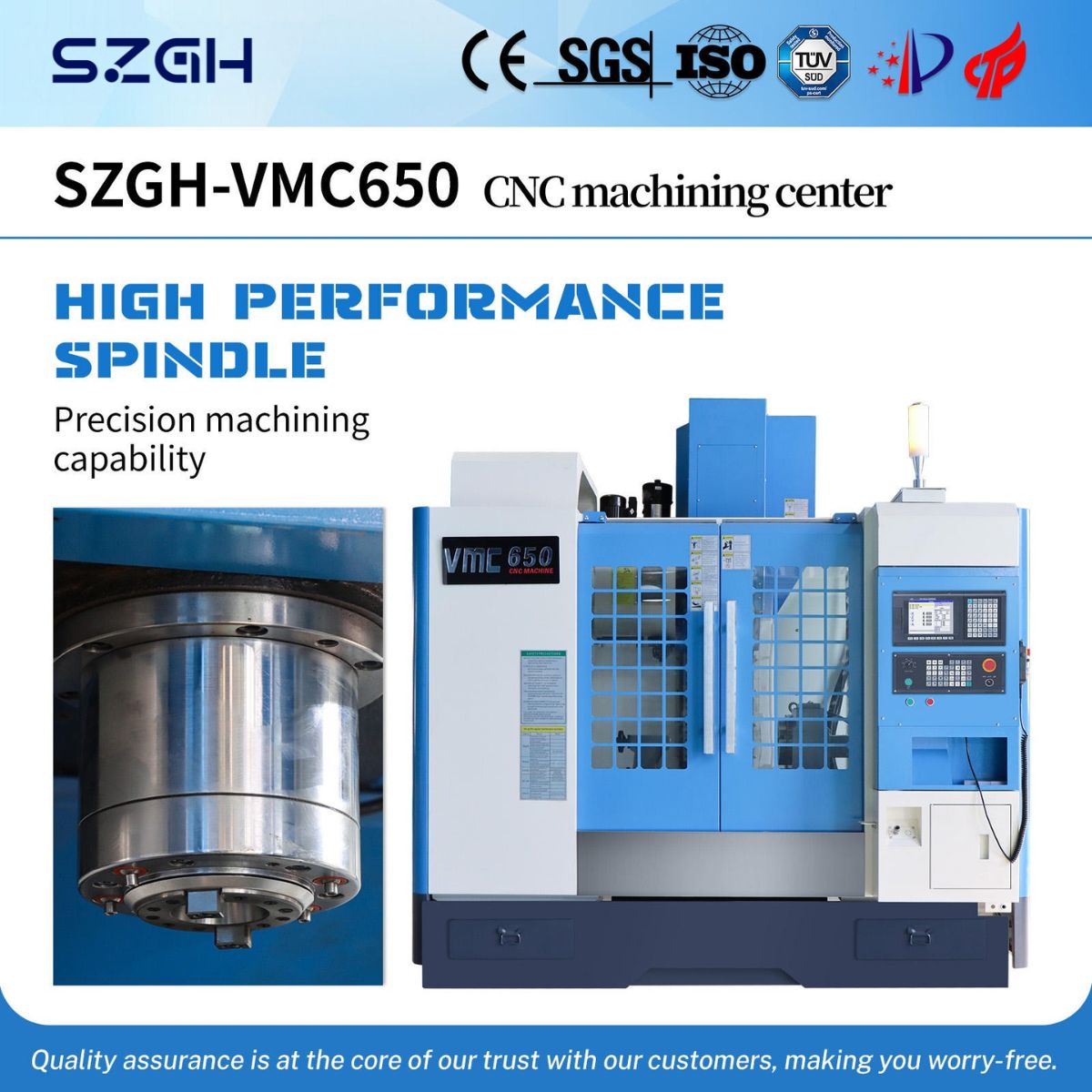

8,000 rpm BT40 Belt-Drive Spindle — High Torque at Production RPM

The 8,000 rpm belt-drive BT40 spindle provides higher low-speed torque than direct-drive or gear-drive spindles of equivalent kW at production RPM (1,000–4,000 rpm), because the belt-drive system allows the spindle motor to operate near its peak torque curve across the useful cutting speed range for steel and aluminum. The 7.5 kW motor delivers adequate power for: aluminum face milling with Ø80–100 mm shell mills at full width; steel drilling to Ø25–30 mm; BT40 rigid tapping to M20 in steel; and sustained aluminum pocket milling at 8 m/min feed rate. The 8,000 rpm maximum covers carbide tooling for aluminum at surface speeds up to 250+ m/min with Ø10 mm end mills.

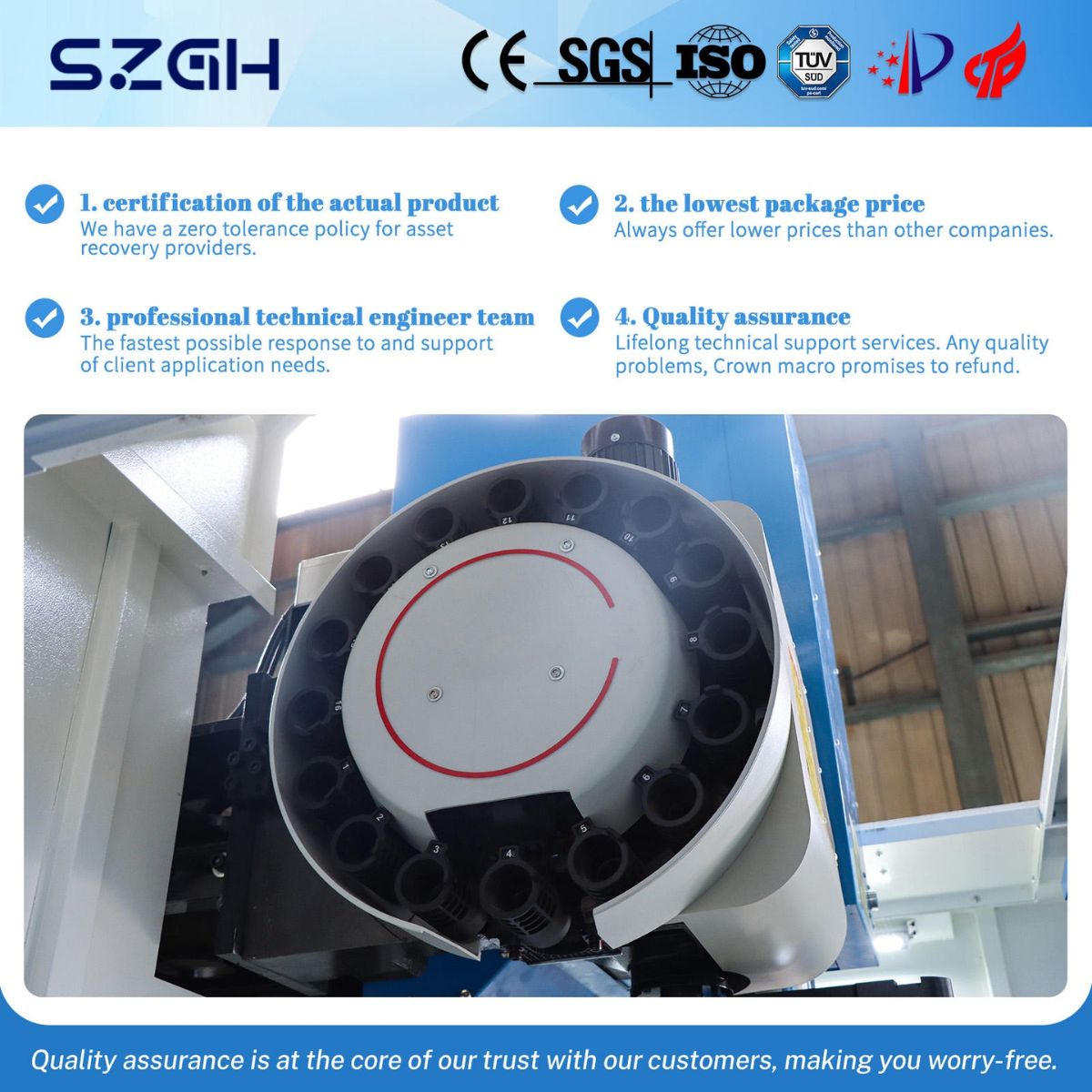

16-Station ATC, 1.8-Second Tool Change — Maximum Unattended Cycle Efficiency

The 16-station tool magazine accommodates a complete machining program for complex parts requiring drilling (multiple diameters), tapping (multiple thread sizes), face milling, profile milling, chamfering, and center drilling — all without manual tool changes. The 1.8-second average tool-to-tool change time (chip-to-chip) is competitive with machines in the US$80,000–120,000 VMC class. For a typical part requiring 8 tool calls with 15-second operations per tool, the ATC contributes approximately 14.4 seconds of non-cutting time per cycle — less than 8% of total cycle time, which is the target for production-efficiency VMC operations.

900×400 mm Table, 400 kg Load — Full Pallet Compatibility

The 900×400 mm table with five 16 mm T-slots accommodates standard 400 mm and 500 mm tombstone fixtures, vise banks of two or three 125 mm precision vises, and large aluminum plate work up to approximately 800×380 mm. The 400 kg maximum load capacity supports heavy steel workpieces, heavy fixture assemblies, and multiple-part fixture setups. For shops running production tombstone setups (multiple identical parts clamped in a row across the table length), the 900 mm X-travel and 400 mm table provide the longest possible row — fitting 3–4 workholding positions for most small-to-medium part sizes.

4th / 5th Axis and Renishaw Probing Options — Upgrade Path Without Machine Replacement

The VMC650's optional 4th/5th axis rotary tables and Renishaw/Metrol workpiece probing system represent a meaningful upgrade path for shops whose work complexity grows after initial VMC purchase. Renishaw on-machine probing specifically enables: (1) workpiece datum finding without manual edge-finding, saving 5–10 minutes per setup; (2) in-process measurement of critical dimensions without removing the part; (3) first-article inspection on the machine before the part is unclamped, eliminating costly re-clamping for dimensional corrections. For high-value parts or tight-tolerance work, the probing system pays for itself rapidly.

Applications & Industries

The VMC650 is specified for production milling, drilling, and tapping work where the SZGH-540/650 compact mills are insufficient — in accuracy, table size, tool library, or sustained-load rigidity.

Industries & Typical Parts

VMC650 vs. SZGH-650 vs. VMC850

Choose the VMC650 if: the 900×400 mm table and 650 mm X-travel meet your largest workpiece; you need ±0.005 mm repeatability; HIWIN roller rails and 16-station ATC are required for production work.

Choose the SZGH-650 if: workpieces fit within 600×500 mm, ±0.01 mm repeatability is sufficient, and compact footprint or multi-machine staffing is more important than VMC-grade precision.

Choose the VMC850 if: the X-travel needs to extend to 800 mm, 24-station ATC is required for complex programs, or ±0.003 mm repeatability is needed for tighter-tolerance parts.

Certifications & Quality Assurance

• CE Certified — complies with EU Machinery Directive 2006/42/EC; full documentation for EU customs clearance

• ISO 9001:2015 — quality management system certified across design, manufacturing, and after-sales

• National High-Tech Enterprise — recognized by China's Ministry of Science and Technology since 2018

• 100+ patents — covering body geometry, HIWIN rail integration, ATC mechanism, and servo-drive coordination

• HIWIN component authenticity — original Taiwan HIWIN heavy-duty roller linear guide rails; component certificates available on request

• Pre-shipment inspection — 72-hour run-in cycle, full XYZ accuracy verification (ballbar or laser), ATC cycle timing check, and test report included

Frequently Asked Questions

Q1: What is the difference between HIWIN roller-type and standard ball-type linear guide rails?

HIWIN roller-type rails use cylindrical rollers between the rail and block, providing approximately 3× higher radial load capacity than equivalent-sized ball-type rails. Under sustained milling loads — face milling steel at 100+ mm/min feed with a Ø80 mm shell mill, or deep aluminum pocketing with Ø20 mm end mills — roller rails maintain their preloaded contact stiffness without measurable deflection. Ball-type rails deform under these loads, producing chatter, surface finish degradation, and eventually positioning drift. On the VMC650, HIWIN roller rails on all three axes are the primary reason the machine achieves ±0.005 mm repeatability in production — not just on first-article inspection.

Q2: What does "secondary tempering" of the cast iron body mean, and why does it matter?

Secondary (double) tempering means the raw casting is heat-treated twice before precision machining — typically held at 500–600°C, cooled slowly, then repeated. Each cycle relieves a layer of residual stress locked into the casting during solidification. After double tempering, the casting is dimensionally stable: it will not deform when subjected to the cutting forces, thermal gradients, and vibration of production operation. A single-tempered or un-tempered casting can deform by 0.01–0.05 mm over the first 1–2 years of use, permanently shifting the geometric relationship between the guide rails and spindle axis. Double tempering prevents this.

Q3: What is the practical meaning of ±0.005 mm repeatability versus 0.01 mm on compact mills?

±0.005 mm repeatability means that when the machine returns to any programmed coordinate (e.g., the center of a bolt hole), it arrives within ±0.005 mm of that position, every time, regardless of travel direction or load history. For interchangeable assembly parts — engine covers bolted to blocks, hydraulic manifolds bolted to actuators, pneumatic valve bodies — hole pattern positions must match between identical parts from the same program. At ±0.005 mm, these parts assemble without adjustment across the full production batch. At 0.01 mm, some parts near the tolerance limit may require selective fitting or rejection.

Q4: How does the 1.8-second tool change time affect production efficiency?

For a program with 8 tool calls averaging 20-second cutting operations per tool: total cycle time = (8 × 20s cutting) + (8 × 1.8s ATC) = 160s + 14.4s = 174.4s. ATC represents 8.3% of total cycle time. If the ATC were 5 seconds (as on lower-cost machines with drum-type magazines), the same cycle becomes 200s — 15% longer, reducing throughput by approximately 13% over a full production shift. On a 16-hour two-shift day producing 300 parts, the 1.8-second ATC recovers roughly 38 additional part cycles versus a 5-second ATC machine.

Q5: Is the 16-station tool magazine sufficient for complex parts, or should I consider the VMC850's 24-station?

16 stations cover the large majority of production VMC programs. A typical complex aluminum housing requiring center drilling, multiple drill sizes, tapping (multiple sizes), face milling, profile milling, and chamfering uses 8–12 tool calls — well within 16 stations. The VMC850's 24-station magazine is preferable when programs regularly require 17+ distinct tools without manual change, or when running a tombstone fixture with multiple part types simultaneously (each requiring its own dedicated tool set). For single-part or single-family machining, 16 stations is the production standard.

Q6: Can the VMC650 be upgraded with a 4th axis after purchase, or must it be factory-specified?

The 4th axis horizontal/vertical rotary table is available both at order time and as a retrofit option. Factory specification is preferred for new orders as it includes parameter pre-configuration and factory verification of the full rotary cycle. Retrofit requires confirming that the SZGH controller version supports the additional axis parameter block and installing the rotary servo drive. SZGH provides retrofit kits and installation guides for the VMC650.

Q7: What Renishaw probing options are available, and what do they enable?

Two probing options are available: (1) Renishaw / Metrol tool setting system — measures tool diameter and length automatically before each use, eliminating manual tool offset entry and detecting broken tools before they cut; (2) Renishaw / Metrol workpiece measuring system — probes part features on-machine to confirm datum position (replacing manual edge-finding) and verifies critical dimensions in-process. Both systems communicate with the SZGH controller via the machine's macro variable interface. For precision parts and high-value workpieces, the probing systems reduce setup time by 5–15 minutes per job and virtually eliminate scrapped parts caused by incorrect tool offset entry.

Q8: What floor and foundation requirements does the VMC650 need?

No foundation pit is required. The VMC650 ships with leveling bolts for installation on standard industrial concrete flooring. Minimum floor specification: 200 mm reinforced concrete slab at C25 grade to support the 3,400 kg machine weight and dynamic cutting loads. Level the machine to within 0.02 mm/m across the table surface using a precision level before first operation. Machine footprint including chip conveyor access: allow 2,800×2,800 mm floor area for operator clearance on all sides.

Q9: What is the lead time, warranty, and after-sales support for the VMC650?

Lead time is 20–35 working days from deposit confirmation. Warranty covers 12 months on all mechanical and electrical components (consumables excluded). After-sales support is delivered via WhatsApp remote video diagnostics 24/5. For HIWIN guide rail issues, SZGH coordinates with the HIWIN service network in most export markets. Local SZGH agents operate in USA, Turkey, Romania, Russia, Egypt, Thailand, and Mexico.

Export Markets & Customer References

VMC650 machines are operating in production facilities across:

Typical buyer profile: Sub-contract machining shops upgrading from compact CNC mills to full VMC production capability; automotive and hydraulic component manufacturers requiring ±0.005 mm repeatability for assembly-fit parts; mold shops producing cavity plates and mold bases; electronics manufacturers machining aluminum housings and heat sinks in medium-to-high volumes.

Request a Quote

Email: export02@szghtech.com

WhatsApp: +8618925223781

Website: szghtech.com

When enquiring, please provide: (1) workpiece materials and typical dimensions; (2) required operations (drilling, tapping, milling, probing); (3) desired options (4th/5th axis, chip conveyor, oil cooler, Renishaw probing, tool setting); (4) annual production volume estimate; and (5) destination country for shipping calculation.

Lead time: 20–35 working days from deposit

Warranty: 12 months on all mechanical and electrical components (consumables excluded)

After-sales support: Remote diagnostics via WhatsApp 24/5; local agents in USA, Turkey, Romania, Russia, Egypt, Thailand, and Mexico
