SZGH-650 Small CNC Milling Machine | 600×500 mm Table | BT40 | Ø30 mm Steel Drilling | 10-Station ATC

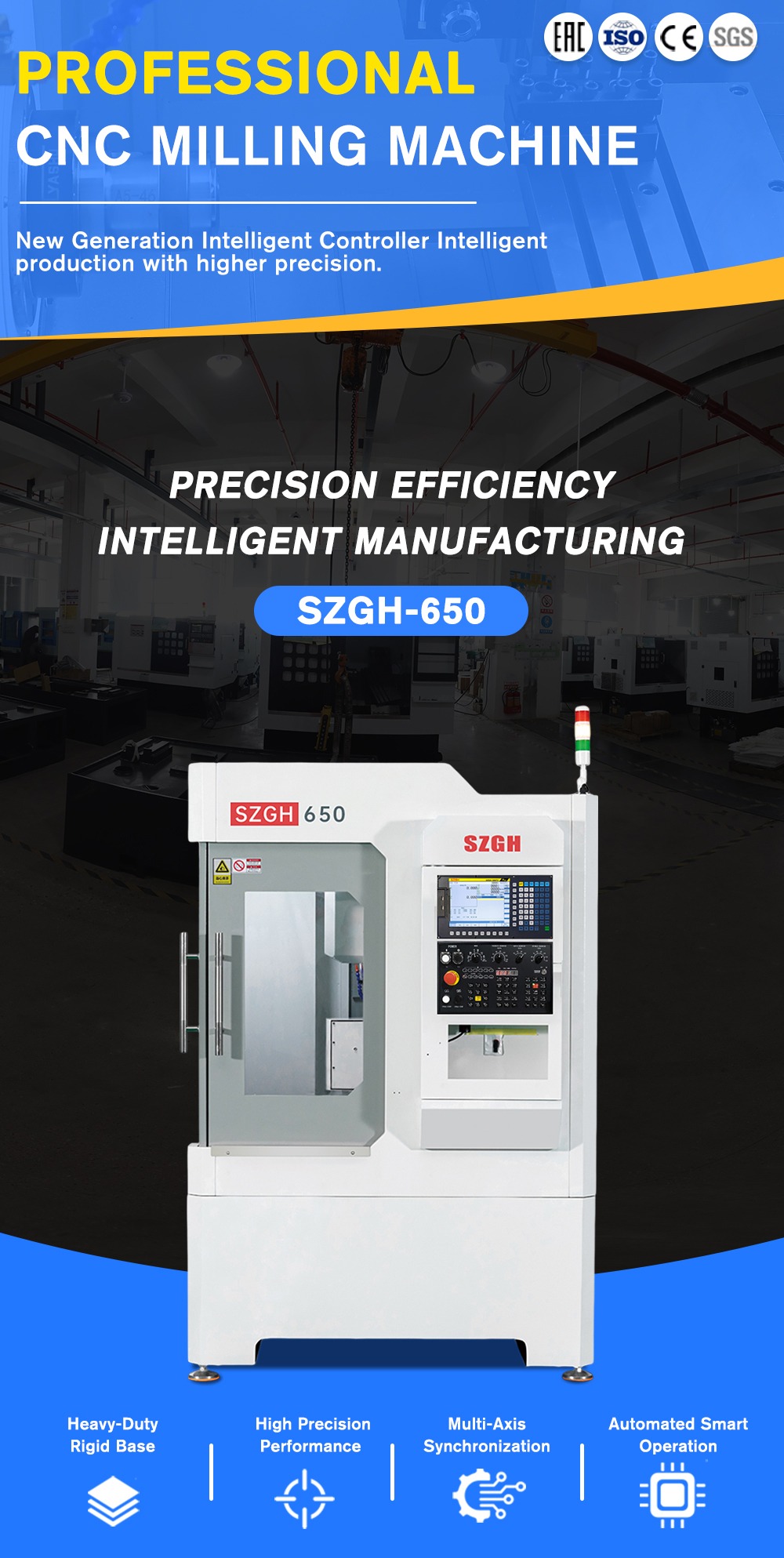

What Is the SZGH-650?

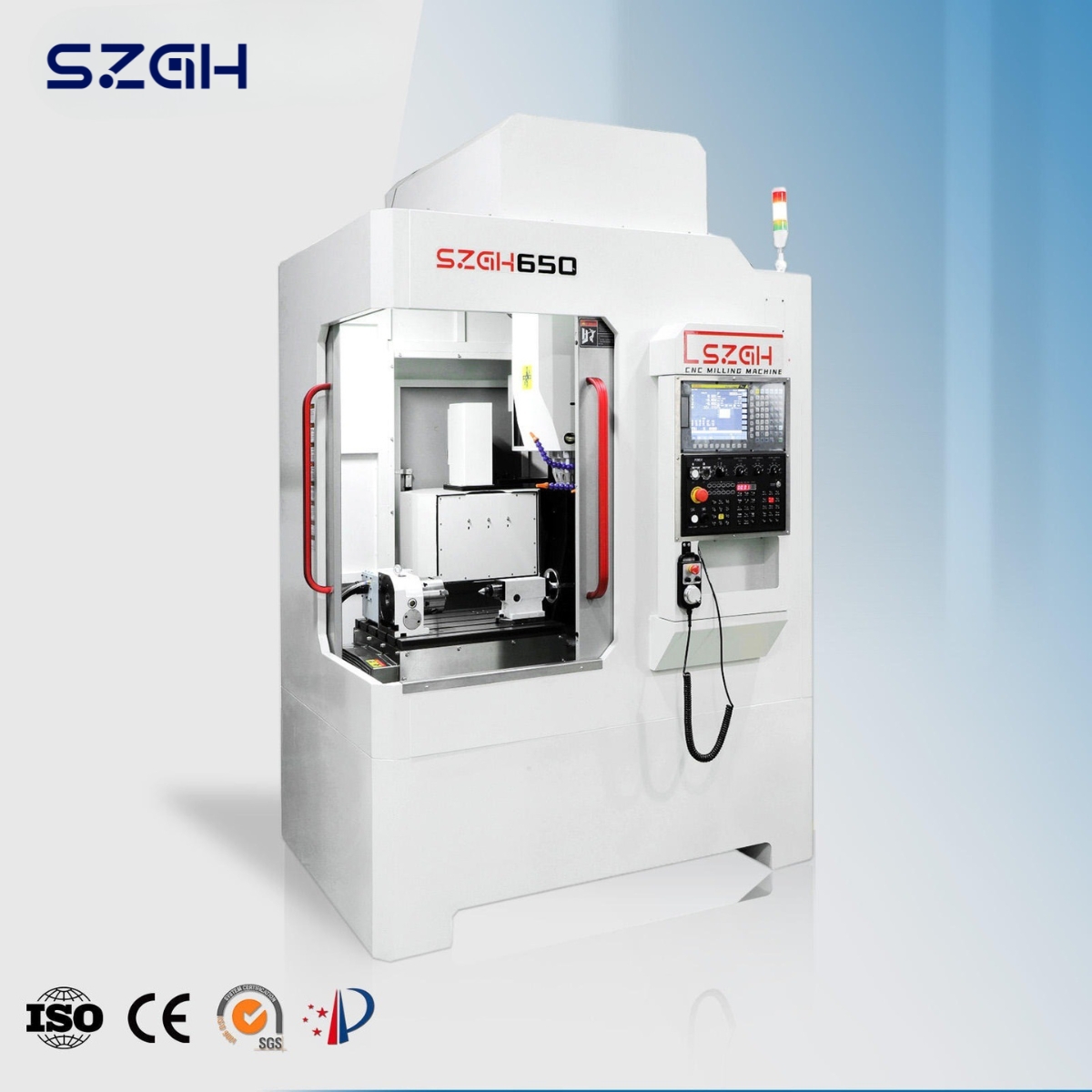

The SZGH-650 is a small vertical CNC milling machine with a 600×500 mm work envelope, BT40 spindle taper, and 5.5 kW mechanical spindle (24,000 rpm electric spindle optional). It handles drilling to Ø35 mm in aluminum and Ø30 mm in steel, rigid tapping to M25 in aluminum and M18 in steel, and face milling with up to Ø100 mm cutters. A 10-station servo tool magazine is standard — enabling fully automatic multi-operation sequences — while the 2,900 kg heavy-duty base provides vibration damping comparable to full-size VMCs at 40–50% of their floor footprint and acquisition cost.

Technical Specifications

Machining Capacity

Workbench

Axis Travel & Feed

Spindle

Tool Magazine

Components & Construction

Machine Dimensions

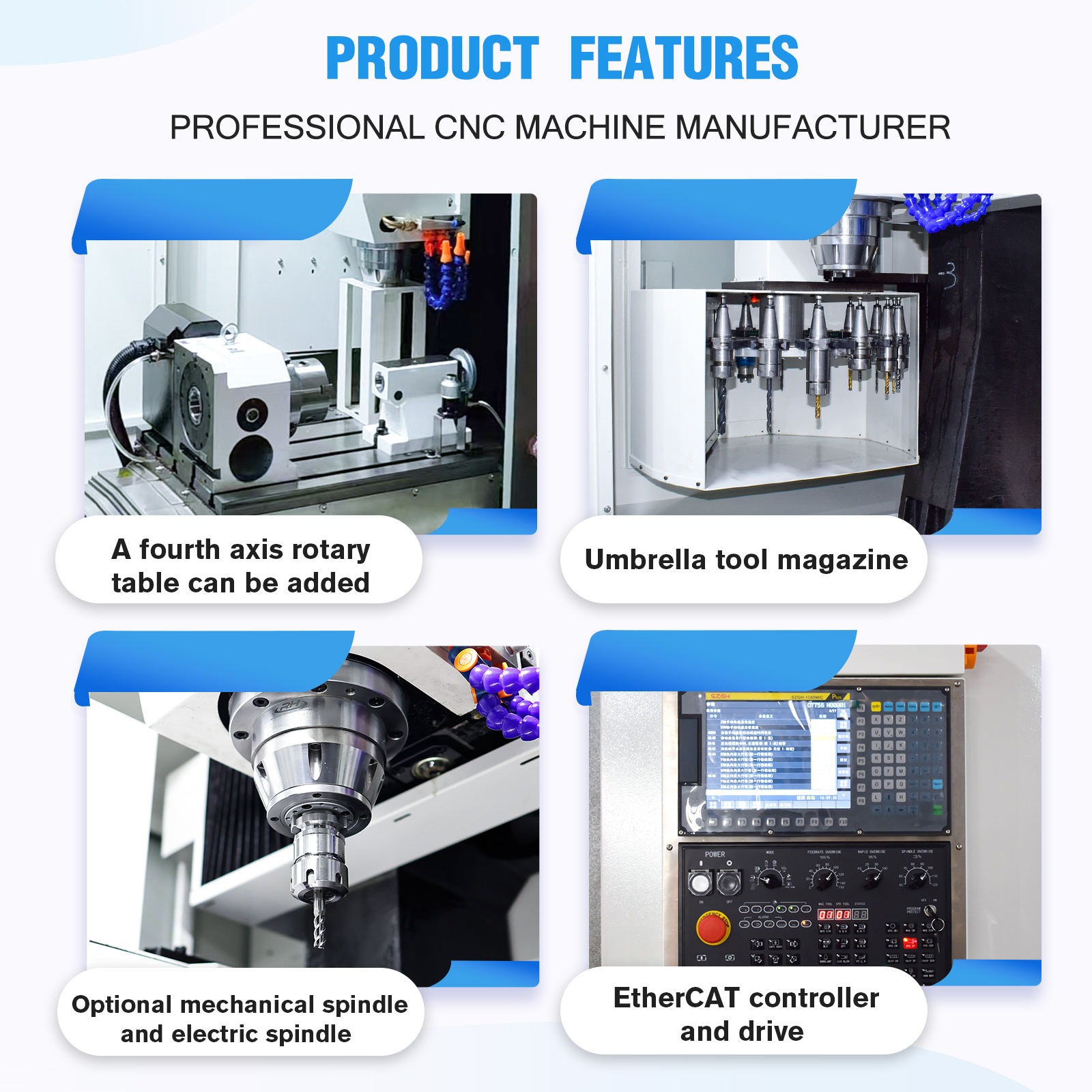

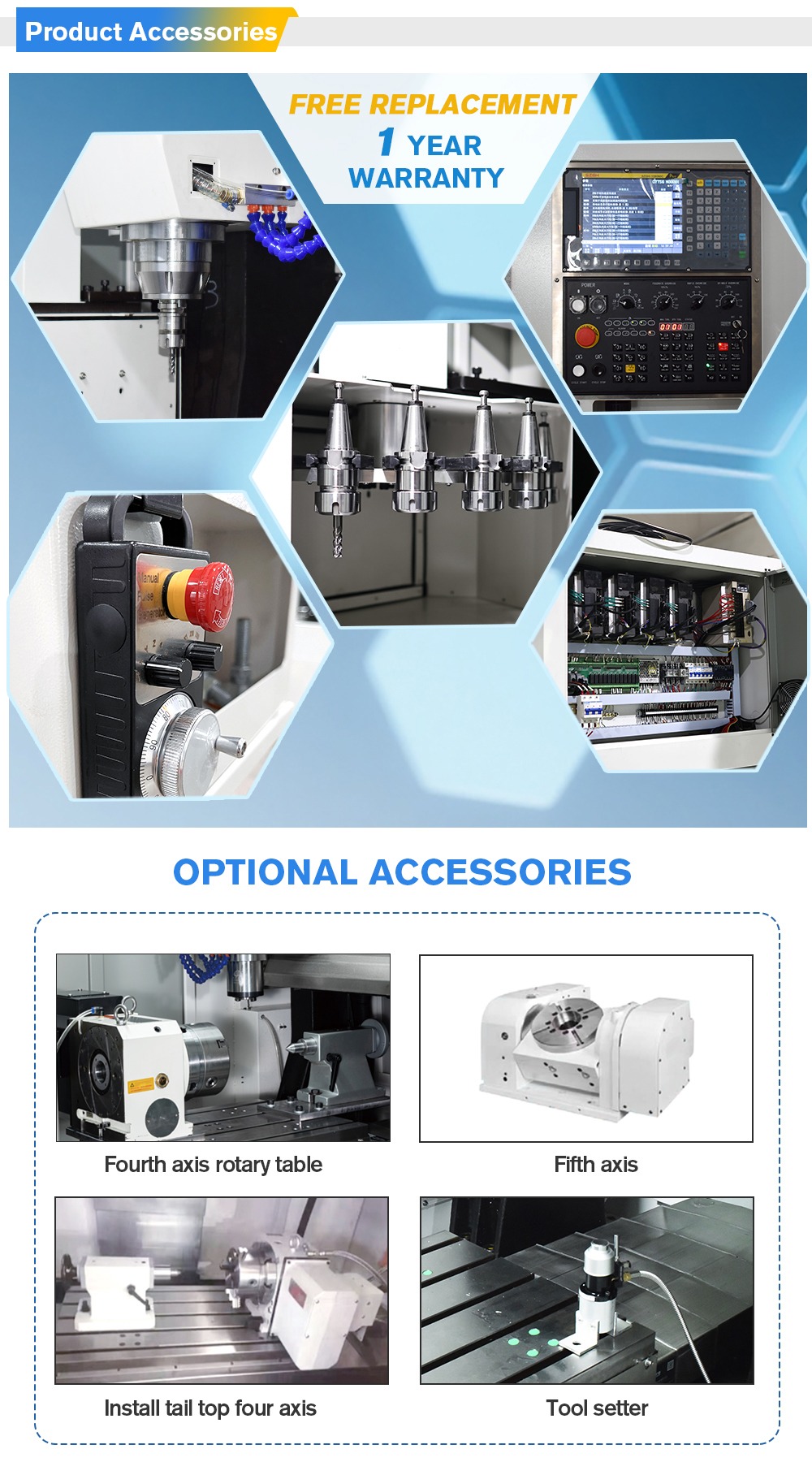

Key Features & Advantages

BT40 Spindle Taper — Full Industrial Tooling Access at Small-Machine Price

BT40 is the global standard for mid-range and full-size machining centers. Upgrading from BT30 (used on the SZGH-540) to BT40 increases tool shank contact area by approximately 78%, directly raising radial stiffness, torque transfer, and tool runout performance. In practical terms: BT40 enables Ø30+ steel drilling, M18+ rigid tapping, and stable use of Ø60–100 mm face mills — operations where BT30 holders flex and cause tool pull-out risk. For buyers machining structural steel plates, aluminum alloy housings, or cast iron fixtures, BT40 is the minimum standard for reliable production.

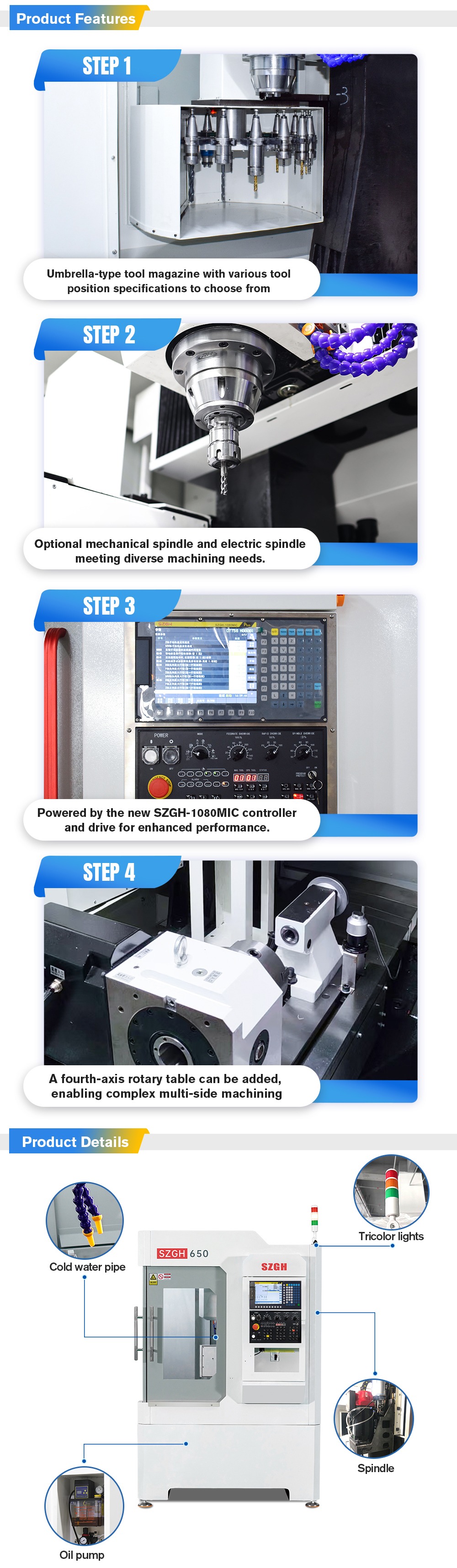

10-Station Servo Tool Magazine Standard — Every Machine Ships as a Machining Center

Unlike the SZGH-540 where ATC is optional, the SZGH-650 ships with a 10-station servo tool magazine as standard equipment. This means every 650 arrives ready for fully programmed multi-operation cycles: drill all holes → tap all threads → face mill → pocket mill — in one continuous unattended sequence. The servo-driven magazine achieves consistent tool change positioning independent of operator action. A 12-station magazine is available for programs requiring more than 10 distinct tool calls.

2,900 kg Anti-Deformation Base — Full VMC Stability at 60% of VMC Footprint

The SZGH-650 weighs 2,900 kg — comparable to entry-level full-size VMCs (VMC650 class: 3,400 kg) — but occupies only 1,650×1,800 mm of floor space versus a VMC's typical 2,200×2,250 mm footprint. The 1,800 kg heavy-duty anti-deformation patented base uses the same internal rib geometry as the larger VMC series, channeling cutting vibration into the base mass rather than back into the spindle. The result: finish consistency on long stainless steel batches that lighter small-mill competitors in the 1,000–1,500 kg class cannot sustain.

32 mm Precision P-Grade Ball Screws + 30 mm C3 Linear Rails — Same Drivetrain as VMC-Class

The SZGH-650 uses 32 mm P-grade ball screws — the same diameter and grade as the full-size VMC650 and SZGH-46J lathe. This is significant: most small CNC mills in the sub-VMC price range use 20–25 mm screws, which reach their axial rigidity limit when face milling with Ø60+ cutters in steel. The 32 mm screws on the 650 maintain positional accuracy under the full cutting load of a Ø60 mm steel face mill, where smaller screws flex and produce measurable diameter drift per pass.

5.5 kW Spindle Motor — Real Stainless Steel and Cast Iron Capability

The 5.5 kW spindle motor (7.5 kW optional) provides significantly more torque than the 3 kW unit on the SZGH-540. For stainless steel face milling with a Ø60 mm shell mill at 80 m/min surface speed, the 650 maintains torque without spindle speed drop — where a 3 kW machine would de-rate under load. The practical effect: stainless steel drilling at Ø30 mm and cast iron face milling with Ø100 mm cutters are within the machine's continuous-duty capability, not its maximum edge.

±0.02 mm Surface Engraving Accuracy (±0.01 mm Optional) — Fine Detail on Production Parts

The SZGH-650 achieves ±0.02 mm engraving accuracy standard — tighter than the 540's ±0.06 mm — due to the combination of 32 mm screws, 30 mm C3 rails, and the higher servo motor torque maintaining velocity profile under engraving feed rates. This makes the 650 suitable for part marking (serial numbers, logos, depth-controlled engraving on aluminum panels) alongside standard drilling and milling operations, eliminating the need for a separate engraving machine in the workflow.

Compact Multi-Machine Staffing — One Operator, Two Machines

At 1,650×1,800 mm footprint, the SZGH-650 requires approximately 5.5 m² per machine including operator access clearance. A standard 8×6 m shop bay accommodates two SZGH-650 units with comfortable working space — and with standard 10-station ATC enabling cycle times of 8–20 minutes per part on typical aluminum housings and steel brackets, one operator can manage both machines simultaneously. The 650 thus delivers the throughput of a full-size VMC at roughly half the floor commitment and labor cost.

Applications & Industries

The SZGH-650 targets medium-batch production where workpieces exceed 500×400 mm or require heavier cuts than the SZGH-540's BT30 spindle can sustain.

Industries & Typical Parts

SZGH-650 vs. SZGH-540 vs. VMC650

Choose the SZGH-650 if: workpieces are in the 500–600 mm range, steel drilling above Ø10 mm or tapping above M8 is required, and you want ATC standard without paying for a full-size VMC.

Choose the SZGH-540 if: workpieces fit within 500×400 mm, the primary material is aluminum or brass, and maximizing the number of machines per operator is the top priority.

Choose the VMC650 if: travel beyond 600×500 mm is needed, positioning accuracy tighter than 0.01 mm is required, or the production volume justifies a full-size VMC investment.

Certifications & Quality Assurance

• CE Certified — complies with EU Machinery Directive 2006/42/EC; full documentation for EU customs clearance

• ISO 9001:2015 — quality management system certified across design, manufacturing, and after-sales

• National High-Tech Enterprise — recognized by China's Ministry of Science and Technology since 2018

• 100+ patents — covering base geometry, servo integration, spindle design, and ATC mechanism

• Dynamic balancing — all spindle assemblies factory-balanced; certification document supplied with machine

• Pre-shipment inspection — run-in cycle, dimensional accuracy report, and ATC cycle verification included

Frequently Asked Questions

Q1: How does the SZGH-650 compare to the SZGH-540 — is it just a bigger version?

The 650 is not simply a larger 540. The key engineering differences are: (1) spindle taper upgrades from BT30 to BT40, enabling Ø30 mm steel drilling and M18 tapping that are beyond BT30's structural limit; (2) the 10-station servo ATC is standard on the 650 versus optional on the 540; (3) the spindle motor increases from 3 kW to 5.5 kW, enabling sustained cuts in stainless steel and cast iron; (4) ball screws increase from 25 mm to 32 mm, matching full-size VMC drivetrain specification. The 650 is positioned as a compact machining center with genuine medium-duty milling capability, not a scaled-up engraving machine.

Q2: The SZGH-650 is called a "small CNC milling machine" but has BT40 and 10-station ATC — isn't it a machining center?

By technical definition, yes — any CNC milling machine with an automatic tool changer (ATC) is classified as a machining center (MC). SZGH uses the "small CNC milling machine" category to position it within the compact machine segment by footprint and price, distinguishing it from full-size VMCs (VMC650, VMC850) in the product line. Functionally, the SZGH-650 with its standard 10-station servo ATC operates as a small vertical machining center.

Q3: Can the SZGH-650 drill Ø30 mm holes in stainless steel in production?

Yes, within the machine's rated parameters. Standard value is Ø30 mm steel drilling (Ø35 mm maximum with appropriate tooling and cutting parameters). For sustained Ø30 mm stainless steel drilling in production, the 5.5 kW spindle motor and 2,900 kg base provide the torque and rigidity required. Recommended approach: use a carbide or HSS-Co drill with through-coolant if available, set cutting speed to 15–25 m/min for SS304, and use a pre-drill (Ø15–18 mm pilot) before the finish drill on harder stainless grades (SS316L, SS316Ti).

Q4: Is the 10-station ATC a servo-driven magazine or a pneumatic drum?

The standard tool magazine is servo-driven — motor-controlled positioning of each tool station, not pneumatic drum indexing. Servo-driven magazines provide more consistent tool change repeatability (±0.003–0.005 mm tool-to-tool position) and longer service life compared to pneumatic drum systems, which are prone to index drift as solenoids and springs wear. The 12-station optional upgrade also uses servo drive.

Q5: What spindle taper should I choose — BT40 standard or BT30 optional?

BT40 is the correct choice for the SZGH-650's cutting capacity. The machine's 5.5 kW motor, 32 mm ball screws, and rated Ø30 mm steel drilling capability are all designed around BT40 tooling rigidity. BT30 is offered as an option only for shops with large existing BT30 tool libraries that wish to use them on the 650 — typically for lighter operations like aluminum milling and engraving. If you are purchasing new tooling for the 650, always specify BT40.

Q6: Can one operator run two SZGH-650 machines simultaneously?

Yes, under typical production conditions. With the standard 10-station ATC, a typical aluminum housing or steel bracket part requires 8–15 minutes of unattended cycle time. During this window, the operator can load/unload the adjacent machine. Two SZGH-650 units in a linear cell with one operator is a common and proven configuration for sub-contract shops producing brackets, covers, and manifold blocks in batches of 50–500 pieces.

Q7: What control systems are available — can I specify Fanuc or Siemens?

The standard control is the SZGH system, optimized for the 650's servo and ATC parameters. Unlike the lathe series, the PDF specification does not list alternative controllers as catalog options for the 650 — confirm with SZGH sales at order time whether Fanuc 0i-MF or Siemens 828D integration is available for your specific order. The standard SZGH controller accepts the same ISO G-code output by Mastercam, Fusion 360, and SolidCAM post-processors configured for Fanuc 0i-M.

Q8: Does the SZGH-650 require a foundation, and what floor specification is needed?

No foundation pit is required. The machine ships with leveling bolts for adjustment on standard industrial concrete flooring. Minimum floor specification: 200 mm concrete slab at C25 grade to support the 2,900 kg machine weight and dynamic cutting loads. Level the machine to within 0.04 mm/m across the table surface using a precision level before first use — SZGH provides the installation guide and alignment procedure with delivery documentation.

Q9: What is the lead time, warranty, and after-sales support for the SZGH-650?

Lead time is 20–35 working days from deposit confirmation. Warranty covers 12 months on all mechanical and electrical components (consumables excluded). After-sales support is delivered via WhatsApp remote video diagnostics (24/5). Local service agents are available in USA, Turkey, Romania, Russia, Egypt, Thailand, and Mexico for on-site support. Spare parts including ATC mechanism components, servo drive units, and spindle cartridges ship from Shenzhen within 3–5 business days.

Export Markets & Customer References

SZGH-650 machines are operating in production facilities across:

Typical buyer profile: Sub-contract machining shops requiring a step up from light-duty CNC mills for steel and stainless production; shops adding medium-batch milling capacity without full VMC investment; manufacturers producing aluminum housings, steel brackets, and hydraulic manifold blocks in the 500–600 mm part range.

Request a Quote

Email: export02@szghtech.com

WhatsApp: +8618925223781

Website: szghtech.com

When enquiring, please provide: (1) workpiece materials and dimensions, (2) primary operations (drilling, tapping, milling), (3) required tool magazine capacity (10 or 12 station), (4) spindle preference (BT40 standard or BT30 optional), (5) annual production volume, and (6) destination country for shipping calculation. This allows SZGH to confirm the correct 650 configuration and provide an accurate CIF quotation.

Lead time: 20–35 working days from deposit

Warranty: 12 months on all mechanical and electrical components (consumables excluded)

After-sales support: Remote diagnostics via WhatsApp 24/5; local agents in USA, Turkey, Romania, Russia, Egypt, Thailand, and Mexico
