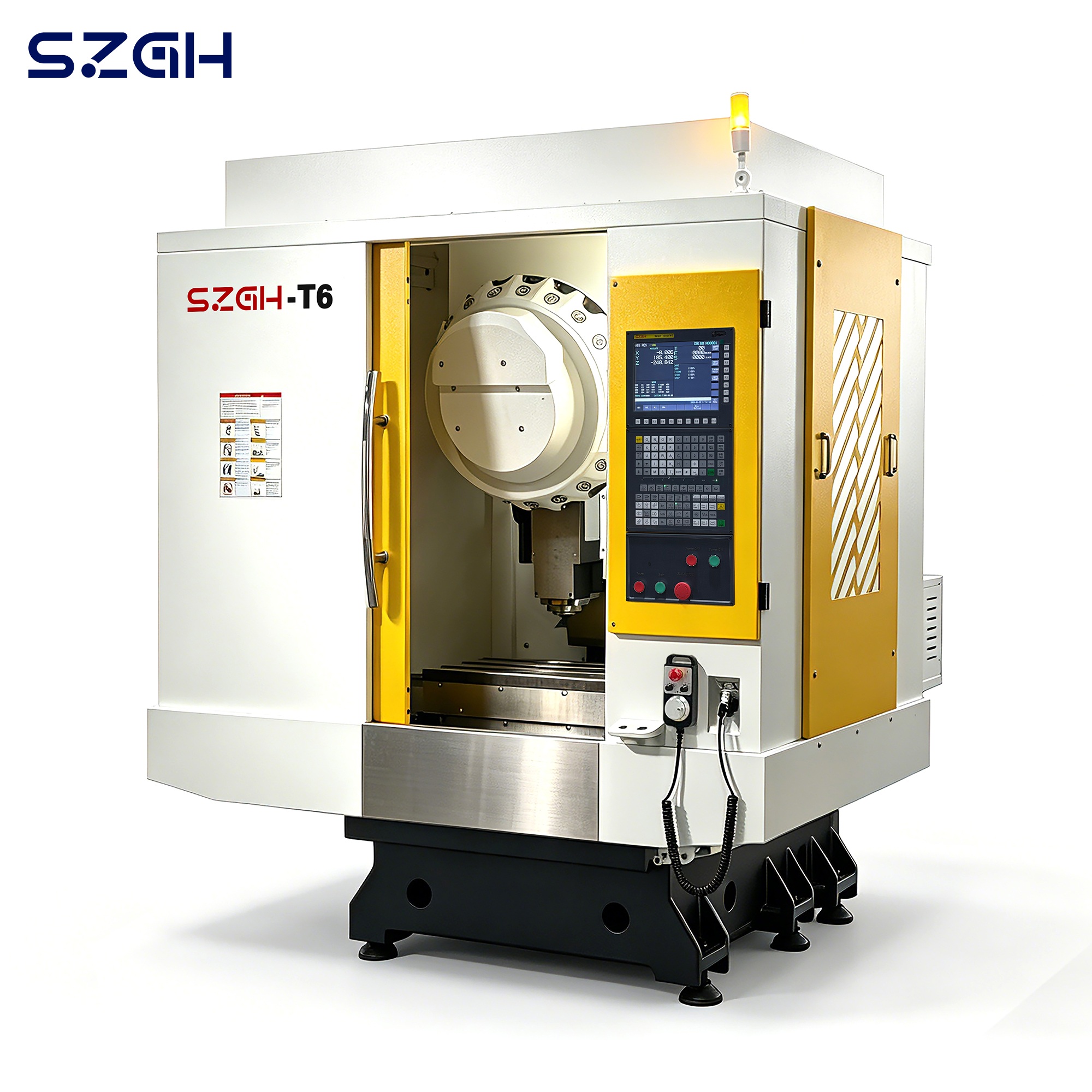

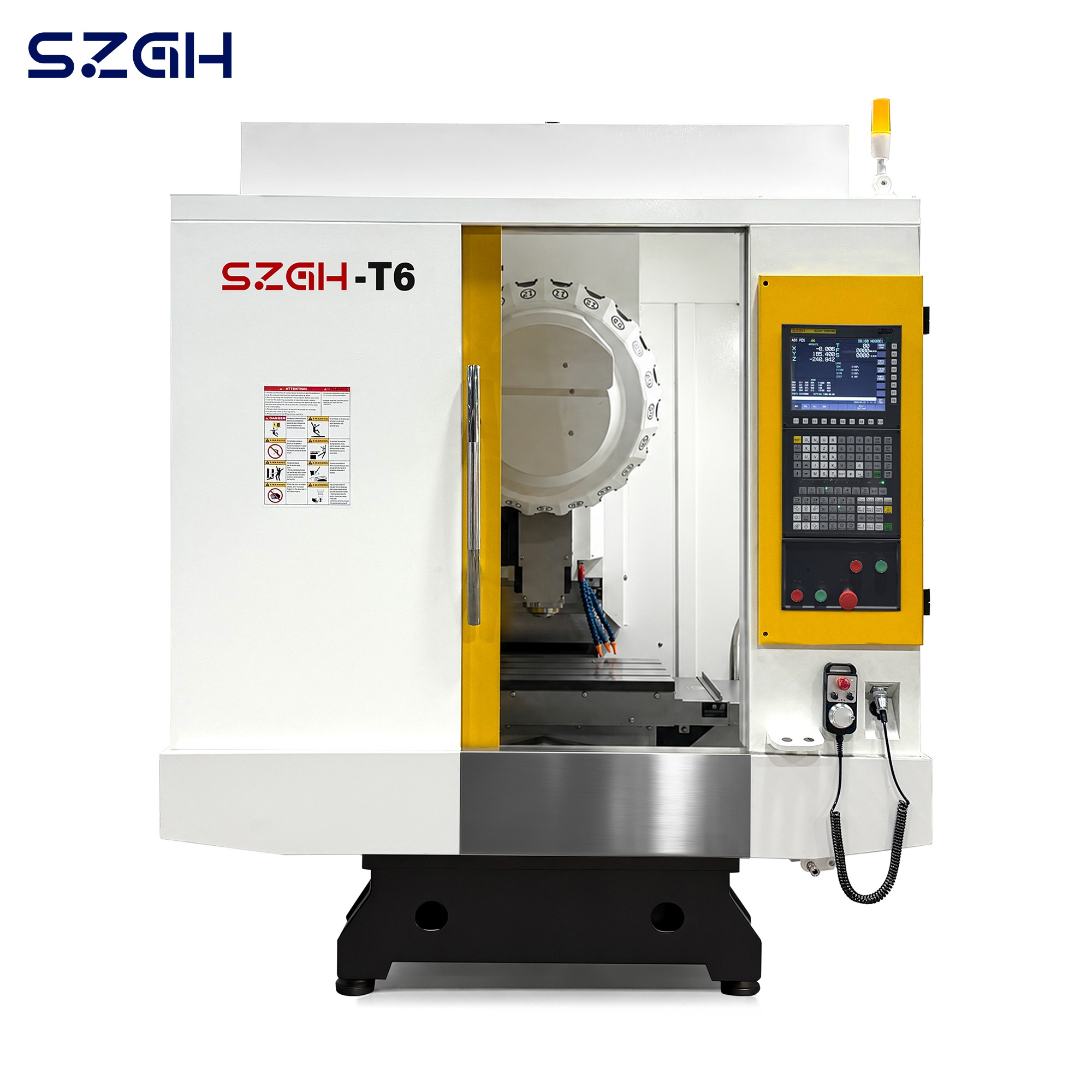

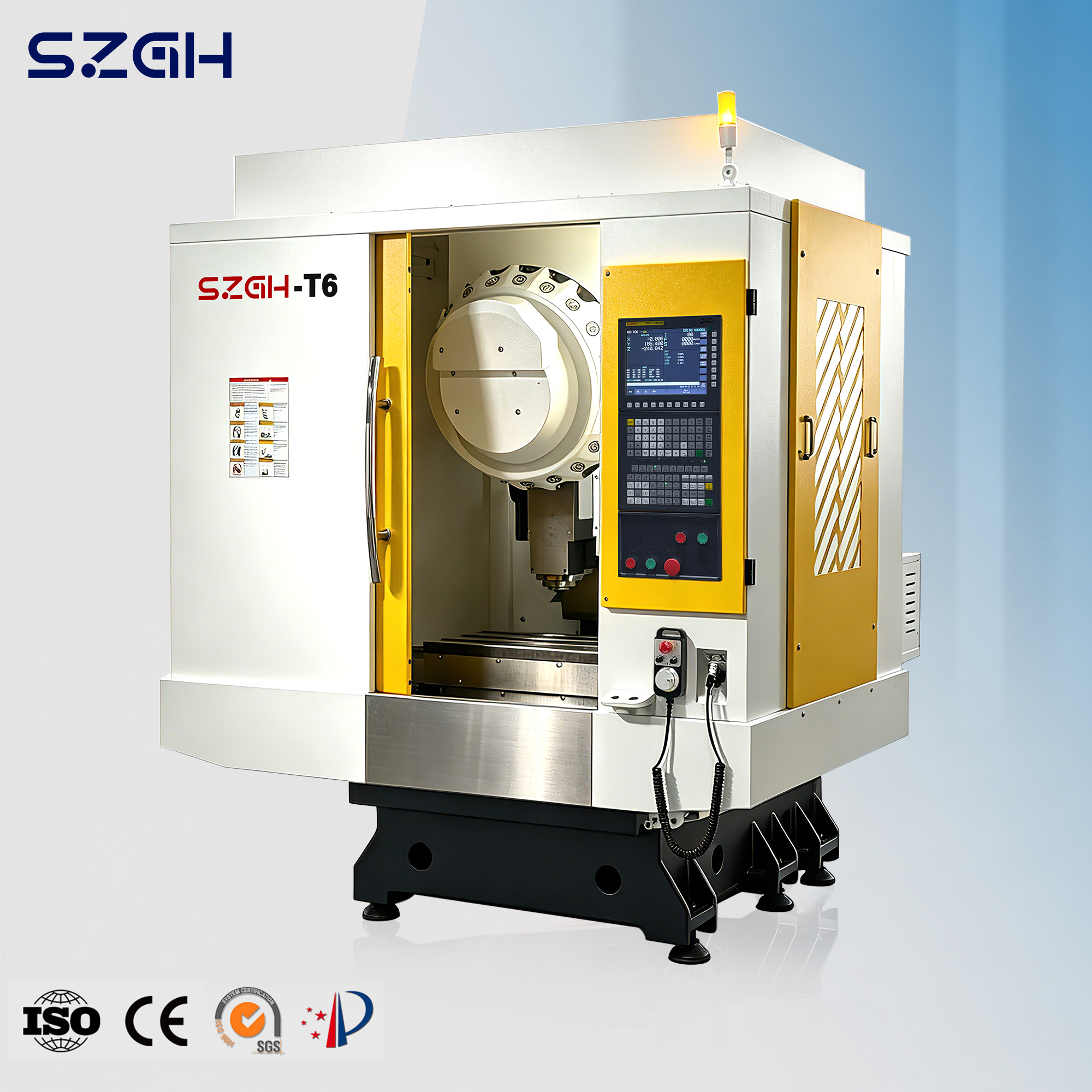

SZGH-T6 High-Speed Drilling & Tapping Center

Compact, High-Speed CNC Machining Built for Real Factory Production

The SZGH-T6 is a high-speed drilling and tapping center engineered to help small and medium enterprises compete at the precision and throughput levels once reserved for large factories. With a 20,000 RPM BT30 direct-drive spindle sourced from Taiwan Da Yue, a 21-tool servo tool magazine, and ±0.003mm repeat positioning accuracy, the T6 delivers consistent, fast results across drilling, tapping, and light milling operations. It is equally suited to workshop owners upgrading from manual methods and distributors looking for a compact CNC machine with proven global certifications — EAC, CE, ISO, and SGS. Backed by SZGH's self-developed control and servo systems, and supported across 126 countries since 2013, the T6 is ready to work the moment it arrives on your floor.

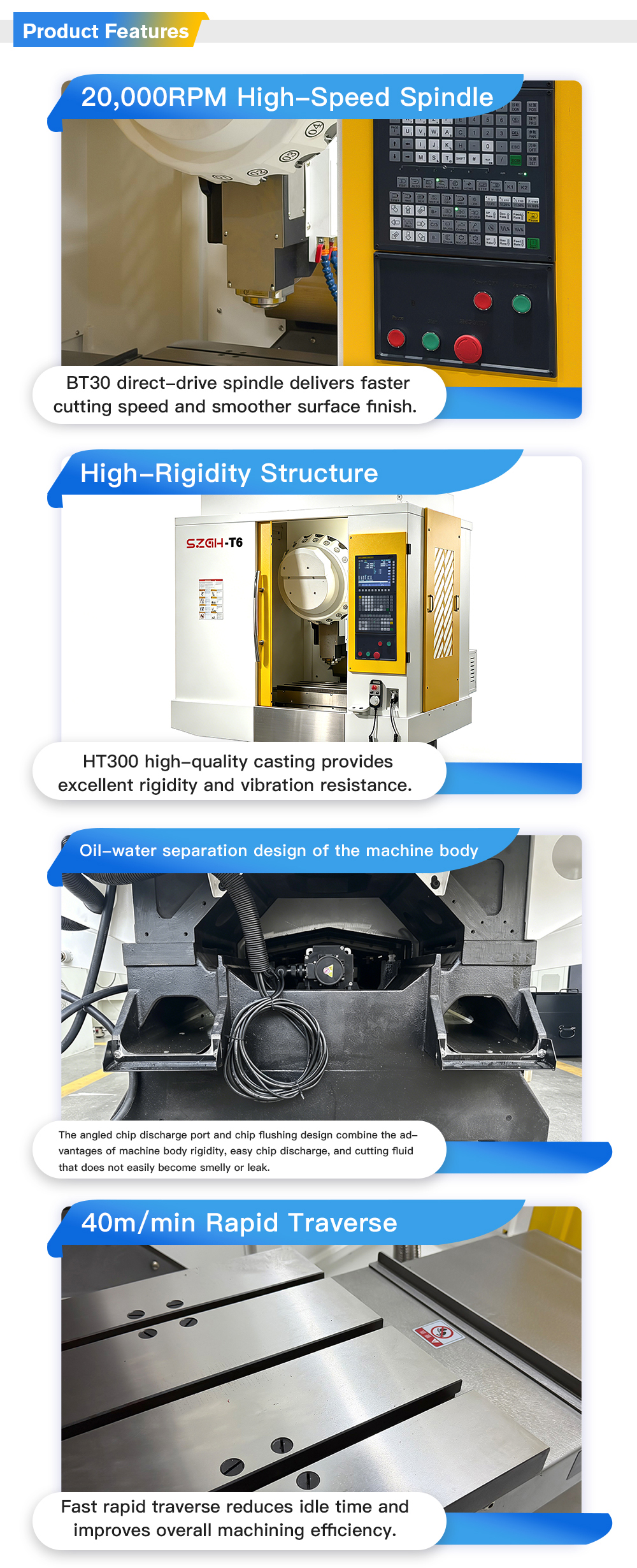

Key Features

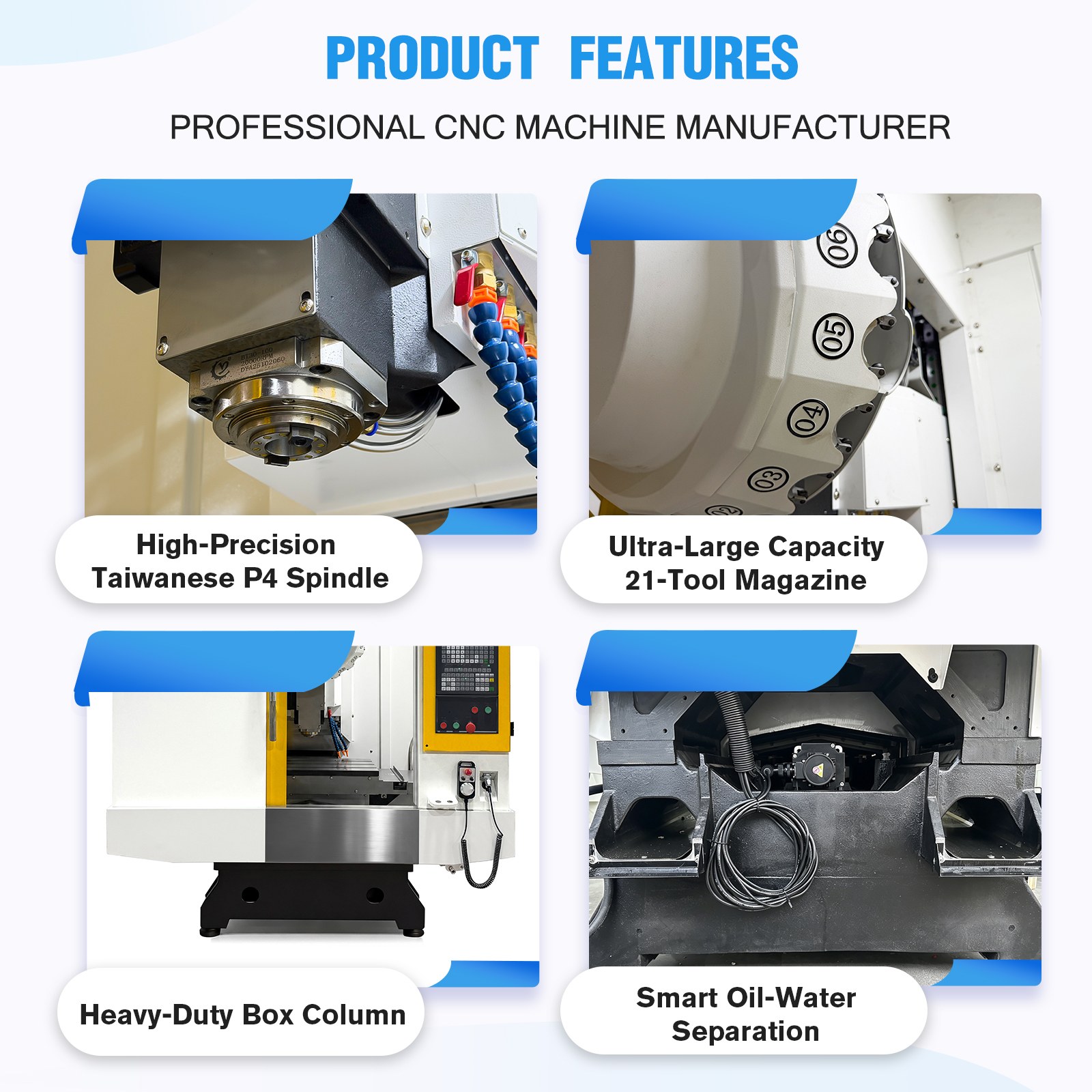

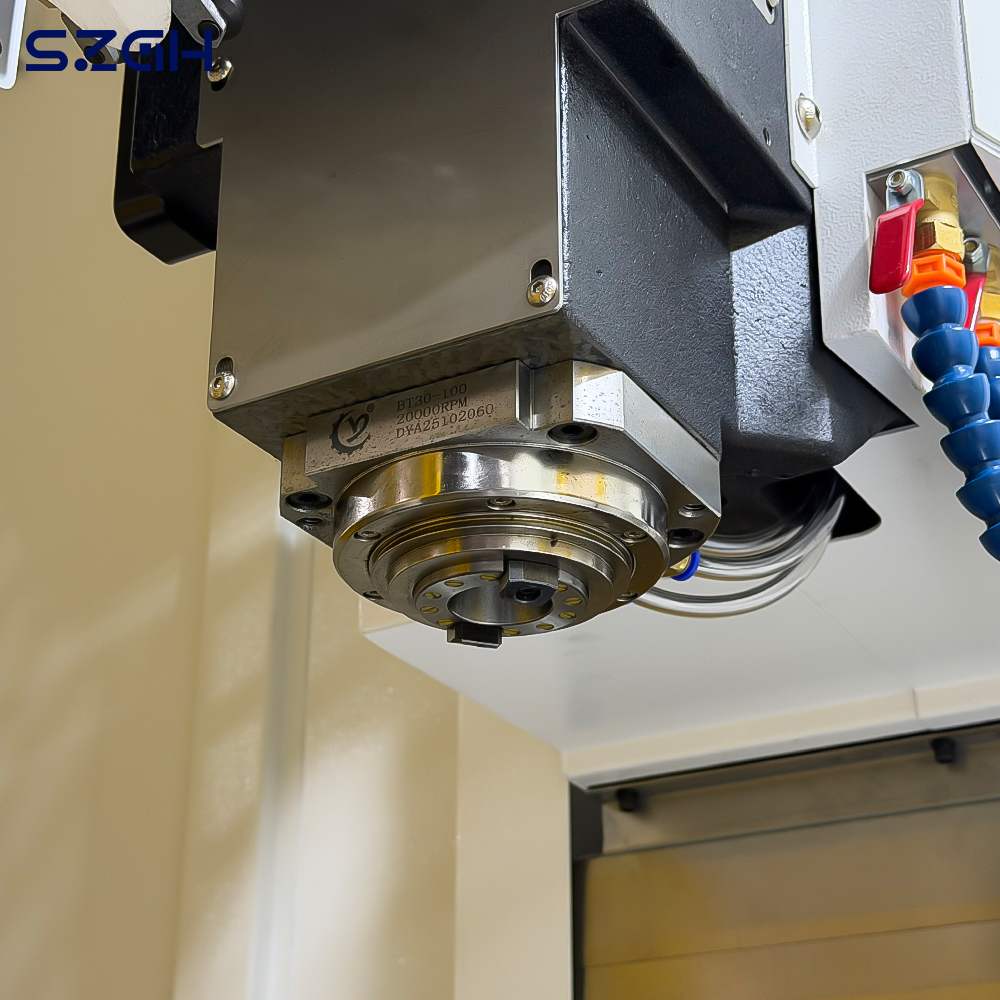

• 20,000 RPM BT30 Direct-Drive Spindle (Taiwan Da Yue): A direct-drive configuration eliminates belt slippage and transmission losses, delivering full spindle power cleanly to the cutting tool. The Taiwan Da Yue spindle unit is engineered for sustained high-speed operation without thermal compromise.

• 21-Tool Servo Tool Magazine (Taiwan Da Yue): The servo-driven tool changer executes fast, repeatable tool changes with minimal cycle-time loss. Twenty-one pockets give operators flexibility to load the full range of drills, taps, end mills, and boring bars needed for a complete part in a single setup.

• ±0.003mm Repeat Positioning Accuracy: Achieved through HIWIN HGH30 P precision-grade linear guides and HIWIN C3-class ball screws on all three axes. Measured to VDI 3441 standard, this level of accuracy supports tight-tolerance production without manual adjustment between parts.

• 40m/min Rapid Traverse on All Axes: High rapid feed rate shortens the non-cutting portions of every cycle, directly increasing parts-per-hour output on short-cycle, high-volume jobs such as hardware fittings, bracket arrays, and electronic enclosures.

• HT300 High-Quality Casting — Superior Rigidity and Vibration Resistance: The machine body is cast from Ju Ren HT300 gray iron, a high-damping material that absorbs vibration during aggressive cutting passes. Better vibration resistance translates directly to improved surface finish and longer tool life.

• Oil-Water Separation with Angled Chip Discharge: The T6's coolant circuit uses an oil-water separation design combined with an angled chip conveyor channel. Coolant stays clean longer, chips evacuate cleanly, and the workshop stays dry — a practical design detail that reduces maintenance time and keeps the machine running.

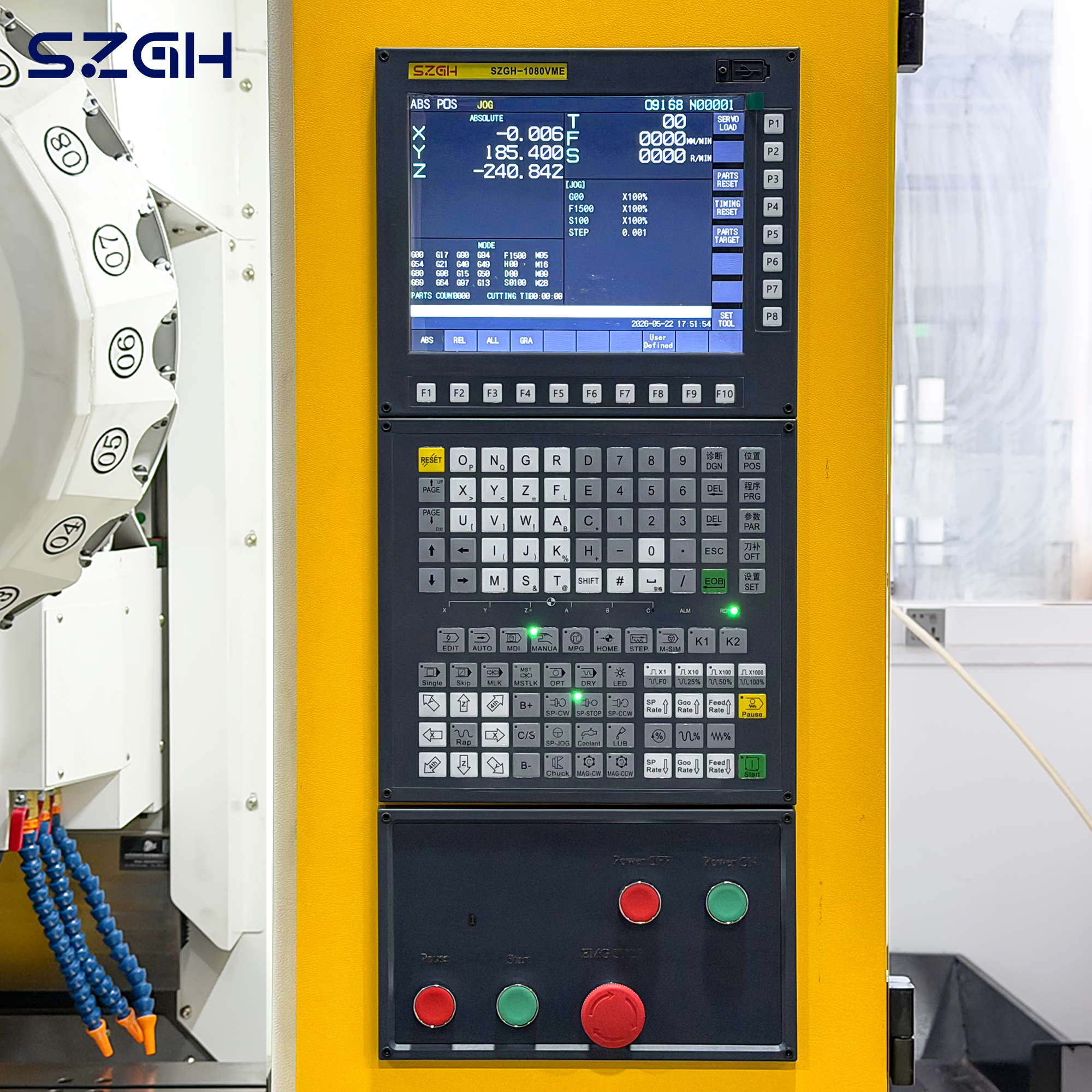

• Self-Developed SZGH-1080VME Control System: SZGH engineers both the CNC controller and servo system in-house, which means software updates, technical support, and spare parts come directly from the manufacturer with no third-party dependency.

Technical Specifications

Machine Strokes

Worktable

Spindle

Axis Performance

Linear Guides

Accuracy (VDI 3441)

General

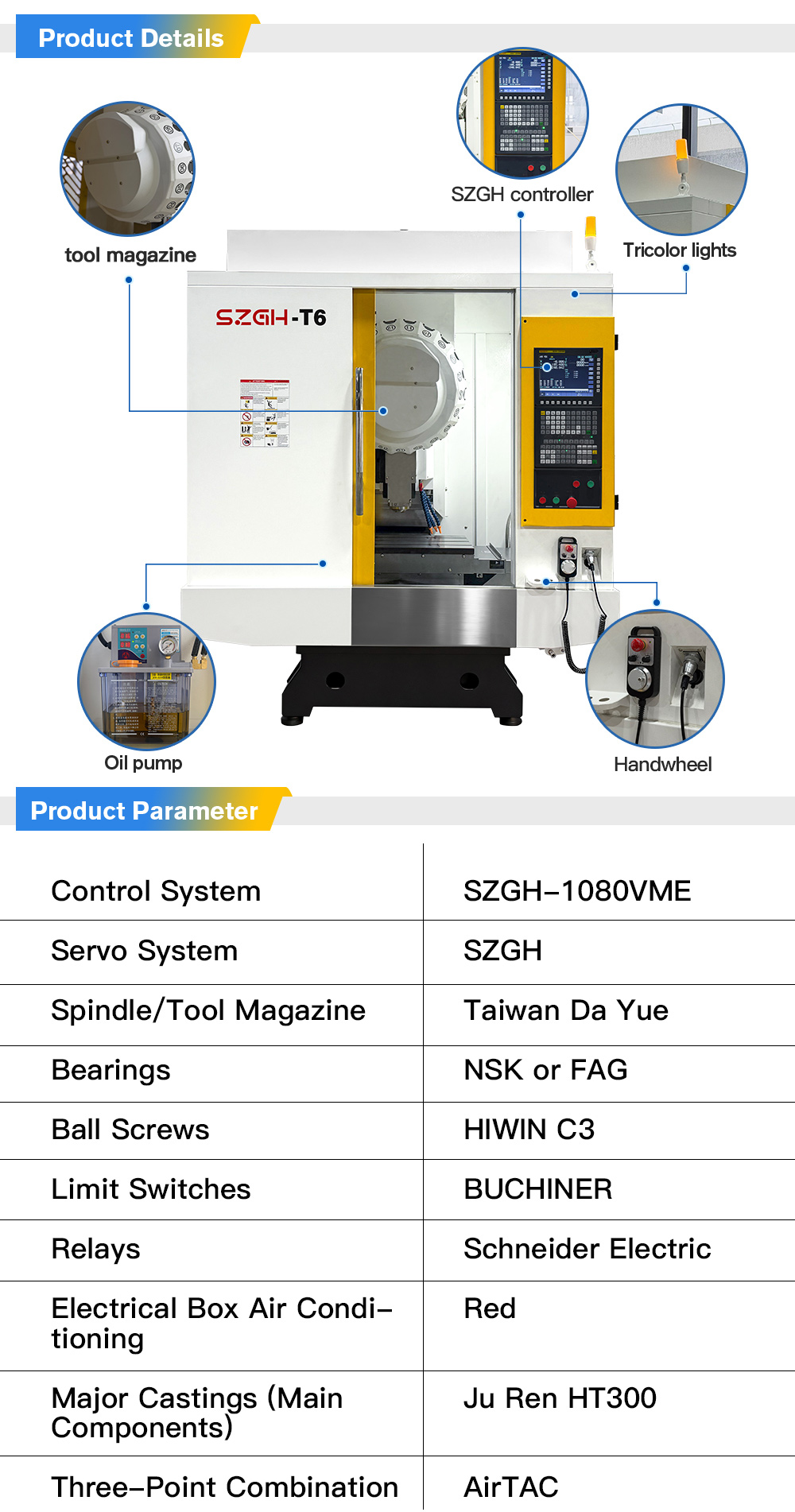

Key Components

Applications

The SZGH-T6 is built for high-volume, short-cycle machining of metal parts where speed, accuracy, and uptime are non-negotiable. Its combination of compact footprint, 20,000 RPM spindle, and fast tool changes makes it especially effective in the following production environments:

• Hardware & Fastener Parts: Drilling and tapping arrays of threaded holes in brackets, hinges, locks, and structural fittings is where the T6's 21-tool magazine and rapid traverse deliver the most visible cycle-time savings.

• Automotive Components: Aluminum and steel housings, sensor brackets, pump covers, and valve bodies require consistent hole-position accuracy and repeatable thread quality across long production runs. The T6's ±0.003mm repeat accuracy and HIWIN precision guides maintain this consistency shift after shift.

• Electronics & Electrical Enclosures: Thin-wall aluminum or steel enclosures demand high spindle speed to produce clean holes and tapped features without burring. The BT30 direct-drive spindle at up to 20,000 RPM handles these materials at optimal cutting parameters.

• Mold & Die Shops: Smaller mold bases and insert plates require accurate hole patterns and precise depth control. The T6's servo brake Z-axis counterweight system and direct-drive ball screws deliver the Z-axis stability these features require.

• General Precision Machining Workshops: Contract shops serving diverse customers benefit from the T6's flexible 700×420mm worktable, large T-slot span, and 400kg load capacity — enough to accommodate a wide range of fixtures and pallet systems.

Why Choose SZGH-T6

1. Factory-Direct Pricing with Global Certification

SZGH manufactures and exports directly from Shenzhen. There is no distributor margin, no markup chain. Every T6 ships with EAC, CE, ISO, and SGS certifications already in hand — the documentation your customers, customs agents, and quality auditors require.

2. Self-Developed Control and Servo Systems

Most machine tool manufacturers source their control and servo systems from third parties. SZGH develops both in-house, giving buyers a single point of accountability for hardware, firmware, and after-sales support. Control system updates, parameter customization, and spare parts come directly from the engineering team that designed them.

3. Precision-Grade Components from Named Global Suppliers

Every critical moving component is sourced from a named, verifiable brand: HIWIN ball screws and linear guides (Taiwan), NSK or FAG bearings (Japan/Germany), Schneider Electric relays (France), BUCHINER limit switches (Germany). This is not a cut-spec machine — every component choice is documented and traceable.

4. Designed for SME Throughput and Floor Constraints

The T6's 1,900×2,300mm footprint fits in production bays where larger machining centers cannot. At 3,000kg it is crane-liftable through standard industrial doorways. The oil-water separation coolant system and angled chip discharge reduce daily housekeeping, making it manageable for smaller teams without dedicated maintenance staff.

Request a Quote

The SZGH-T6 is available factory-direct with full export documentation. Contact the SZGH international sales team for current pricing, lead time, and shipping options to your country. Sample video, full parameter sheets, and CE certificate copies are available on request.
