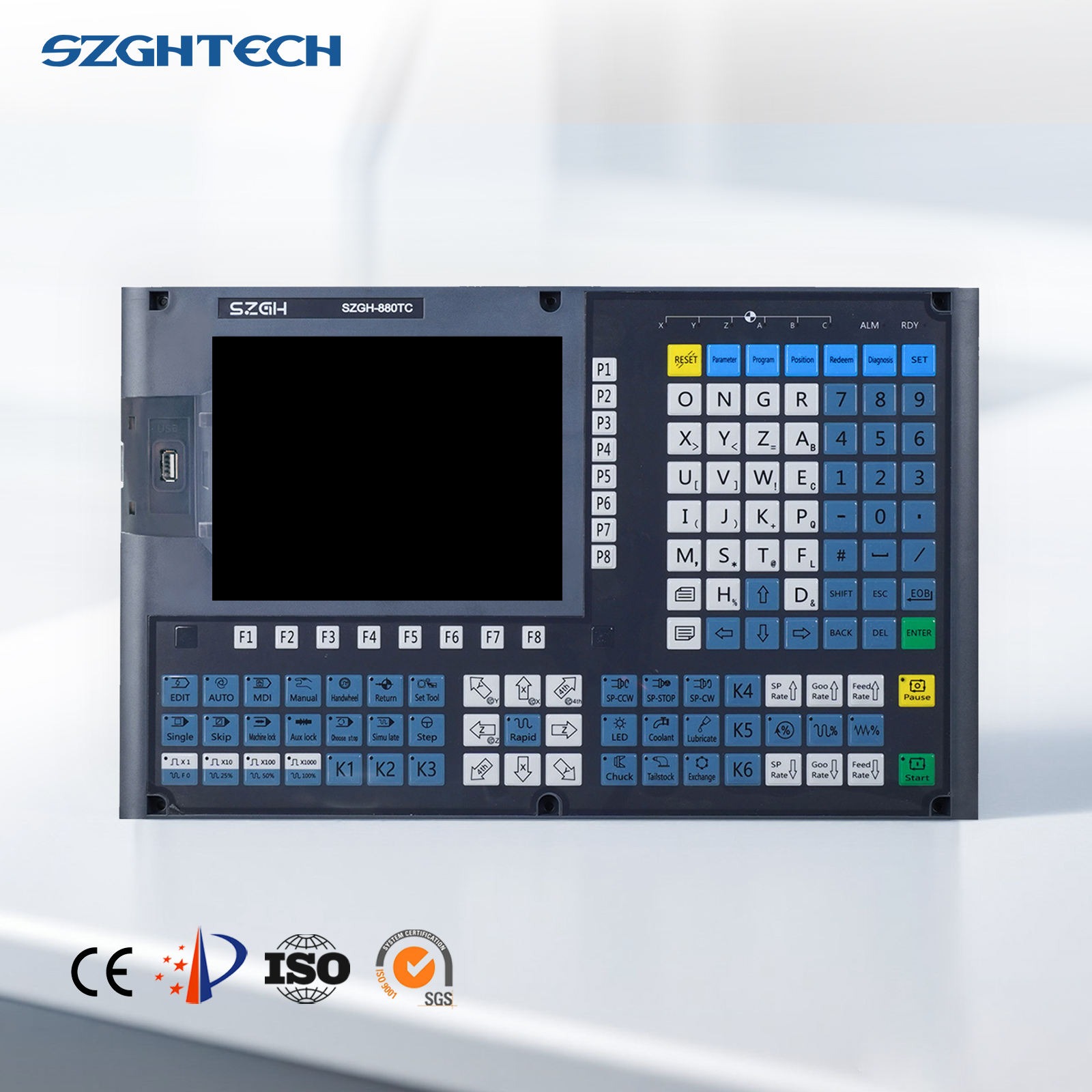

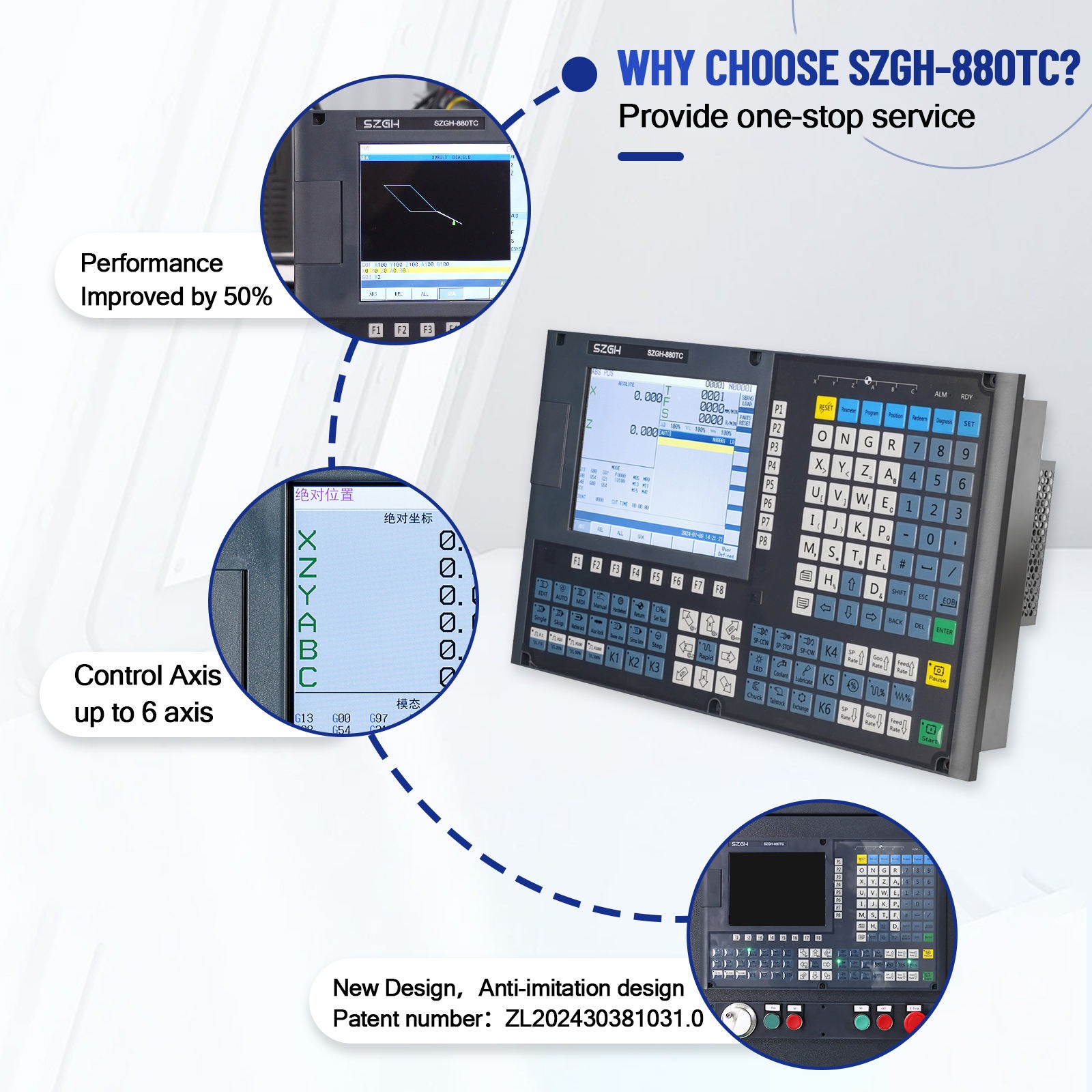

SZGH-880TC — 3-Axis Economy CNC Lathe Controller with Absolute Encoder & PLC Ladder Diagram

The SZGH-880TC is a newly launched 3-axis economy CNC lathe controller designed for CNC lathes and router machines that require reliable absolute encoder support, a high I/O count, and on-site PLC ladder diagram editing in a cost-effective, factory-direct package. Built on SZGH's self-developed control platform — the same technology foundation used across the CNC1000TDc series — the 880TC adds the ability to view and edit PLC ladder diagrams directly on the 8.4-inch display without a PC, making it practical for maintenance engineers who need to modify machine logic at the control panel.

The 880TC supports 17-bit and 23-bit absolute encoders, meaning the machine retains axis position data after power-down and requires no homing cycle at startup — a time-saving advantage for production lathes running shift operations. With a 56×32 I/O architecture, the 880TC accommodates a wider range of machine peripherals and automation interfaces than entry-level controllers without moving to a more complex platform. Dual analog spindle outputs, USB and Micro SD card file management, grating ruler signal feedback, and support for ATC configurations including disc, bamboo hat, servo, and special turrets are included as standard.

The 880TC is positioned as SZGH's economy-class 3-axis lathe controller for buyers who need absolute encoder capability and PLC editability but do not require the additional axes or EtherCAT connectivity of the CNC1000TDc series.

SZGH CNC Lathe Controller Series — Model Comparison

880TC vs CNC1000TDc-3: The 880TC offers a larger I/O count (56×32 vs 40×24) and on-screen PLC ladder diagram editing as standard, making it suitable for machines with complex peripheral wiring or where maintenance staff need to edit ladder logic at the panel. The CNC1000TDc-3 adds EtherCAT bus servo support and a larger ecosystem of servo drive compatibility. Choose the 880TC for economy builds with complex I/O requirements; choose the TDc-3 for high-performance 3-axis turning with EtherCAT drives.

Key Specifications

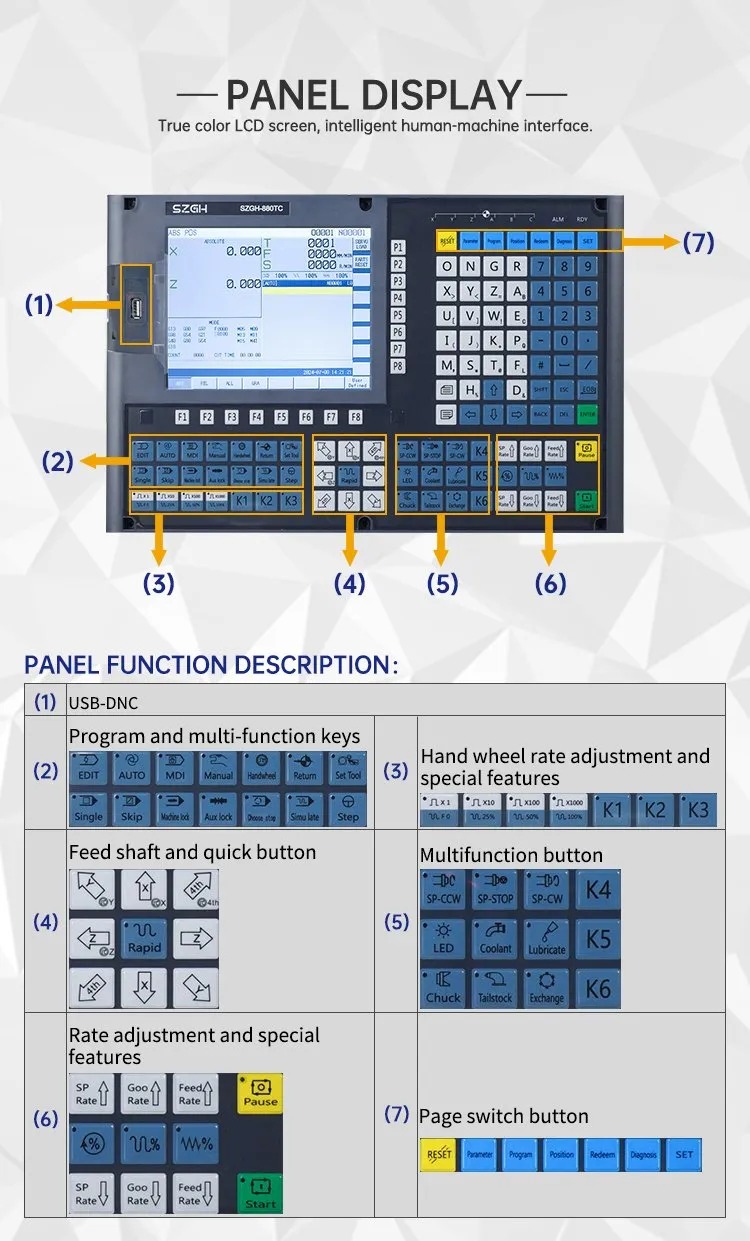

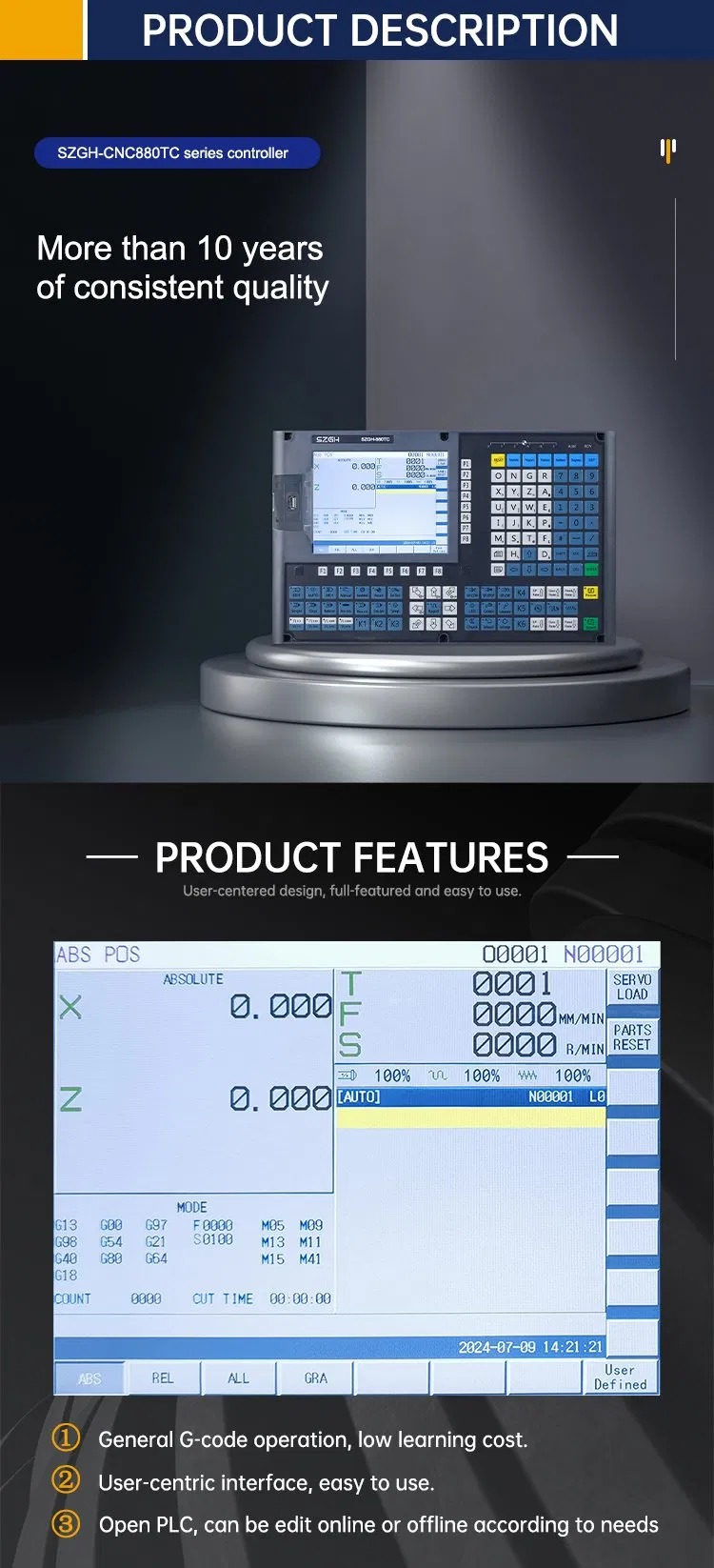

PLC Ladder Diagram — Online Editing on the Display

The defining feature that separates the 880TC from entry-level lathe controllers is its ability to display and edit PLC ladder diagrams directly on the 8.4-inch screen at the machine. In most CNC controllers at this price level, PLC logic modification requires connecting a PC, running proprietary software, and uploading a revised program — a process that takes a maintenance engineer out of the production environment and adds delay to any machine logic change or fault diagnosis.

On the 880TC, the PLC ladder diagram is accessible from the control panel interface. A maintenance engineer can view the current ladder logic running on the machine, identify which rung is active during a fault, and make an edit directly at the panel — then confirm and restart without leaving the machine. For production environments where machine downtime for PLC edits is a cost concern, this capability reduces the time between identifying a logic issue and returning the machine to production.

The 880TC's PLC supports all standard relay logic elements: contacts, coils, timers, counters, and data registers — sufficient for the full range of lathe machine logic including turret indexing interlocks, spindle enable/disable conditions, door safety circuits, and coolant and lubrication control sequences.

Absolute Encoder Support — 17-bit and 23-bit

The 880TC supports both 17-bit (131,072 counts/rev) and 23-bit (8,388,608 counts/rev) absolute encoders on all controlled axes. Absolute encoder operation means:

• No homing cycle at startup — the controller reads the absolute position from the encoder on power-up and knows where each axis is immediately, without requiring the operator to move axes to a reference point

• Position retained after e-stop or power failure — in the event of an unplanned power cut or emergency stop, the controller re-establishes the correct axis position on restart without any manual intervention

• Faster shift start — for production lathes running two or three shifts, eliminating the homing cycle at each startup saves several minutes per shift and eliminates the risk of a homing error at the start of production

17-bit encoders are standard in most servo motor systems from major Asian servo manufacturers. 23-bit encoders are used in higher-resolution applications where finer position feedback is required for surface finish or dimensional accuracy. The 880TC supports both, making it compatible with a wide range of servo drive and motor combinations.

Grating Ruler Signal Feedback

In addition to encoder-based position feedback, the 880TC supports grating ruler (linear scale) signal feedback via differential signal input. Grating ruler feedback provides independent position verification of the actual axis slide position rather than the motor shaft position — eliminating the effect of ballscrew wear, backlash, and thermal expansion on dimensional accuracy.

For lathes where long-term dimensional consistency is a requirement — production turning of precision components, hydraulic fittings, valve bodies, or any application where part diameter or length tolerance is held over extended production runs — grating ruler feedback on the 880TC provides a closed-loop accuracy path that purely encoder-based systems cannot replicate.

56×32 I/O — What the Higher I/O Count Enables

Standard economy CNC lathe controllers typically provide 40×24 I/O. The 880TC's 56×32 I/O gives machine builders and retrofitters a larger number of available input and output channels without stepping up to a more complex or expensive controller platform.

Practical uses of the additional I/O channels on a CNC lathe:

For machine builders integrating a bar feeder, parts catcher, robot loader, or secondary spindle into a CNC lathe, the 880TC's higher I/O count avoids the need for an external I/O expansion module — simplifying the electrical cabinet and reducing wiring complexity.

ATC Support — Four Turret Types

The SZGH-880TC supports four ATC (Automatic Tool Changer) configurations:

Turret logic for all four types is handled within the 880TC's PLC and can be edited on-screen using the ladder diagram display — particularly useful when integrating a non-standard turret or adapting an existing machine's tool change sequence during a retrofit.

3D Teaching Function

The 880TC includes a 3D teaching function that allows operators to define tool paths by manually jogging the machine through key positions and recording coordinates, rather than programming G-code manually. The system constructs the machining sequence from the recorded positions and generates the corresponding program. For small job shops or maintenance facilities where CNC programming skill is limited, the 3D teaching function reduces the operator knowledge required to set up new parts on the machine.

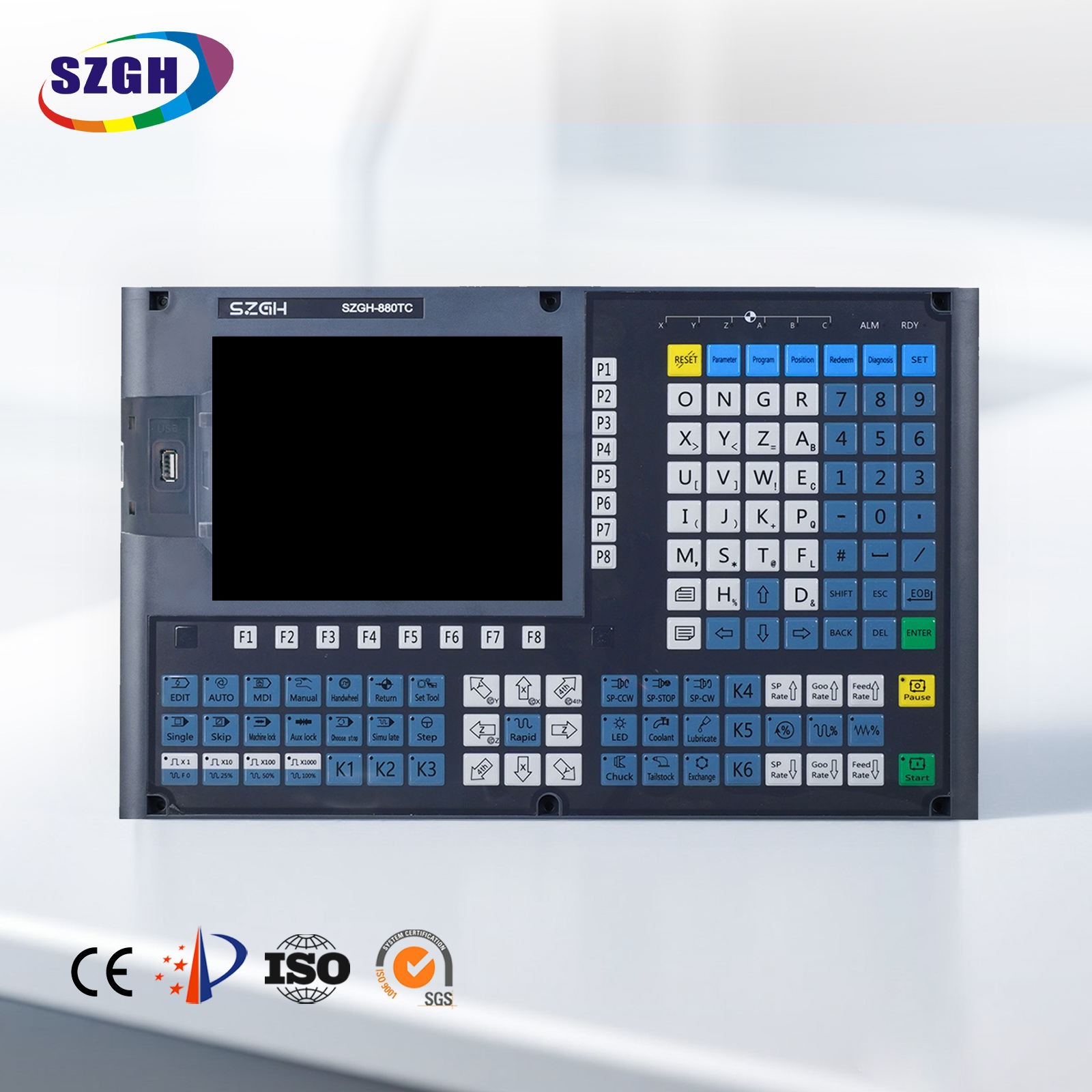

Complete Kit — Plug and Play from the Factory

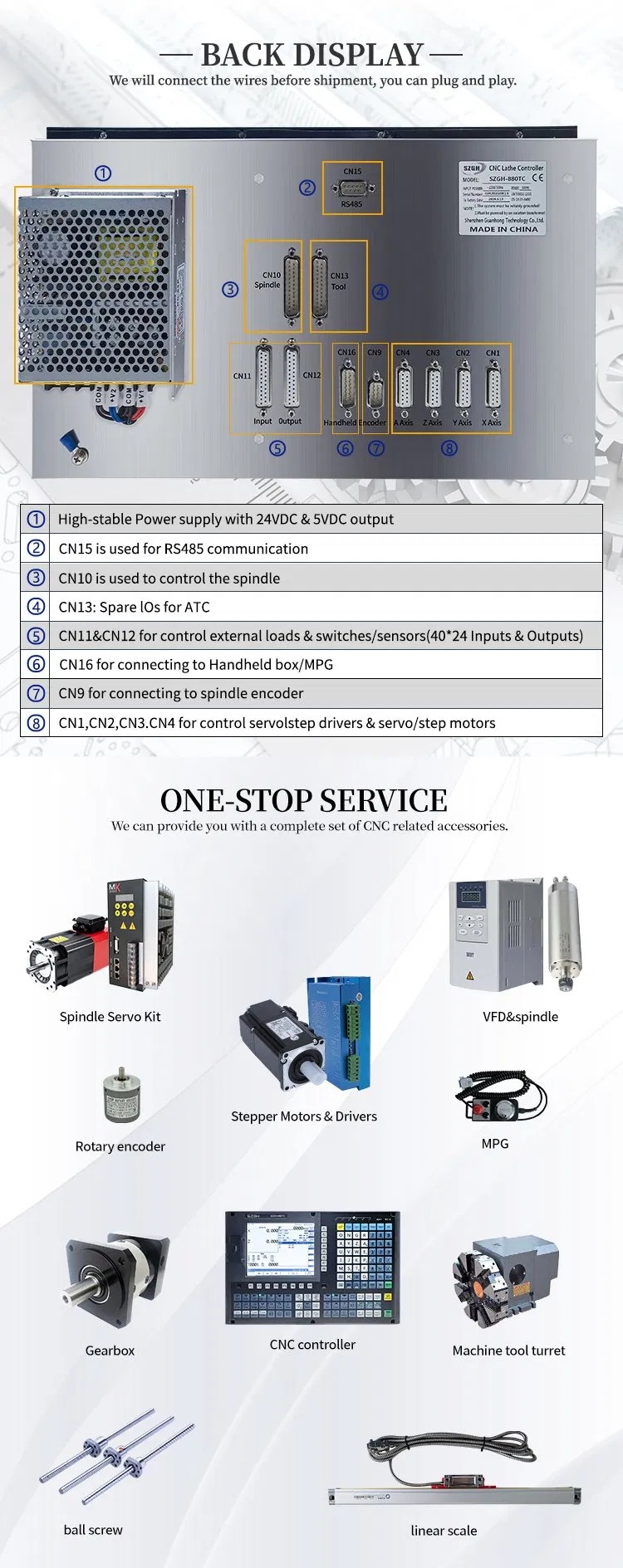

SZGH completes all internal wiring and connections on the 880TC controller assembly before shipment. The unit arrives ready to connect to the machine's servo drives, spindle drive, I/O panel, and operator interface — with no internal controller wiring required on-site. SZGH provides the complete user manual and wiring diagram for the machine integration.

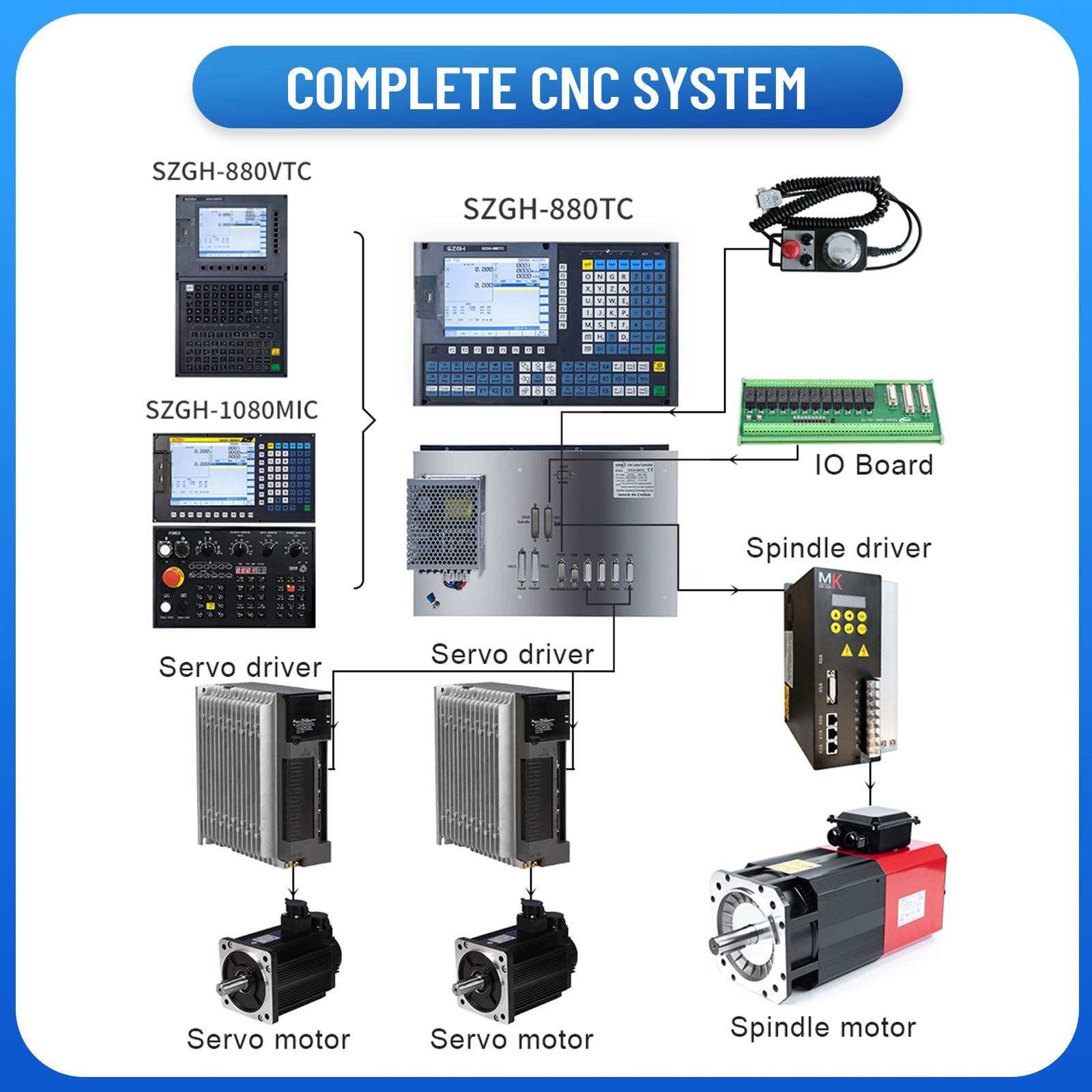

Because SZGH develops and manufactures its own servo motors, servo drives, and CNC controllers, a matched SZGH controller + servo system can be supplied as a complete kit:

• SZGH-880TC controller

• SZGH AC servo motors (X/Z/additional axes)

• SZGH AC servo drives

• SZGH AC servo spindle motor and driver

Sourcing the complete control system from one manufacturer eliminates compatibility uncertainty between controller and drive, simplifies spare parts sourcing, and gives SZGH engineers a single point of reference for remote technical support.
