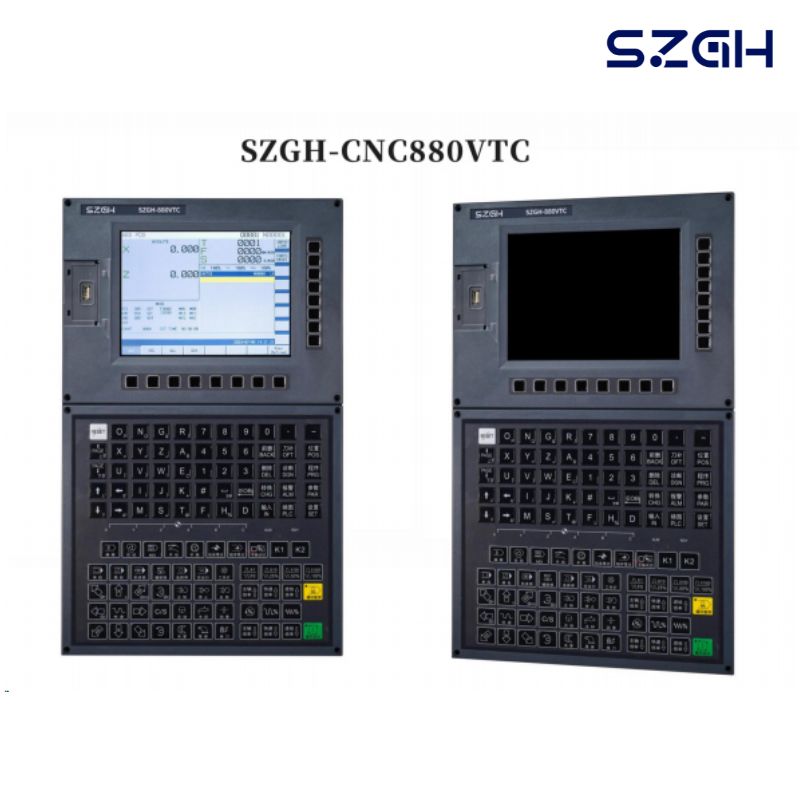

SZGH-CNC880VTC,6-Axis CNC Turning Center Controller,1ms Interpolation , 0.1μm Accuracy , Dual Spindle

The SZGH-CNC880VTC is a 6-axis CNC controller engineered for CNC turning centers, high-specification CNC lathes, and specialty automatic equipment that demand sub-millisecond interpolation, high-resolution position accuracy, and multi-axis coordination. Where the SZGH-880TC covers 3-axis economy lathe control with high I/O, the 880VTC steps up to 6-axis turning center control — including C-axis for milling-on-lathe operations, dual simulated spindle outputs, 1ms interpolation, and 0.1μm selectable control accuracy for precision turned parts.

The 880VTC controls up to 6 feed axes (X, Z, Y, A, B, C) with axis names and types fully definable by parameters, accommodating non-standard axis configurations on special-purpose machines. Its 240 MB program memory holds up to 1,000 programs including subroutines and macros — sufficient for complex multi-part production environments where rapid program switching between job runs is required. The controller supports both metric and imperial programming, four display languages (Chinese, English, Russian, Portuguese), USB flash drive file operations, and a complete tooling compensation suite covering tool length, C-type tool tip radius, wear compensation, and tool life management.

For machine builders and retrofitters selecting a controller for a turning center build — where 3-axis economy control is insufficient but a full bus-servo multi-axis controller represents unnecessary complexity — the 880VTC provides the turning center feature set in SZGH's proven 880-series hardware platform.

SZGH-880TC vs. SZGH-CNC880VTC — Choosing the Right Controller

Both models share the SZGH 880-series platform. The difference is axis count, interpolation speed, and control accuracy — matching each to a different machine class.

Choose the 880VTC for turning centers, dual-spindle lathes, Y-axis lathes, C-axis milling-on-lathe, or any CNC machine requiring more than 3 controlled axes or 1ms interpolation performance.

Choose the SZGH-880TC for 3-axis economy CNC lathes where the priority is high I/O count (56×32), on-screen PLC ladder diagram editing, and absolute encoder support at the lowest system cost.

Technical Specifications

Core Control Parameters

Program & Storage

Tooling Functions

Spindle Functions

Display & Interface

Programming

Key Features & Advantages

6-Axis Control Including C-Axis — Full Turning Center Capability

The 880VTC controls up to 6 feed axes — X, Z, Y, A, B, C — with axis names and axis types fully definable by controller parameters. The C-axis (spindle orientation axis) enables milling-on-lathe operations: live tool milling, radial and axial drilling, cross-drilling, and slot milling performed on a turning center without part transfer to a separate machining center. For turned parts requiring secondary milling features — bolt hole patterns, keyways, flats, or hexagonal profiles — C-axis capability on the 880VTC eliminates the second operation setup entirely.

The Y-axis parameter support allows configuration of off-center turning center builds where the tool post travels off the center line — enabling asymmetric feature machining that standard 2-axis or 3-axis lathe controllers cannot address.

1ms Interpolation — Faster Response, Smoother Surface Finish

The 880VTC executes interpolation calculations every 1 millisecond — twice the update rate of the 880TC's 2ms cycle. At higher cutting speeds and feedrates, a shorter interpolation cycle means the controller issues position updates to the servo drives more frequently, reducing the deviation between the programmed path and the actual tool path. In practical production terms: at the same cutting speed, the 880VTC produces smoother surface finish on profiled turning operations, smaller positional error on compound-angle cuts, and more stable servo response during direction reversals at tight corners.

For turning centers cutting precision hydraulic valve bodies, automotive fuel system components, bearing journals, or medical device shafts — where surface finish and roundness directly affect part function — the 1ms interpolation cycle is a meaningful specification, not a marketing number.

0.1μm Control Accuracy — Selectable for Precision Applications

The 880VTC's control accuracy is selectable between 1μm (standard) and 0.1μm. At 0.1μm resolution, the controller is issuing position commands to the servo drives at ten times the resolution of a standard 1μm system. This selectable high-resolution mode is applicable when:

• The machine's linear scales or high-resolution encoders can provide matching feedback resolution

• Part tolerances require diameter accuracy held to within 0.002–0.005 mm over a production run

• Fine-thread cutting or precision bore finishing requires the smallest possible commanded step size

For standard production turning of commercial-tolerance parts, 1μm is sufficient. The 0.1μm mode is available for process engineers who need to extract maximum dimensional accuracy from high-specification servo systems.

Dual Simulated Spindle — 0~10V Analog Output

The 880VTC provides two channels of 0~10V analog voltage output for dual spindle control. This enables:

• Dual-spindle turning centers — simultaneous control of main spindle and sub-spindle (counter-spindle) speed, with independent analog command to each spindle drive

• Main spindle + live tool spindle — separate speed control for the main turning spindle and the live tool motor on a Y/C-axis turning center

• Synchronized spindle operations — part transfer from main to sub-spindle with coordinated speed matching to minimize part marking at handoff

The servo spindle adapter function adds continuous spindle positioning (C-axis operation), rigid tapping, and rigid thread machining to the spindle drive interface — enabling the spindle to function as a controlled rotary axis rather than just a speed-controlled motor.

55×42 I/O — More Outputs for Complex Machine Wiring

The 880VTC provides 55 inputs × 42 outputs. The higher output count (42 vs 32 on the 880TC) reflects the peripheral complexity of turning centers: hydraulic clamp/unclamp signals for the chuck and tailstock, multiple coolant zone outputs, live tool enable/disable per station, chip conveyor control, door lock and safety interlocks, bar feeder interface, parts catcher signals, and secondary spindle enable — all running simultaneously in a turning center that a 3-axis lathe does not require. The 880VTC's I/O count is sized for these machine types without requiring external I/O expansion modules.

One-way handwheel input with handheld pendant support allows manual jogging during setup and part proving — standard on turning centers where the operator needs to approach the workpiece from the machine side during setup rather than at the control panel.

Four Language Display — Chinese / English / Russian / Portuguese

Display language is selectable between Chinese, English, Russian, and Portuguese via controller parameters — no hardware change required. For machine builders and OEM exporters shipping turning centers to multiple markets, a single controller SKU covers the four primary language markets: domestic China (Chinese), EU/North America/Southeast Asia (English), CIS/Eastern Europe (Russian), and Brazil/Portuguese-speaking markets (Portuguese). Operator training materials and parameter documentation are available from SZGH in all four languages.

240 MB Program Memory — 1,000 Programs Including Subroutines and Macros

The 880VTC's 240 MB program storage holds up to 1,000 part programs, subroutines, and macro programs simultaneously. For job shop turning centers running high-mix production — where dozens of active programs for different customer parts need to be resident on the controller simultaneously — 1,000-program capacity eliminates the need to load and unload programs from USB between job runs. Complex turning center programs that call multiple subroutines and parametric macro routines for family-of-parts machining are supported within the same 240 MB capacity.

Full Tooling Compensation Suite

The 880VTC supports a complete tooling compensation package standard:

• Tool length compensation — automatic offset application when a new tool is loaded, eliminating manual Z-offset re-entry between tools

• Tool tip radius compensation (C-type) — adjusts the programmed path for the physical radius of the turning insert tip, maintaining dimensional accuracy on profiled and angular surfaces without requiring programmed path adjustment for each insert nose radius specification

• Tool wear compensation — incremental offset adjustment to account for gradual tool wear during a production run, extending the period between tool changes while holding dimensional tolerance

• Tool life management — tracks cutting time or part count per tool, alerts the operator when a tool has reached its life limit, and optionally substitutes a replacement tool from the turret automatically

Applications

The SZGH-CNC880VTC is designed for CNC turning centers, high-specification CNC lathes, and specially configured automatic machining equipment.

Typical parts produced:

Bearing journals, precision hydraulic valve bodies, automotive fuel injector bodies, transmission shafts, medical implant trial components, aerospace turned blanks, precision collets and spindle components, thin-wall aluminum housings, threaded fittings, and complex turned profiles requiring C-axis secondary milling features.

Frequently Asked Questions

Q: What is the difference between the SZGH-880TC and the SZGH-CNC880VTC?

The 880TC is a 3-axis economy controller for standard CNC lathes, optimized for high I/O count (56×32), on-screen PLC ladder diagram editing, and absolute encoder support at minimal system cost. The 880VTC is a 6-axis turning center controller with 1ms interpolation, 0.1μm selectable accuracy, dual simulated spindle outputs, C-axis and Y-axis support, and 55×42 I/O — designed for turning centers and complex lathes rather than economy 2-or-3-axis lathe builds. If the machine has more than 3 controlled axes, a C-axis, a sub-spindle, or live tooling, the 880VTC is the appropriate choice.

Q: Does the 880VTC support C-axis for live tool (milling-on-lathe) operations?

Yes. C-axis is one of the 6 definable feed axes. With the servo spindle adapter function, the main spindle motor is controlled as a positioning axis (C-axis) for live tool milling, radial drilling, cross-drilling, and slot milling on the turning center. The controller coordinates C-axis position with X, Z, and Y movements for compound milling operations on turned parts.

Q: Can the 880VTC control a dual-spindle turning center (main spindle + sub-spindle)?

Yes. The 880VTC provides two independent 0~10V analog voltage outputs — one for the main spindle drive and one for the sub-spindle drive. The servo spindle adapter function enables synchronized spindle operations including speed-matched part handoff from main to sub-spindle. The 55×42 I/O provides sufficient channels for the full peripheral wiring of a dual-spindle turning center without requiring external I/O expansion.

Q: What does 0.1μm control accuracy mean in practice for a turning center?

Control accuracy refers to the minimum commanded position increment the controller sends to the servo drive. At 0.1μm, the controller can command axis movements in 0.0001mm steps. This is selectable — for standard commercial turning, 1μm is used; for precision bore finishing, valve body turning, or high-tolerance journal turning where part diameter must be held to ±0.002mm, 0.1μm mode provides finer position command resolution. The actual achievable part accuracy also depends on the machine's mechanical specification (ballscrew pitch error, thermal stability, servo tuning) — 0.1μm controller accuracy is a necessary but not sufficient condition for 0.002mm part tolerance.

Q: Is the 880VTC compatible with standard G-code programs from CAM software?

Yes. The 880VTC accepts standard ISO G-code output from CAM packages. When setting up a post-processor, use a generic Fanuc 0i-T (turning) or equivalent post. Operators familiar with Fanuc or Siemens turning center G-code will find the 880VTC panel interface immediately familiar. Programs can be transferred via USB flash drive directly to the controller's 240MB memory.

Q: What languages does the 880VTC display support?

Chinese, English, Russian, and Portuguese — selectable via parameters. Language switching does not require a controller restart or hardware change. This makes the 880VTC suitable for machine builders exporting to CIS/Eastern Europe (Russian), Brazil (Portuguese), English-speaking markets, and domestic Chinese production.

Q: Can the 880VTC be supplied as a complete kit with SZGH servo motors and drives?

Yes. SZGH manufactures servo motors, servo drives, and spindle servo systems in-house. A complete 880VTC-based turning center control kit can be supplied: 880VTC controller, SZGH AC servo motors and drives for feed axes, and SZGH AC servo spindle motor and driver. Sourcing the complete system from SZGH provides confirmed drive-controller compatibility, a single point of contact for remote technical support, and simplified spare parts management.

Q: What rigid tapping capability does the 880VTC support?

The servo spindle adapter function enables rigid tapping — synchronized spindle rotation and Z-axis feed movement for tapping operations without a floating tapping chuck. Rigid tapping is also supported for C-axis live tool stations on turning centers equipped with tapping heads. Thread quality from rigid tapping is consistent across the production run because the tap pitch is controlled by the servo system rather than mechanical spring float.

Certifications & Quality Assurance

• CE Certified — complies with EU Machinery Directive 2006/42/EC; full CE documentation for EU customs clearance

• ISO 9001:2015 — certified quality management system across design, manufacturing, and after-sales

• National High-Tech Enterprise — recognized by China's Ministry of Science and Technology since 2018

• 100+ patents — covering control algorithms, spindle integration, I/O architecture, and interpolation methods

• Pre-shipment functional test — all controller units complete axis interpolation, I/O, and spindle output verification before shipment

• Complete wiring documentation — user manual and machine integration wiring diagram supplied with every unit

Request a Quote

When enquiring, please provide: (1) machine type (turning center / dual-spindle lathe / special equipment), (2) required axis count and axis types (X/Z/Y/C/A/B), (3) spindle configuration (single / dual / with live tooling), (4) required I/O count and peripheral equipment (bar feeder, parts catcher, robot interface), (5) destination country. SZGH will confirm the correct 880VTC configuration and provide a CIF quotation for controller-only or complete kit supply.

Lead time: 5–7 working days (standard); express options available

Warranty: 12 months on all components (consumables excluded)

After-sales: 24-hour one-to-one CNC engineer support via WhatsApp / remote video diagnostics
